Volta

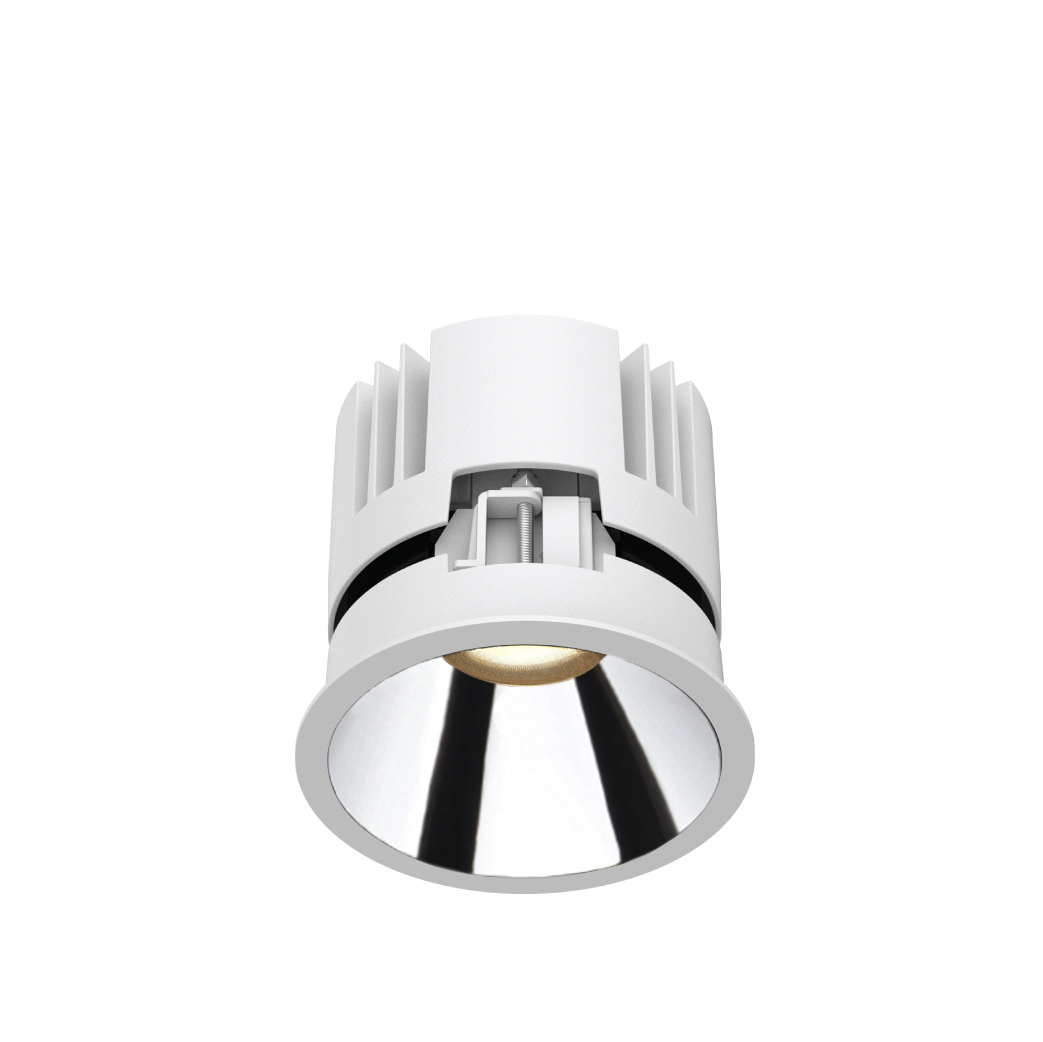

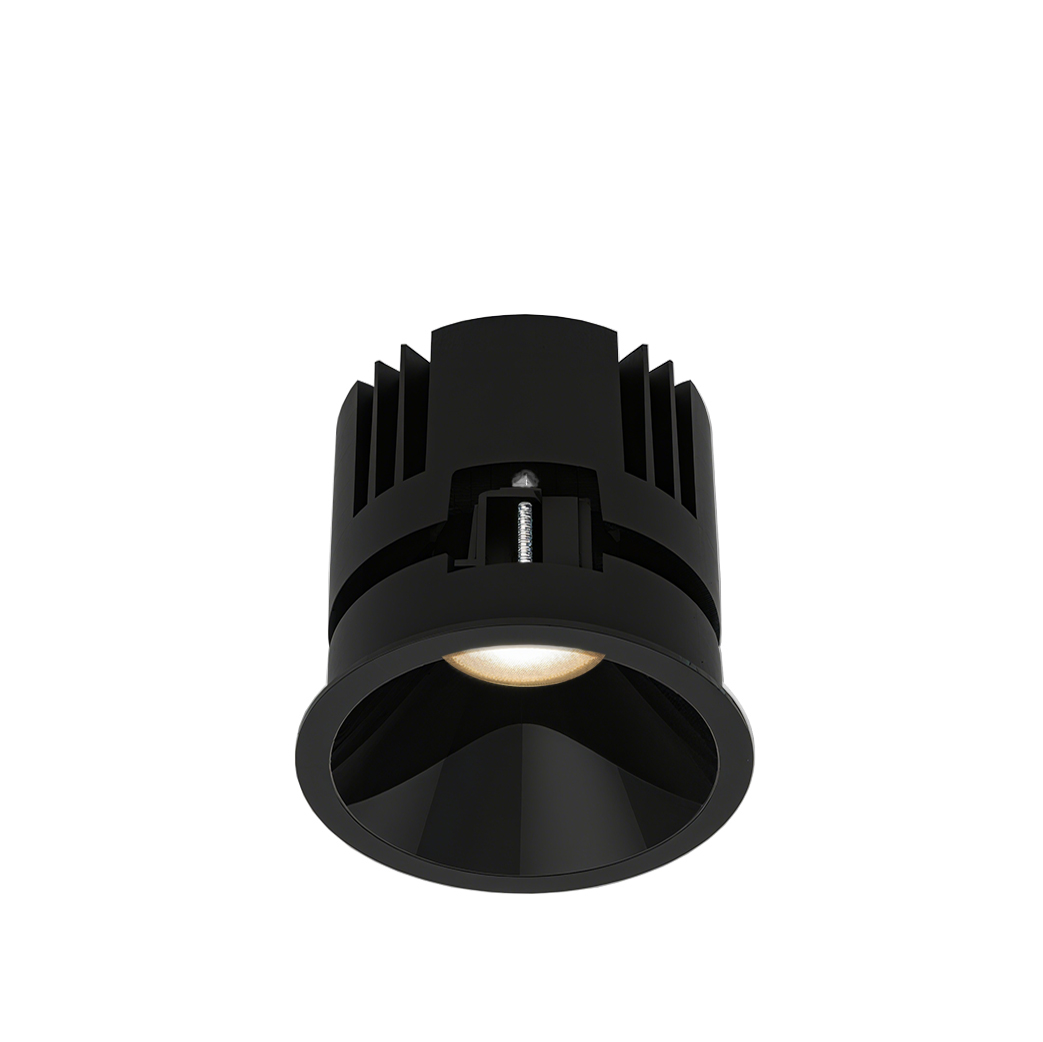

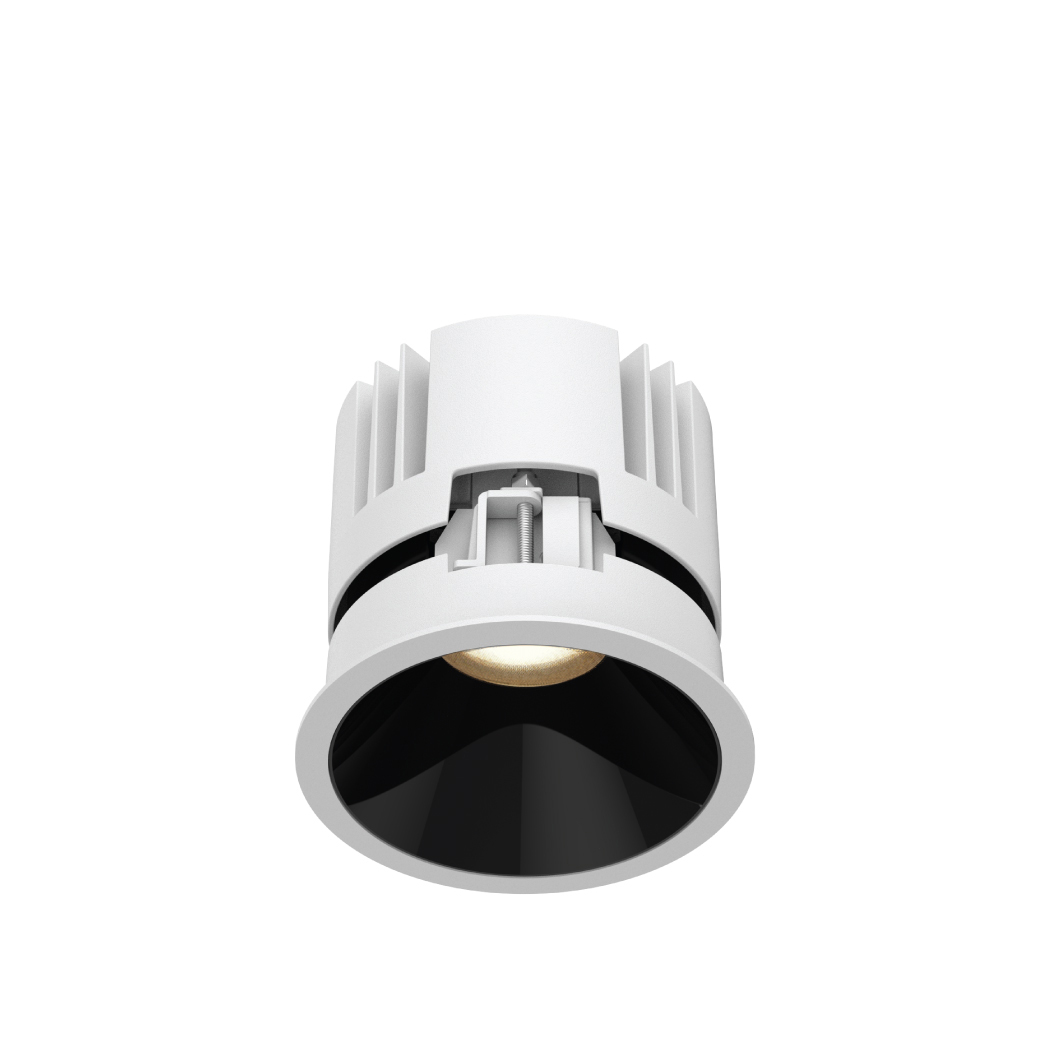

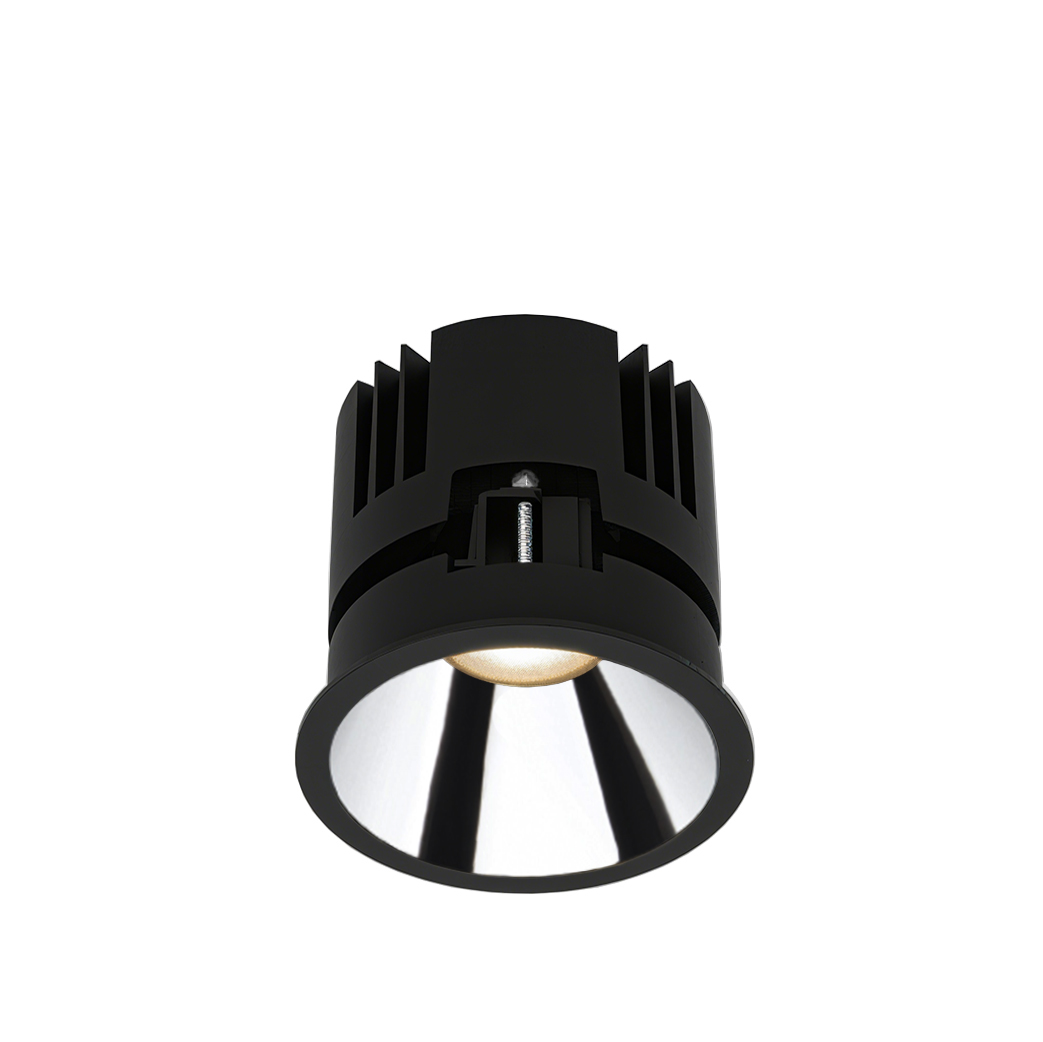

VOLTA Round Fixed
ADLT41/ADLT51/ADLT61 4/5/6"
Refined in form and exacting in performance, VOLTA Round Fixed brings quiet precision to the ceiling plane. The narrow trim profile, paired with a precision lens and black mirror reflector, produces powerful yet disciplined illumination with advanced anti-glare performance. A sealed optical chamber safeguards reliability in demanding or humid environments. With interchangeable reflectors and optical accessories, VOLTA Round Fixed adapts seamlessly to evolving project needs while maintaining specification-grade consistency.
Features

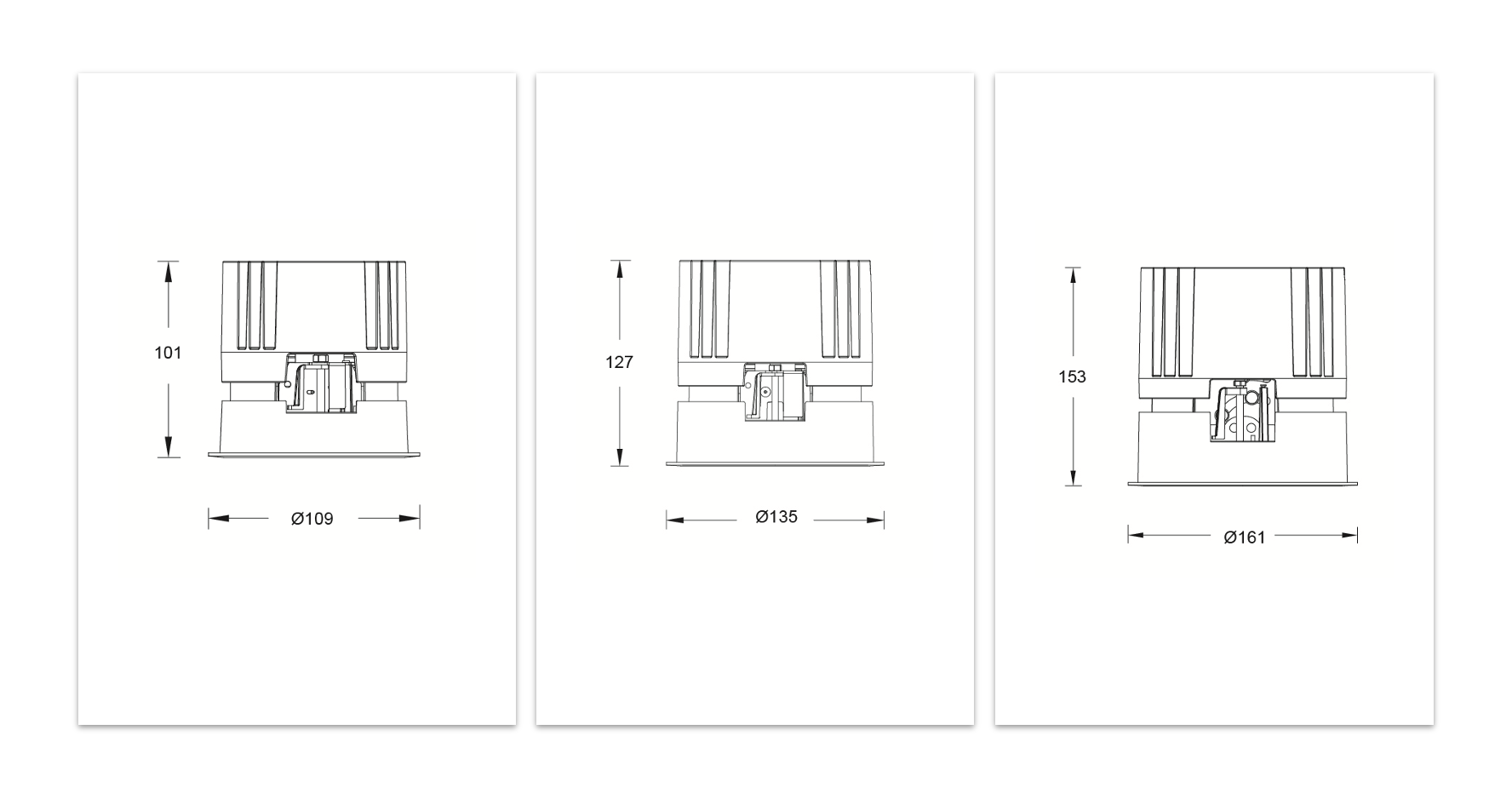

Line drawing VOLTA Downlight Series
Detailed Line Drawing for 4/5/6" Fixture

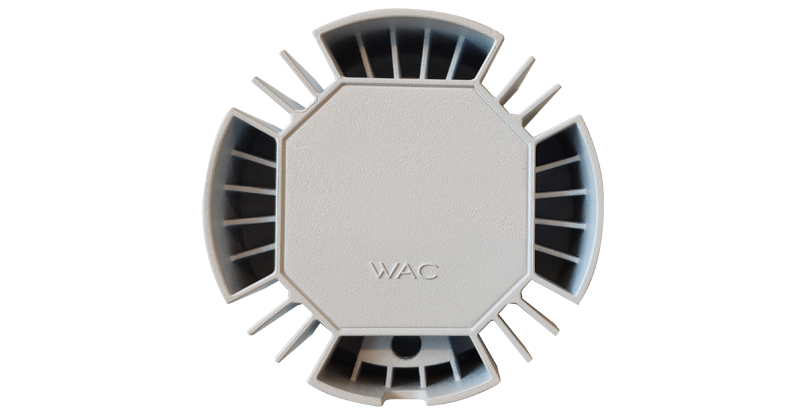

High thermal performance
Convection cooling + Enclosed chimney cooling to enhance thermal performance

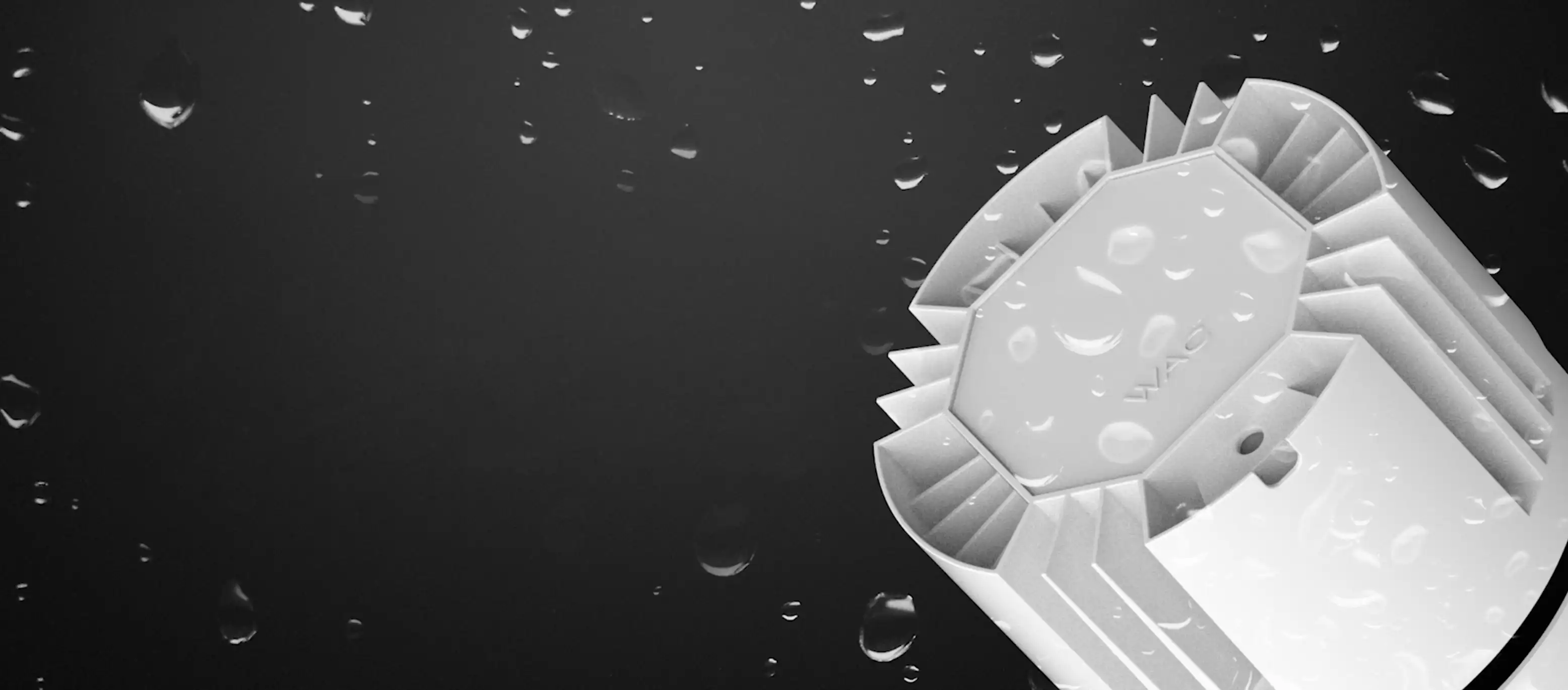

IP44 sealed light source chamber design
Ensures stable performance in humid environment
No light spot spill out (right VOLTA)
Actual light effect with clean, soft spot and no stray light
Videos
VOLTA
Projects
Specifications
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT Downlight T series | 4 4” | 1 Round Trim | LD08 LED 8W | E On-Off D 0-10V Dimming | S 8° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT Downlight T series | 4 4” | 1 Round Trim | LM13 COB 13W LM18 COB 18W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT Downlight T series | 4 4” | 1 Round Trim | LM18 COB 18W | A DALI N No Driver | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT Downlight T series | 5 5” | 1 Round Trim | LD24 LED 24W | E On-Off D 0-10V Dimming | S 8° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT Downlight T series | 5 5” | 1 Round Trim | LM18 COB 18W LM25 COB 25W LM32 COB 32W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT Downlight T series | 5 5” | 1 Round Trim | LM32 COB 32W | A DALI N No Driver | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT Downlight T series | 6 6” | 1 Round Trim | LD32 LED 32W | E On-Off D 0-10V Dimming | S 8° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT Downlight T series | 6 6” | 1 Round Trim | LM32 COB 32W LM43 COB 43W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT Downlight T series | 6 6” | 1 Round Trim | LM43 COB 43W | A DALI N No Driver | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Example: ADLT61-LM43E-230SWT
