FUEGO PRO

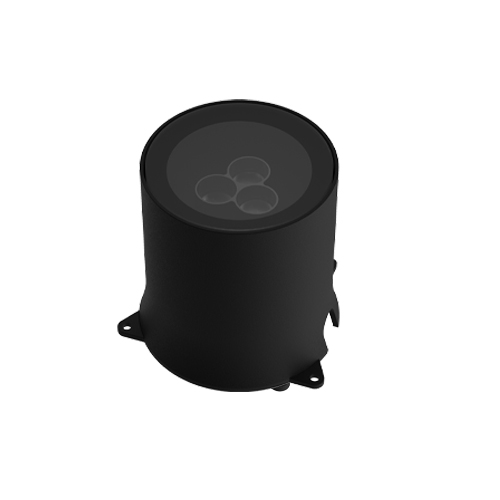

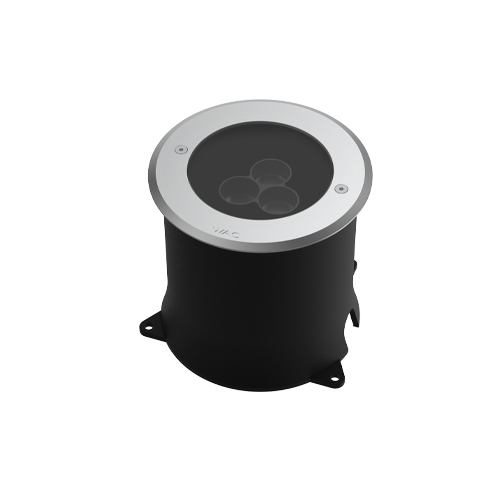

FUEGO PRO Round 7

AEIR1S/Round In-ground Light 7W
Versatile and weather-resistant, FUEGO PRO Round 7 features IP67 protection and patented anti-condensation engineering. Symmetrical and asymmetrical distributions support wall-wash, graze, and projection effects, while on-site adjustability from 0°–20° enhances flexibility. Available in 24V DC or 220V AC configurations for diverse architectural applications.

Specifications

ModelCommentPower
(W)		LEDs
(Quantity)  		 Max Lumens
(lm)  		Control SystemsBeamCCTFinish
AEIR1ST  Frameless
07    7(Max)3356ET  ON-OFF
24V DC Power Supply
MT  DMX512 Dimming
24V DC Power Supply
EL  ON-OFF
220V AC Power Supply		S    8°
1    15°
2    25°
4    45°		30  3000K
40  4000K

B  Black


ModelCommentPower
(W)		LEDs
(Quantity)  		 Max Lumens
(lm)  		Control SystemsBeamCCTFinish
AEIR1SF   Frame07    7(Max)3356ET  ON-OFF
24V DC Power Supply
MT  DMX512 Dimming
24V DC Power Supply
EL  ON-OFF
220V AC Power Supply		S    8°
1    15°
2    25°
4    45°		30  3000K
40  4000K

S  Stainless Steel

Example: AEIR1ST-07ET-S30-B

Documents
