ELANA PRO

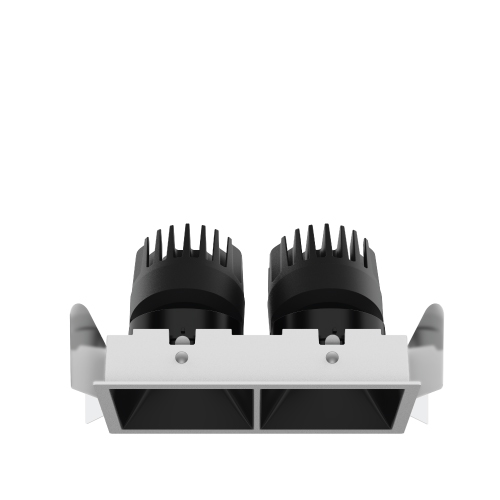

ELANA PRO Multi Square Trim Fixed & Adj.
AMTH35 3" Square Trim Multiple Spot Lights
Layered performance defines ELANA PRO Multi Square Trim Fixed & Adj. Combining downlighting and adjustable accent capability within a single narrow-trim square format, it supports sophisticated lighting compositions. Precision optics and high-quality reflectors ensure beam integrity and visual comfort, making it well suited to high-end hospitality, commercial, and office environments.
Features

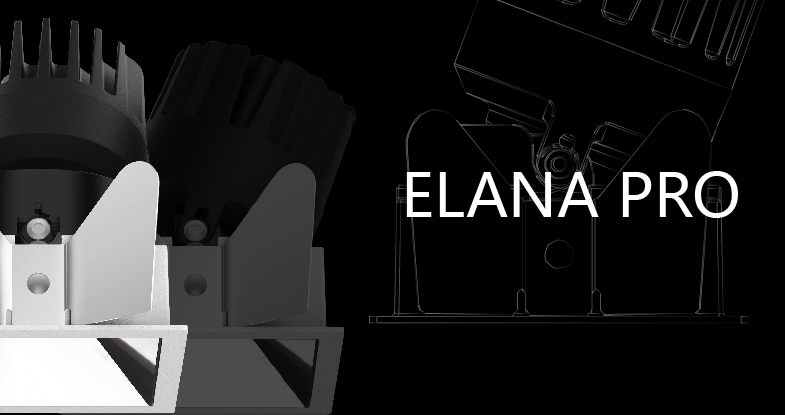

Integration of fixed angle adjustable downlight
The stability of fixed downlight and the flexibility of adjustable downlight, 2in1 fixture
Extra large anti-glare sheilding angle
Honeycomb + 40° anti-glare angle reflector, double guarantee, provide the ultimate comfortable visual experience
Projects
Specifications
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
AMTH Multiple Downlight H series | 3 3” | 5 Rectangular Trim | 207 COB 2*7W 210 COB 2*10W 213 COB 2*13W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 40 4000K | B Black S Specular | WT White |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
AMTH Multiple Downlight H series | 3 3” | 5 Rectangular Trim | 213 COB 2*13W | A DALI N No Driver | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 40 4000K | B Black S Specular | WT White |
Example: AMTH35-210E230SWT, factory standard for 15 ° is with honeycomb, not for other beam angles.
