ELANA PRO

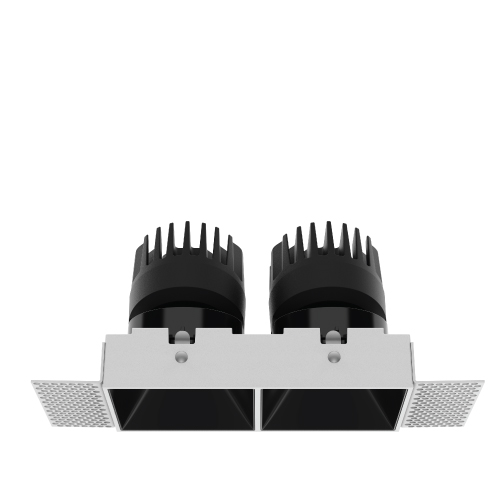

ELANA PRO Multi Square Fixed & Adj.
AMTH36 3" Square Trimless Multiple Spot Lights
Integrated versatility characterizes ELANA PRO Multi Square Fixed & Adj. The trimless recessed configuration merges downlighting and adjustable functionality within one disciplined architectural form. Advanced lens and reflector systems preserve beam definition and visual comfort, supporting refined lighting strategies in hotels, commercial, and office spaces.
Features

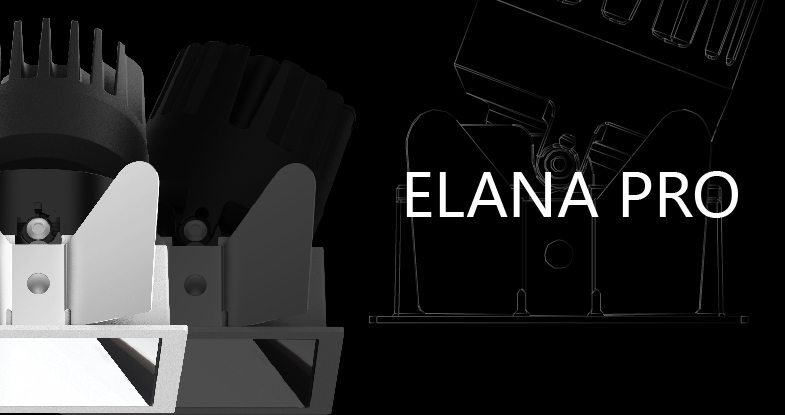

Integration of fixed angle adjustable downlight
The stability of fixed downlight and the flexibility of adjustable downlight, 2in1 fixture
Extra large anti-glare sheilding angle
Honeycomb + 40° anti-glare angle reflector, double guarantee, provide the ultimate comfortable visual experience
Projects
Specifications
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
AMTH Multiple Downlight H series | 3 3” | 6 Rectangular Trimless | 207 COB 2*7W 210 COB 2*10W 213 COB 2*13W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 40 4000K | B Black S Specular | WT White |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
AMTH Multiple Downlight H series | 3 3” | 6 Rectangular Trimless | 213 COB 2*13W | A DALI N No Driver | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 40 4000K | B Black S Specular | WT White |
Example: AMTH36-210E230SWT, factory standard for 15 ° is with honeycomb, not for other beam angles.
