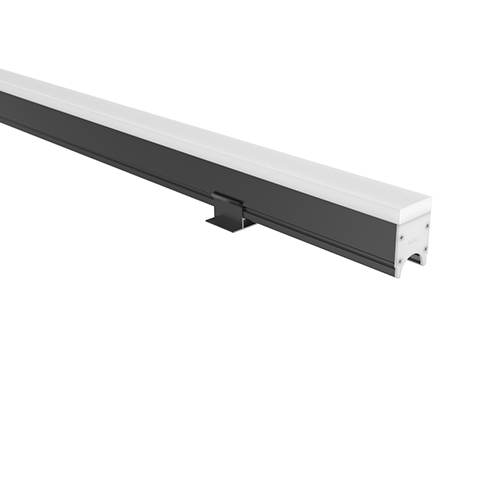

BEACON X3 Accent D2
Specifications
| Model | Length(mm) | Power(W) | LEDs(Qty) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
| AELD203-04 | 250 | 4(Max) | 18 | 134 | ET ON-OFF 24V DC Power Supply | P Three-side illuminated | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length(mm) | Power(W) | LEDs(Qty) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
| AELD205-08 | 500 | 8(Max) | 36 | 267 | ET ON-OFF 24V DC Power Supply | P Three-side illuminated | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length(mm) | Power(W) | LEDs(Qty) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
| AELD210-16 | 1000 | 16(Max) | 72 | 534 | ET ON-OFF 24V DC Power Supply | P Three-side illuminated | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length(mm) | Power(W) | LEDs(Qty) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
| AELD203-04 | 250 | 4(Max) | 18 | 134 | MT DMX512 Dimming 24V DC Power Supply | P Three-side illuminated | 1 1 Phase B 12 Phase | 27 2700K 30 3000K 40 4000K F3 RGBW(3000K) F4 RGBW(4000K) F6 RGBW(5700K) CC Tunable White | BK Black |
| Model | Length(mm) | Power(W) | LEDs(Qty) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
| AELD205-08 | 500 | 8(Max) | 36 | 267 | MT DMX512 Dimming 24V DC Power Supply | P Three-side illuminated | 1 1 Phase B 12 Phase | 27 2700K 30 3000K 40 4000K F3 RGBW(3000K) F4 RGBW(4000K) F6 RGBW(5700K) CC Tunable White | BK Black |
| Model | Length(mm) | Power(W) | LEDs(Qty) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
| AELD210-16 | 1000 | 16(Max) | 72 | 534 | MT DMX512 Dimming 24V DC Power Supply | P Three-side illuminated | 1 1 Phase B 12 Phase | 27 2700K 30 3000K 40 4000K F3 RGBW(3000K) F4 RGBW(4000K) F6 RGBW(5700K) CC Tunable White | BK Black |
Example: AELD210-16MTP127BK
