SHINE PRO

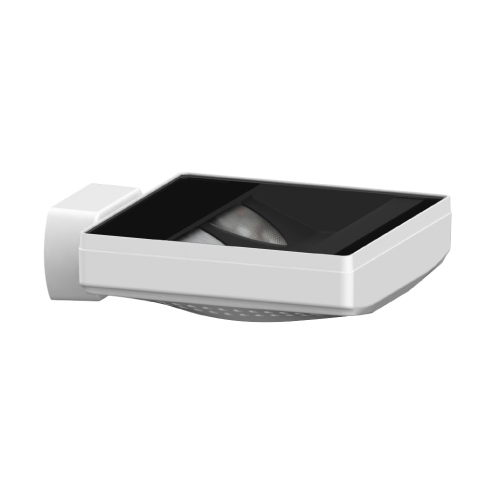

SHINE PRO Ceiling Wash
AEW3C Wall Mounted Ceiling Wall Washer
Ceiling planes become luminous architectural elements with SHINE PRO Wash Ceiling. Its ultra‑thin wall‑mounted form integrates cleanly into high public spaces while offering horizontal or vertical distribution options. Advanced optics and angular structural design deliver controlled ceiling washing with refined visual comfort.
Features

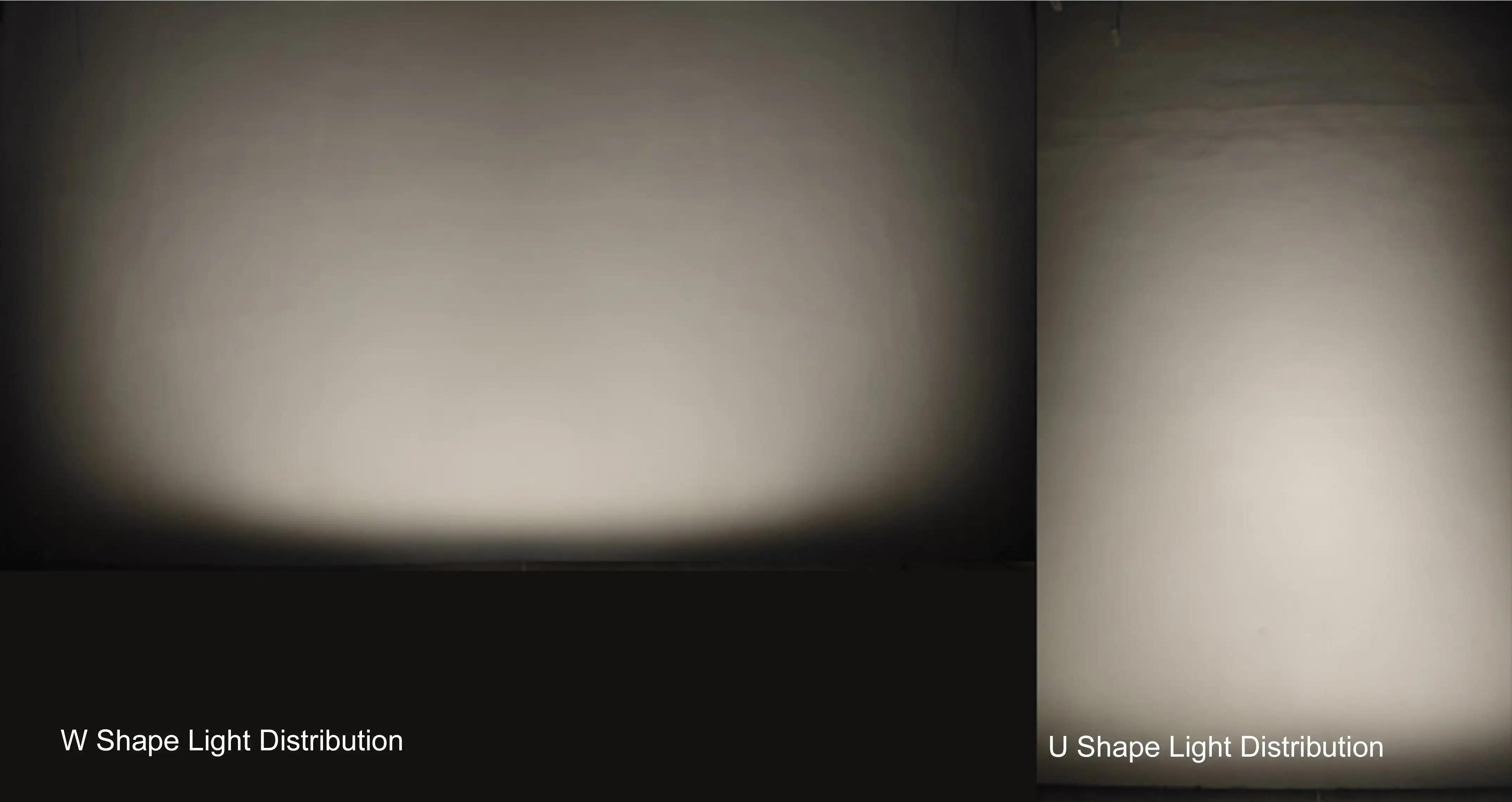

Two Optical Distributions for Flexible Wash Applications
SHINE PRO offers both W-shaped and U-shaped light distributions to support horizontal and vertical wash applications. Its asymmetric optical design directs light precisely across the target surface, helping maximize usable light and maintain a smooth, controlled wash even under limited mounting conditions.
Wide Fixture Spacing. Consistent Wash Effect.

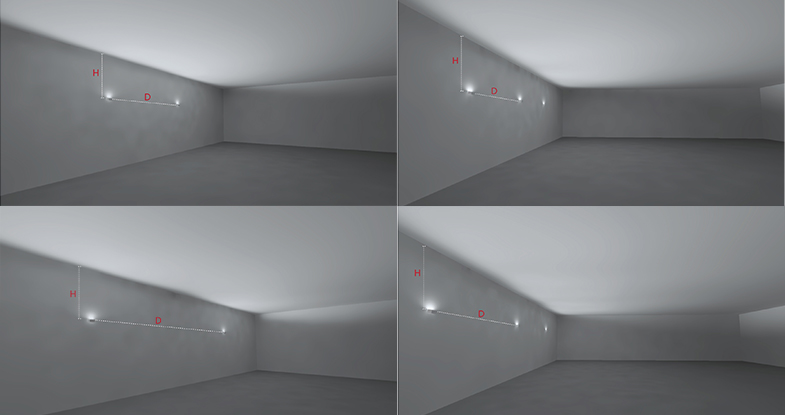

The comparison below shows the wash performance under different height-to-spacing ratios.
Left: horizontal wash, H = 1:2.5 and 1:4.5.
Right: vertical wash, H = 1:2 and 1:3.
Videos
SHINE PRO Wash Ceiling
Specifications
| Model | Comment | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
AEW3 | C Ceiling Wash | 40 40(Max) | COB | 2251 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | U Washer (1:3) W Washer (1:4.5) | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
Example: AEW3C-40ELU27BK
Note: Wall wash ratio refers to the ratio of the distance of the luminary from the ceiling to the distance between the two lamps, see the installation diagram for details.
