OCULARC FOCUS

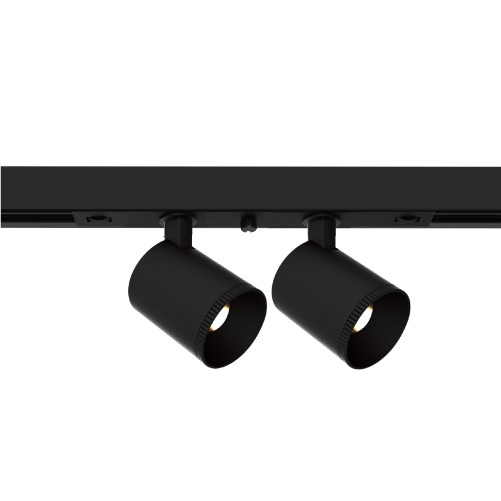

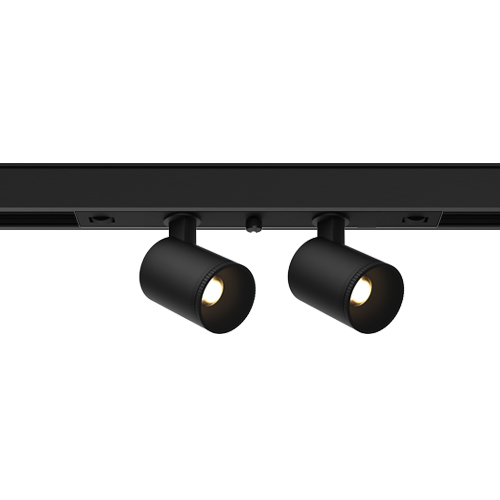

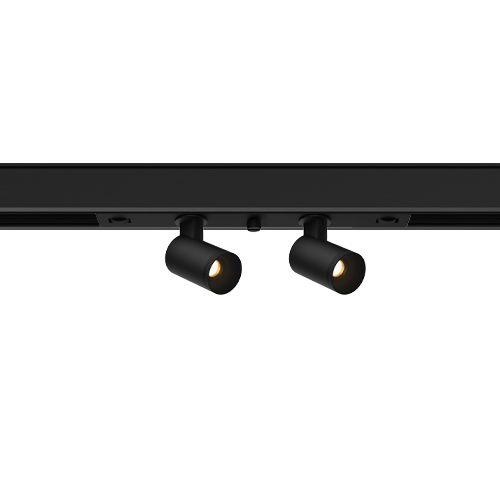

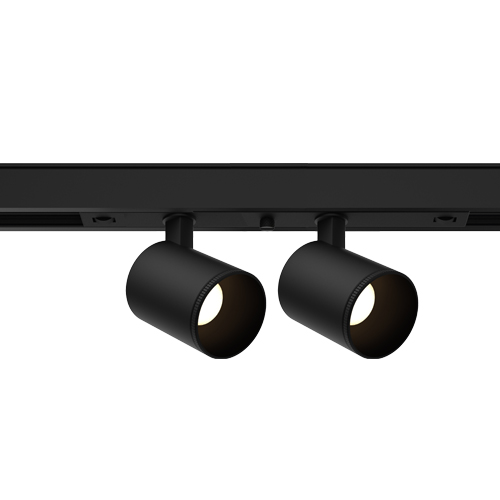

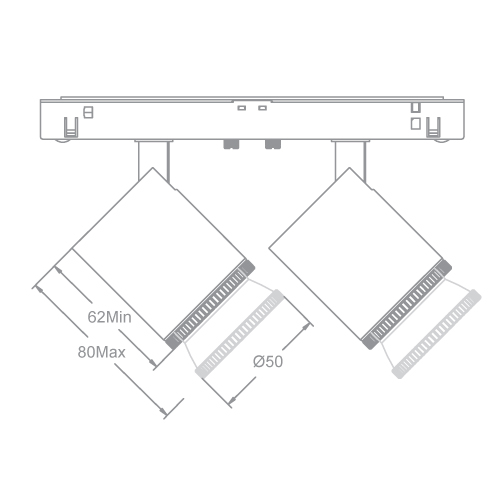

OCULARC FOCUS Track Twin Zoomable
SL45F/SL46F/SL47F/SL48F Mini Zoomale Tracklight
Museum‑grade flexibility defines OCULARC FOCUS Track Twin Zoomable. Designed for the WAC mini track system, it integrates SUBROSA® concealed optical technology with disciplined glare control. Zoomable functionality supports precise light shaping in display and gallery environments.
Features

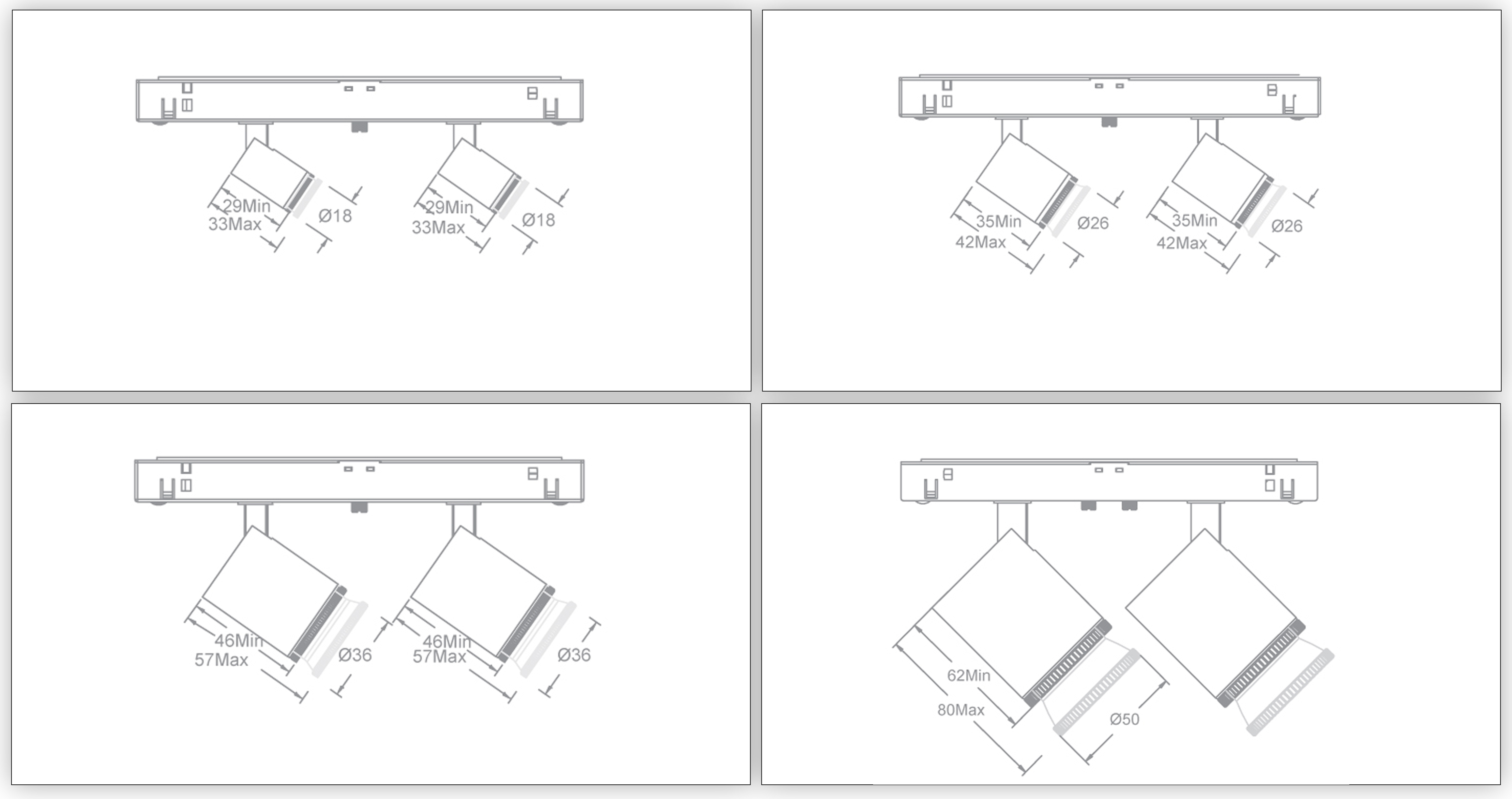

Ocularc Series Showcase Lights, Super Small Size

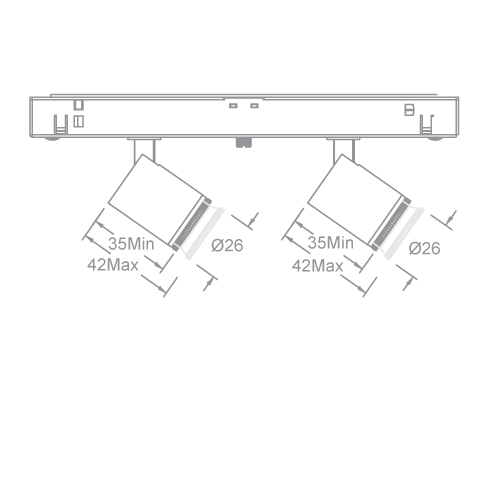

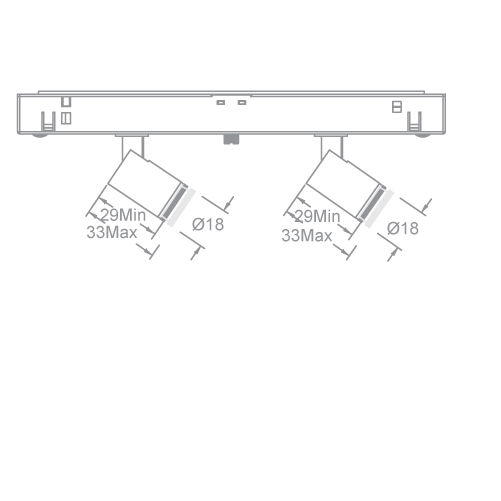

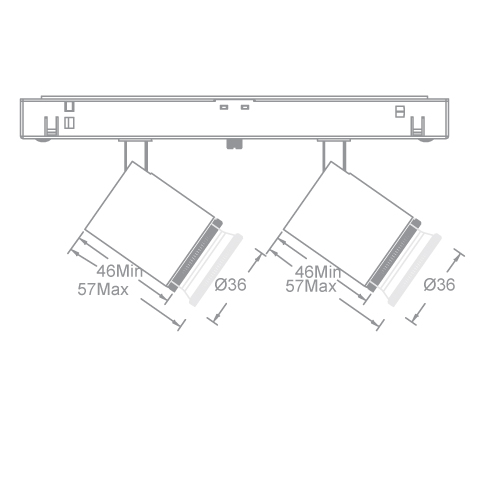

The Ocularc series shwocase lighting, utilize an advanced forging process, sophisticated, compact and dynamic. The series offers 18mm, 26mm, 36mm, and 50mm diameter options, while beam angle adjustment can be achieved by rotating the face frame.
Adjustable beam angle
In addition to the loading of WAC's patented optical technology SUBROSA® Hidden Light System, which comes with a 30°anti-glare angle in the Extreme Space, the beam angle is adjustable from 6°-60° at the same time.
Multiple installation options available
The Ocularc series offers three mounting options, track mount, surface mount (ceiling & recessed), and pole mount, to meet the needs of a wide variety of installations.
Specifications
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
SL45F Ocularc Focus | LD02 LED 2*1W | O On-boarding E ON-OFF | F 10°-40° | 9 90 A 97 | 30 3000K 40 4000K | BK Black |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
SL46F Ocularc Focus | LD06 LED 2*3W | O On-boarding E ON-OFF | F 6°-40° | 9 90 A 97 | 30 3000K 40 4000K | BK Black |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
SL46F Ocularc Focus | LD06 LED 2*3W | O On-boarding E ON-OFF | F 8°-40° | A 97 | 30 3000K 40 4000K | BK Black |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
SL47F Ocularc Focus | LD10 LED 2*5W | O On-boarding E ON-OFF | F 8°-40° | 9 90 A 97 | 30 3000K 40 4000K | BK Black |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
SL48F Ocularc Focus | LD20 LED 2*10W | O On-boarding E ON-OFF | F 7°-60° | 9 90 A 97 | 30 3000K 40 4000K | BK Black |
Example: SL47FLD10-O-F930BK; Remarks: Support the system dimming, you need to match the remote driver of constant voltage (the dimming method is determined by the constant voltage driver.)
