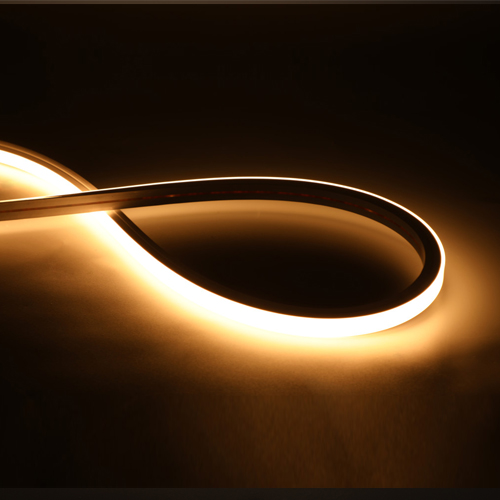

InvisiLED NEON Horizontal
Specifications
Model | LED | Length | Size | Dimming | CCT | Power Feed Type | IP | Finish |

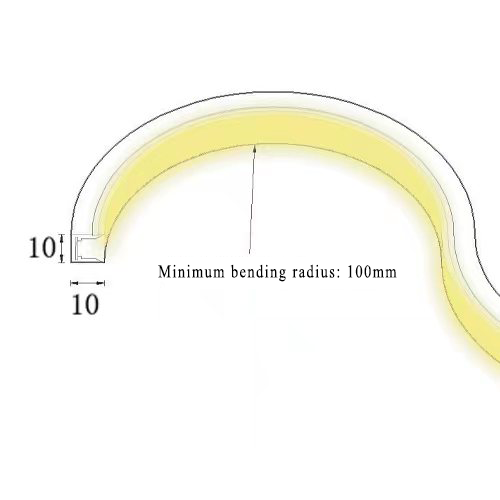

AFLSH H-Series Positive Bend Neon Tape | 06 6W/M 10 10W/M | 10 1M 20 2M 30 3M 40 4M 50 5M | A 10*10mm | E On-Off( Entire 1 phase control ) | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | S Side cable B Bottom Outlet F Forward Cable | 5 IP65 7 IP67 | WT White |
Model | LED | Length | Size | Dimming | CCT | Power Feed Type | IP | Finish |

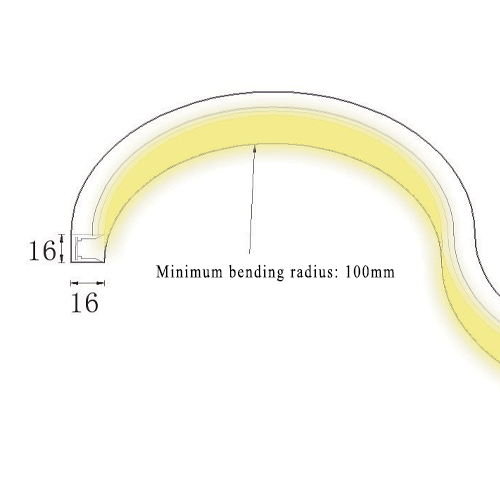

AFLSH H-Series Positive Bend Neon Tape | 14 14W/M 18 18W/M | 10 1M 20 2M 30 3M 40 4M 50 5M | B 16*16mm | E On-Off( Entire 1 phase control ) M DMX512 1 meter 8 segments | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K F2 RGBW (2700K) F3 RGBW (3000K) F4 RGBW (4000K) F5 RGBW (5000K) | S Side cable B Bottom Outlet F Forward Cable | 5 IP65 7 IP67 | WT White |
Example: AFLSH-0610AE30S5WT
Remarks: Lengths are available in 0.1 meter increments, model number example: FLSH-0615A-E30S5WT ("15" stands for 1.5 meters).
