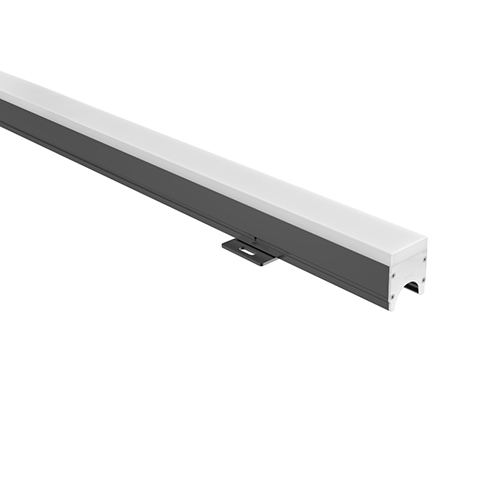

BEACON X3 Accent D3
Specifications
Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
AELD303-05 AELD305-10 AELD310-20 | 250 500 1000 | 5(Max) 10(Max) 20(Max) | 18 36 72 | 202 403 806 | ET ON-OFF 24V DC Power Supply | P Three-side illuminated | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
AELD303-05 AELD305-10 AELD310-20 | 250 500 1000 | 5(Max) 10(Max) 20(Max) | 18 36 72 | 202 403 806 | MT DMX512 Dimming 24V DC Power Supply | P Three-side illuminated | 1 1 Phase B 12 Phase | 27 2700K 30 3000K 40 4000K | BK Black |
Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
AELD303-05 AELD305-10 AELD310-20 | 250 500 1000 | 5(Max) 10(Max) 20(Max) | 18 36 72 | 113 226 451 | MT DMX512 Dimming 24V DC Power Supply | P Three-side illuminated | 1 1 Phase B 12 Phase | F3 RGBW(3000K) F4 RGBW(4000K) F6 RGBW(5700K) CC TUNNABLE WHITE | BK Black |
Example: AELD310-20MTPB30BK
