ELANA PRO

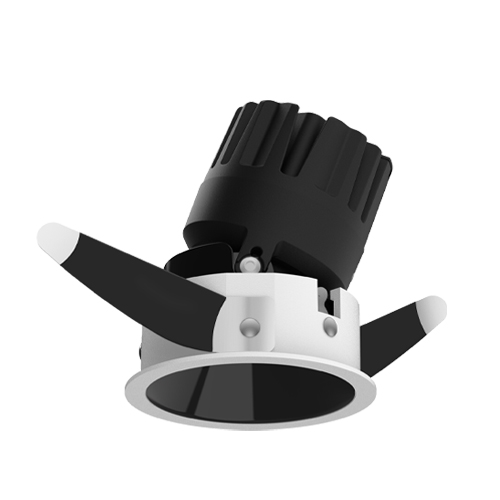

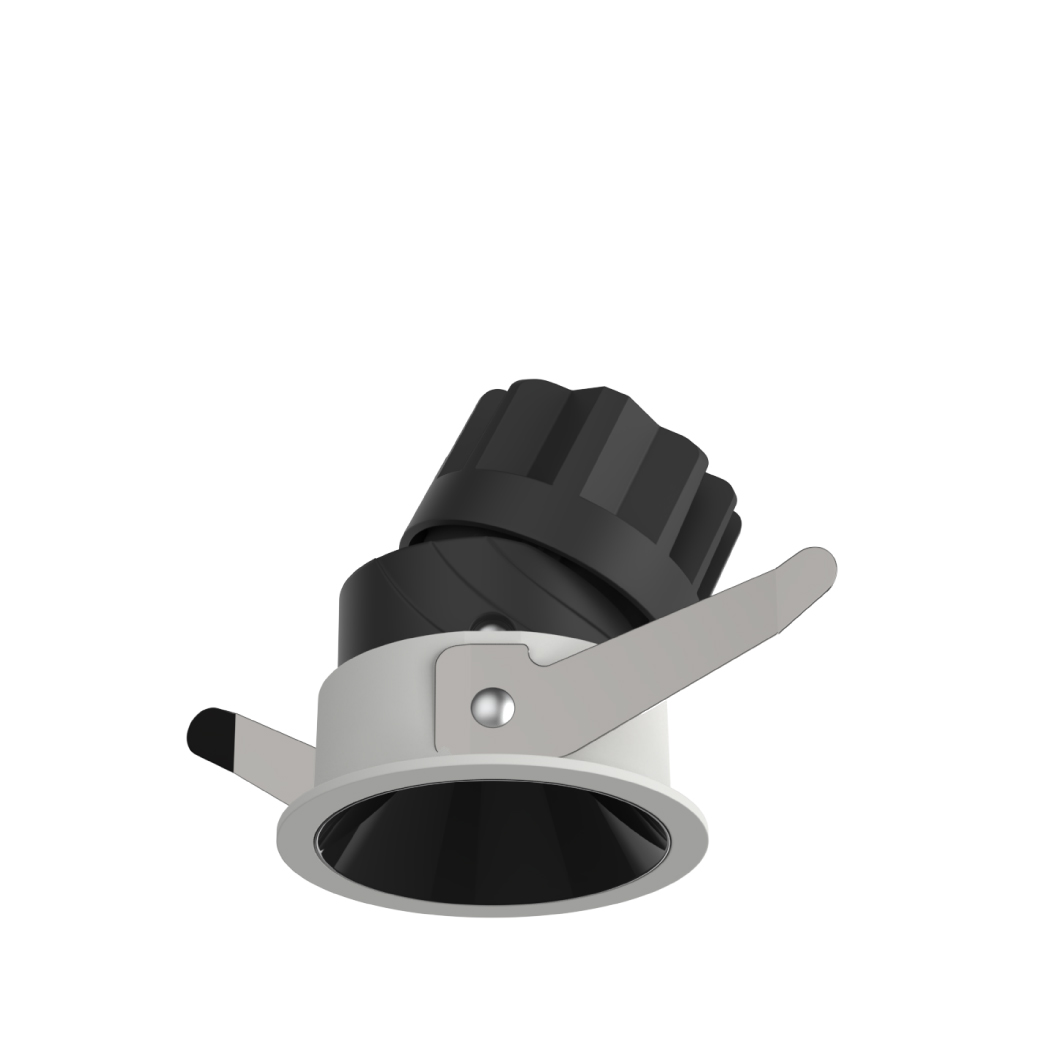

ELANA PRO Round Narrow Angled

ADLH21/ADLH31
ELANA PRO Round Narrow Angled integrates downlighting precision with adjustable aiming in a refined recessed form. Advanced lens and reflector systems ensure beam integrity and glare control, ideal for high-end hospitality and commercial spaces.

Features

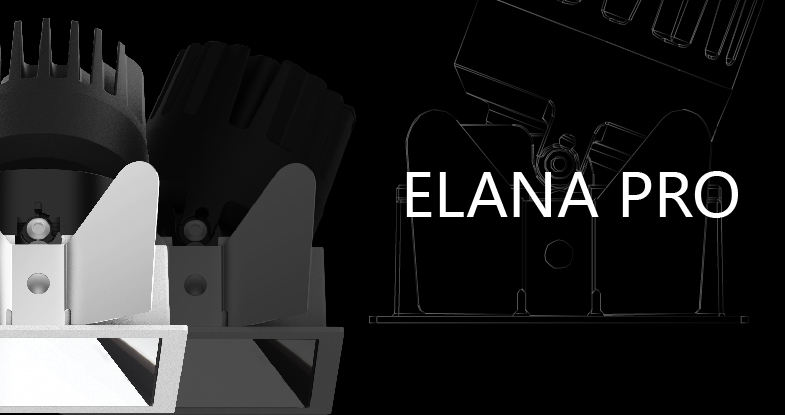

Integration of Downlighting and Angle Adjustment

Integration of Downlighting and Angle Adjustment

A combination of the stability of downlighting and the flexibility of angle adjustment

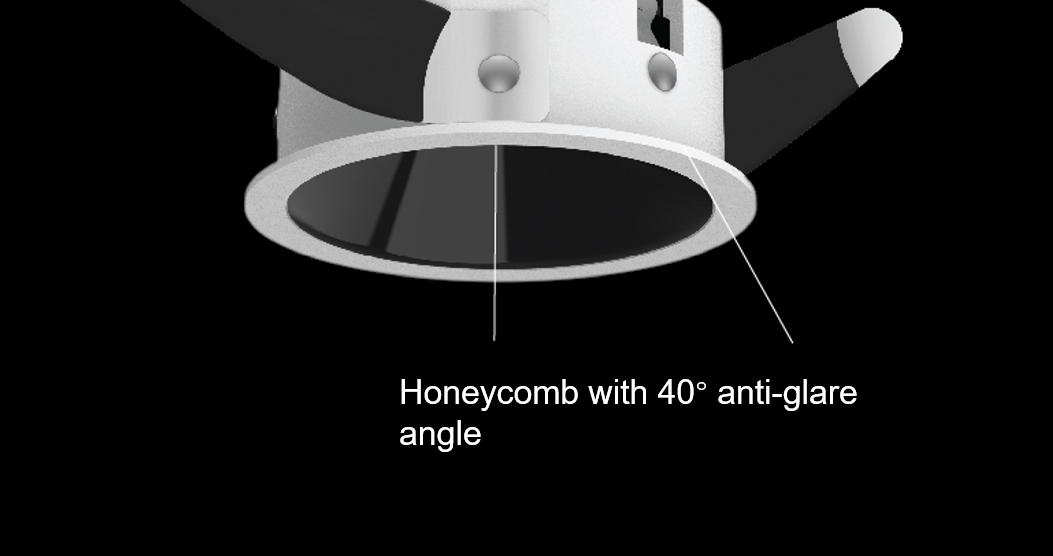

Extra-large Anti-glare Angle

Extra-large Anti-glare Angle

Honeycomb + 40° anti-glare angle reflector for double coverage and ultimate visual comfort

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

2  2”

1 Round Trim

LM05 COB 5W

LM07 COB 7W

E  On-Off

D  0-10V Dimming

1  15°

2   24°

3   36°

5   50°

27  2700K

30  3000K

40  4000K

B  Black

S Specular

WT  White

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

2  2”

1 Round Trim

LM07 COB 7W

A  DALI

N  Driver

1  15°

2   24°

3   36°

5   50°

27  2700K

30  3000K

40  4000K

B  Black

S Specular

WT  White

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

3  3”

1 Round Trim

LM07 COB 7W

LM10 COB 10W

LM13 COB 13W

E  On-Off

D  0-10V Dimming

1  15°

2   24°

3   36°

4   45°

27  2700K

30  3000K

40  4000K

B  Black

S Specular

WT  White

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

3  3”

1 Round Trim

LM13 COB 13W

A  DALI

N  Driver

1  15°

2   24°

3   36°

4   45°

27  2700K

30  3000K

40  4000K

B  Black

S Specular

WT  White

Example: ADLH31-LM10E230SWT, 15° shipped with honeycomb, other angles do not.
