ELANA PRO

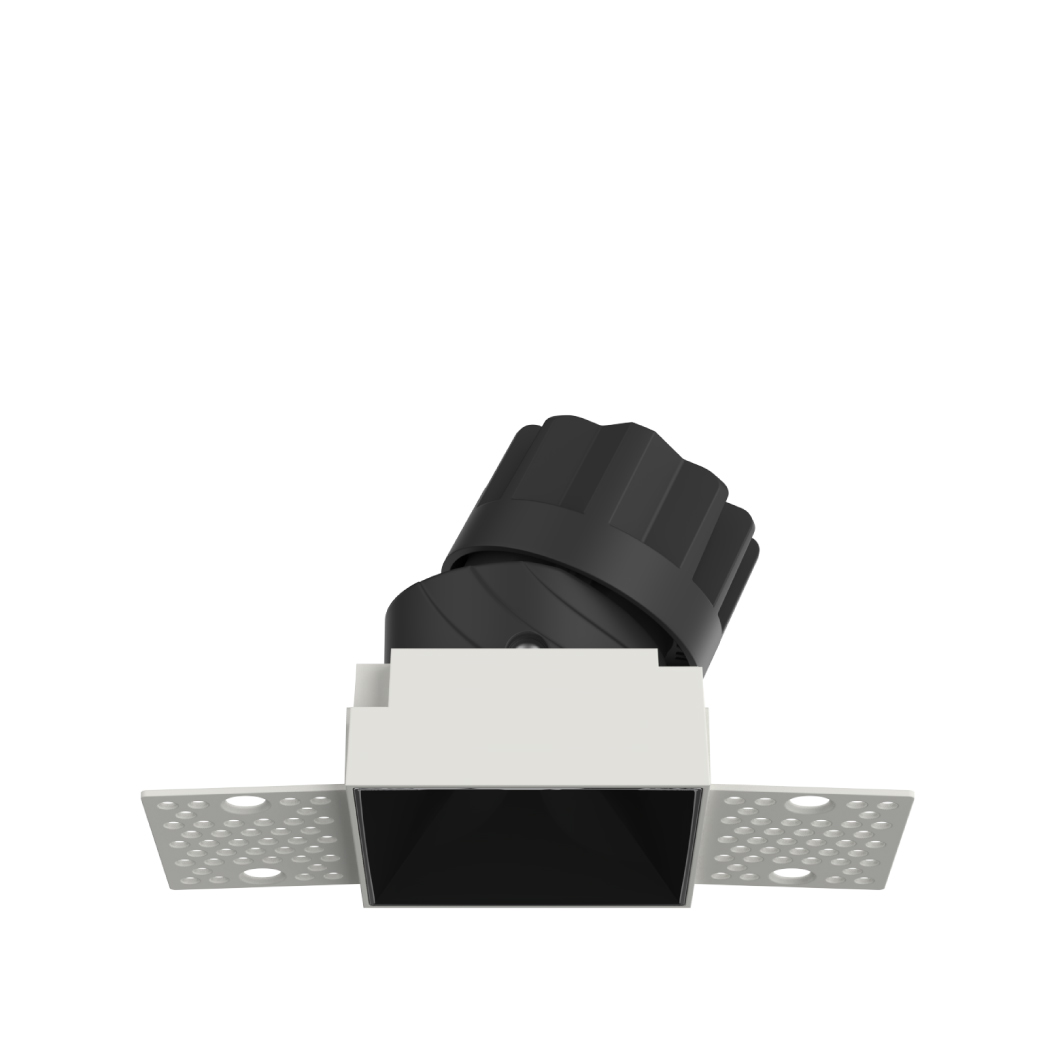

ELANA PRO Square Recessed Rimless

ADLH26/ADLH36
ELANA PRO Square Recessed Rimless merges clean rimless integration with adjustable precision. Advanced optics maintain beam integrity while delivering high visual comfort for premium hospitality and commercial projects.

Features

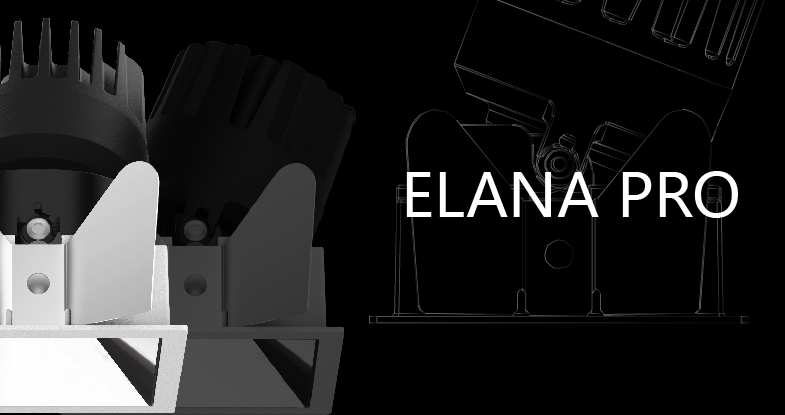

Integrated Downlight Angle Adjustment

Integrated Downlight Angle Adjustment

Combines stable downlighting with flexible angular performance.

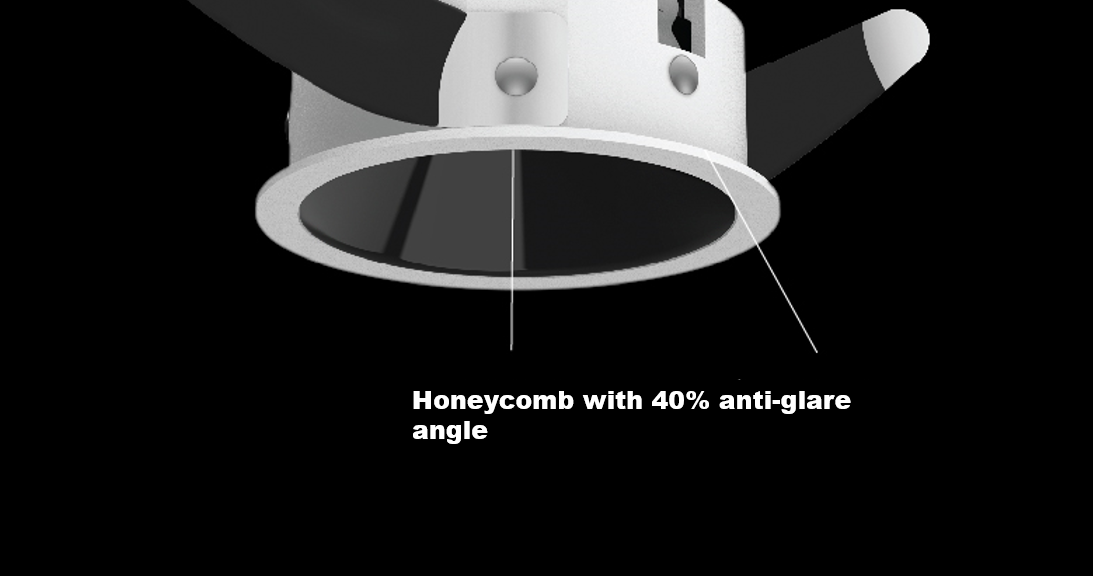

Extra-large Anti-glare Angle

Extra-large Anti-glare Angle

Honeycomb + 40° anti-glare angle reflector. Double guarantee for ultimate visual comfort.

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

2  2”

6

Rectangular Trimless

LM05 COB 5W

LM07 COB 7W

E  On-Off

D  0-10V Dimming

1   15°

2   24°

3   36°

5   50°

27  2700K

30  3000K

40  4000K

B  Black

S  Specular

W White

WT  White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

2  2”

6

Rectangular Trimless

LM07 COB 7W

A  DALI

N  No Driver

1   15°

2   24°

3   36°

5   50°

27  2700K

30  3000K

40  4000K

B  Black

S  Specular

W White

WT  White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

3  3”

6

Rectangular Trimless

LM07 COB 7W

LM10 COB 10W

E  On-Off

D  0-10V Dimming

1   15°

2   24°

3   36°

4   45°

27  2700K

30  3000K

40  4000K

B  Black

S  Specular

WT  White

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

3  3”

6

Rectangular Trimless

LM13 COB 13W

A  DALI

N  No Driver

1   15°

2   24°

3   36°

4   45°

27  2700K

30  3000K

40  4000K

B  Black

S  Specular

WT  White

Example: ADLH35-LM10E230SWT.

15° factory delivered with honeycomb, other angles without.
