ELANA PRO

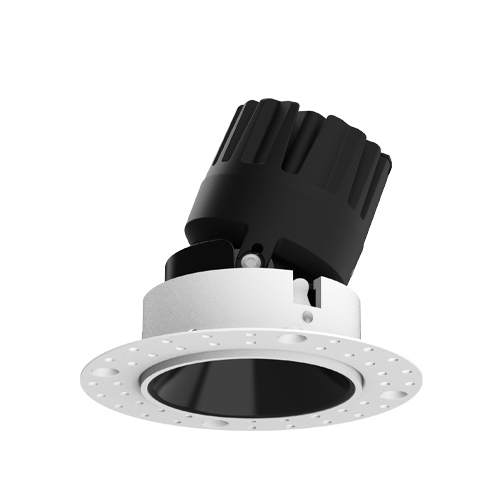

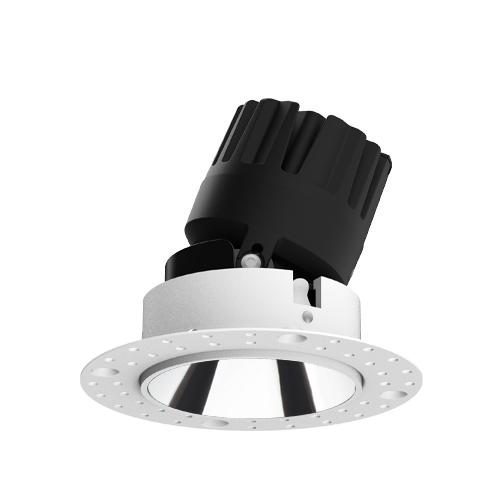

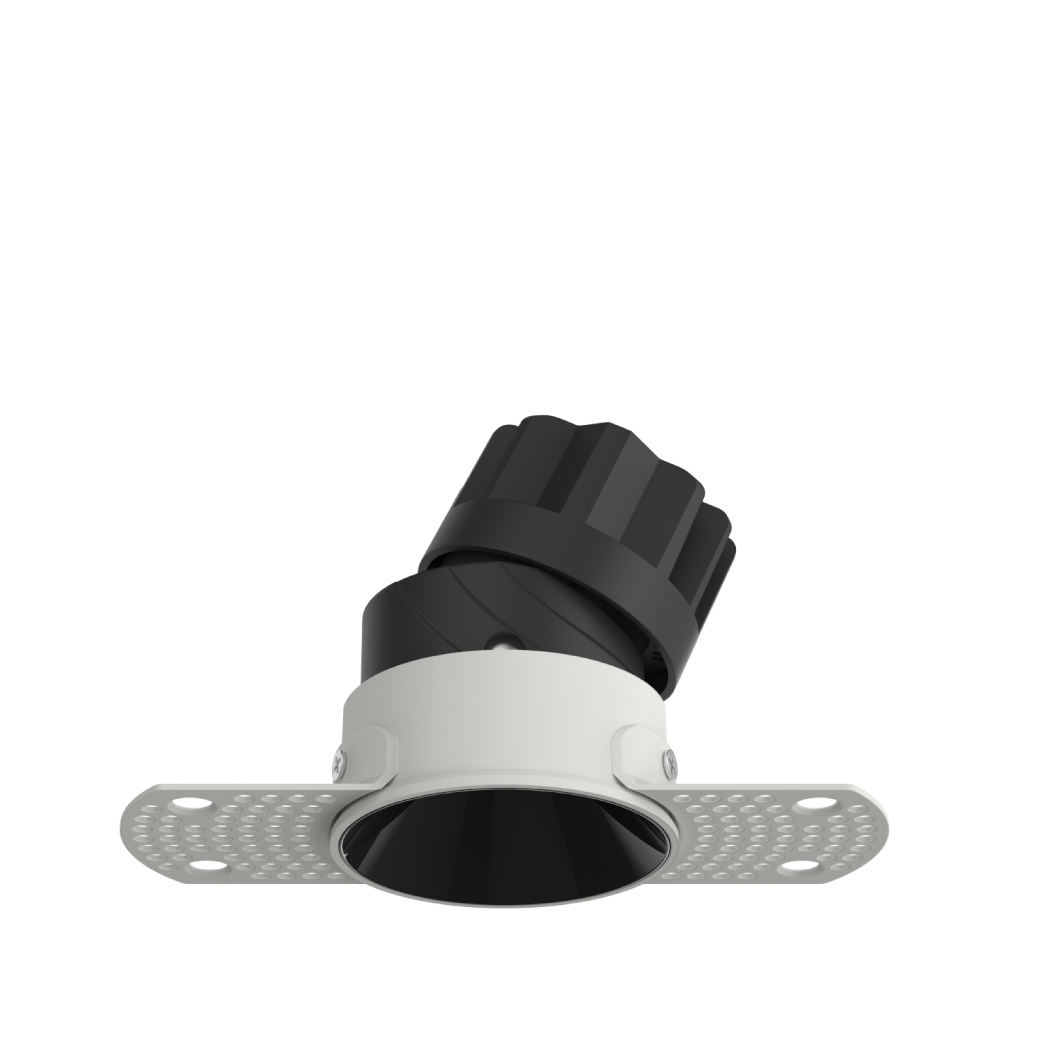

ELANA PRO Round Recessed Rimless

ADLH22/ADLH32
ELANA PRO Round Recessed Rimless delivers discreet ceiling integration with adjustable beam precision. High-quality reflector and lens systems ensure disciplined glare control across commercial and office spaces.

Features

Integrated Downlight Angle Adjustment

Integrated Downlight Angle Adjustment

Combines stable downlighting with flexible angular performance.

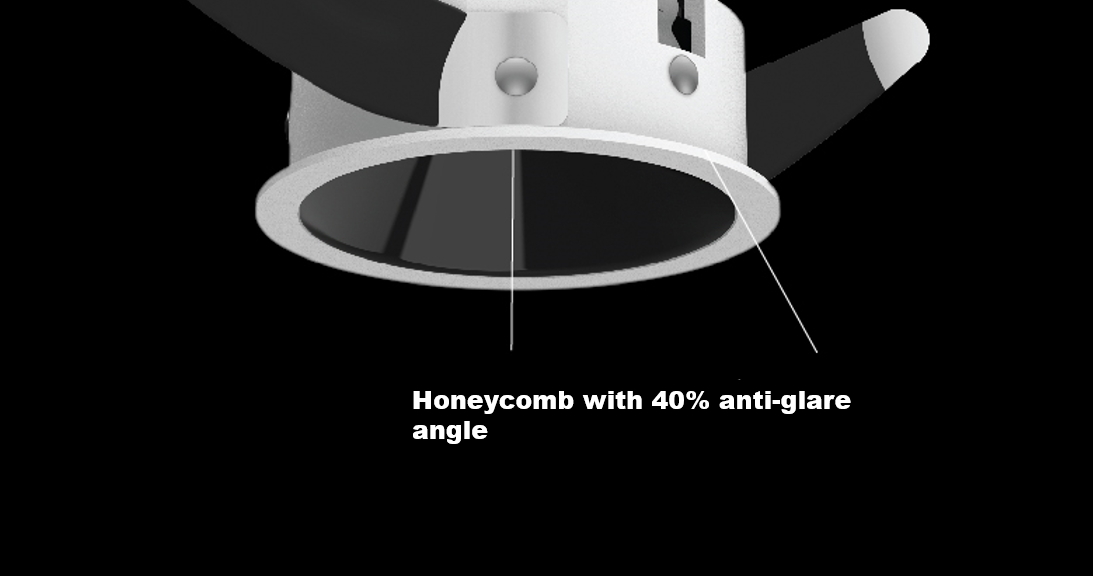

Extra-large Anti-glare Angle

Extra-large Anti-glare Angle

Honeycomb + 40° anti-glare angle reflector. Double guarantee for ultimate visual comfort.

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

2  2”

2 Round Trimless

LM05 COB 5W

LM07 COB 7W

E  On-Off

D  0-10V Dimming

1  15°

2   24°

3   36°

5   50°

27  2700K

30  3000K

40  4000K

B  Black

S Specular

W White

WT  White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

2  2”

2 Round Trimless

LM07 COB 7W

A  DALI

N  Driver

1  15°

2   24°

3   36°

5   50°

27  2700K

30  3000K

40  4000K

B  Black

S Specular

W White

WT  White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

3  3”

2 Round Trimless

LM07 COB 7W

LM10 COB 10W

LM13 COB 13W

E  On-Off

D  0-10V Dimming

1  15°

2   24°

3   36°

4   45°

27  2700K

30  3000K

40  4000K

B  Black

S Specular

WT  White

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

3  3”

2 Round Trimless

LM13 COB 13W

A  DALI

N  Driver

1  15°

2   24°

3   36°

4   45°

27  2700K

30  3000K

40  4000K

B  Black

S Specular

WT  White

Example: ADLH32-LM10E230SWT.

15° factory default honeycomb, other angles not available.
