ELANA PRO

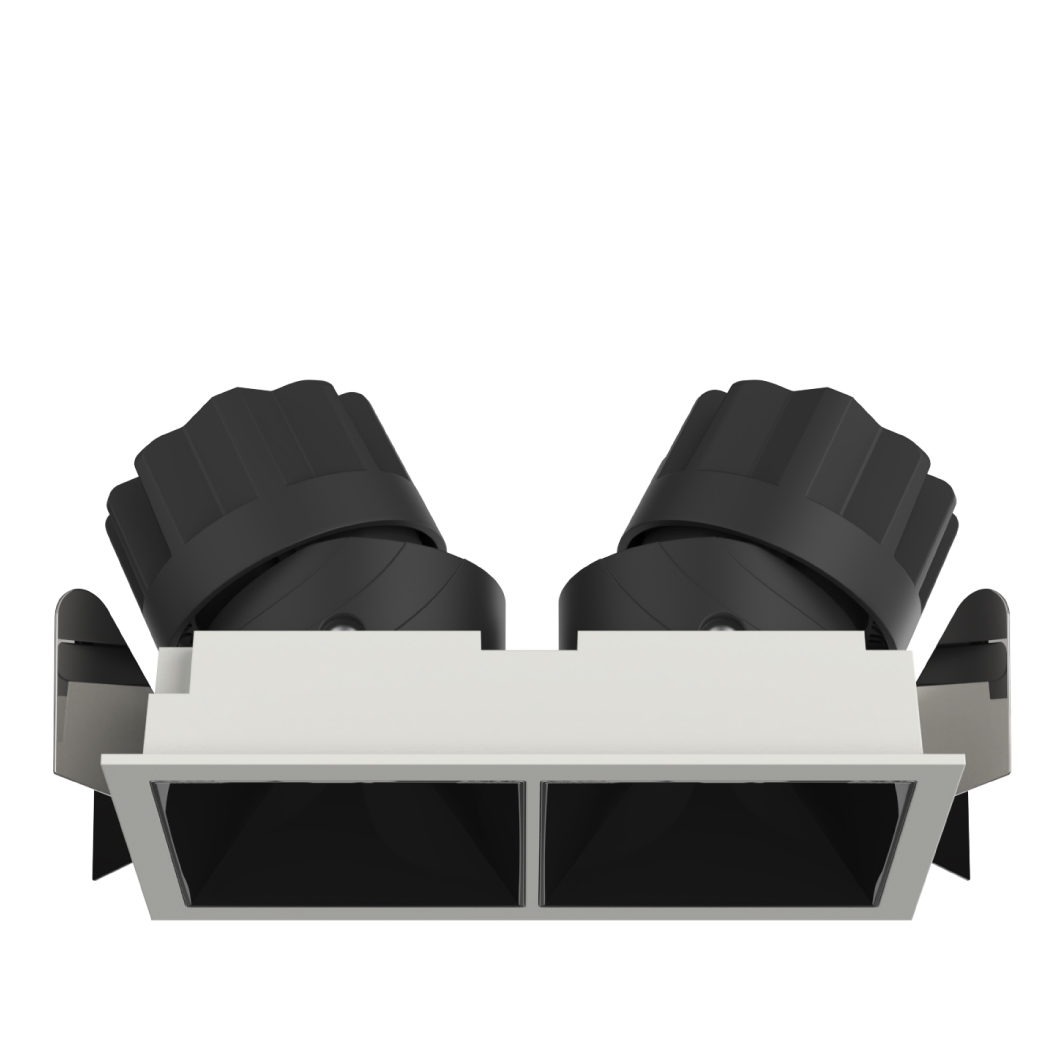

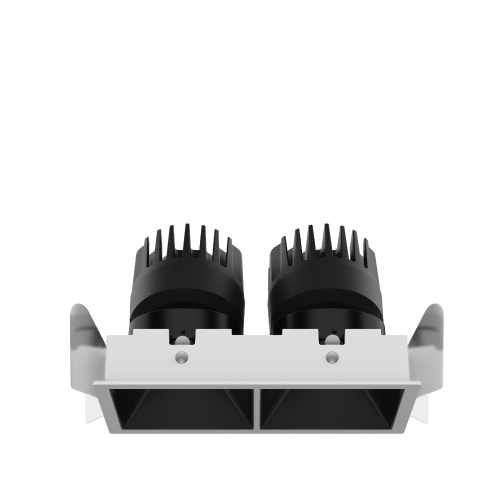

ELANA PRO Recessed Narrow Modular

AMTH25/AMTH35
ELANA PRO Recessed Narrow Modular offers adaptable modular integration with precise downlighting and aiming capability. Designed for high-performance hospitality and commercial interiors.

Features

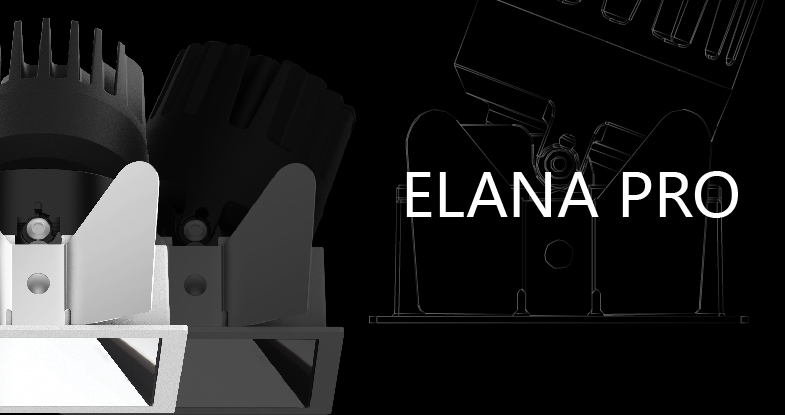

Integrated Downlight Angle Adjustment

Integrated Downlight Angle Adjustment

Combines stable downlighting with flexible angular performance.
Extra-large Anti-glare Angle

Extra-large Anti-glare Angle

Honeycomb + 40° anti-glare angle reflector. Double guarantee for ultimate visual comfort.

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

AMTH

Multiple Downlight

H series

2 2”

5 Rectangular Trim

205  COB 2*5W

207  COB 2*7W

E  On-Off

D  0-10V Dimming

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

40  4000K

B  Black

S  Specular

W White

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

AMTH

Multiple Downlight

H series

2 2”

5 Rectangular Trim

207  COB 2*7W

A  DALI

N  No Driver

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

40  4000K

B  Black

S  Specular

W White

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

AMTH

Multiple Downlight

H series

3 3”

5 Rectangular Trim

207  COB 2*7W

210  COB 2*10W

213  COB 2*13W

E  On-Off

D  0-10V Dimming

1     15°

2     24°

3     36°

4     45°

27  2700K

30  3000K

40  4000K

B  Black

S  Specular

WT White

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

AMTH

Multiple Downlight

H series


3 3”

5 Rectangular Trim

213  COB 2*13W

A  DALI

N  No Driver

1     15°

2     24°

3     36°

4     45°


27  2700K

30  3000K

40  4000K

B  Black

S  Specular

WT White

Example: AMTH35-210E230SWT

15° factory default honeycomb, other angles not available.
