ELANA PRO

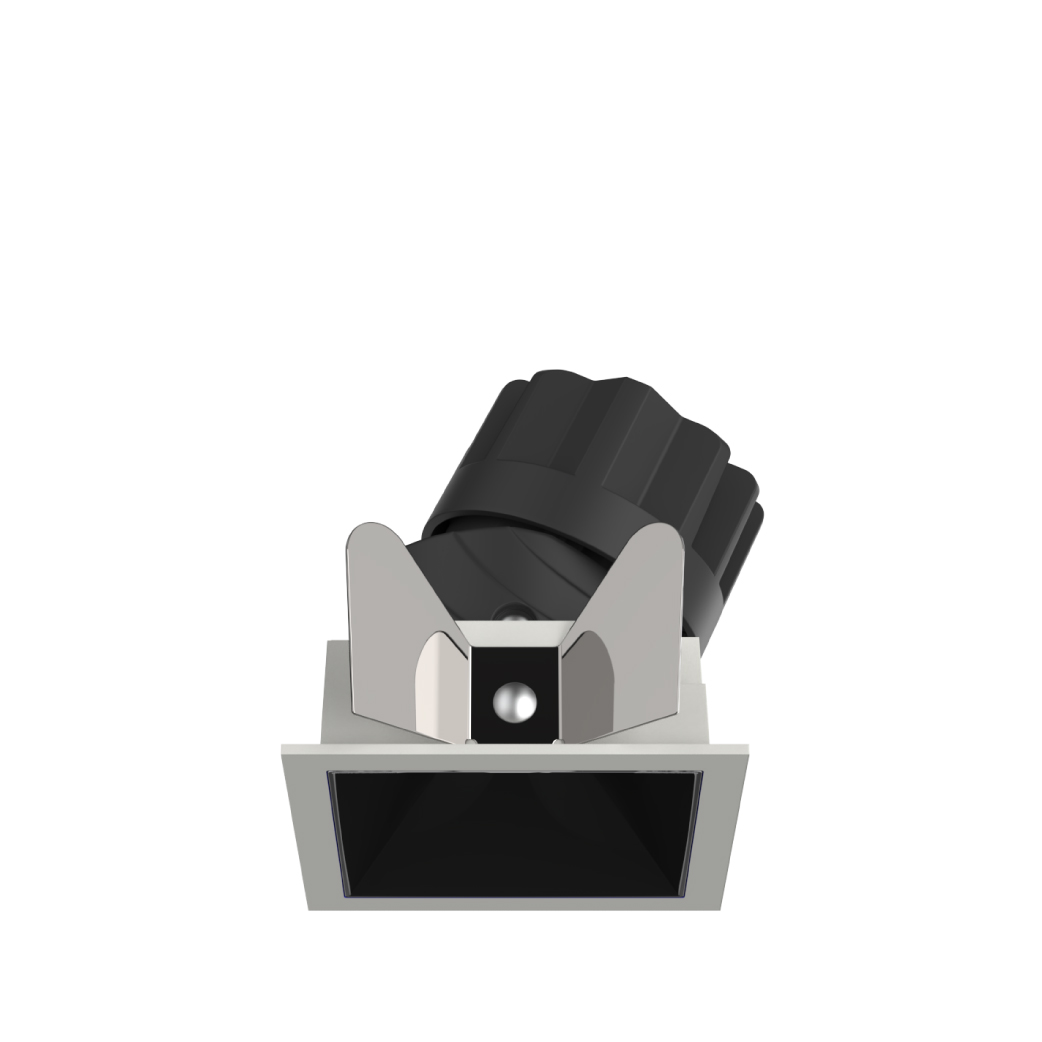

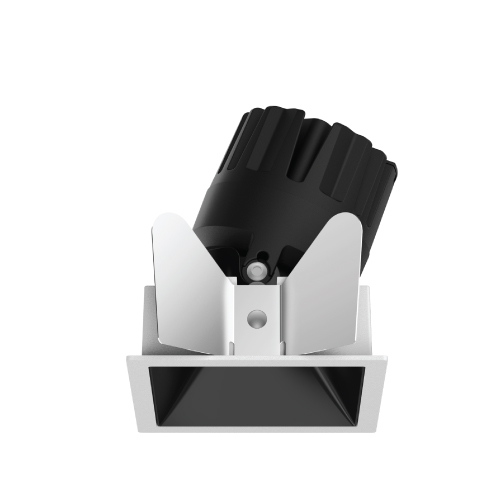

ELANA PRO Square Recessed Narrow

ADLH25/ADLH35
ELANA PRO Square Recessed Narrow delivers focused beam precision within a refined square aperture. Engineered for visual comfort in high-end commercial and hospitality applications.

Features

Integrated Downlight Angle Adjustment

Integrated Downlight Angle Adjustment

Combines stable downlighting with flexible angular performance.

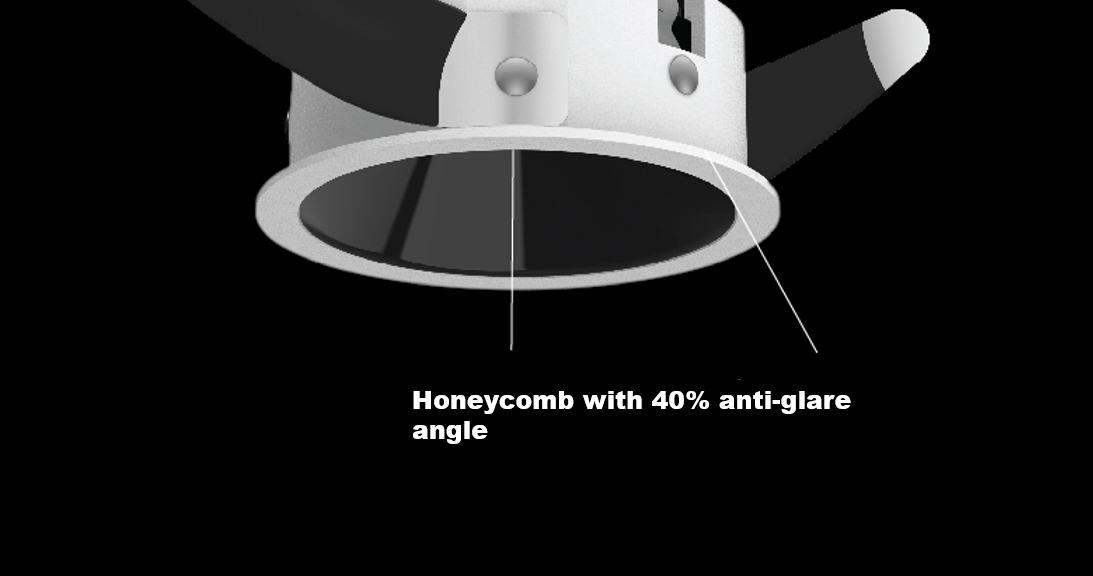

Extra-large Anti-glare Angle

Extra-large Anti-glare Angle

Honeycomb + 40° anti-glare angle reflector. Double guarantee for ultimate visual comfort.

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

2  2”

5

Rectangular Trim

LM05 COB 5W

LM07 COB 7W

E  On-Off

D  0-10V Dimming

1   15°

2   24°

3   36°

5   50°

27  2700K

30  3000K

40  4000K

B  Black

S  Specular

W White

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

2  2”

5

Rectangular Trim

LM07 COB 7W

A  DALI

N  No Driver

1   15°

2   24°

3   36°

5   50°

27  2700K

30  3000K

40  4000K

B  Black

S  Specular

W White

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

3  3”

5

Rectangular Trim

LM07 COB 7W

LM10 COB 10W

E  On-Off

D  0-10V Dimming

1   15°

2   24°

3   36°

4   45°

27  2700K

30  3000K

40  4000K

B  Black

S  Specular

WT White

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

3  3”

5

Rectangular Trim

LM13 COB 13W

A  DALI

N  No Driver

1   15°

2   24°

3   36°

4   45°

27  2700K

30  3000K

40  4000K

B  Black

S  Specular

WT White

Example: ADLH35-LM10E230SWT, 15° factory default honeycomb, other angles not available.
