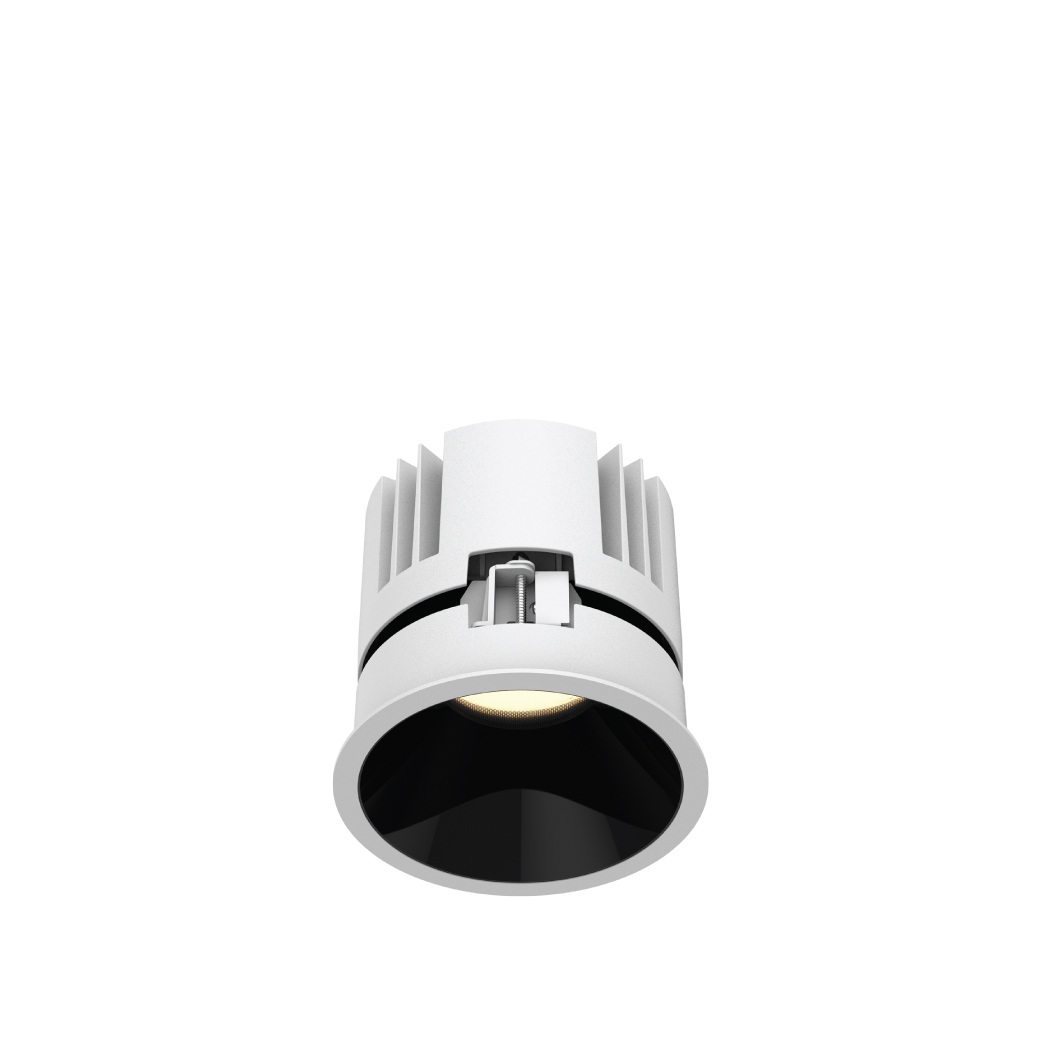

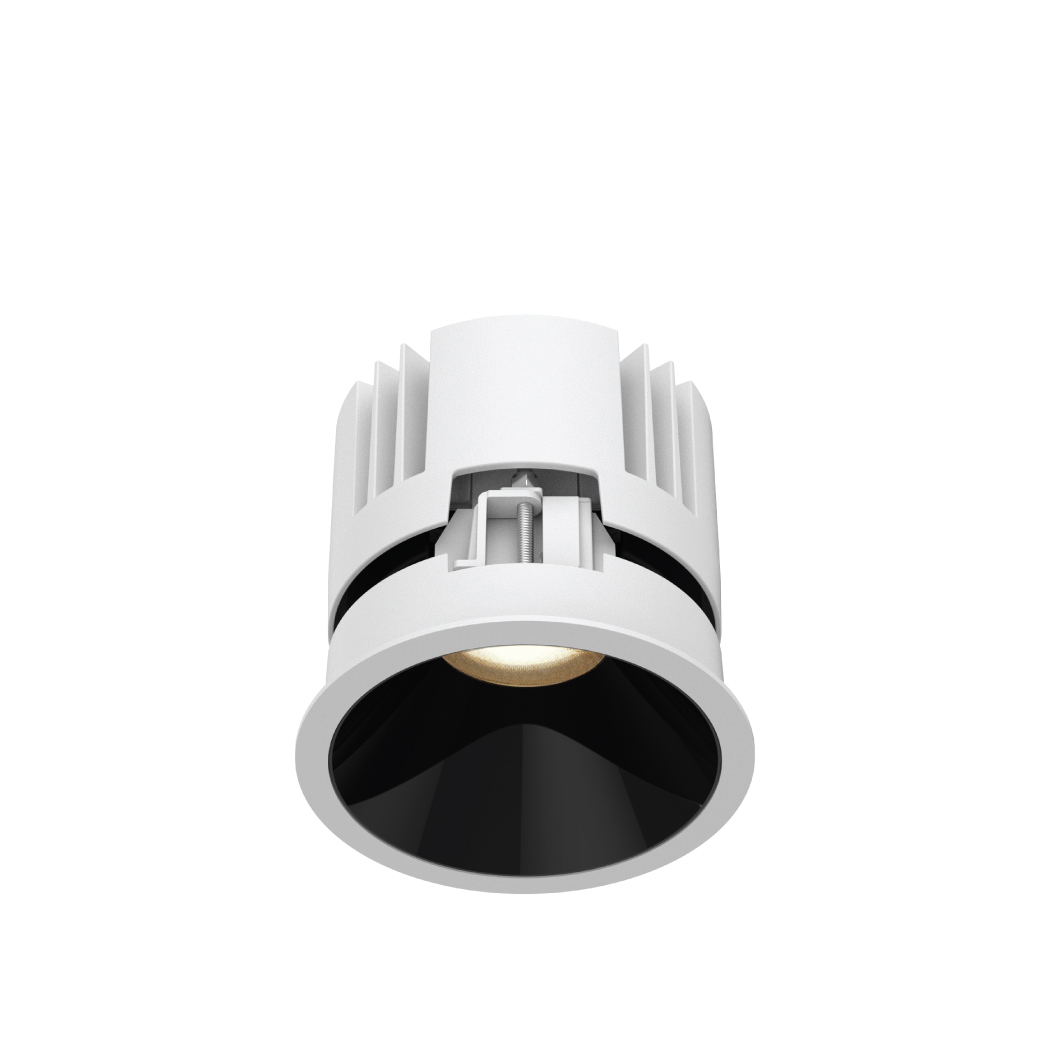

VOLTA II 3/4" Round

1 / 4

Volta

ADLT31/ADLT41 3/4"

VOLTA II Round expresses disciplined circular geometry with a narrow trim profile that integrates quietly into the ceiling plane. A precision-engineered lens paired with a black mirror reflector ensures strong luminous efficacy while delivering exceptional glare suppression. The sealed optical chamber protects long-term performance in humidity-prone environments, and interchangeable reflectors or accessories enhance flexibility during installation and future maintenance.

Features

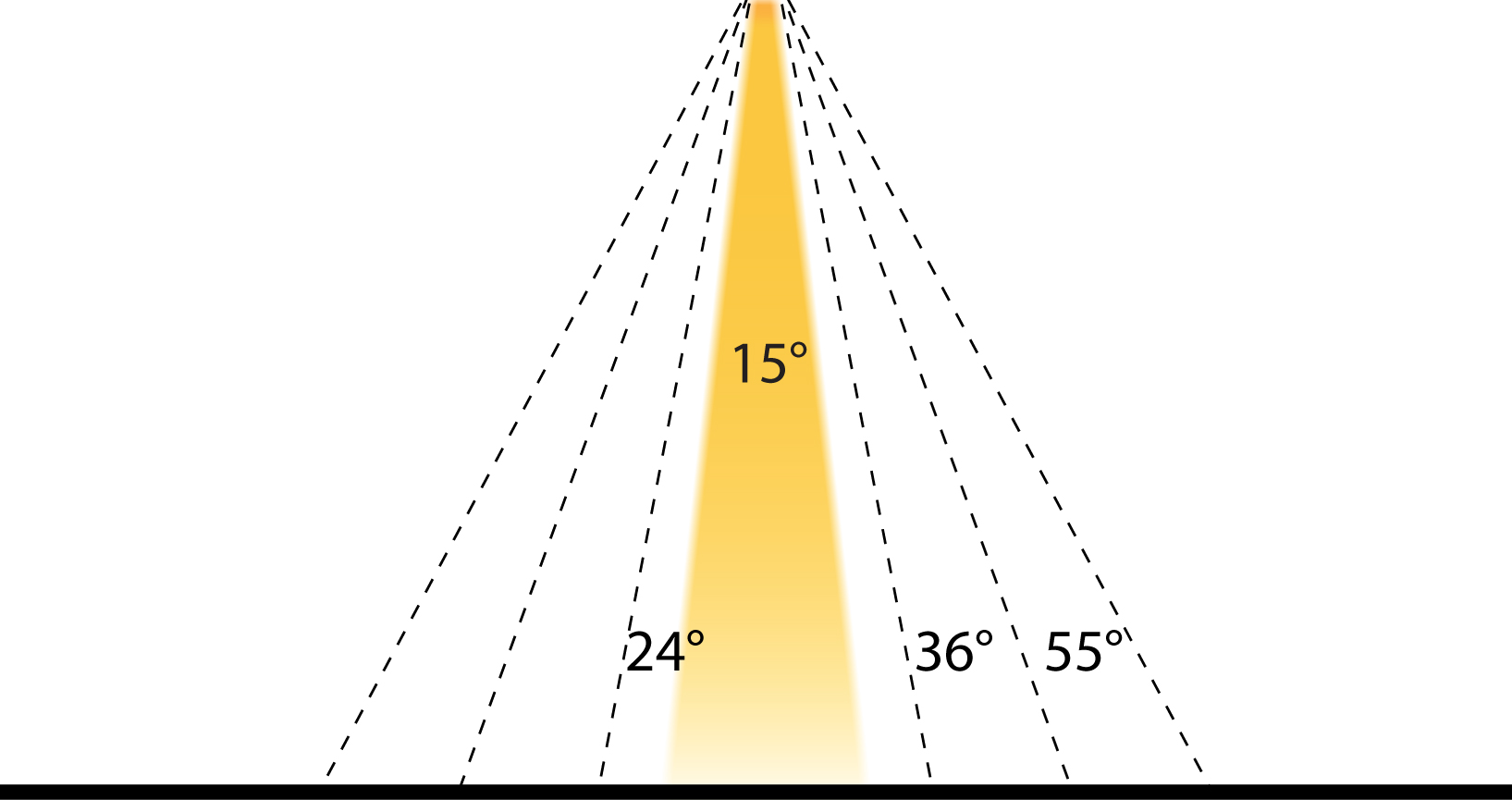

Multiple Beam Angles

Available in 15°, 24°, 36° and 55° beam angles for a wide range of lighting applications.

Precise Beam Control with Minimal Spill Light

Delivers a clean, soft-edged beam with excellent stray-light control.

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLT

3 3”

1 Round Trim

LM07 COB 7W

LM10 COB 10W

LM13 COB 13W

E On-Off

D 0-10V Dimming

1 15°

2 24°

3 36°

5 50°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

S Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLT

3 3”

1 Round Trim

LM13 COB 13W

N No Driver

A DALI

1 15°

2 24°

3 36°

5 50°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

S Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLT

4 4”

1 Round Trim

LM13 COB 13W

LM18 COB 18W

E On-Off

D 0-10V Dimming

N 12°

1 18°

2 24°

3 36°

5 55°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

S Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLT

4 4”

1 Round Trim

LM18 COB 18W

N No Driver

A DALI

N 12°

1 18°

2 24°

3 36°

5 55°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

S Specular

WT White

BK Black

Example: ADLT41-LM18E230SWT

Documents

SPECSHEET ADLT31&41 Download Preview
LINEDRAWING ADLT31&41 Download
IES FILES ADLT31&41 Download
INSTALLATION ADLT31&41 Download Preview
