InvisiLED NEON
InvisiLED NEON Vertical
AFLSD
Designed for precision vertical contour lighting, InvisiLED® NEON Vertical combines uniform output with durable extrusion construction. Its seamless connection system ensures uninterrupted illumination across long runs, making it suitable for façades, architectural outlines, and decorative installations.
Features

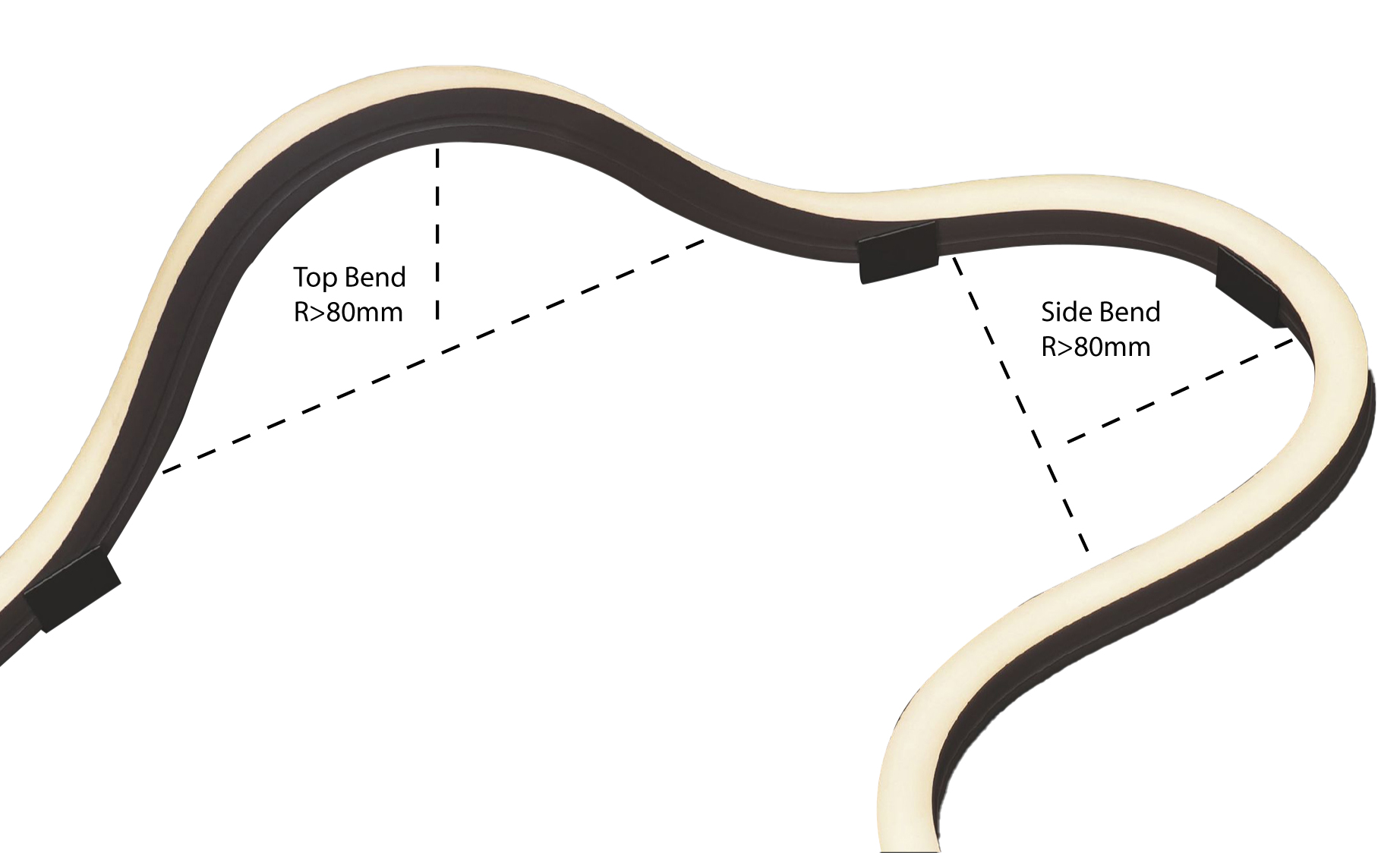

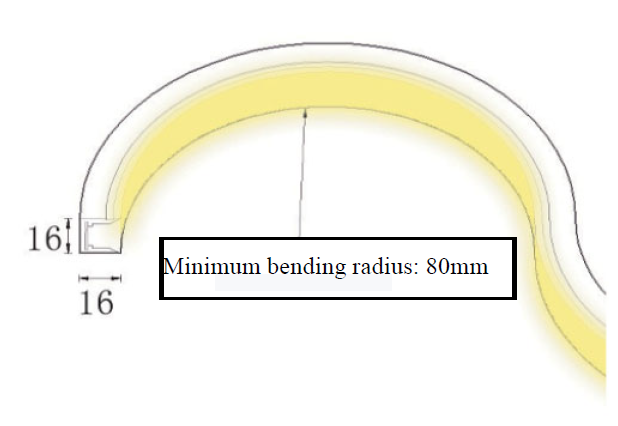

Dual-Axis Bending Design for Multi-Dimensional Applications
Featuring an innovative vertical and lateral bending design, the InvisiLED® NEON 3D precisely conforms to complex architectural forms such as curved façades, rounded corners, and irregular surfaces. This enables seamless integration between lighting and architecture, enhancing spatial depth while flexibly adapting to diverse curved applications.

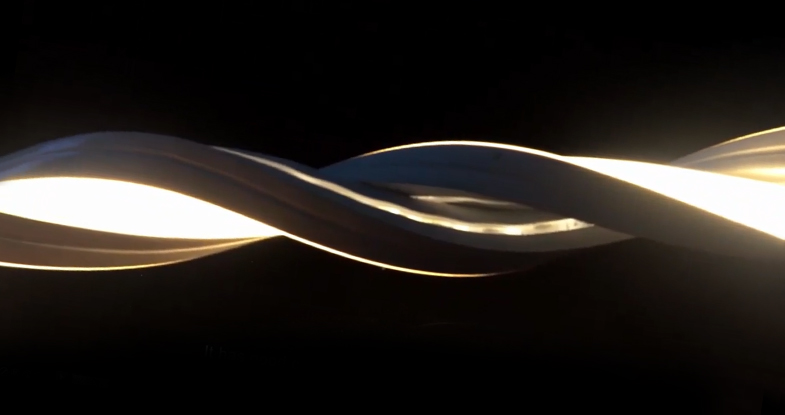

100mm Cuttable for Seamless, Dark-Spot-Free Installation
Designed with a 100mm cutting increment, InvisiLED® NEON 3D allows for precise, on-site customization to suit various installation lengths. It supports continuous, seamless connections without dark spots, ensuring efficient installation and consistent illumination across different applications.

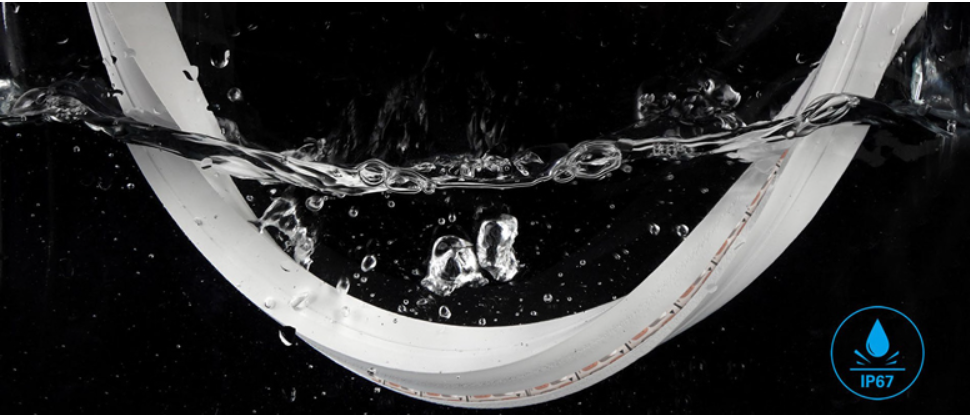

IP67-Rated for Reliable Outdoor Performance
Tested through a series of rigorous evaluations—including needle flame, constant temperature and humidity, waterproofing, salt spray, dust resistance, thermal shock, torsion, and UV resistance—InvisiLED® NEON 3D meets international standards such as CE and RoHS. With an IP67 protection rating, it offers excellent flame resistance, UV stability, anti-yellowing, corrosion resistance, and high-temperature durability, ensuring long-term performance in demanding outdoor environments.

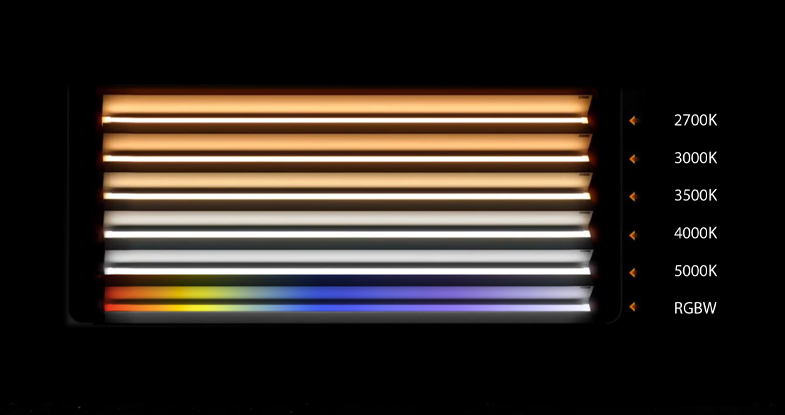

Multiple CCT Options + RGBW for Versatile Lighting Effects
Available in five fixed color temperatures (2700K, 3000K, 3500K, 4000K, 5000K), this series is designed to meet the lighting needs of architectural façades, hospitality, commercial, and office environments. An RGBW version is also available, enabling dynamic scene transitions and enhanced ambiance, providing greater creative flexibility for modern architectural lighting design.
Videos
NEON
Specifications
Model | LED | Length | Size | Dimming | CCT | Power Feed Type | IP | Finish |
AFLSD 3D Curved Neon Light Strip | 14 14W/m 18 18W/m
| 10 1m 20 2m 30 3m 40 4m 50 5m | B 16*16mm | E ON-OFF (Entire 1 phase control) | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K F2 RGBW (2700K) F3 RGBW (3000K) F4 RGBW (4000K) F5 RGBW (5000K) | S cable exit B cable exit F cable exit | 5 IP65 7 IP67 | WT White |
Example: AFLSD-1410DE30S5WT
Note: Lengths are available in 0.1 meter increments, model number example: AFLSD-1415BE30S5WT ("15" stands for 1.5 meters).
