ELANA PRO

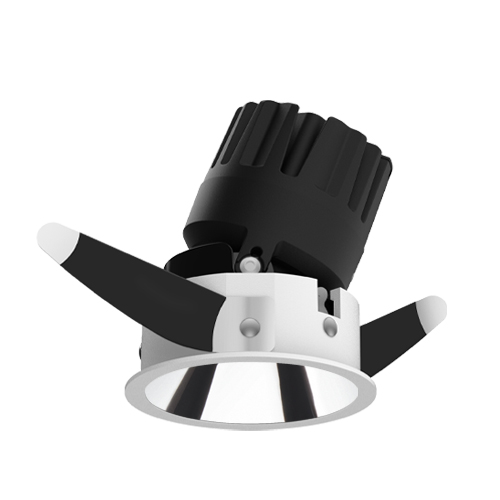

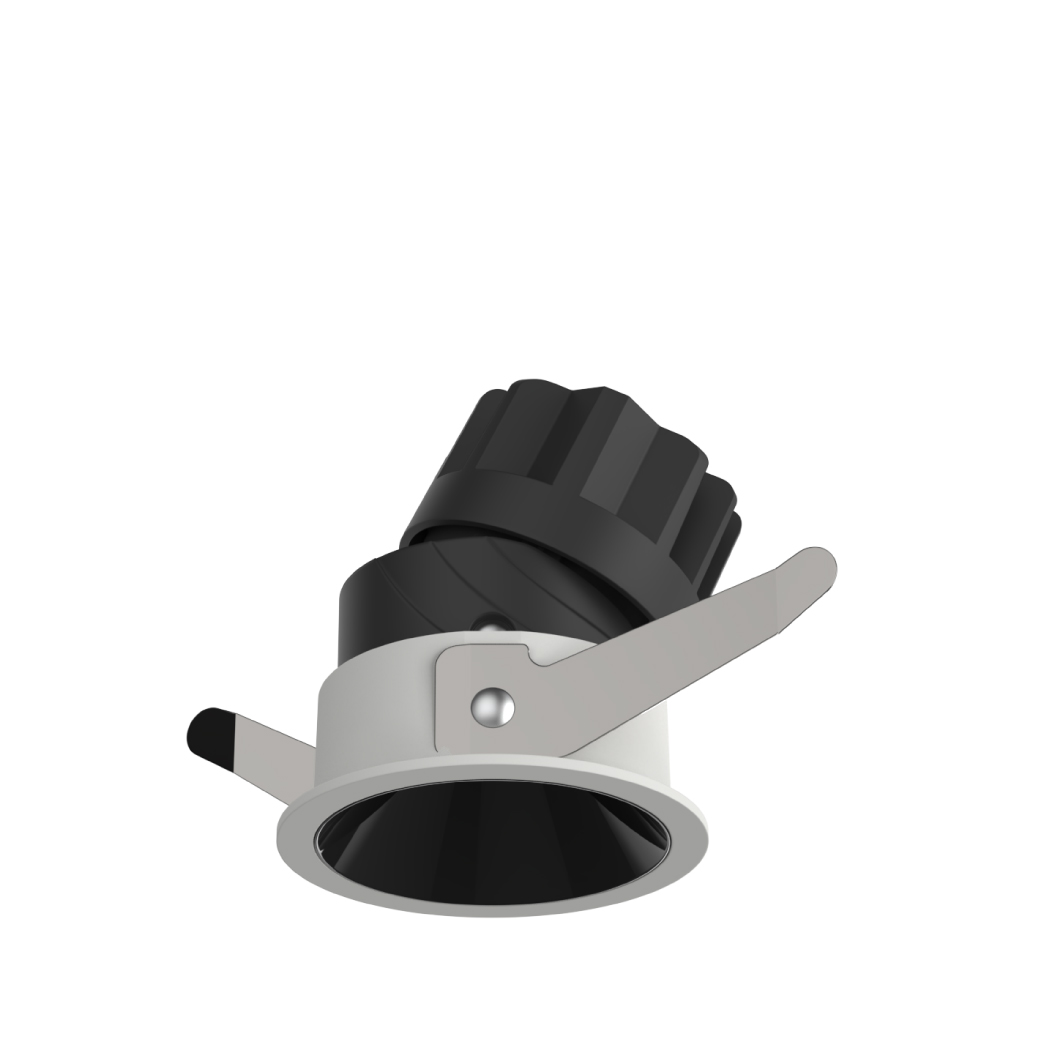

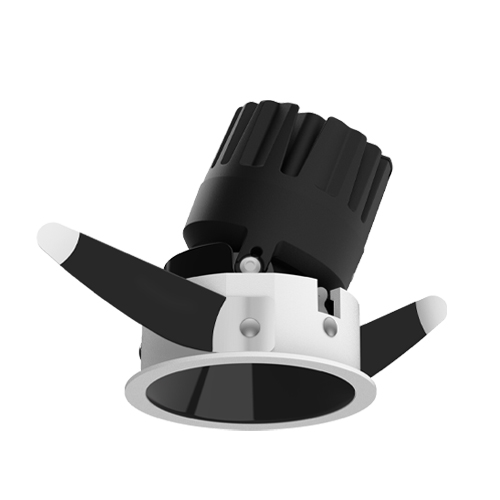

ELANA PRO Round Fixed/Adj.

ADLH21/ADLH31 Adjustable Integrated Downlight
Refinement, delivered through the lens. ELANA PRO Round Fixed/Adj. pairs precision downlighting with smooth dimming in a clean circular aperture. High-performance reflectors and lens systems maintain disciplined beam definition, consistent color integrity, and comfortable glare control for a composed visual experience. Suited to hospitality, commercial, and executive office environments, ELANA PRO balances optical performance with architectural restraint.

Features

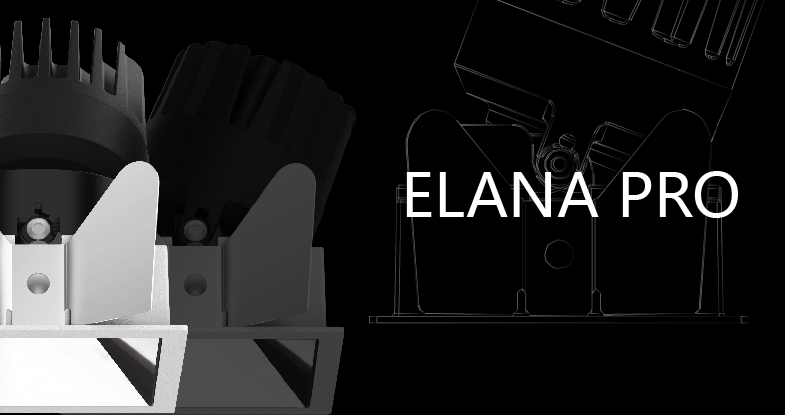

Integration of fixed angle adjustable downlight

Integration of fixed angle adjustable downlight

The stability of fixed downlight and the flexibility of adjustable downlight, 2in1 fixture
Extra large anti-glare sheilding angle

Extra large anti-glare sheilding angle

Honeycomb + 40° anti-glare angle reflector, double guarantee, provide the ultimate comfortable visual experience

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

2  2”

1 Round Trim

LM05 COB 5W

LM07 COB 7W

E  On-Off

D  0-10V Dimming

1  15°

2   24°

3   36°

5   50°

27  2700K

30  3000K

40  4000K

B  Black

S Specular

W White

WT  White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

2  2”

1 Round Trim

LM07 COB 7W

A  DALI

N  Driver

1  15°

2   24°

3   36°

5   50°

27  2700K

30  3000K

40  4000K

B  Black

S Specular

W White

WT  White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

3  3”

1 Round Trim

LM07 COB 7W

LM10 COB 10W

LM13 COB 13W

E  On-Off

D  0-10V Dimming

1  15°

2   24°

3   36°

4   45°

27  2700K

30  3000K

40  4000K

B  Black

S Specular

WT  White

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

3  3”

1 Round Trim

LM13 COB 13W

A  DALI

N  Driver

1  15°

2   24°

3   36°

4   45°

27  2700K

30  3000K

40  4000K

B  Black

S Specular

WT  White


Example: ADLH31-LM10E230SWT,   factory standard for 15 ° is  with honeycomb, not for other beam angles.
