ELANA PRO

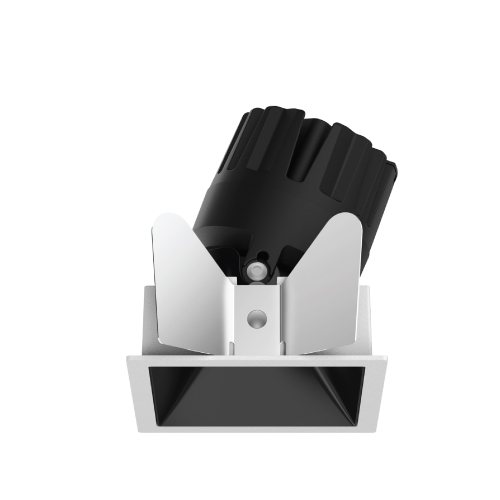

ELANA PRO Square Fixed/Adj.

ADLH35/ADLH36 3"
Structured and architectural in expression, ELANA PRO Square Fixed/Adj. combines precise downlighting with integrated dimming capability within a confident square aperture. Its geometry aligns seamlessly with ceiling grids, while advanced reflector and lens design maintain beam integrity and controlled glare performance. Designed for high-end hotels, commercial interiors, and corporate environments, ELANA PRO Square Fixed/Adj. delivers specification-grade illumination with refined architectural clarity.

Features

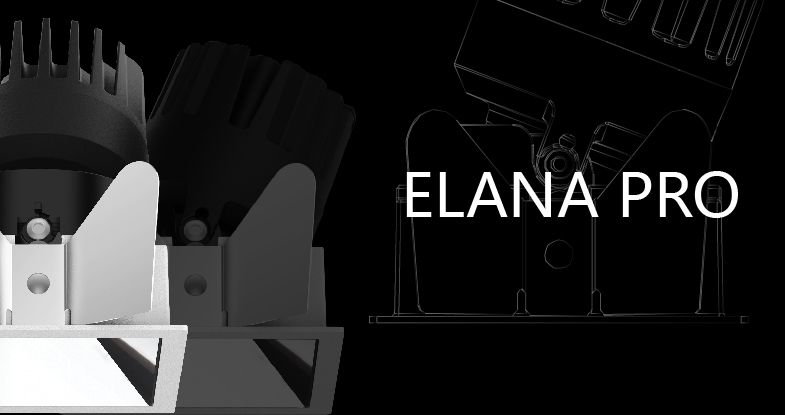

Integration of fixed angle adjustable downlight

Integration of fixed angle adjustable downlight

The stability of fixed downlight and the flexibility of adjustable downlight, 2in1 fixture
Extra large anti-glare sheilding angle

Extra large anti-glare sheilding angle

Honeycomb + 40° anti-glare angle reflector, double guarantee, provide the ultimate comfortable visual experience

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

3  3”

5

Rectangular Trim

LM07 COB 7W

LM10 COB 10W

E  On-Off

D  0-10V Dimming

1   15°

2   24°

3   36°

4   45°

27  2700K

30  3000K

40  4000K

B  Black

S  Specular

WT White

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

3  3”

5

Rectangular Trim

LM13 COB 13W

A  DALI

N  No Driver

1   15°

2   24°

3   36°

4   45°

27  2700K

30  3000K

40  4000K

B  Black

S  Specular

WT White

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

3  3”

6

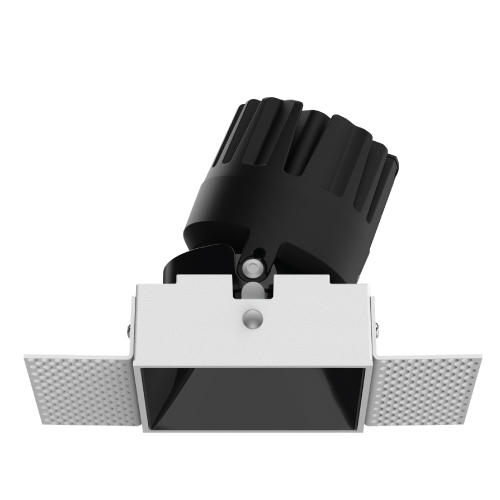

Rectangular Trimless

LM07 COB 7W

LM10 COB 10W

E  On-Off

D  0-10V Dimming

1   15°

2   24°

3   36°

4   45°

27  2700K

30  3000K

40  4000K

B  Black

S  Specular

WT  White

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLH

Downlight

H series

3  3”

6

Rectangular Trimless

LM13 COB 13W

A  DALI

N  No Driver

1   15°

2   24°

3   36°

4   45°

27  2700K

30  3000K

40  4000K

B  Black

S  Specular

WT  White

Example: ADLH35-LM10E230SWT, factory standard for 15° is  with honeycomb, not for other beam angles.
