ULTRA

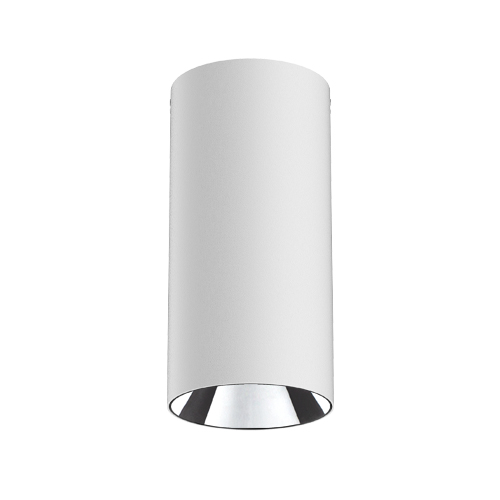

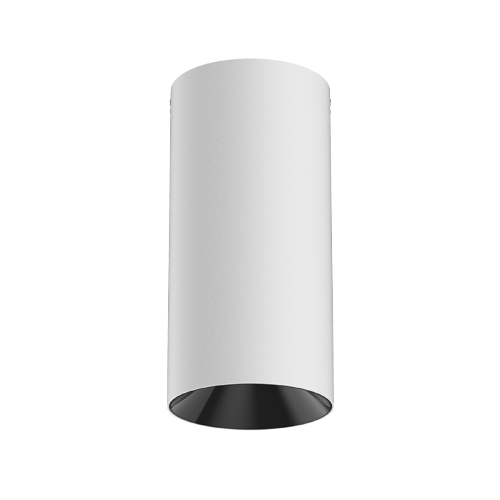

ULTRA Round
ASLN32 3" Surface-mounted Round Downlight
Adaptability is central to ULTRA Round. Its modular construction allows reflectors and light engines to be exchanged on site, enabling transitions between output levels and beam distributions without fixture replacement. Concealed light technology enhances glare suppression and chromatic consistency, delivering smooth illumination for hotels, villas, and commercial interiors. ULTRA Round provides specification-grade flexibility within a disciplined recessed form.
Specifications
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ASLN Surface Mounted N series | 3 3” | 2 Round Trimless | LM08 COB 8W | E On-Off D 0-10V Dimming | S 8° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ASLN Surface Mounted N series | 3 3” | 2 Round Trimless | LM07 COB 7W LM10 COB 10W LM13 COB 13W | E On-Off D 0-10V Dimming | N 13° 1 18° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Example: ASLN32-LM07EN30SWT
Note: Factory standard for 8/13/18° is with honeycomb.
