OCULARC FOCUS

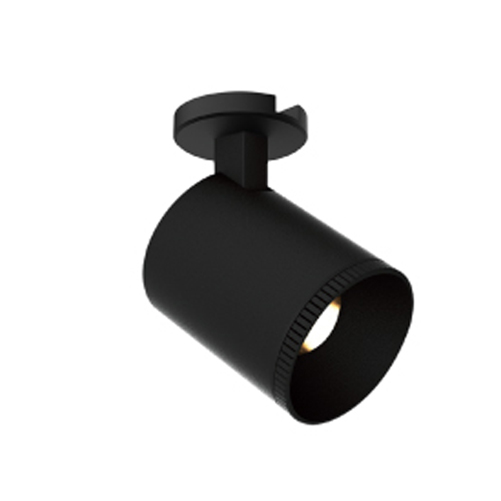

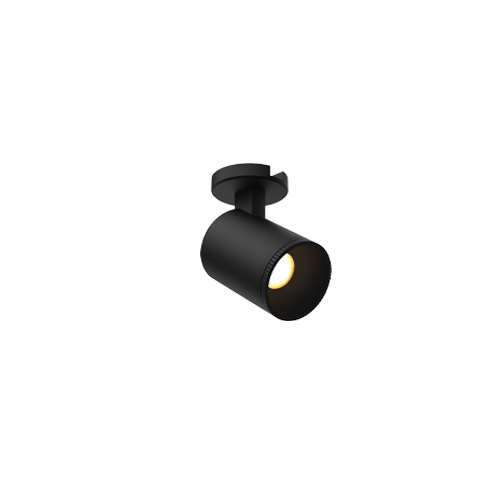

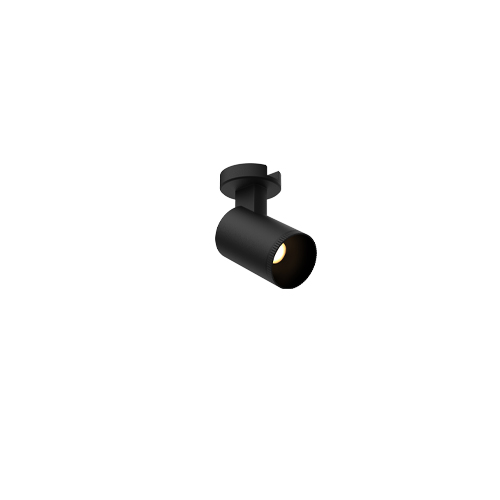

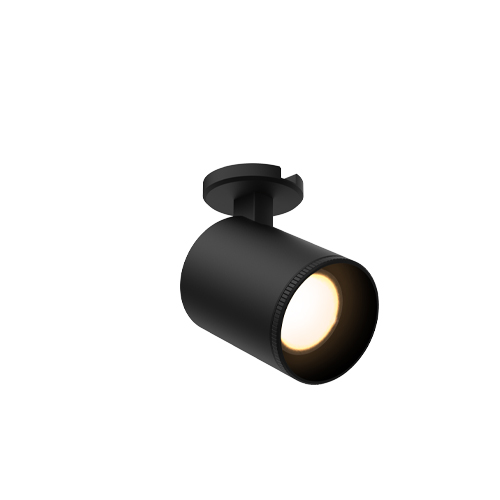

OCULARC FOCUS Adjustable Surface
ME45F/SR45F/ME46F/SR46F/ME47F/SR47F/ME48F/SR48F MIni Zoomable Surface-mounted Spotlight
Installation flexibility defines OCULARC FOCUS Adjustable Surface. Available for recessed through-hole or magnetic surface mounting, this compact luminaire integrates SUBROSA® concealed technology for advanced glare suppression. Stepless beam adjustment enables precise light shaping across varied environments while maintaining a clean architectural presence.
Features

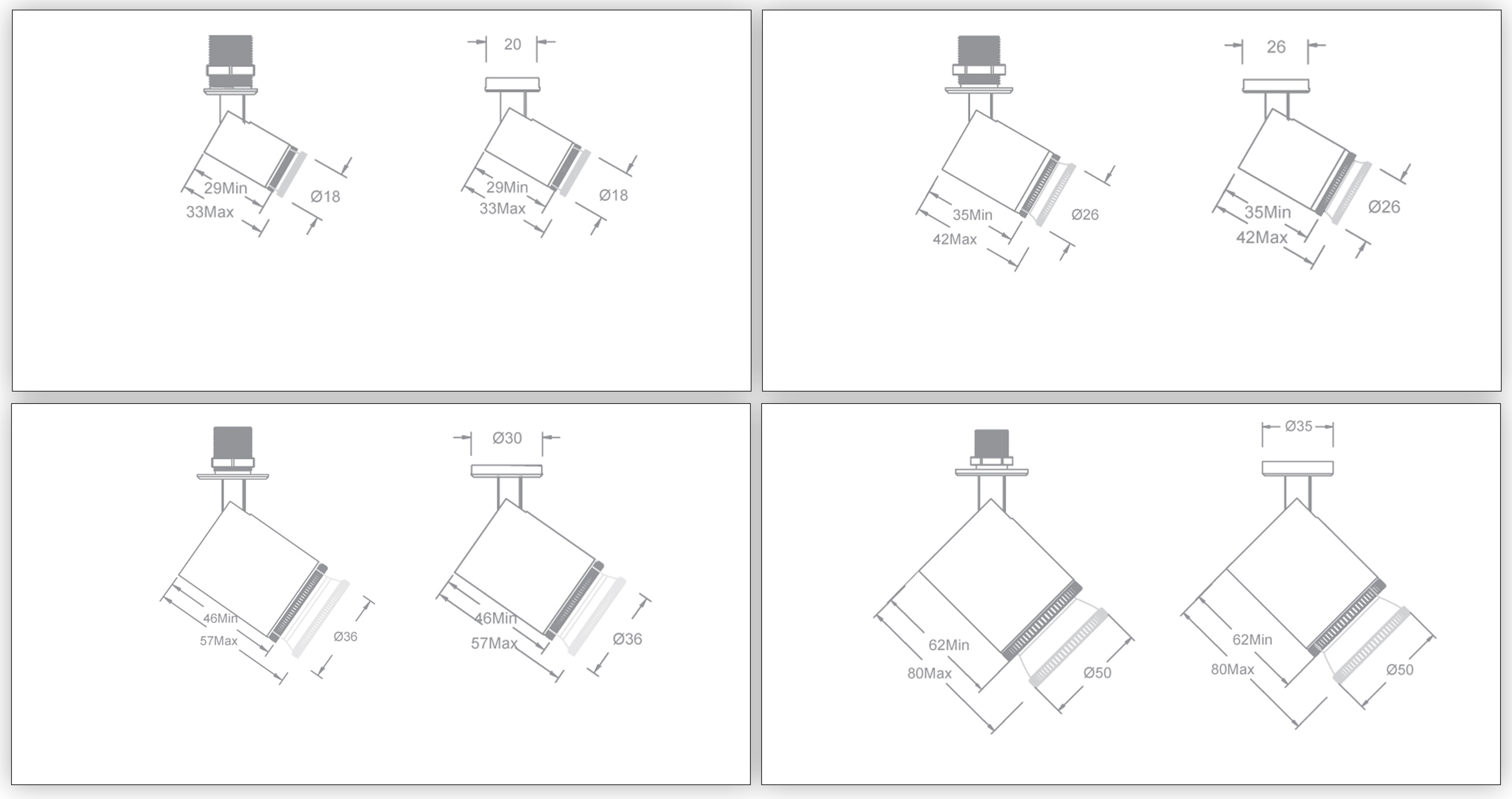

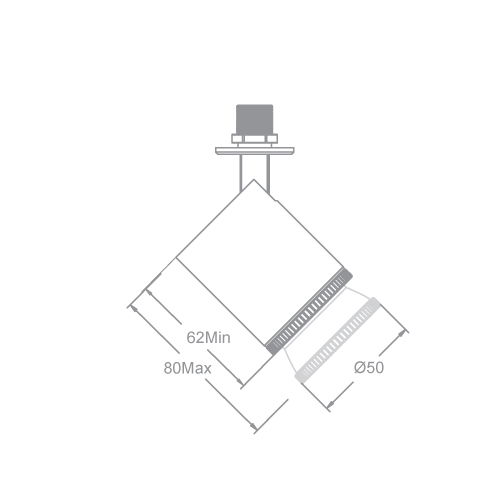

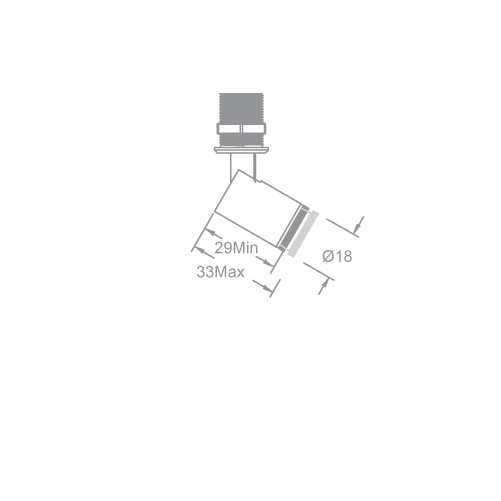

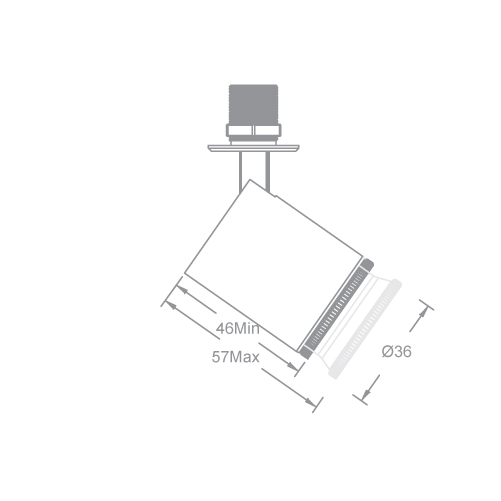

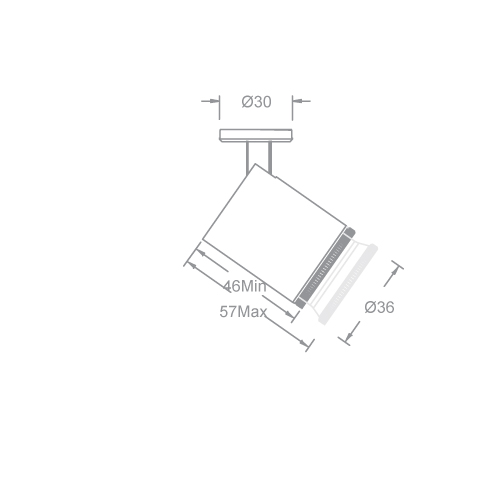

Product Line Drawing

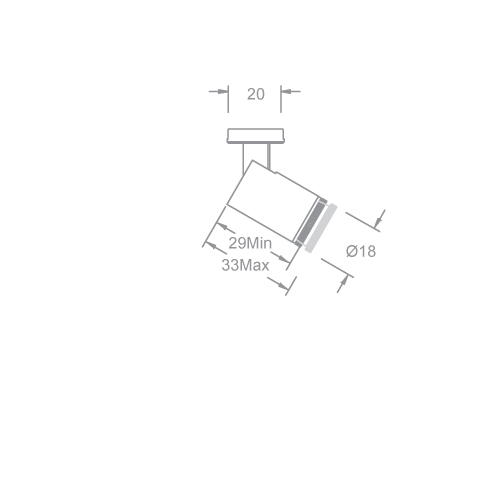

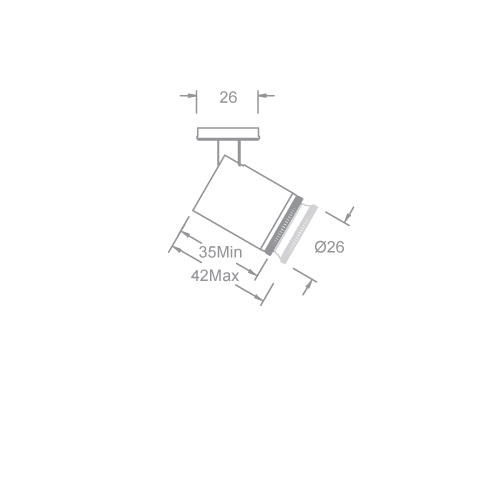

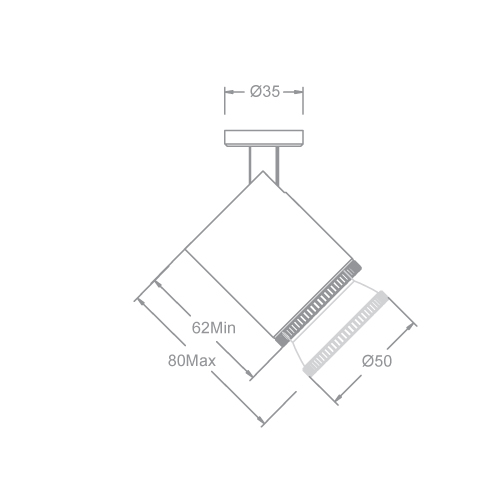

ME45F/SR45F/ME46F/SR46F/ME47F/SR47F/ME48F/SR48F, available in diameters of 18mm, 26mm, 36mm and 50mm.
Adjustable beam angle
In addition to the loading of WAC's patented optical technology SUBROSA® Hidden Light System, which comes with a 30°anti-glare angle in the Extreme Space, the beam angle is adjustable from 6°-60° at the same time.
Multiple installation options available
The Ocularc series offers three mounting options, track mount, surface mount (ceiling & recessed), and pole mount, to meet the needs of a wide variety of installations.
Specifications
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
ME45F SR45F | LD01 LED 1W | M MTB driver N Single wire | F 10°-40° | 9 90 A 97 | 30 3000K 40 4000K | BK Black |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
ME46F SR46F | LD03 LED 3W | M MTB driver N Single wire | F 6°-40° | 9 90 A 97 | 30 3000K 40 4000K | BK Black |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
ME46F SR46F | LD03 LED 3W | M MTB driver N Single wire | F 8°-40° | A 97 | 30 3000K 40 4000K | BK Black |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
ME47F SR47F | LD05 LED 5W | M MTB driver N Single wire | F 8°-40° | 9 90 A 97 | 30 3000K 40 4000K | BK Black |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
ME48F SR48F | LD10 LED 10W | N Single wire* | F 7°-60° | 9 90 A 97 | 30 3000K 40 4000K | BK Black |
Example: ME47FLD05-M-F930BK;
Remarks: 1) The light does not include drivers, and they need to be ordered separately (the dimming method is determined by the driver). 2) * Original light cable is about 0.5m long.
