PLANA PRO

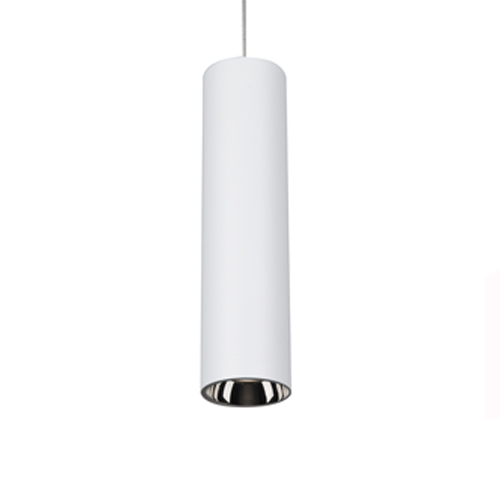

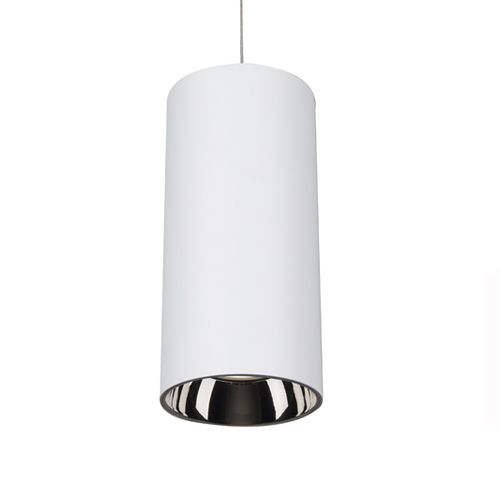

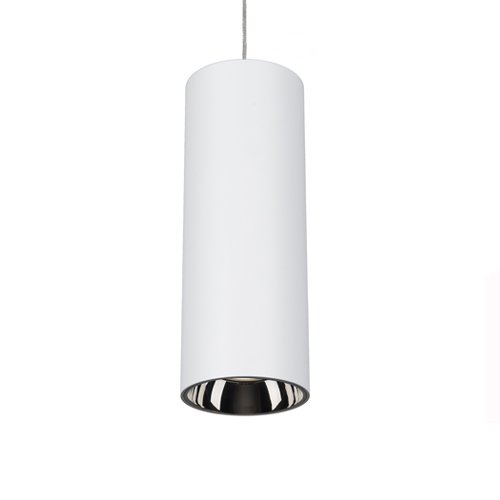

PLANA PRO Pendant Round
APDL22/APDL32/APDL42 Suspended Downlight
Suspended with purpose, PLANA PRO Pendant Round extends the refined language of the PLANA family into a floating architectural form. SUBROSA® concealed lighting technology ensures advanced glare control while maintaining precise distribution. PLANA PRO Pendant Round delivers disciplined illumination for hospitality and commercial interiors.
Specifications
| Model | Size | Trim | LED | Driver | CCT | Beam | Reflector | Finish |
APDL Pendant Downlight | 2 2” | 2 Round Trimless | LD08 HP LED 8W | D 0-10V Dimming | 27 2700K 30 3000K 40 4000K | 1 15° 2 24° 3 36° 4 48° | B Black S Specular | WT White BK Black |
| Model | Size | Trim | LED | Driver | CCT | Beam | Reflector | Finish |
APDL Pendant Downlight | 3 3” | 2 Round Trimless | LM13 COB 13W LM18 COB 18W | D 0-10V Dimming | 27 2700K 30 3000K 40 4000K | 2 20° 4 40° 6 60° | B Black S Specular | WT White BK Black |
| Model | Size | Trim | LED | Driver | CCT | Beam | Reflector | Finish |
APDL Pendant Downlight | 4 4” | 2 Round Trimless | LM18 COB 18W LM25 COB 25W | D 0-10V Dimming | 27 2700K 30 3000K 40 4000K | 2 20° 4 40° 6 60° | B Black S Specular | WT White BK Black |
Example: APDL22-LD08D302SWT
