LIGNE III

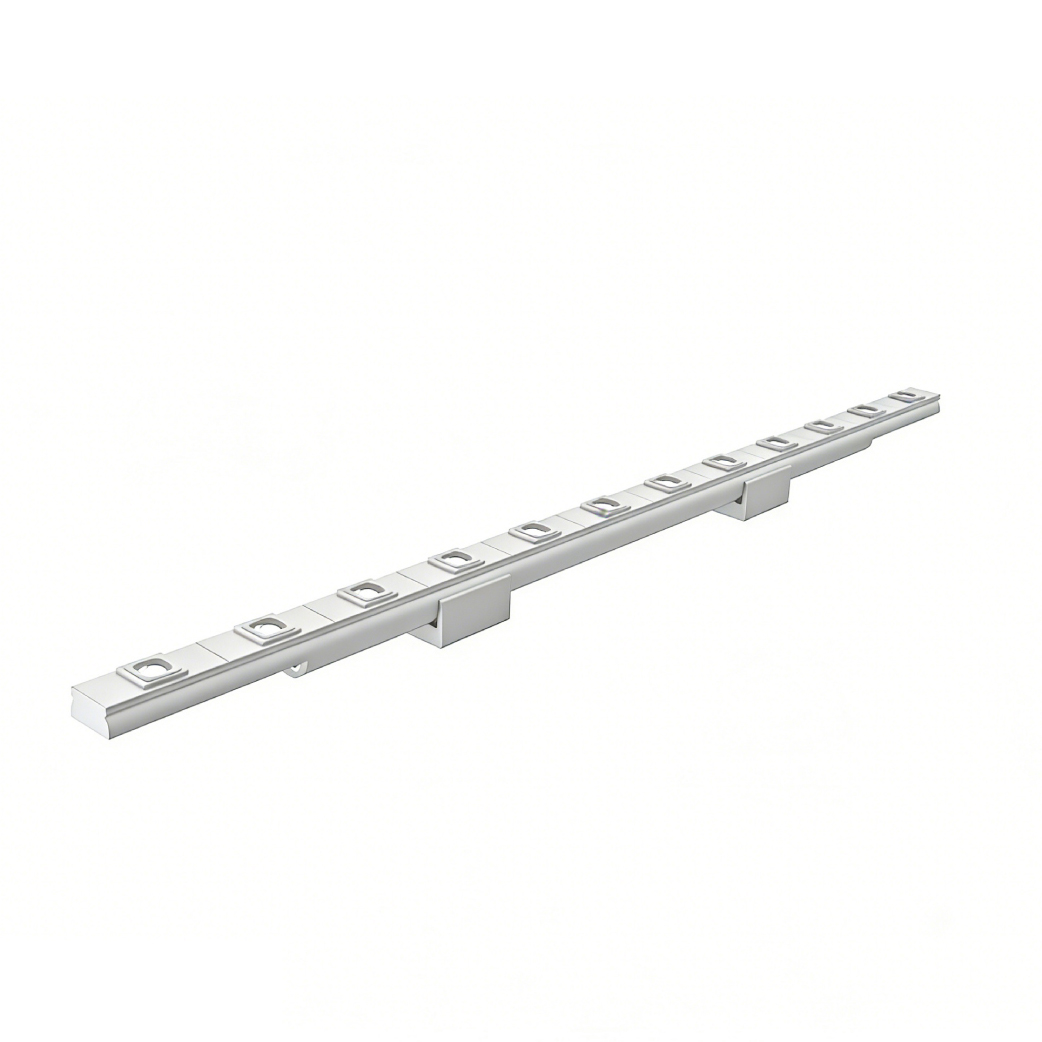

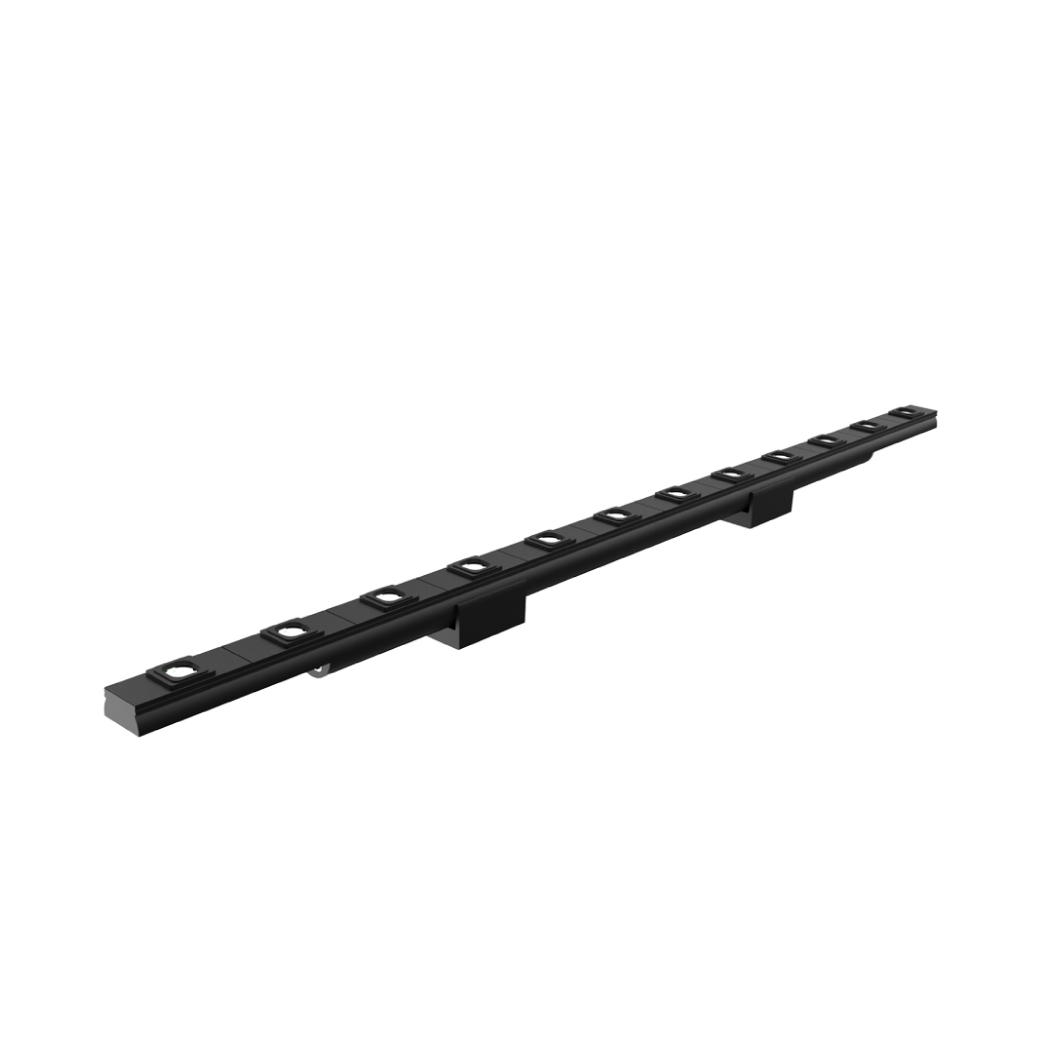

LIGNE III Curtain Light

LIGNE III curtain light features a specially designed lens optical system. Powered by 24 V DC and combined with a well-arranged LED layout, the luminaires can be connected end to end, delivering uniform illumination across the wall without dark spots or glare. With efficient heat dissipation, low power consumption, and soft anti-glare lighting performance, it is ideal for recessed linear applications in office spaces, hotels, and commercial public areas.

Specifications

Model

Length

(mm)

Power

(W)

Driver

Beam

CRI

CCT

Finish

AOC5N

02  249


04  4W

N  No Driver

2    28°

3    36°

4    48°



9  Ra90

27   2700K

30   3000K

35   3500K

40   4000K

WT  White

BK  Black

Model

Length

(mm)

Power

(W)

Driver

Beam

CRI

CCT

Finish

AOC5N

05  499


08  8W

N  No Driver

2    28°

3    36°

4    48°



9  Ra90

27   2700K

30   3000K

35   3500K

40   4000K

WT  White

BK  Black

Model

Length

(mm)

Power

(W)

Driver

Beam

CRI

CCT

Finish

AOC5N

10  998

16  16W

N  No Driver

2    28°

3    36°

4    48°



9  Ra90

27   2700K

30   3000K

35   3500K

40   4000K

WT  White

BK  Black

Example: AOC5N-1016N2930BK

Note: Maximum daisy-chain length: 5 m. One single-ended Type-C cable is included for connection between the luminaire and a 24 V DC power supply.
