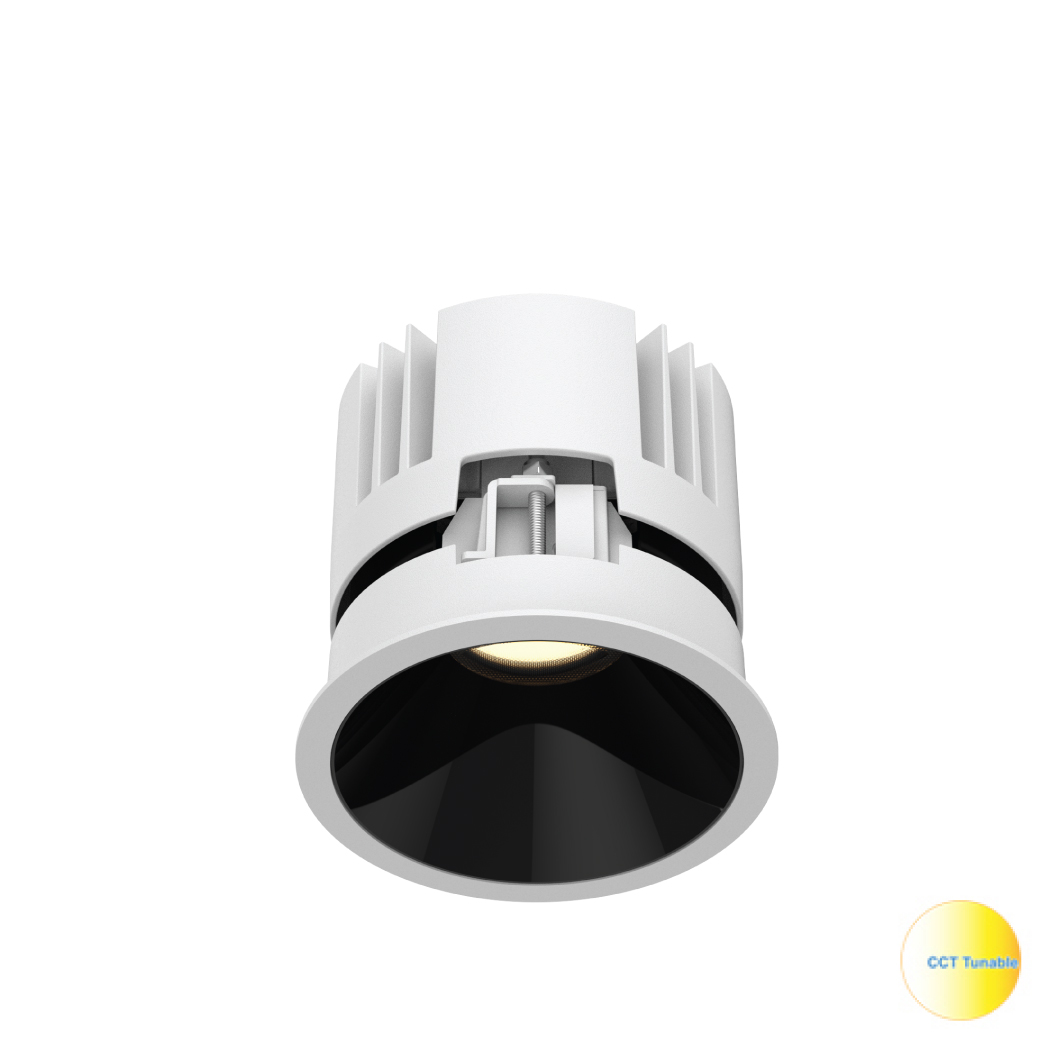

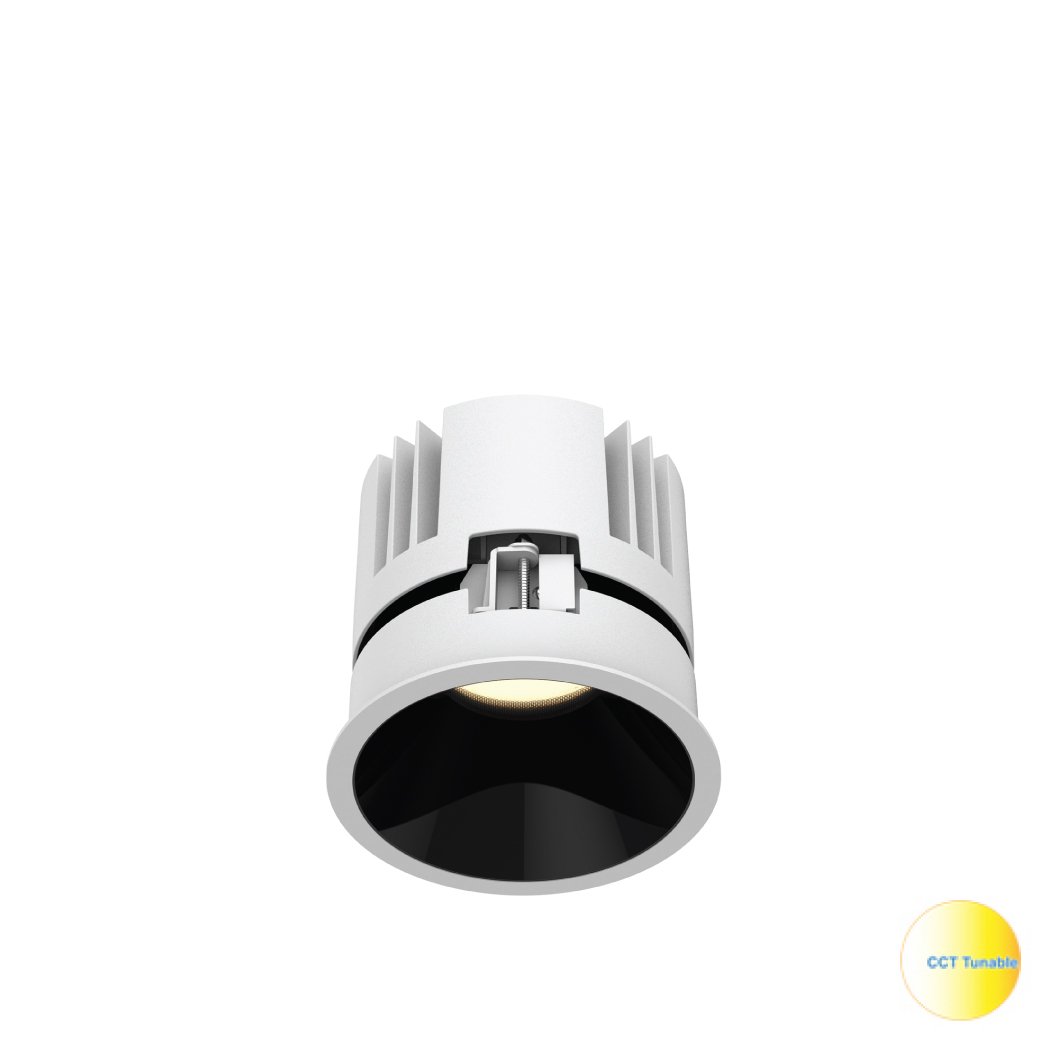

VOLTA TUNABLE Round Fixed 3/4

1 / 4

ADLT21/ADLT31 3/4" Tunable Downlight

Refined circular geometry defines VOLTA TUNABLE Round Fixed. A precision lens and black mirror reflector maintain beam integrity while achieving advanced glare suppression. The sealed light engine safeguards performance in moisture‑affected environments, and tunable white capability supports adaptable lighting strategies.

Features

Line drawing of VOLTA fixed series

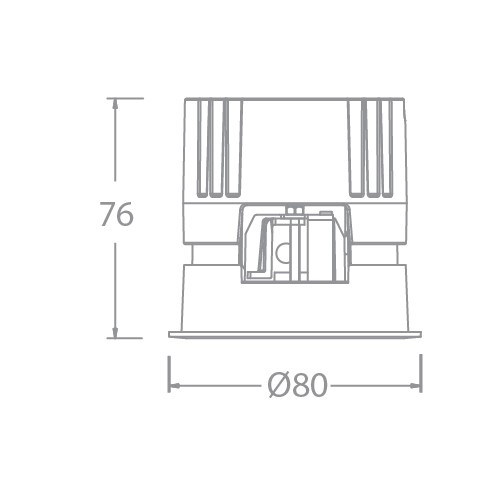

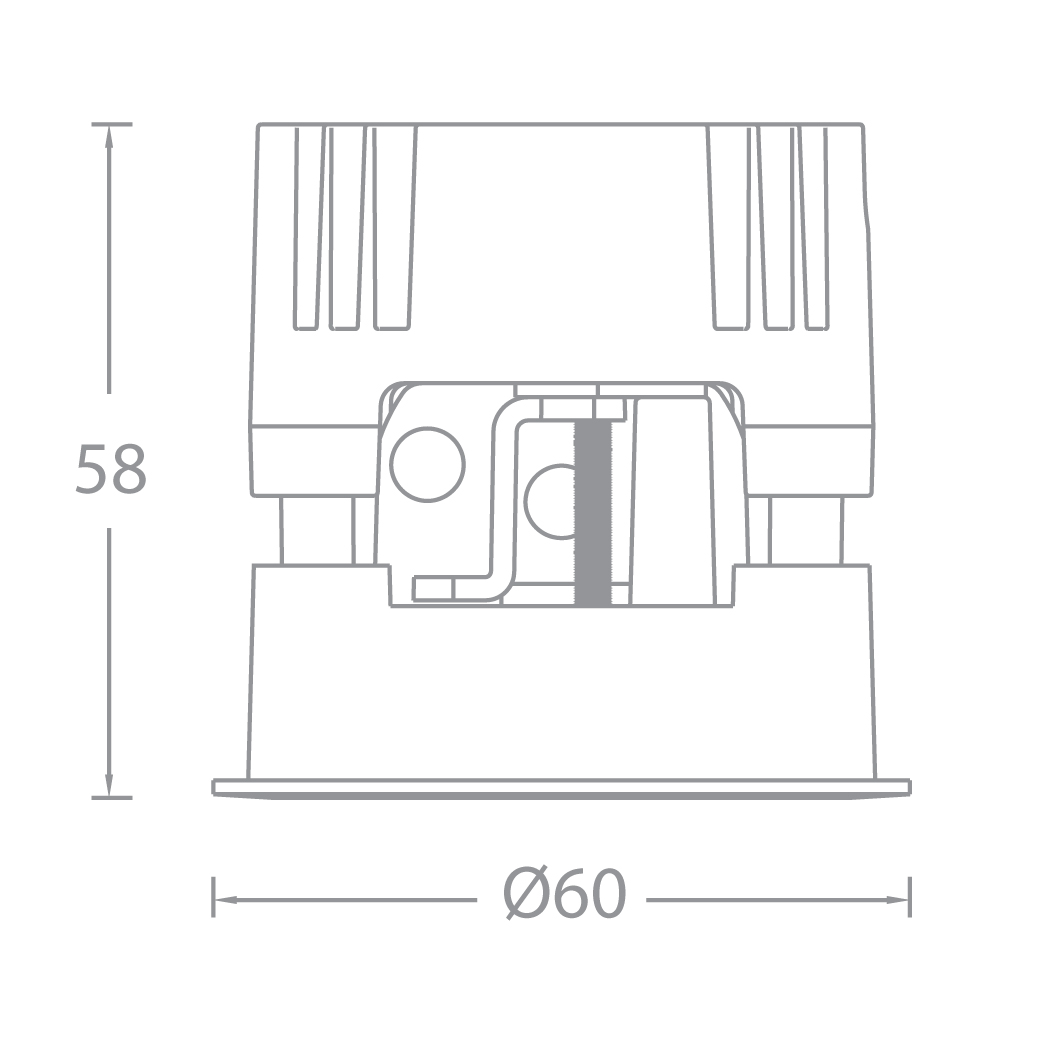

Detailed Line Drawing for 4/5/6" Fixture

High thermal performance

Convection cooling + Enclosed chimney cooling to enhance thermal performance

IP44 sealed light source chamber design

Ensures stable performance in humid environment

No light spot spill out (right VOLTA)

Actual light effect with clean, soft spot and no stray light

Adjustment without light leakage (right VOLTA)

Combination of light perfromance and anti-glare design, no stray light throughout the process of tilting angle

Videos

VOLTA

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLT

2 2”

1 Round Trim

LM07 COB 7W

A DALI

N No Driver

2 24°

3 36°

5 50°

CC 2700K-6000K

(Tunable)

B Black

S Specular

WT White

BK Black
