FUEGO COMPACT

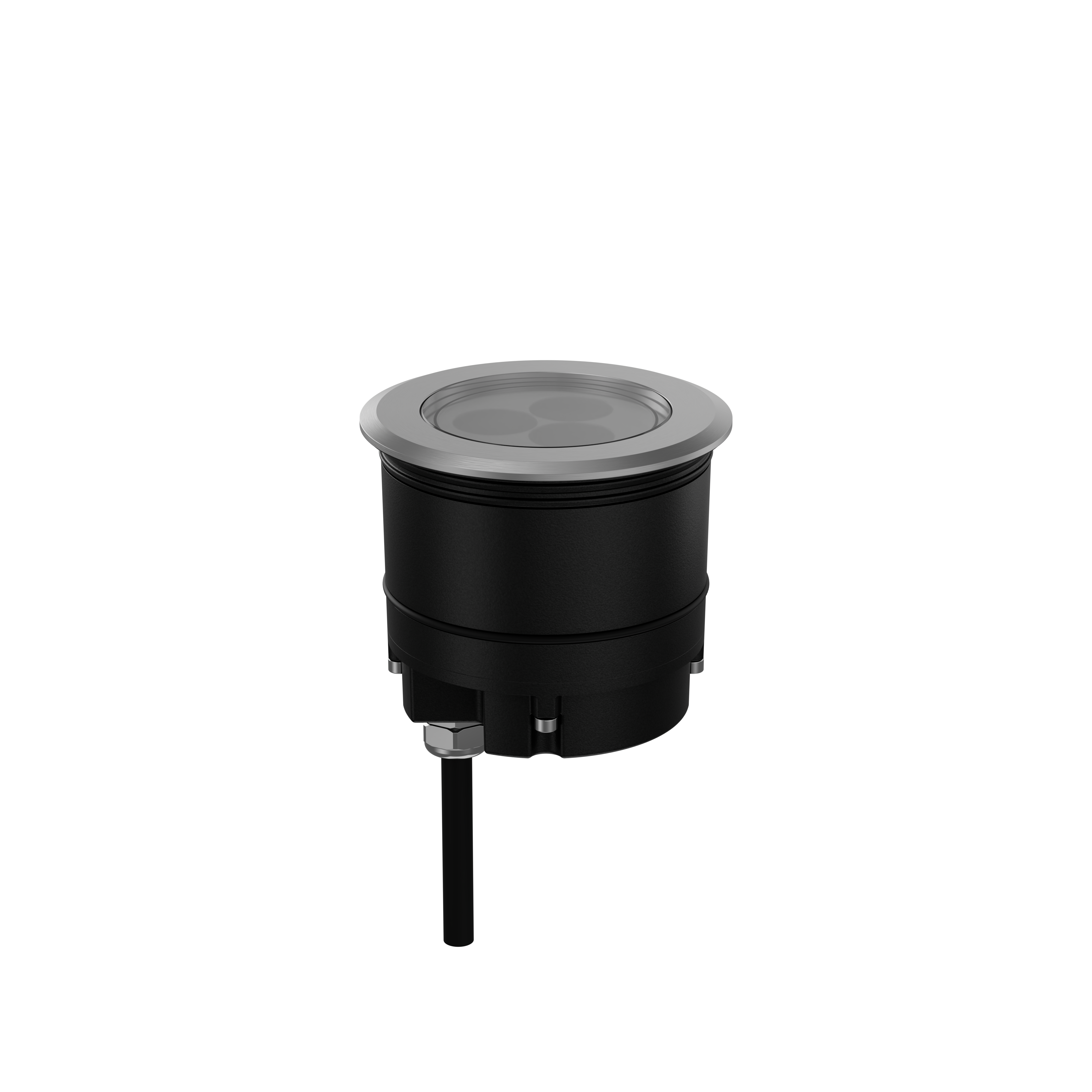

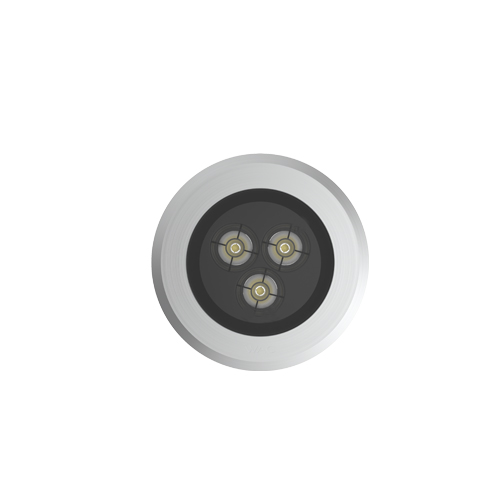

FUEGO COMPACT 4" SUPER COMFORT
FCC04
The FUEGO Compact features a high-quality 316 stainless steel face frame, an aluminum die-cast housing, and a high-temperature powder-coated finish. It is designed for outdoor environments, with an IP68 protection rating, IK08 impact resistance rating, and a load-bearing capacity of up to 1500 kg. The fixture is equipped with a high-transmittance lens and a patented anti-glare system. The pre-buried sleeve design allows for easy installation and maintenance. It is ideal for use in residential areas, including parks, plazas, shopping centers, and for facade lighting applications.
Specifications
| Model & Power | Color Temperature & CRI | Control Options | Beam | Finish |
|---|---|---|---|---|
| FCC04 | 827 – 2700K – 80 CRI 830 – 3000K – 80 CRI 840 – 4000K – 80 CRI | L – 0-10V D – DMX512-A | U – Ultra Narrow – 6°, 7° S – Spot – 13°, 14° N – Narrow Flood – 20° M – Medium Flood – 30° | SS – Stainless Steel |
Example: FCC4-840L-N-SS
