1 / 3
LIGNE III

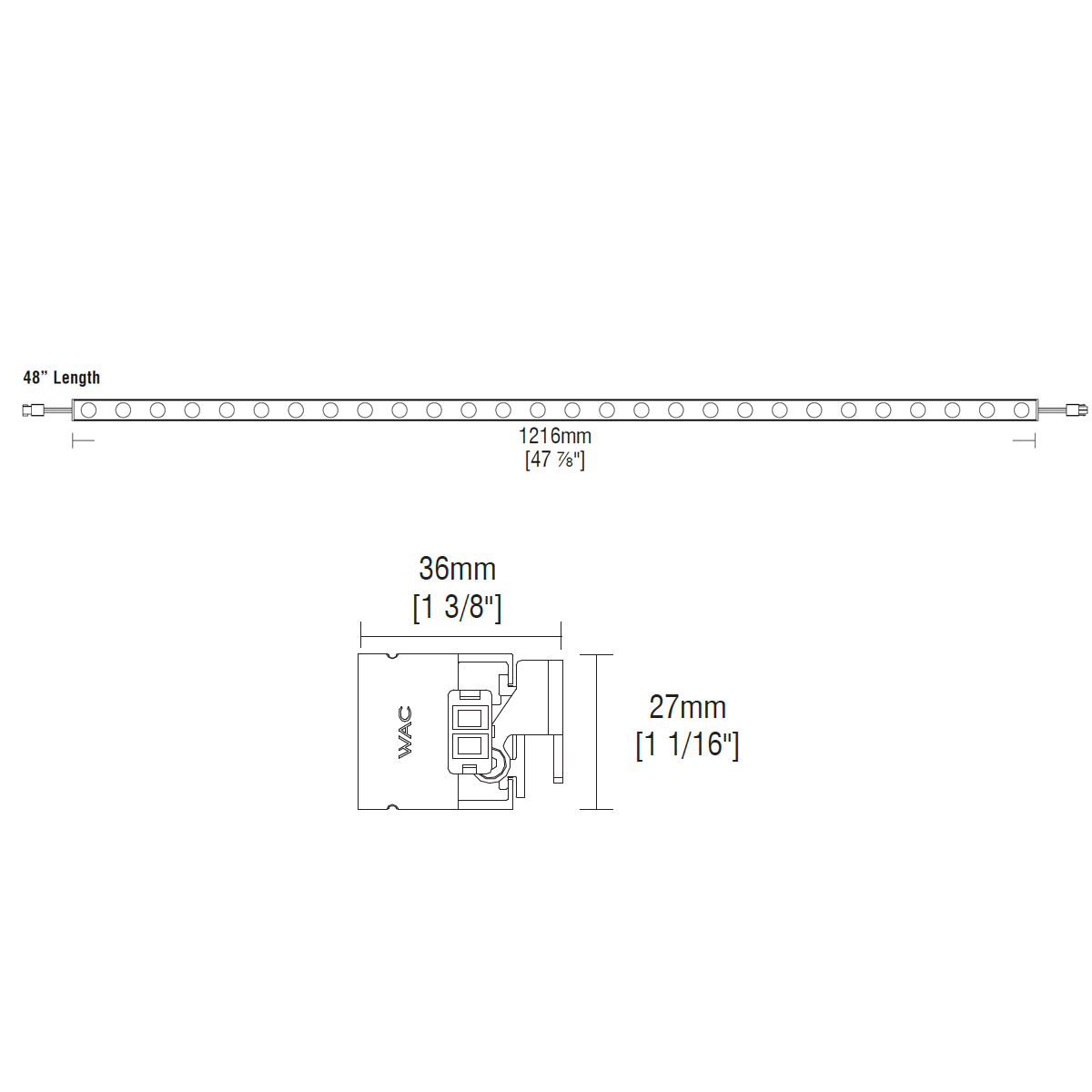

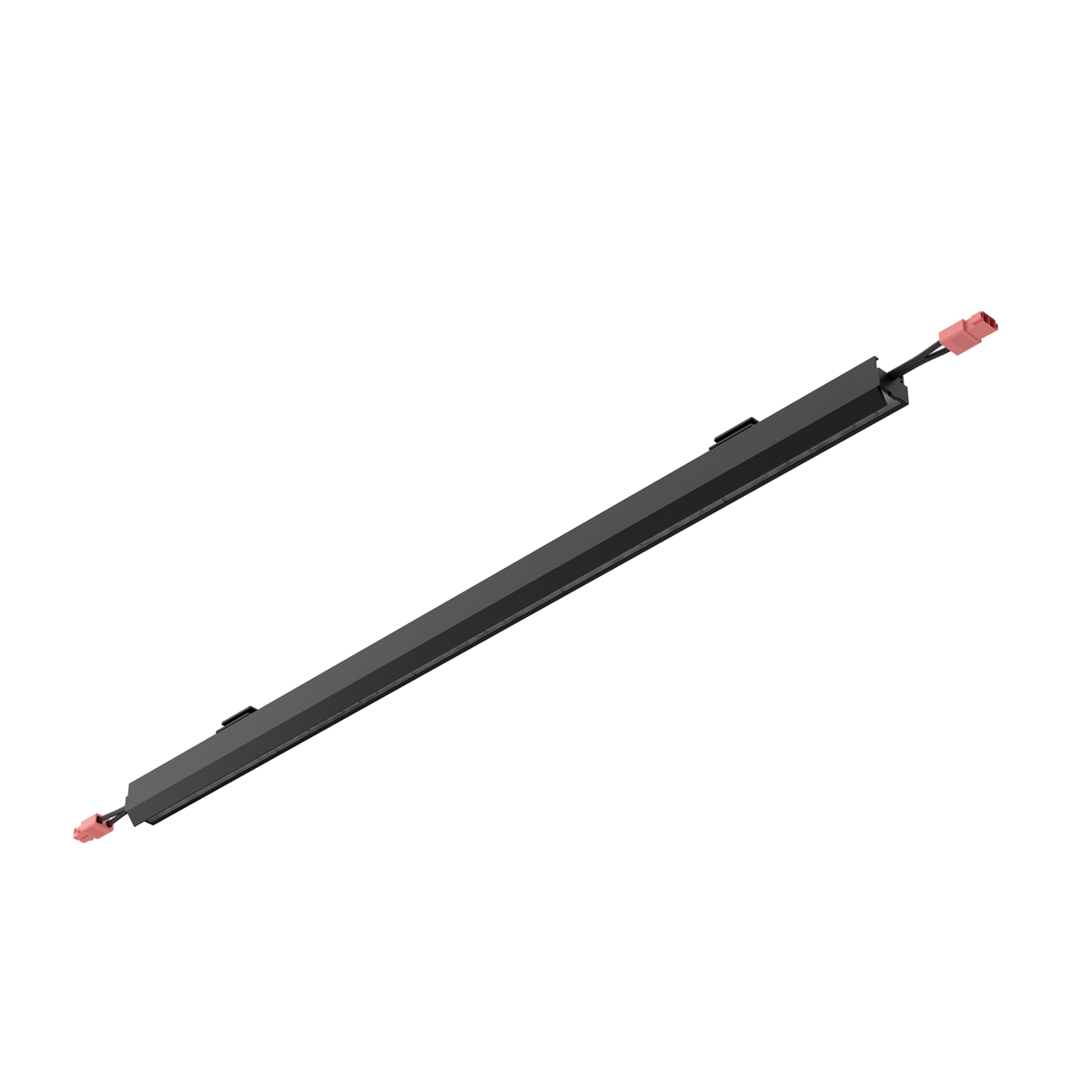

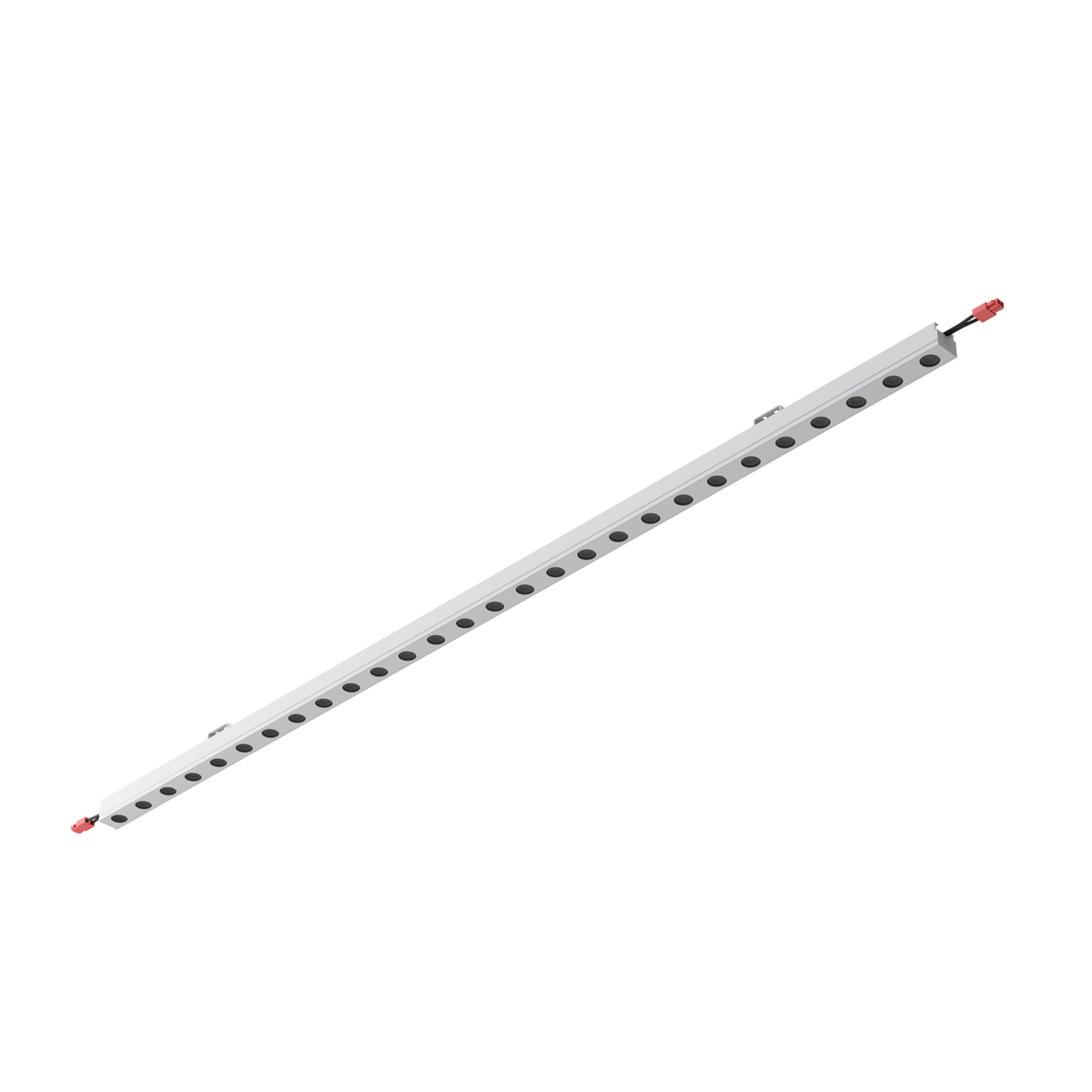

LIGNE III Wall Grazer 48"
LGW48
The LIGNE III features a specialized lens or polarized optical system combined with an optimized LED arrangement, delivering uniform wall illumination with no dark spots or glare. It offers high-efficiency heat dissipation, low energy consumption, and a soft anti-glare lighting effect. With a DC 48V input, fixtures can be connected end-to-end for continuous installation. Ideal for recessed linear wall-washing applications in offices, exhibition halls, hotels, and commercial public areas.
Features
Simulation of Wall Washing and Wall Grazing Lighting Effects
Comparative simulation of lighting effects under different installation distances for wall washing and wall grazing.
Specifications
| Model & Power | Beam Angle | Color Temperature & CRI | Housing Finish |
|---|---|---|---|
| LGW48 | A - Asymmetric S - Spot 12° N - Narrow Flood 20° M - Medium Flood 30° F - Flood 40° E - Elongating 15° x 45° | 927 - 2700K - 90 930 - 3000K - 90 935 - 3500K - 90 940 - 4000K - 90 | BK - BLACK WT - WHITE |
Example: LGW48-A9230-WT
