Zoron Wall Mount

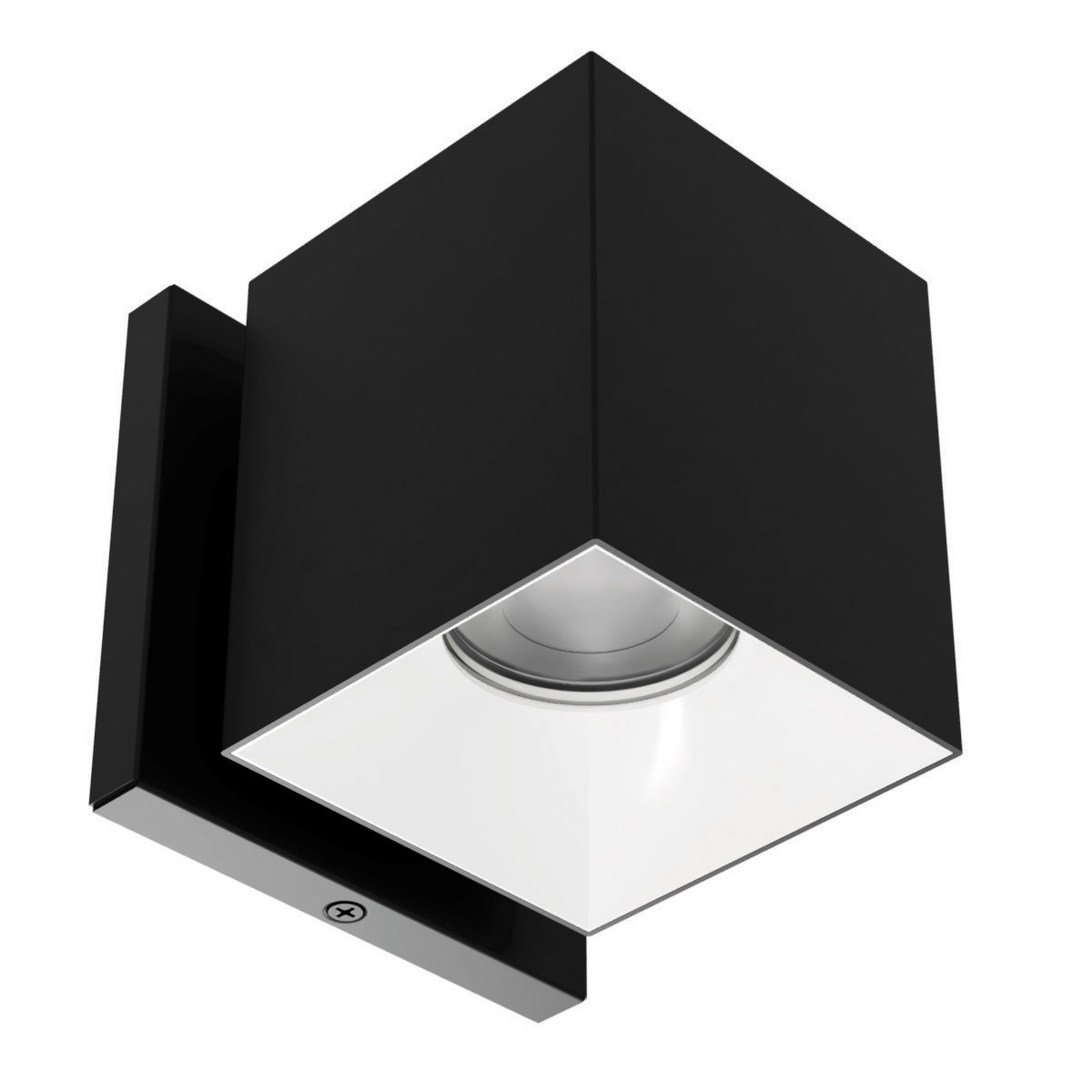

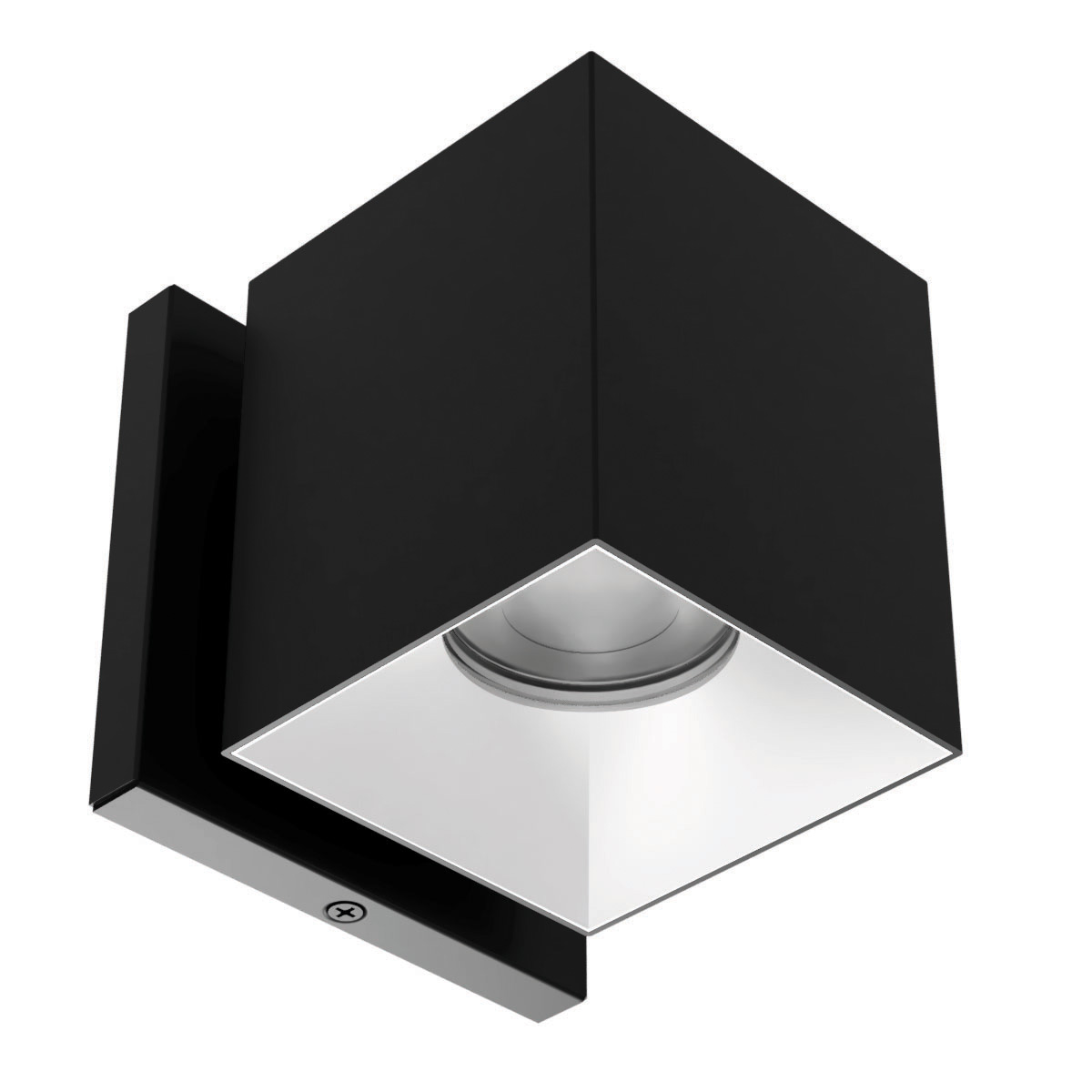

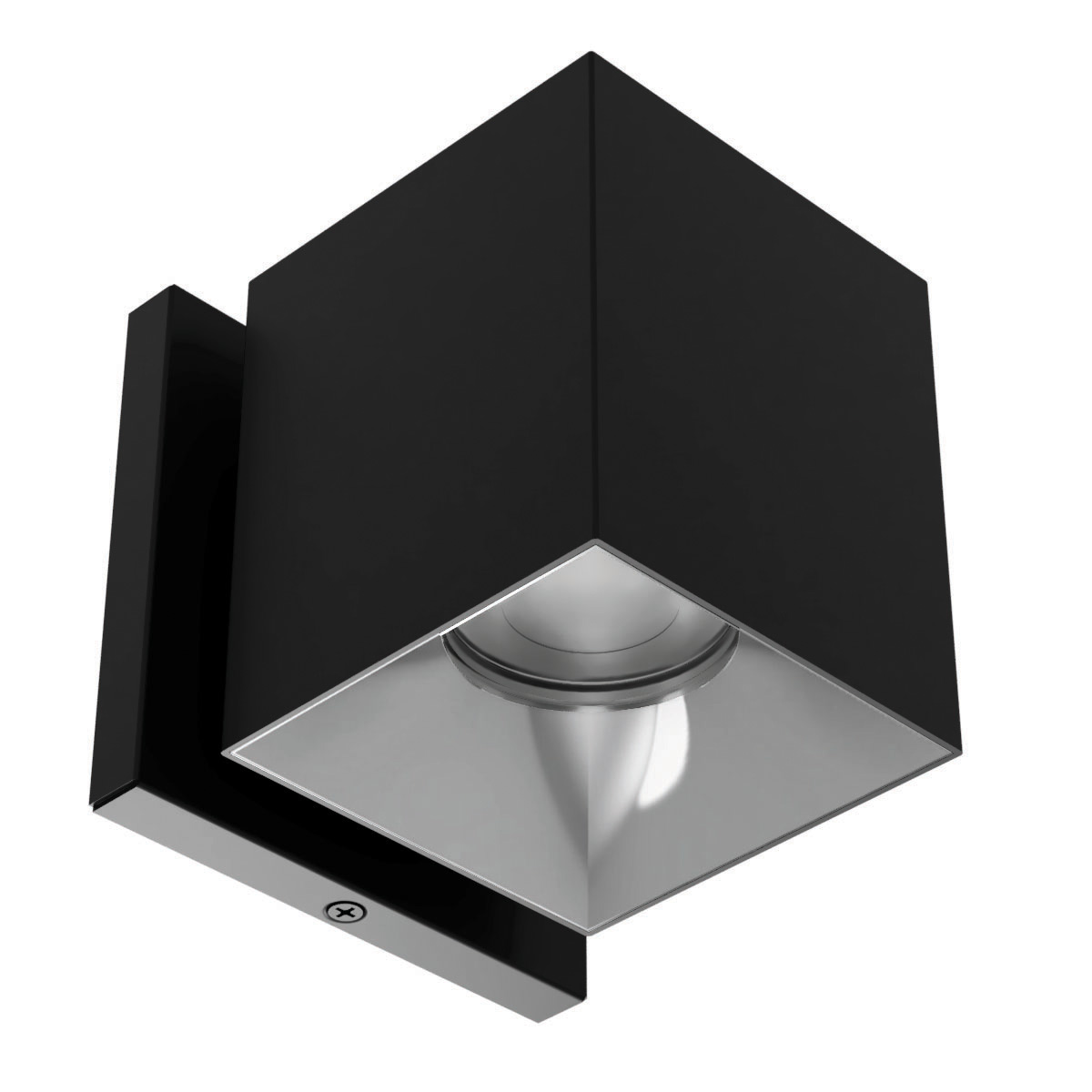

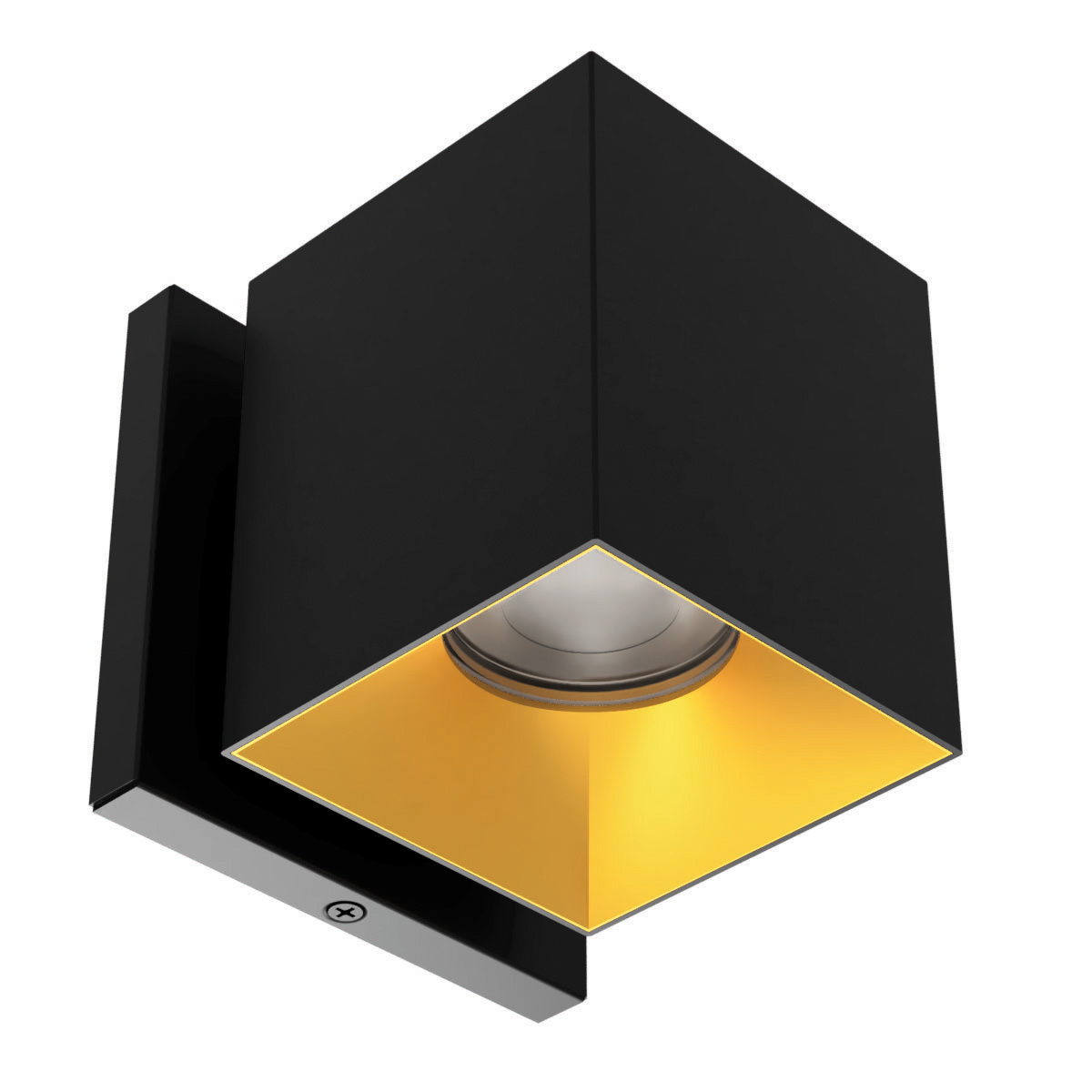

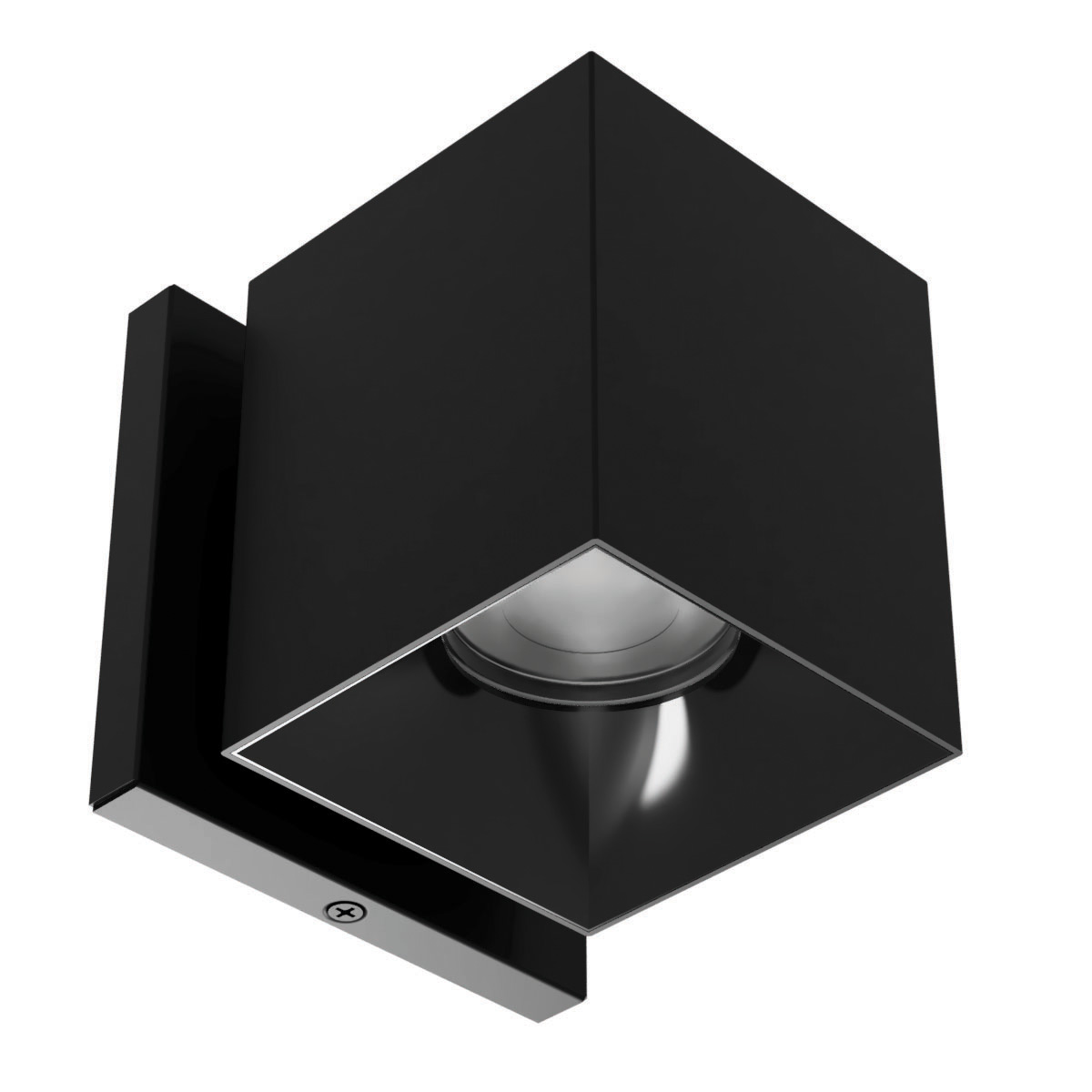

Zoron 5CCT Wall Mount - Square
W4S
The Zoron series combines sleek aesthetics with exceptional performance. Compact and stylish enough for residential applications, yet powerful enough to be used commercially. With built-in color temperature selection and the option to be used either indoors or out, Zoron adapts to any setting. Regressed trims and specialized TIR optics provide both aesthetic appeal and glare control, making Zoron the perfect blend of form and function.
Specifications

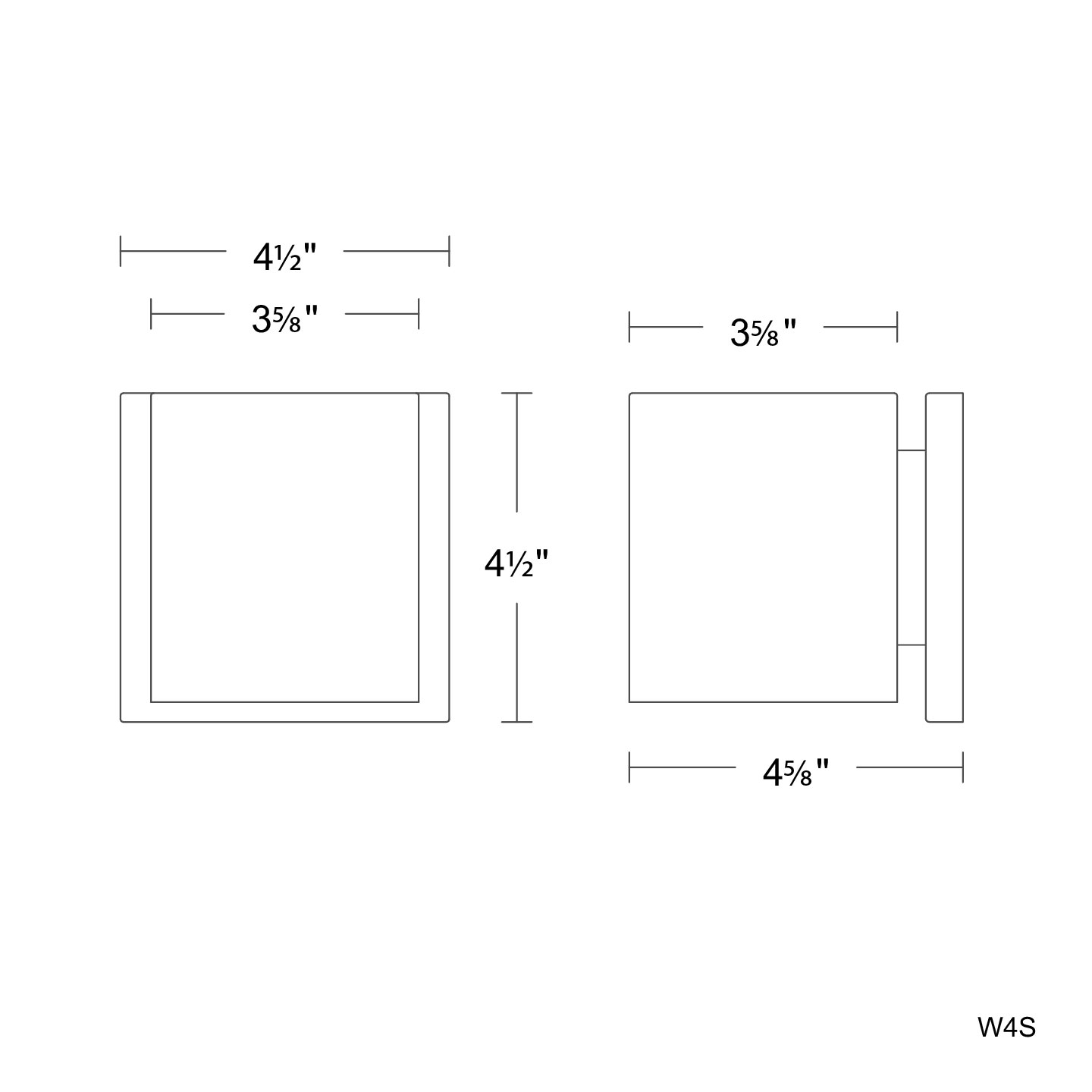

Standard Trim
| Model | Power | Beam | Color Temp | CRI | Lumens | CBCP | Efficacy (lm/W) | Body Finish | Trim Finish |
|---|---|---|---|---|---|---|---|---|---|
| W4S | 15W | N Narrow 25° | 2700K 3000K 3500K 4000K 5000K | 90 | 1015 1060 1100 1130 1185 | 2985 3310 3235 3330 3485 | 68 71 73 75 79 | BK Black WT White | BK Black CH Chrome GL Gold HZ Haze WT White |
| F Flood 45° | 2700K 3000K 3500K 4000K 5000K | 90 | 1135 1180 1230 1265 1325 | 1945 2025 2105 2165 2265 | 76 79 82 84 88 | BK Black WT White | BK Black CH Chrome GL Gold HZ Haze WT White |
W4S-_CS-___
Example: W4S-FCS-WTHZ

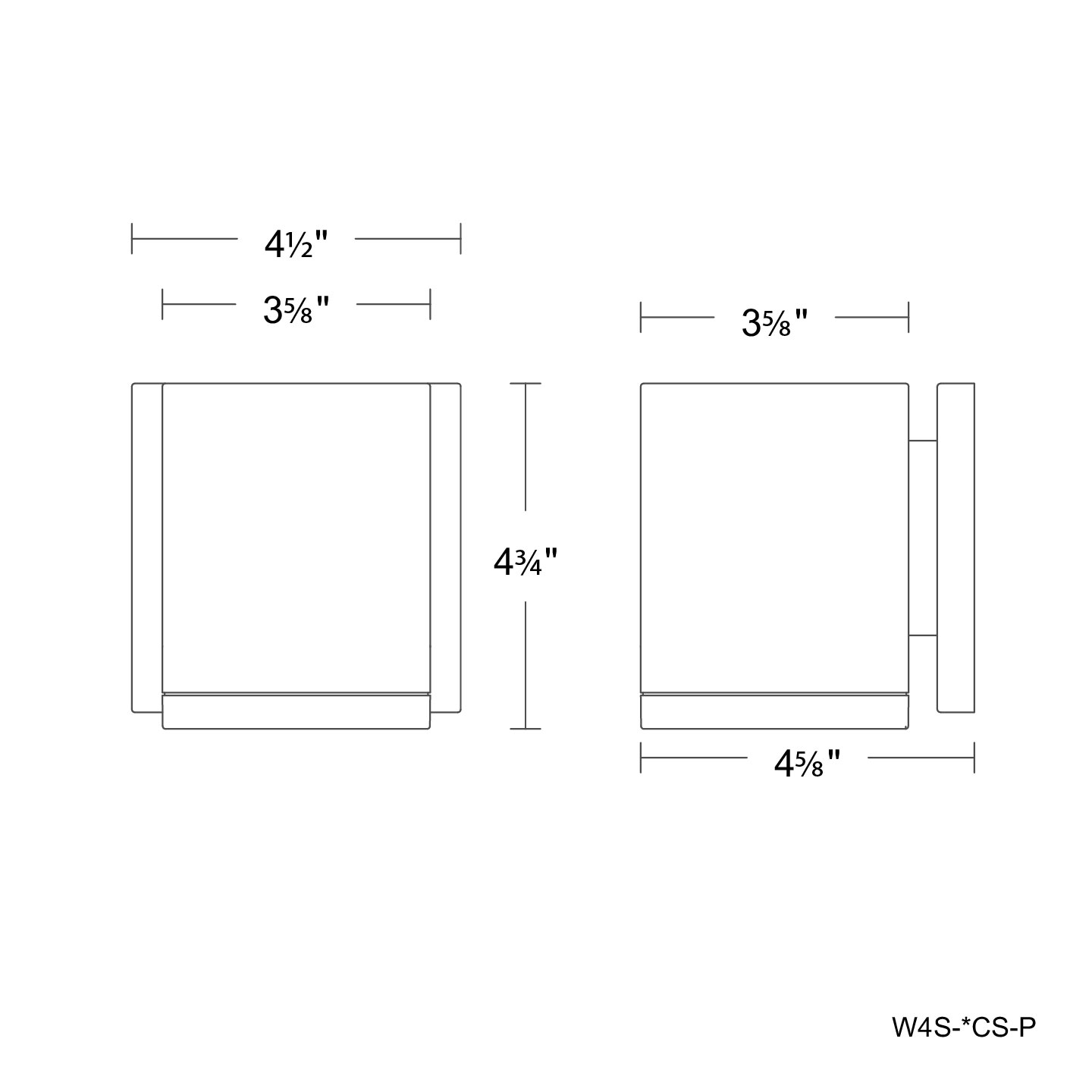

Arc Trim
| Model | Power | Beam | Color Temp | CRI | Lumens | CBCP | Efficacy (lm/W) | Trim Finish* |
|---|---|---|---|---|---|---|---|---|
| W4S | 15W | N Narrow 25° | 2700K 3000K 3500K 4000K 5000K | 90 | 910 945 985 1010 1060 | 3075 3200 3330 3425 3585 | 61 63 66 67 71 | PBK Arc Black PWT Arc White |
| F Flood 45° | 2700K 3000K 3500K 4000K 5000K | 90 | 1065 1110 1150 1185 1240 | 1950 2035 2115 2175 2275 | 71 74 77 79 83 | PBK Arc Black PWT Arc White |
W4S-_CS-P_
Example: W4S-NCS-PBK
*When ordering Arc trim, body finish will match trim finish.
