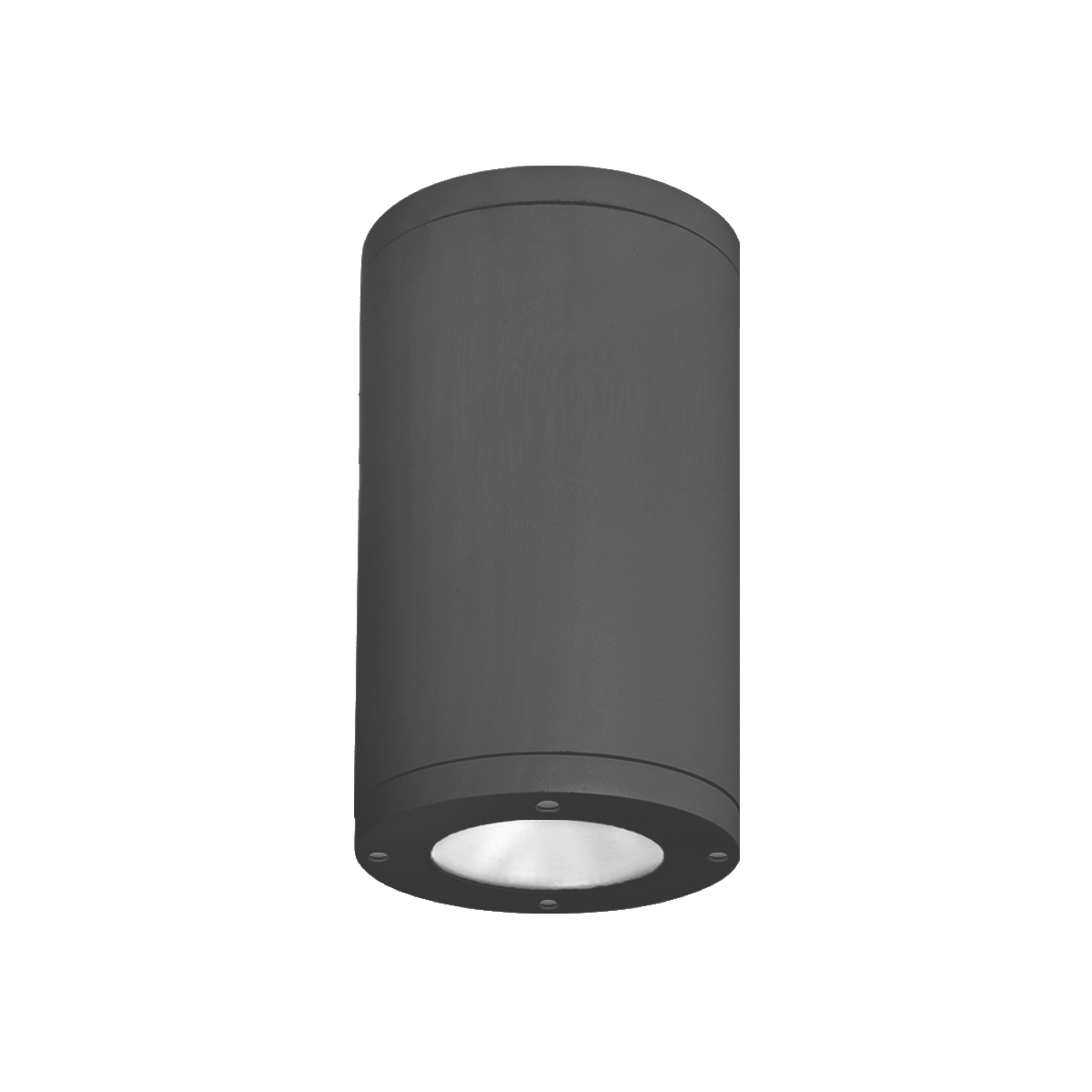

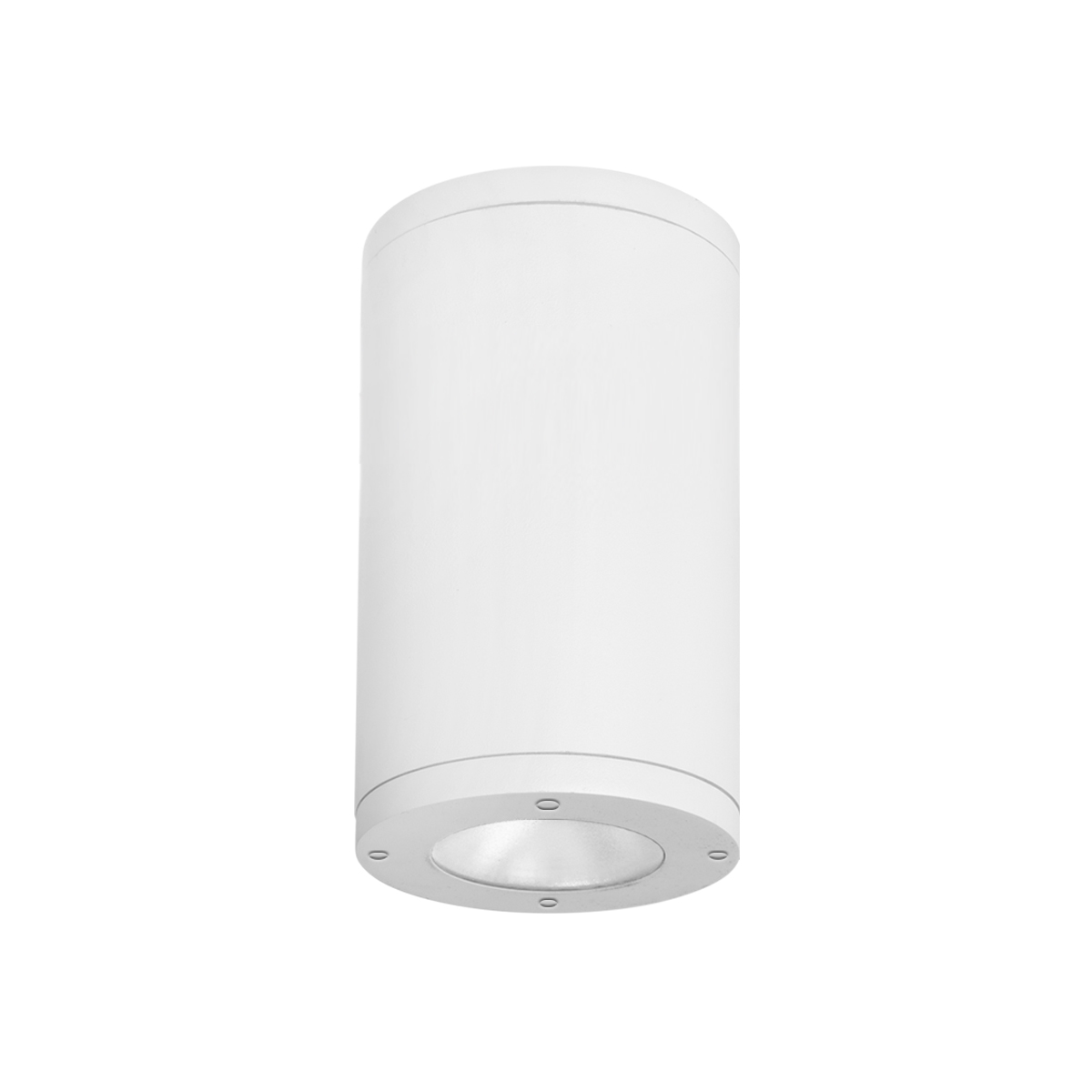

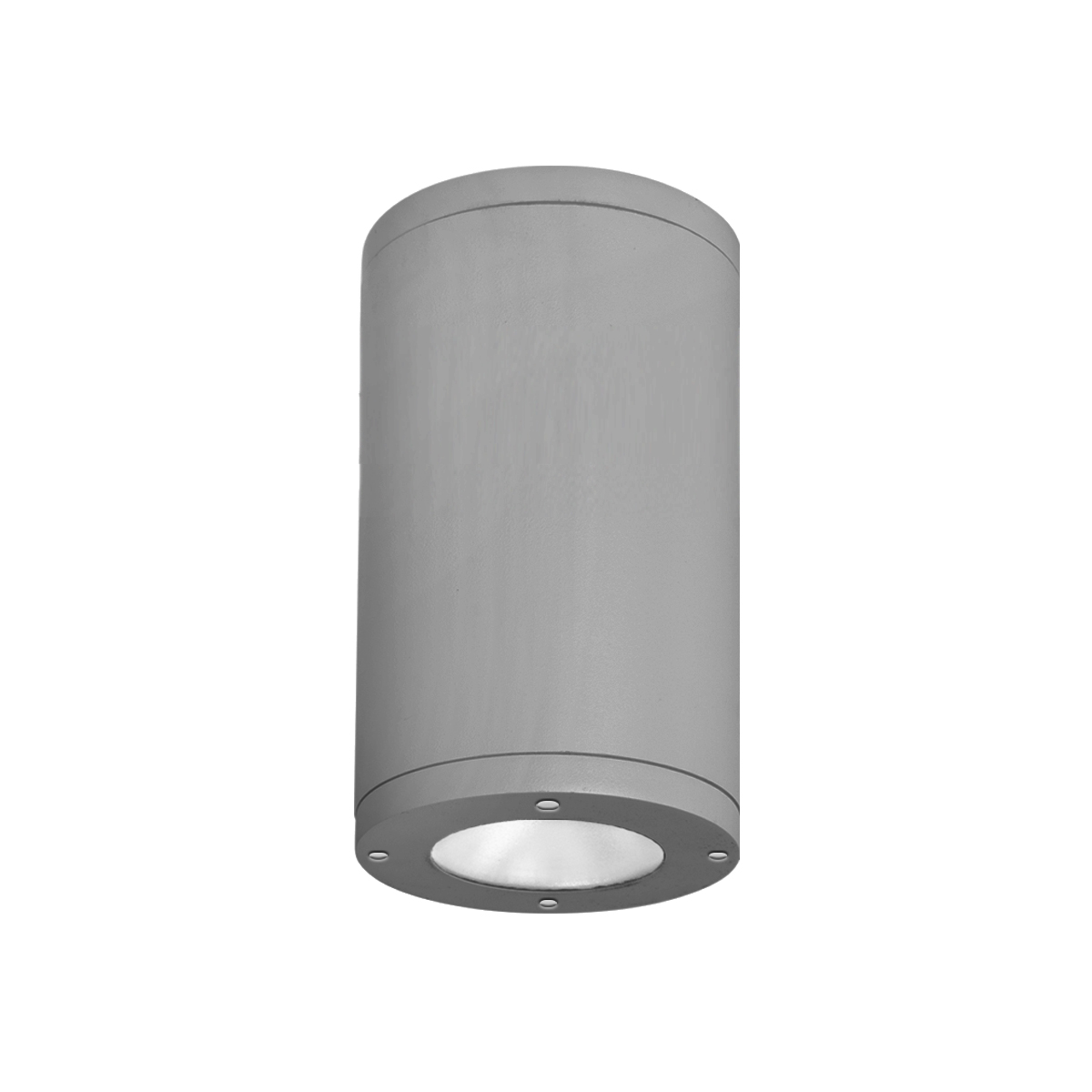

Tube Architectural 6" Ceiling Mount

1 / 5

DS-CD06

The latest energy efficient LED technology in an appealing cylindrical profile delivers accent lighting. Comes in various light beam angle options.

Specifications

Diameter	Watt	Beam	Angle	Color	Temp	CRI	Reference Output Lumens	CBCP	Efficacy (Lm/W)	Finish
DS-CD06 DS-CD0622	35W 22W	S Spot	16°	927	2700K	90	2820	18842	81	BK Black WT White BZ Bronze GH Graphite
				927	2700K	85	3385	22608	97
				930	3000K	90	2925	19543	84
				930	3000K	85	3535	23632	101
				35	3500K	85	3630	24255	104
				40	4000K	85	3665	24490	105
		N Narrow	28°	927	2700K	90	2800	7992	80
				927	2700K	85	3360	9589	96
				930	3000K	90	2900	8290	83
				930	3000K	85	3510	10024	100
				35	3500K	85	3600	10288	103
				40	4000K	85	3635	10388	104
		F Flood	38°	927	2700K	90	2825	5451	81
				927	2700K	85	3390	6540	97
				930	3000K	90	2930	5654	84
				930	3000K	85	3545	6836	101
				35	3500K	85	3640	7017	104
				40	4000K	85	3675	7085	105

DS-CD06-___-___

¹Reference output shows 35W output. Multiply by 0.7 to determine output for 22W combinations.

Example: DS-CD06-N927-BK

In-Depth Spec Sheet Tube Architectural 6" Ceiling Mount Complete Specs Download Preview
Essential Spec Sheet Tube Architectural 6" Ceiling Mount Specs Download Preview
