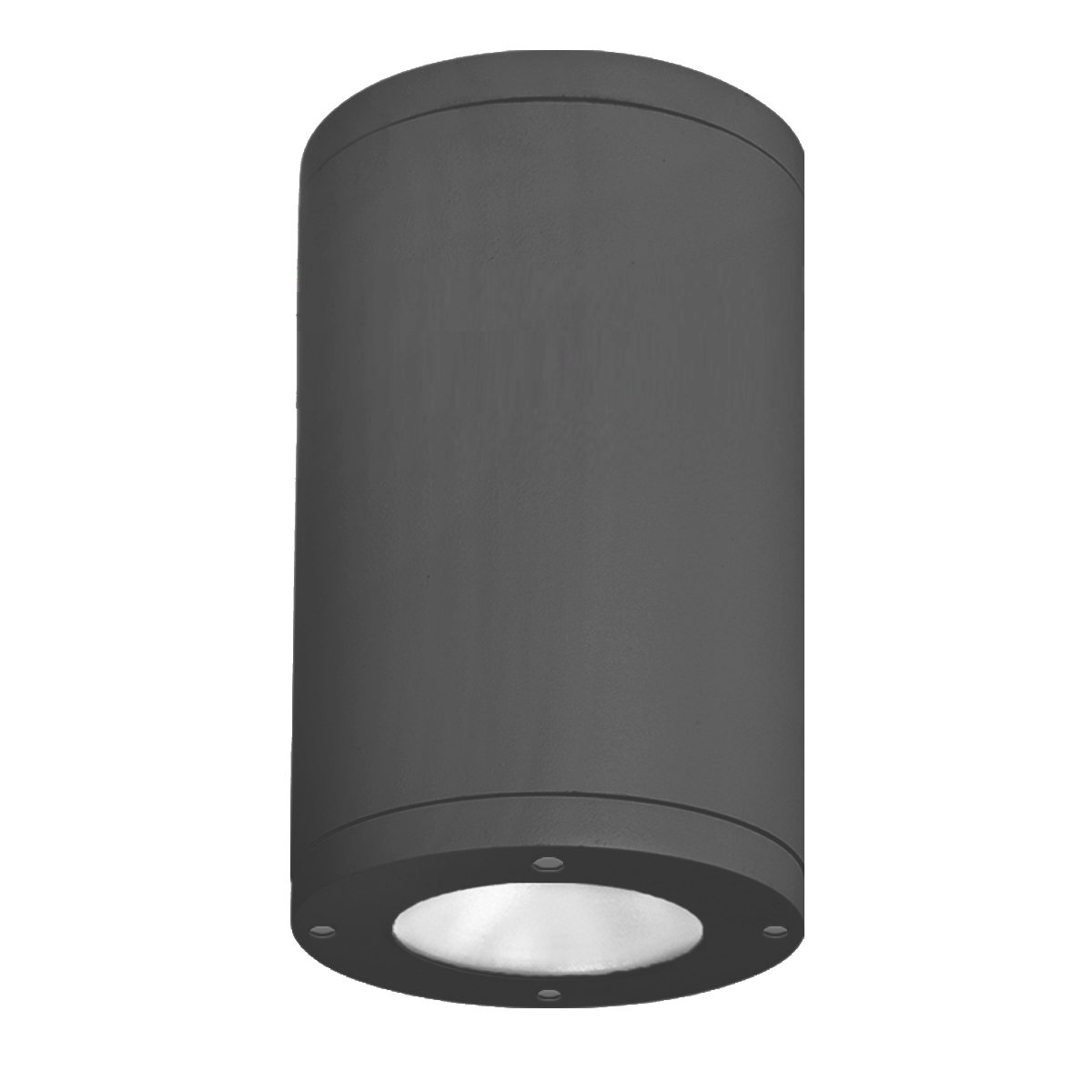

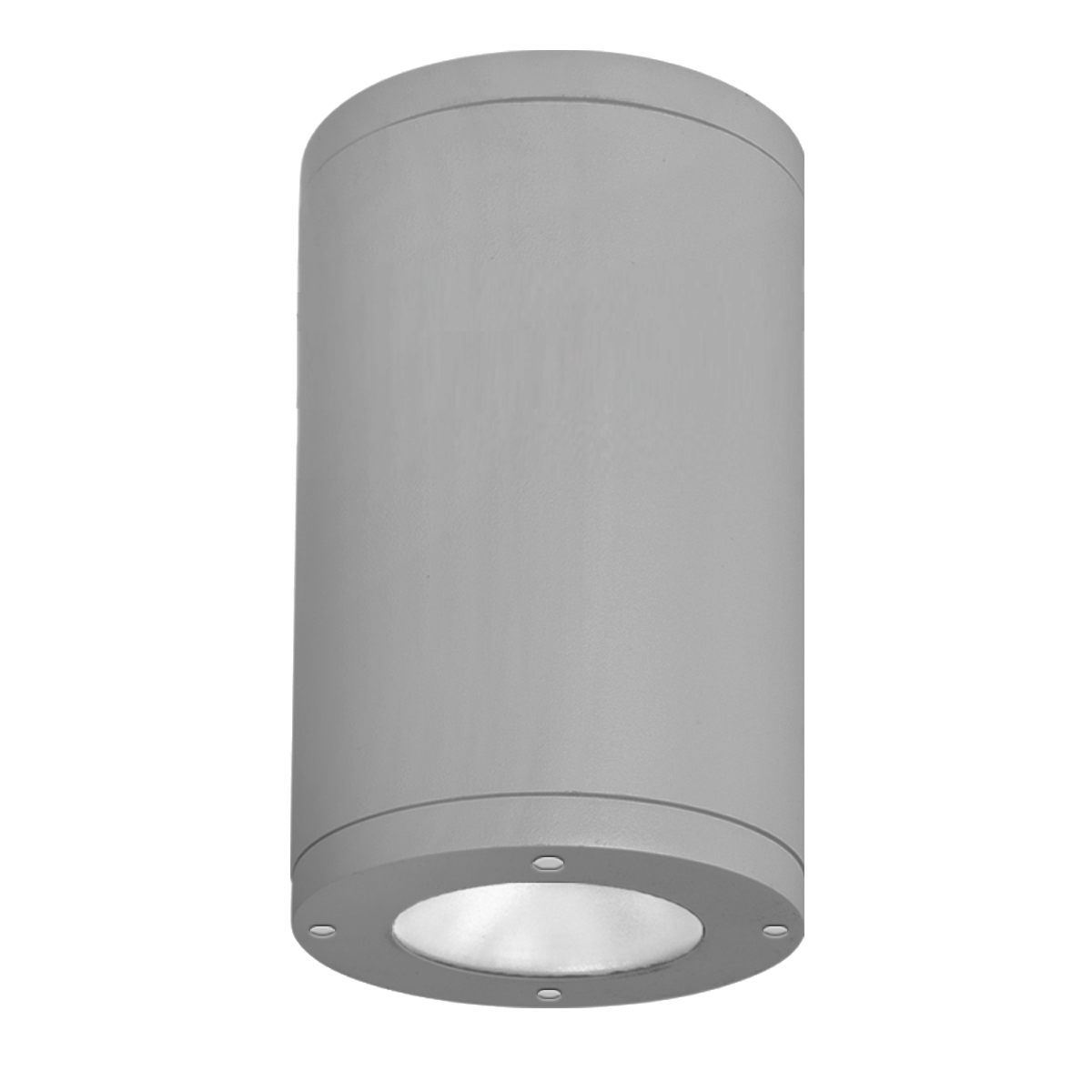

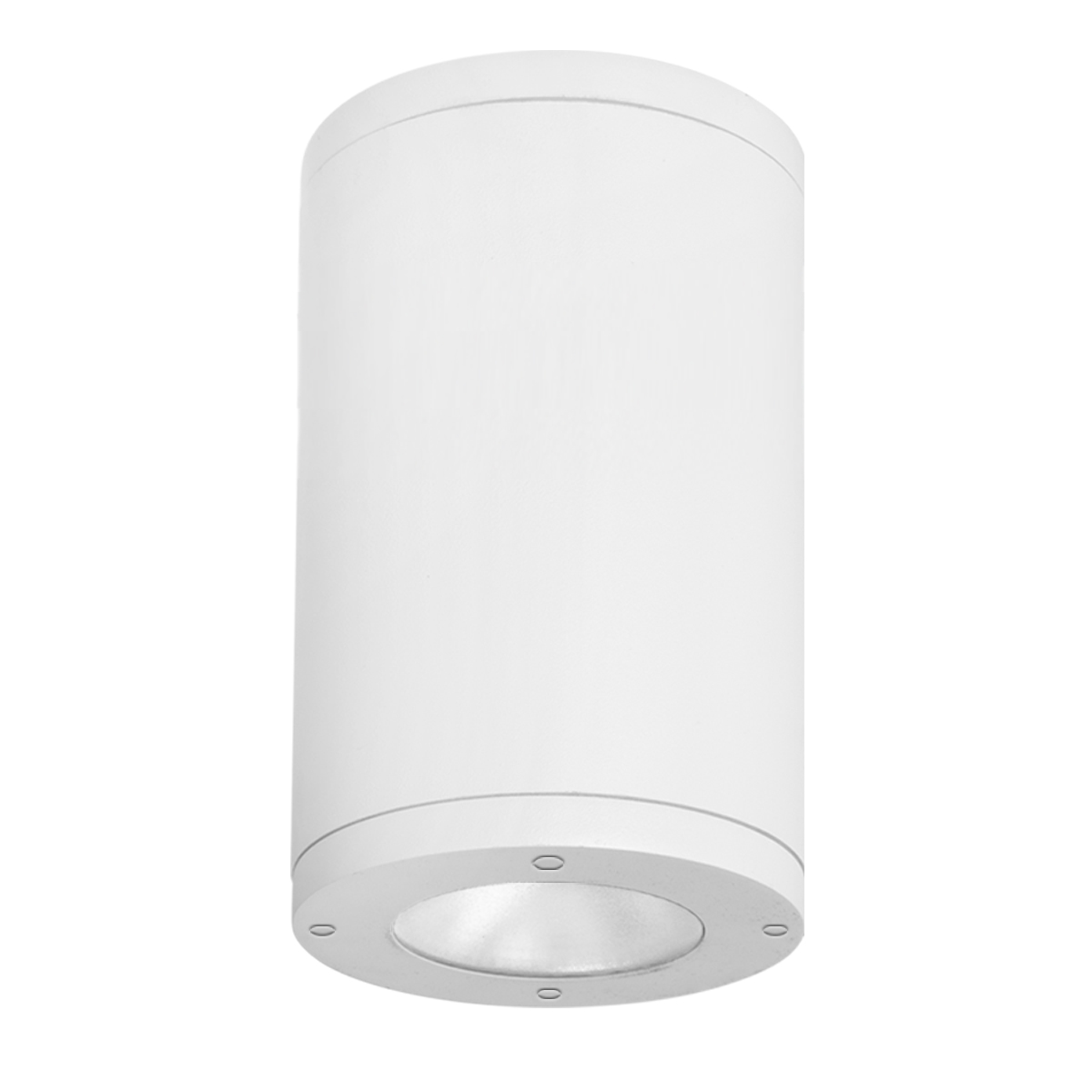

Tube Architectural 8" Ceiling Mount

1 / 5

Tube Architectural

DS-CD08

The latest energy efficient LED technology in an appealing cylindrical profile delivers accent lighting. Comes in various light beam angle options.

Specifications

Diameter	Watt	Beam	Angle	Color	Temp	CRI	Reference Output Lumens	CBCP	Efficacy (Lm/W)	Finish
DS-CD08 DS-CD0834	46W 34W	S Spot	18°	927	2700K	90	3080	15187	67	BK Black WT White BZ Bronze GH Graphite
				927	2700K	85	3865	19064	84
				930	3000K	90	3275	16156	71
				930	3000K	85	3935	19387	86
				35	3500K	85	4030	19872	88
				40	4000K	85	4095	20195	89
		N Narrow	25°	927	2700K	90	3185	10536	68
				927	2700K	85	4000	13226	87
				930	3000K	90	3390	11208	74
				930	3000K	85	4070	13450	88
				35	3500K	85	4170	13786	91
				40	4000K	85	4240	14010	92
		F Flood	35°	927	2700K	90	3015	5475	66
				927	2700K	85	3785	7211	82
				930	3000K	90	3210	6111	70
				930	3000K	85	3850	7334	84
				35	3500K	85	3945	7517	86
				40	4000K	85	4010	7639	87

DS-CD08-___-___

¹Reference output shows 46W output. Multiply by 0.8 to determine output for 34W combinations.

Example: DS-CD08-N927-BK

In-Depth Spec Sheet Tube Architectural 8" Ceiling Mount Complete Specs Download Preview
Essential Spec Sheet Tube Architectural 8" Ceiling Mount Specs Download Preview
