Cube Architectural

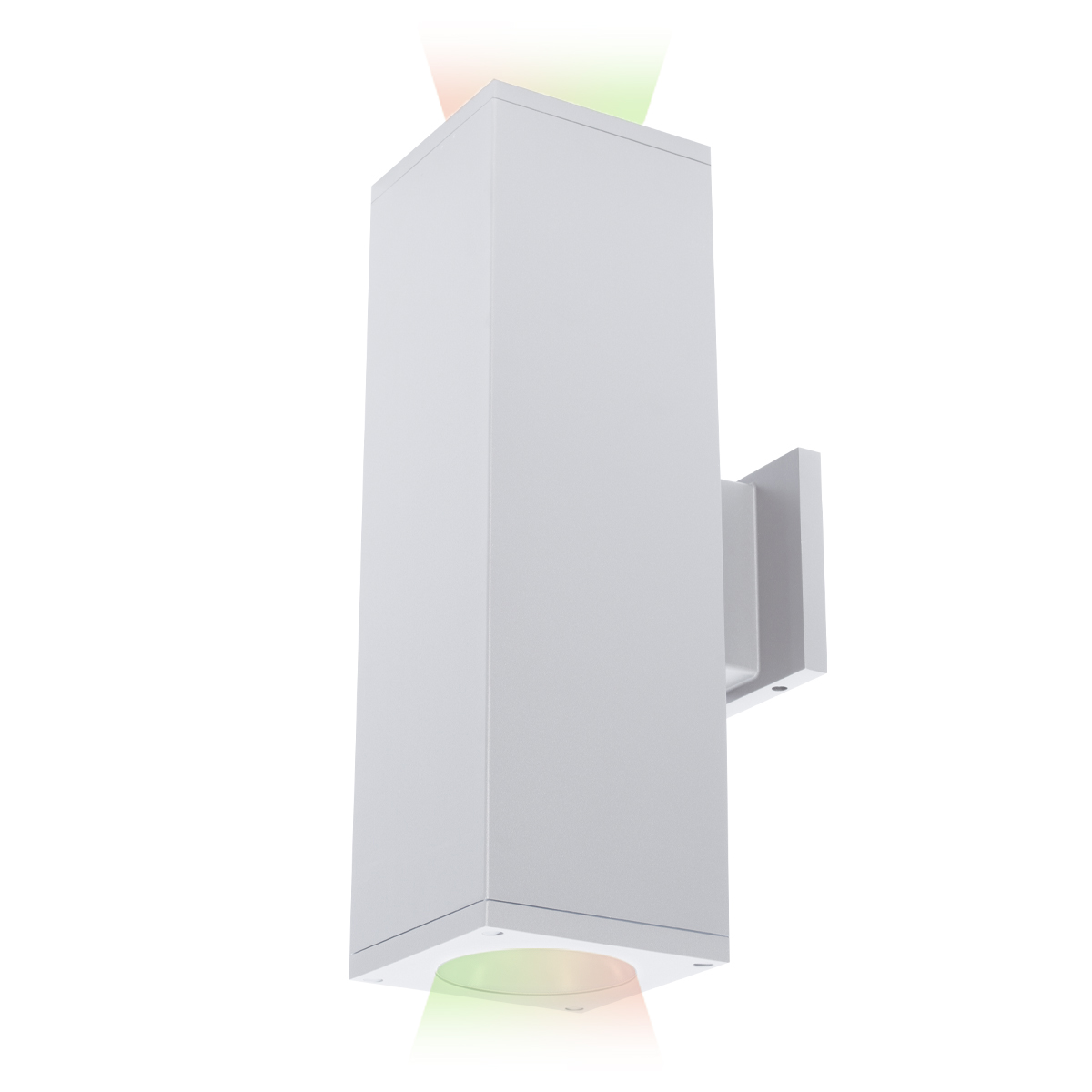

Cube Architectural 5" Color Changing Double Wall Mount
DC-WD05-CC
The Cube Architectural Color Changing features state of the art LED color and CCT tuning technology. Controlled via DMX-512A input with pendant, ceiling, and wall mounting options, the Cube Architectural provides topnotch illumination for both interior and exterior spaces.
Specifications
| Size | Power | Beam | Delivered Lumens @ 3000K | CBCP @ 3000K | Light Direction | Color Temp | Finish |
|---|---|---|---|---|---|---|---|
DC-WD05 | 5" Double 20Wx2 | S 18° N 30° F 50° | 1455 x2 1430 x2 1385 x2 | 7555 x2 2920 x2 1540 x2 | S Straight up or down | CC Color Changing | BK Black WT White BZ Bronze GH Graphite |
| F | 1515 x2 | A Away from the wall B Towards the wall C One side each | |||||
DC-WD05-__-CC-___
Example: DC-WD05-FA-CC-GH
