Cube Architectural

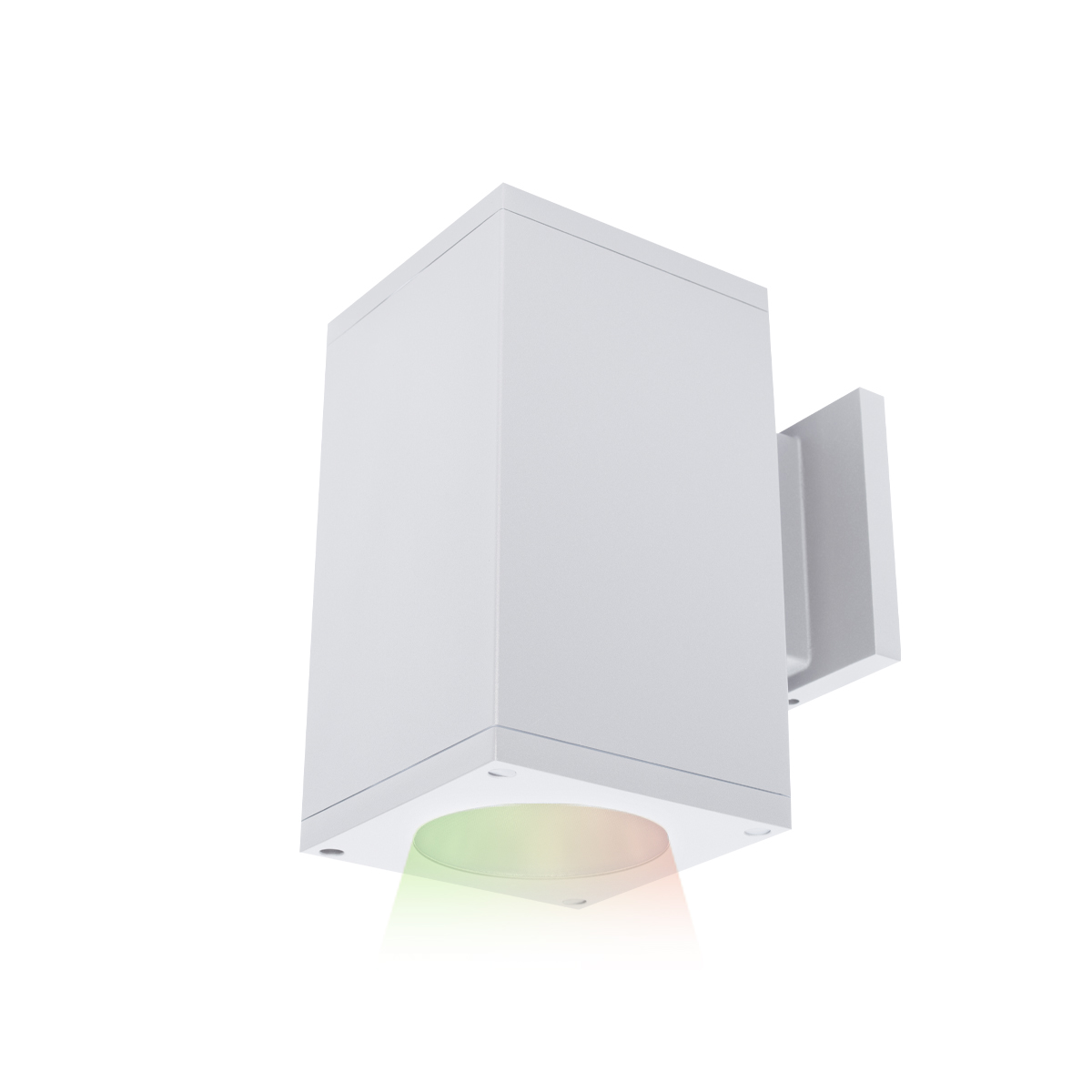

Cube Architectural 5" Color Changing Single Wall Mount
DC-WS05-CC
The Cube Architectural Color Changing features state of the art LED color and CCT tuning technology. Controlled via DMX-512A input with pendant, ceiling, and wall mounting options, the Cube Architectural provides topnotch illumination for both interior and exterior spaces.
Specifications
| Size | Power | Beam | Delivered Lumens @ 3000K | CBCP @ 3000K | Light Direction | Color Temp | Finish |
|---|---|---|---|---|---|---|---|
| DC-WS05 | 5" Single, 20W | S 18° N 30° F 50° | 1455 1430 1385 | 7555 2920 1540 | S Straight up or down | CC Color Changing | BK Black WT White BZ Bronze GH Graphite |
| F | 1515 | - | A Away from the wall | ||||
| F | 1515 | - | B Towards the wall |
DC-WS05-__-CC-__
Example: DC-WS05-FA-CC-GH
