Cube Architectural

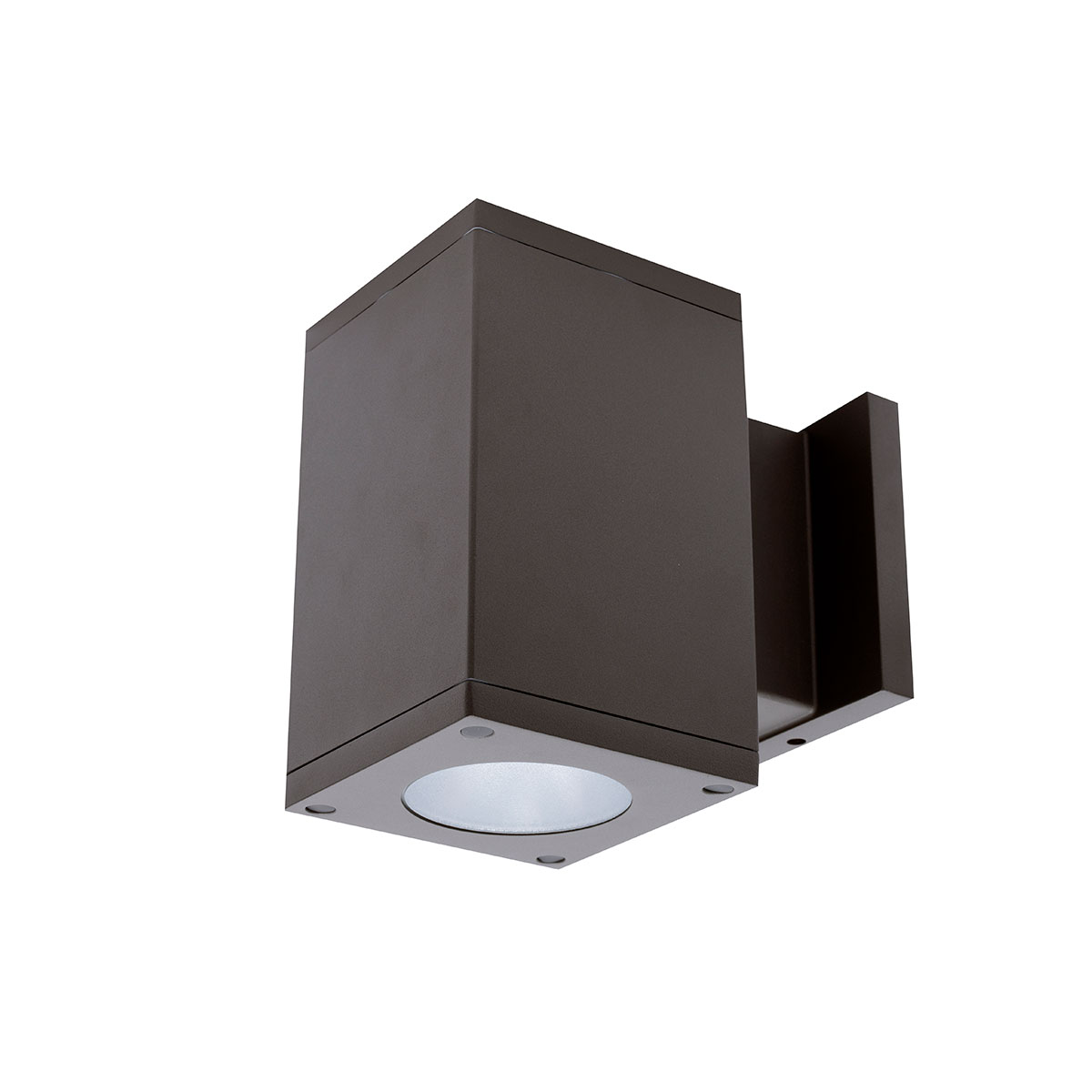

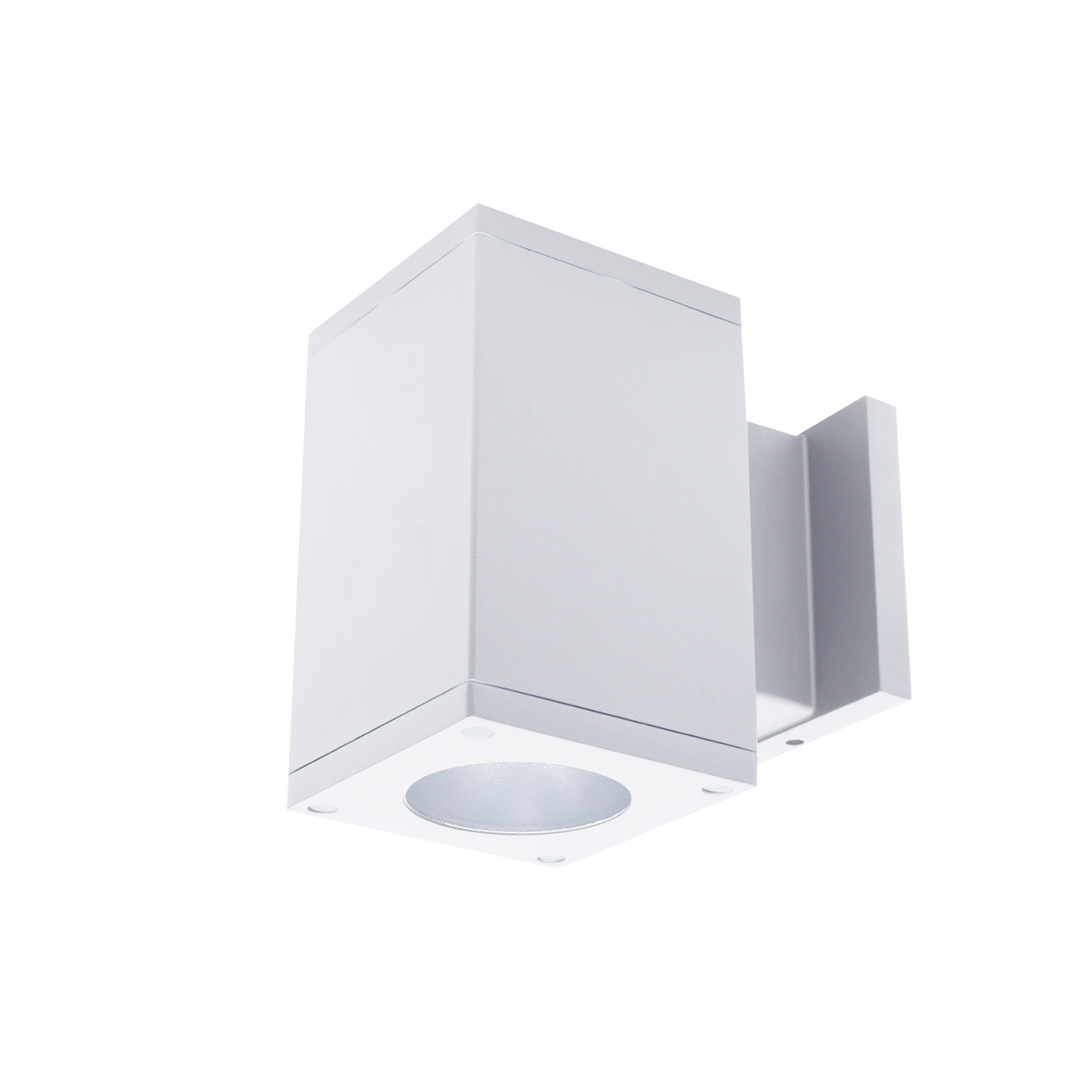

Cube Architectural 5" Single Wall Mount

DC-WS05

The latest energy efficient LED technology in an appealing cubical profile delivers accent and wall wash lighting. Comes in various light distribution and beam angle options.

Specifications

ORDERING NUMBER

Diameter	Watt	Beam	Angle	Color	Temp	CRI	Reference Output Lumens	CBCP	Efficacy (Lm/W)	Finish
DC-WS05 DC-WS0517	5" 25W 5" 17W	S Straight up or down	16°	927S	2700K	90	1825	10050	73	BK Black WT White BZ Bronze GH Graphite
				827S	2700K	85	2190	12057	88
				930S	3000K	90	1895	10427	76
				830S	3000K	85	2300	12644	92
				835S	3500K	85	2350	12937	94
				840S	4000K	85	2375	13062	95
		N Straight up or down	25°	927S	2700K	90	1810	5280	72
				827S	2700K	85	2170	6335	87
				930S	3000K	90	1880	5478	75
				830S	3000K	85	2275	6643	91
				835S	3500K	85	2330	6797	93
				840S	4000K	85	2350	6863	94
		F Straight up or down	33°	927S	2700K	90	1900	4515	76
				827S	2700K	85	2280	5417	91
				930S	3000K	90	1970	4685	79
				830S	3000K	85	2390	5681	96
				835S	3500K	85	2445	5812	98
				840S	4000K	85	2470	5870	99
		F Away from wall	N/A	927A	2700K	90	2000	N/A	80
				827A	2700K	85	2400	N/A	96
				930A	3000K	90	2075	N/A	83
				830A	3000K	85	2520	N/A	101
				835A	3500K	85	2575	N/A	103
				840A	4000K	85	2600	N/A	104
		F Towards wall	N/A	927B	2700K	90	2000	N/A	80
				827B	2700K	85	2400	N/A	96
				930B	3000K	90	2075	N/A	83
				830B	3000K	85	2520	N/A	101
				835B	3500K	85	2575	N/A	103
				840B	4000K	85	2600	N/A	104

DC-WS05-____-___

¹Reference output shows 25W output. Multiply by 0.7 to determine output for 17W combinations.

Example: DC-WS05-F930A-WT
