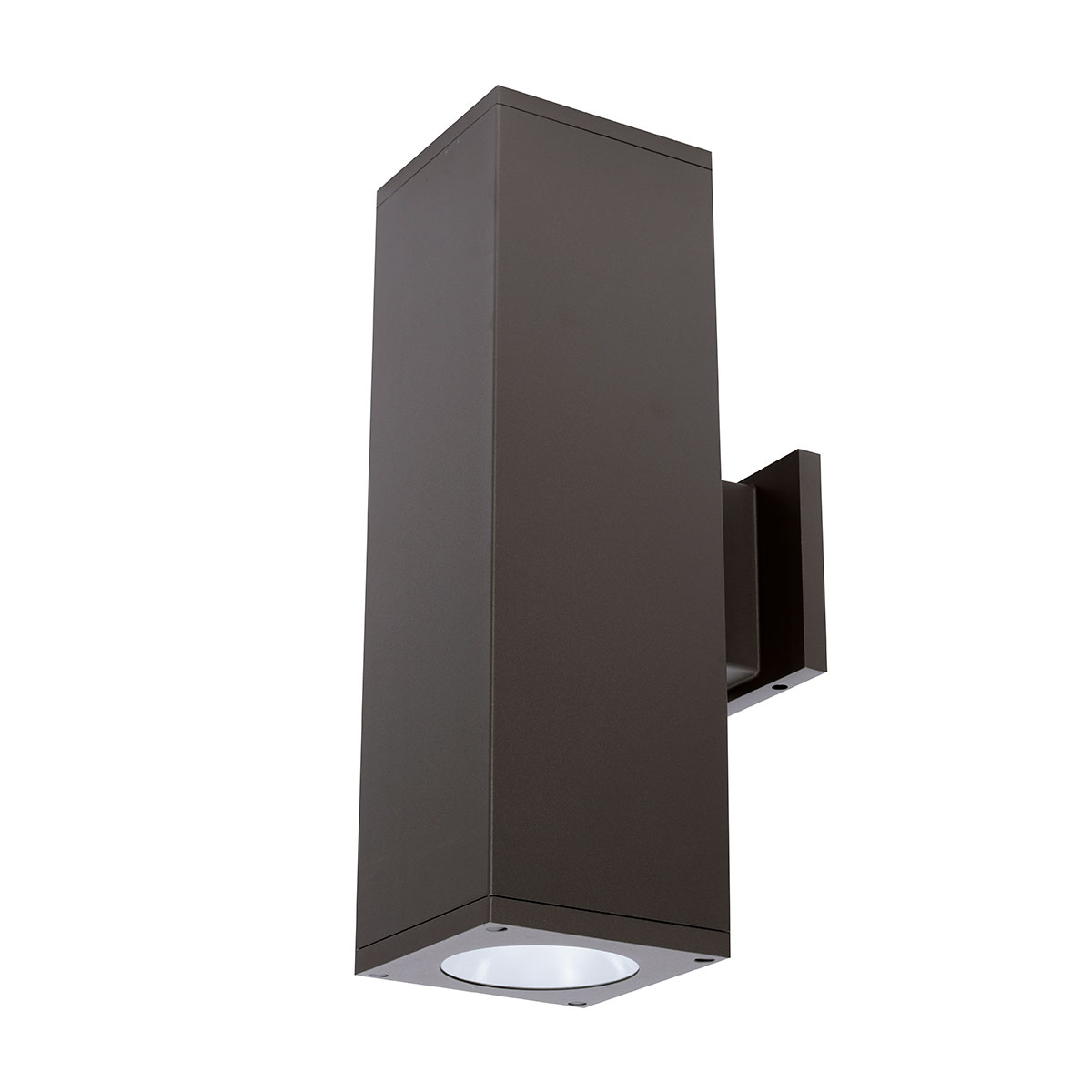

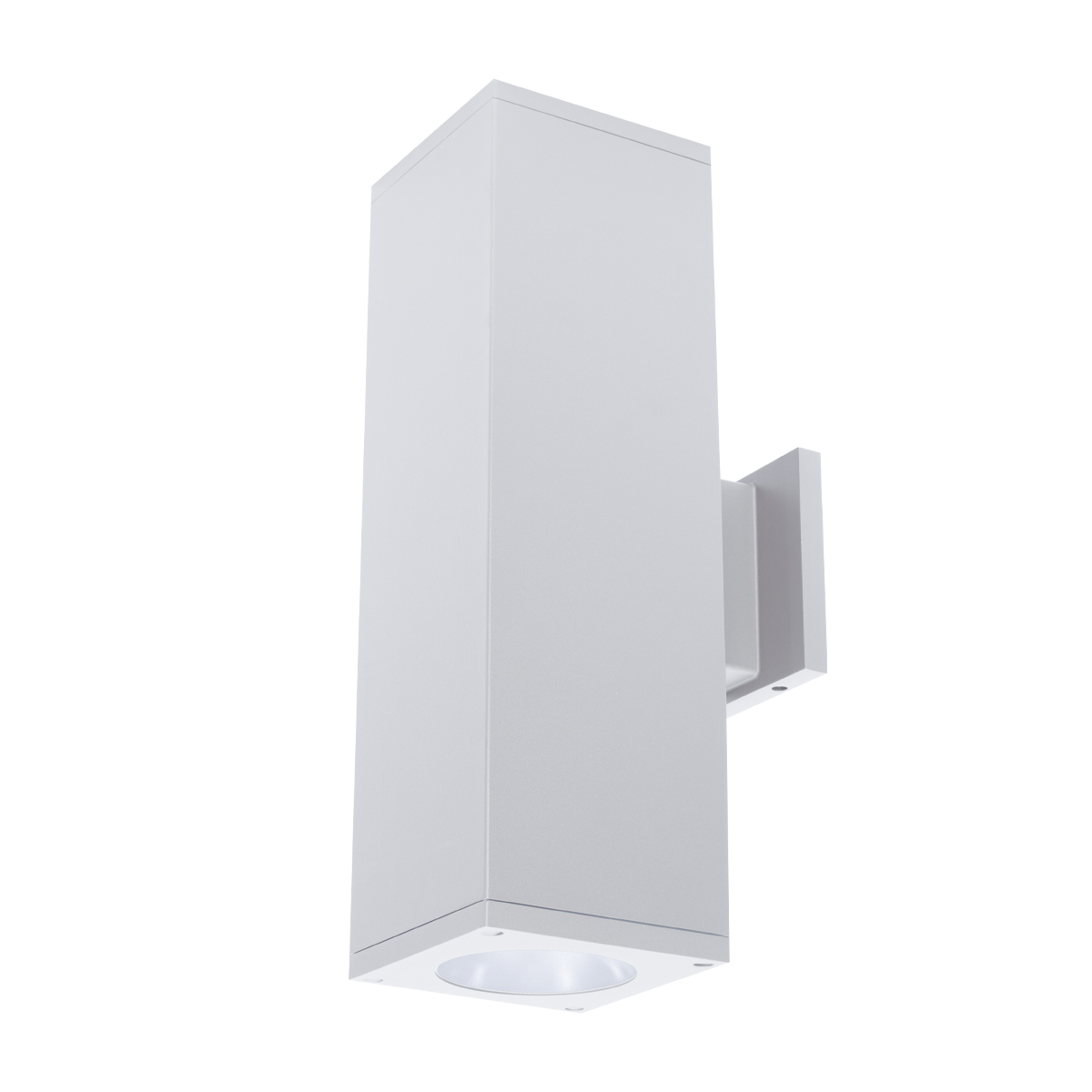

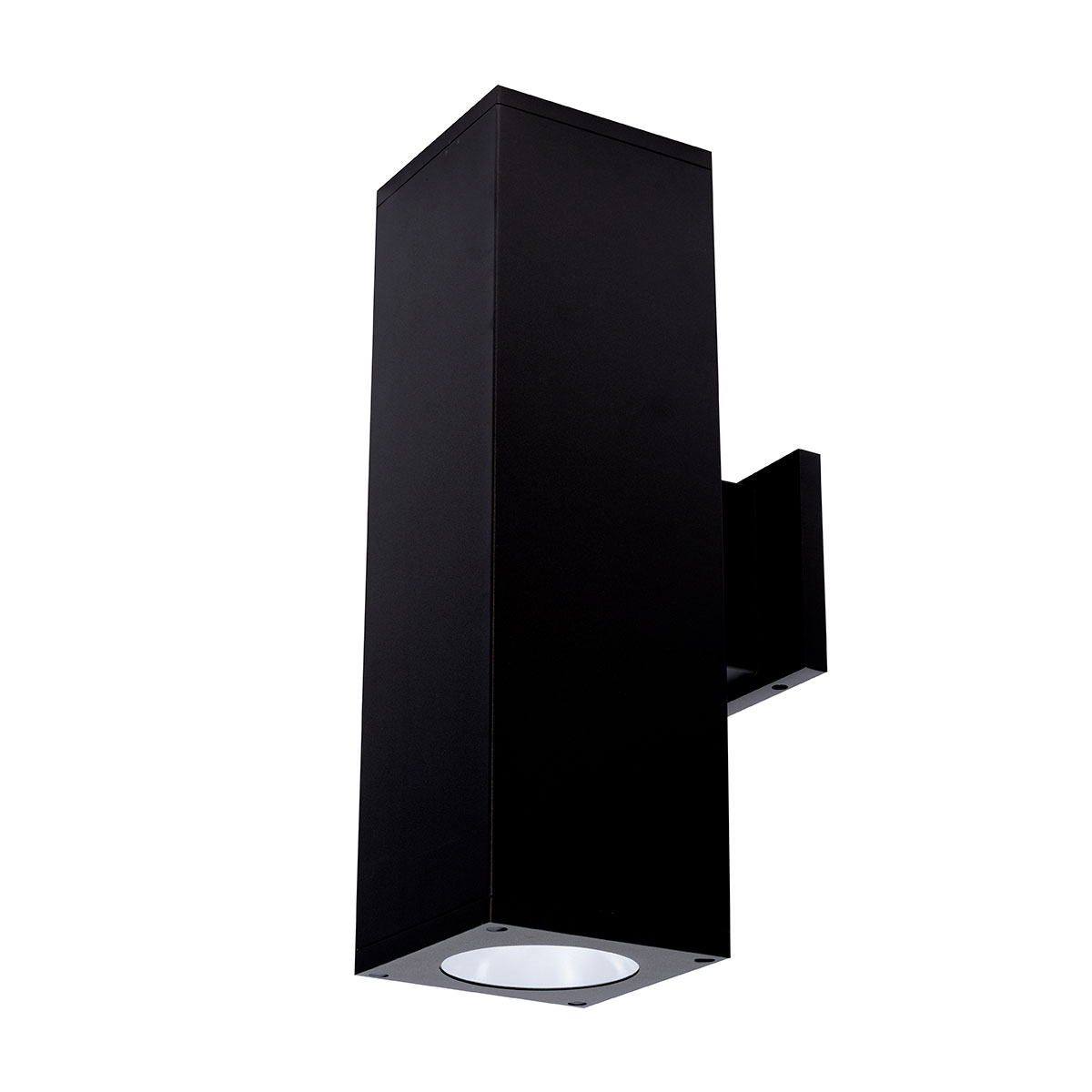

Cube Architectural 6" Double Wall Mount

DC-WD06

The latest energy efficient LED technology in an appealing cubical profile delivers accent and wall wash lighting. Comes in various light distribution and beam angle options.

Specifications

ORDERING NUMBER

Model	Size	Power	Beam	Angle	Color	Temp	CRI	Lumens	CBCP	Efficacy (lm/W)	Finish
DC-WD06 DC-WD0644	6"	35W x2 22W x2	S Straight up and down	16°	927S	2700K	90	2820 x2	18842 x2	81 x2	BK Black WT White BZ Bronze GH Graphite
					827S	2700K	85	3385 x2	22608 x2	97 x2
					930S	3000K	90	2925 x2	19543 x2	84 x2
					830S	3000K	85	3535 x2	23632 x2	101 x2
					835S	3500K	85	3630 x2	24255 x2	104 x2
					840S	4000K	85	3665 x2	24490 x2	105 x2
			N Straight up and down	28°	927S	2700K	90	2800 x2	7992 x2	80 x2
					827S	2700K	85	3360 x2	9589 x2	96 x2
					930S	3000K	90	2900 x2	8290 x2	83 x2
					830S	3000K	85	3510 x2	10024 x2	100 x2
					835S	3500K	85	3600 x2	10288 x2	103 x2
					840S	4000K	85	3635 x2	10388 x2	104 x2
			F Straight up and down	38°	927S	2700K	90	2825 x2	5451 x2	81 x2
					827S	2700K	85	3390 x2	6540 x2	97 x2
					930S	3000K	90	2930 x2	5654 x2	84 x2
					830S	3000K	85	3545 x2	6836 x2	101 x2
					835S	3500K	85	3640 x2	7017 x2	104 x2
					840S	4000K	85	3675 x2	7085 x2	105 x2
			F Away from wall	N/A	927A	2700K	90	2860 x2	N/A	82 x2
					827A	2700K	85	3435 x2	N/A	98 x2
					930A	3000K	90	2970 x2	N/A	85 x2
					830A	3000K	85	3590 x2	N/A	103 x2
					835A	3500K	85	3685 x2	N/A	105 x2
					840A	4000K	85	3720 x2	N/A	106 x2
			F Towards wall	N/A	927B	2700K	90	2860 x2	N/A	82 x2
					827B	2700K	85	3435 x2	N/A	98 x2
					930B	3000K	90	2970 x2	N/A	85 x2
					830B	3000K	85	3590 x2	N/A	103 x2
					835B	3500K	85	3685 x2	N/A	105 x2
					840B	4000K	85	3720 x2	N/A	106 x2
			F One side each	N/A	927C	2700K	90	2860 x2	N/A	82 x2
					827C	2700K	85	3435 x2	N/A	98 x2
					930C	3000K	90	2970 x2	N/A	85 x2
					830C	3000K	85	3590 x2	N/A	103 x2
					835C	3500K	85	3685 x2	N/A	105 x2
					840C	4000K	85	3720 x2	N/A	106 x2

DC-WD06-____-___

¹Reference output shows 35W output. Multiply by 0.7 to determine output for 22W combinations.

Example: DC-WD06-F930A-WT
