1 / 5
Tube Architectural

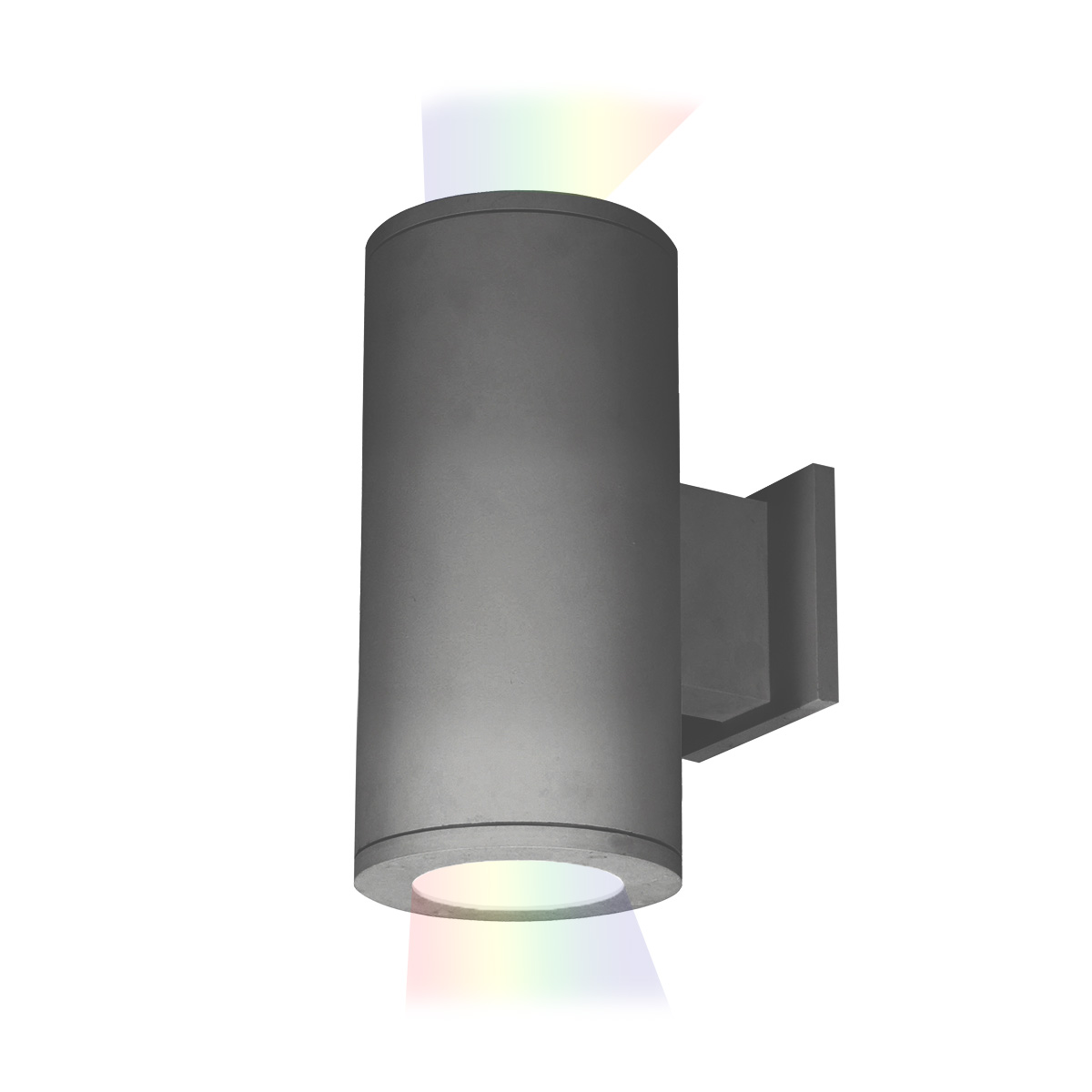

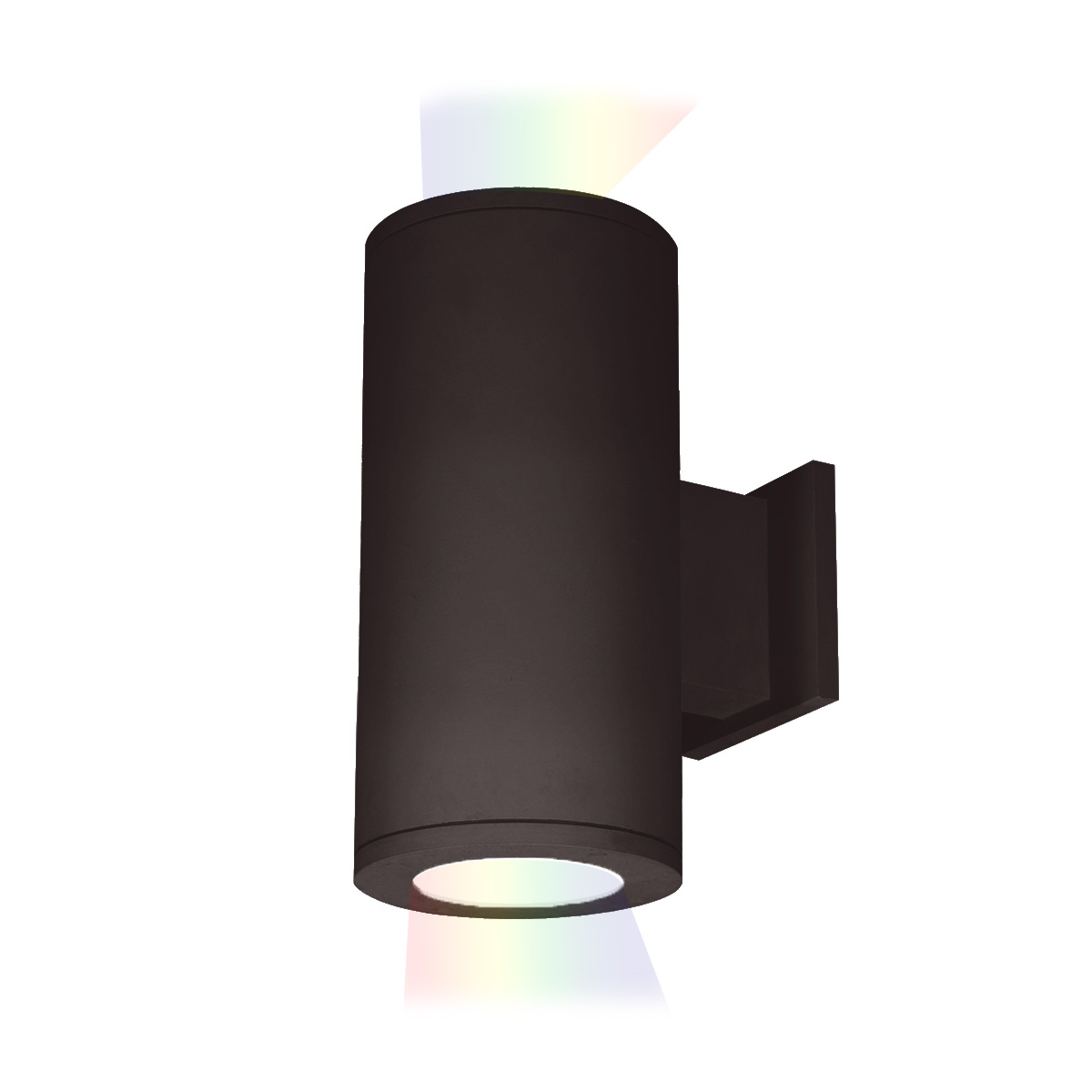

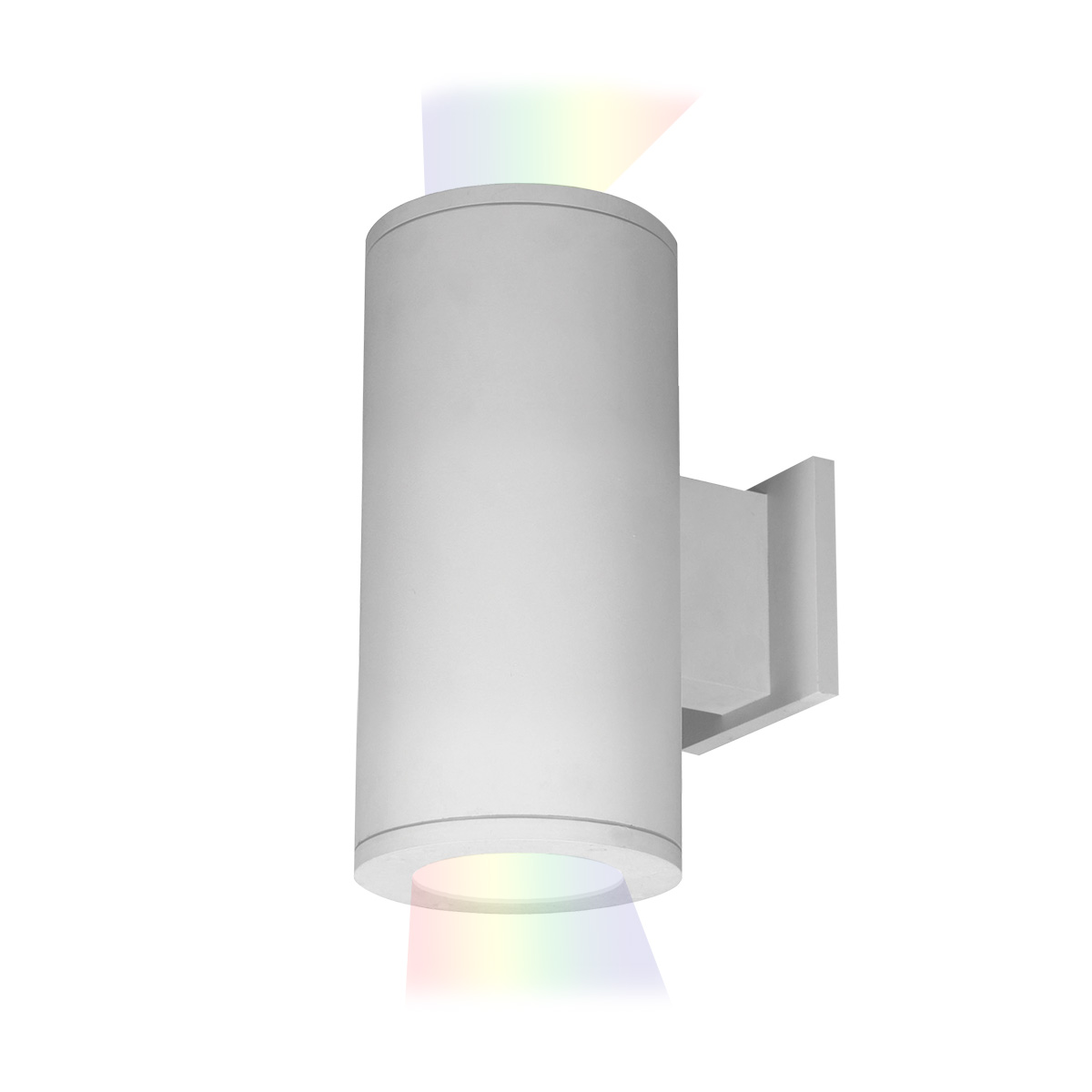

Tube Architectural 5" Color Changing Double Wall Mount
DS-WD05
The Tube Architectural Color Changing features state of the art LED color and CCT tuning technology. Controlled via DMX-512A input with pendant, ceiling, and wall mounting options, the Tube Architectural provides topnotch illumination for both interior and exterior spaces.
Specifications
ORDERING NUMBER
| Model | Size | Power | Beam | Angle | Lumens @3000K | CBCP @3000K | Light Direction | Color Temp | Finish |
|---|---|---|---|---|---|---|---|---|---|
| DS-WD05 | 5" | 20W x2 | S 18° N 30° F 50° | 18° 30° 50° | 1455 x2 1430 x2 1385 x2 | 7555 x2 2920 x2 1540 x2 | S Straight up or down | CC Color Changing | BK Black WT White BZ Bronze GH Graphite |
| F | 1515 x2 | A Away from the wall B Towards the wall C One side each | |||||||
DS-WD05-__-CC-__
Example: DS-WD05-FA-CC-GH
