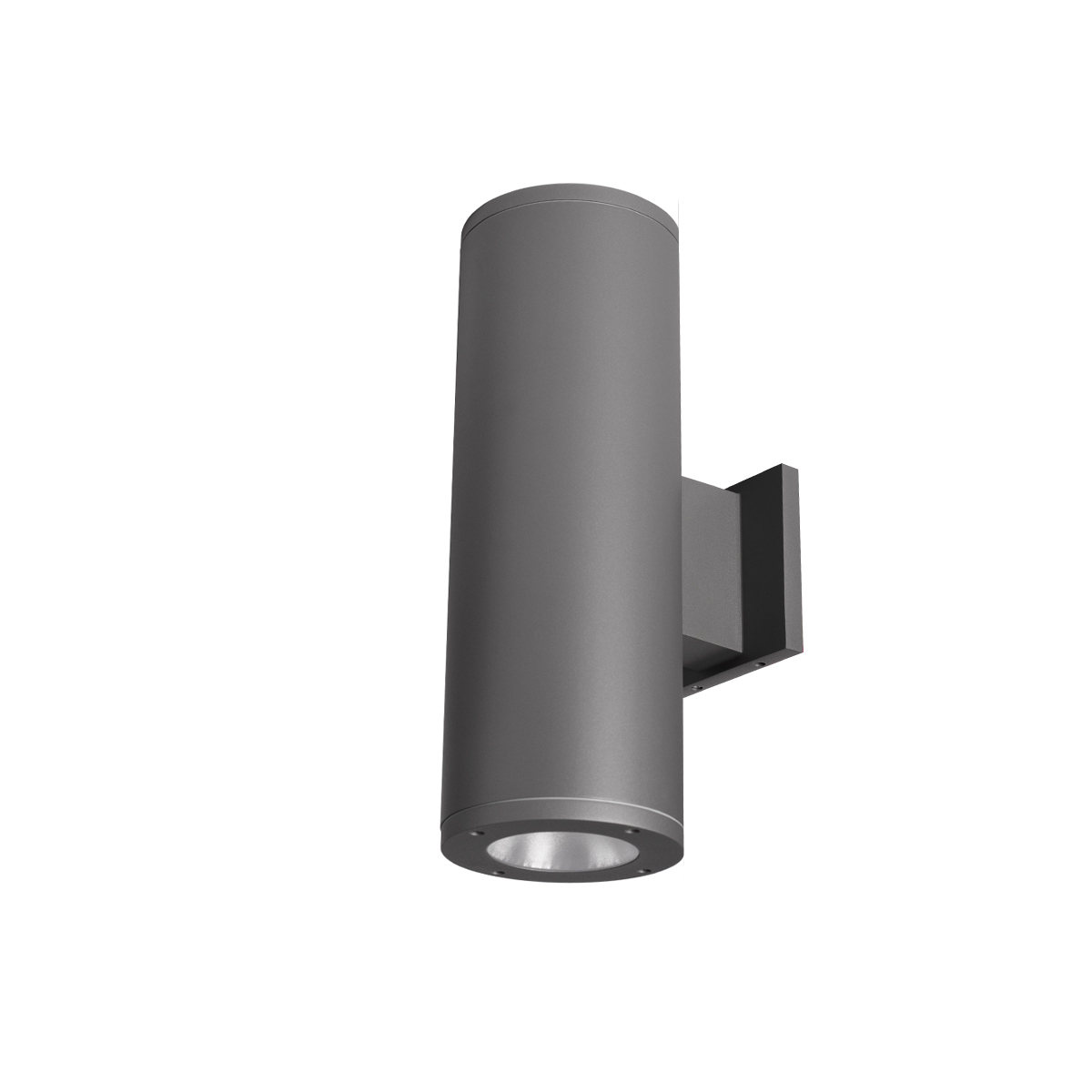

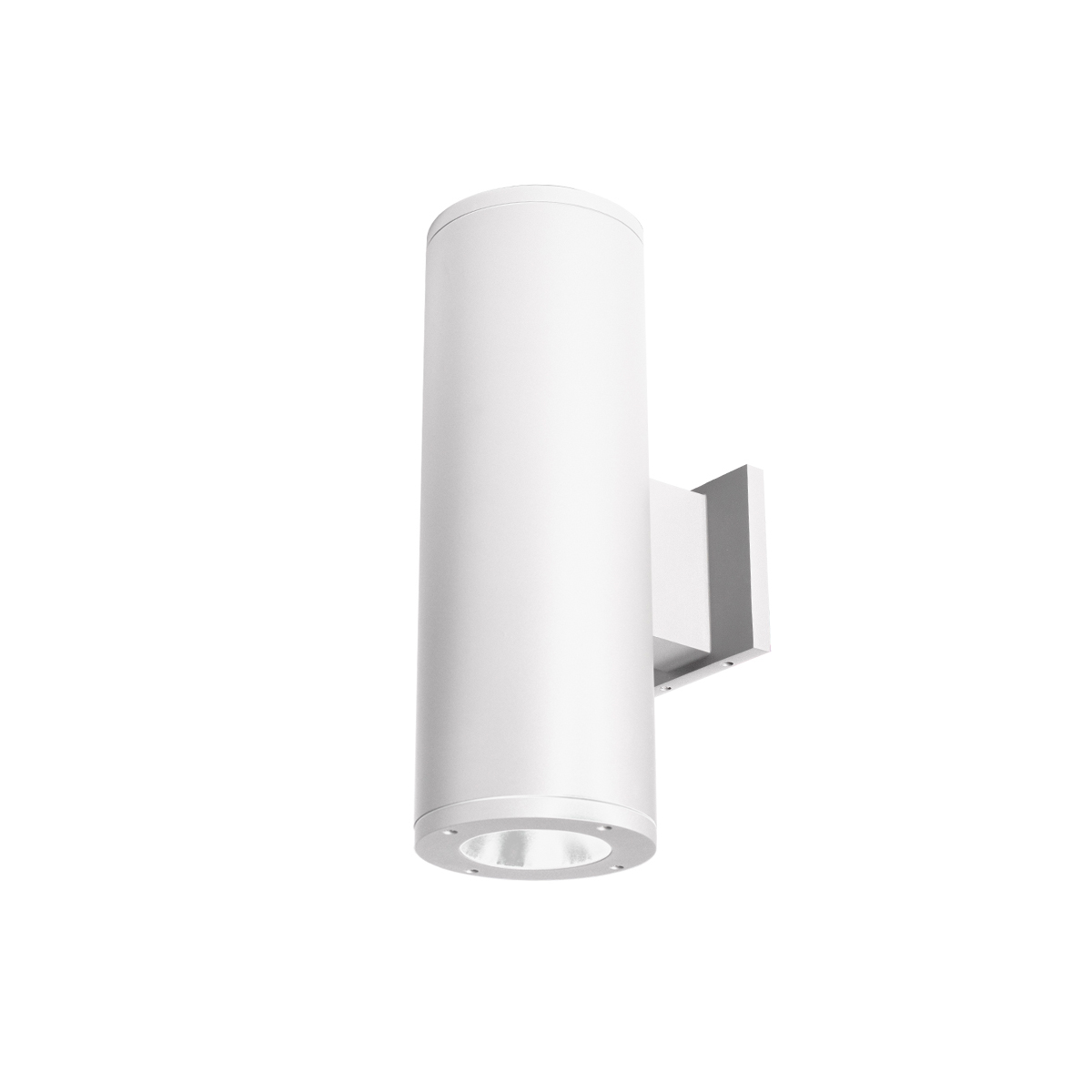

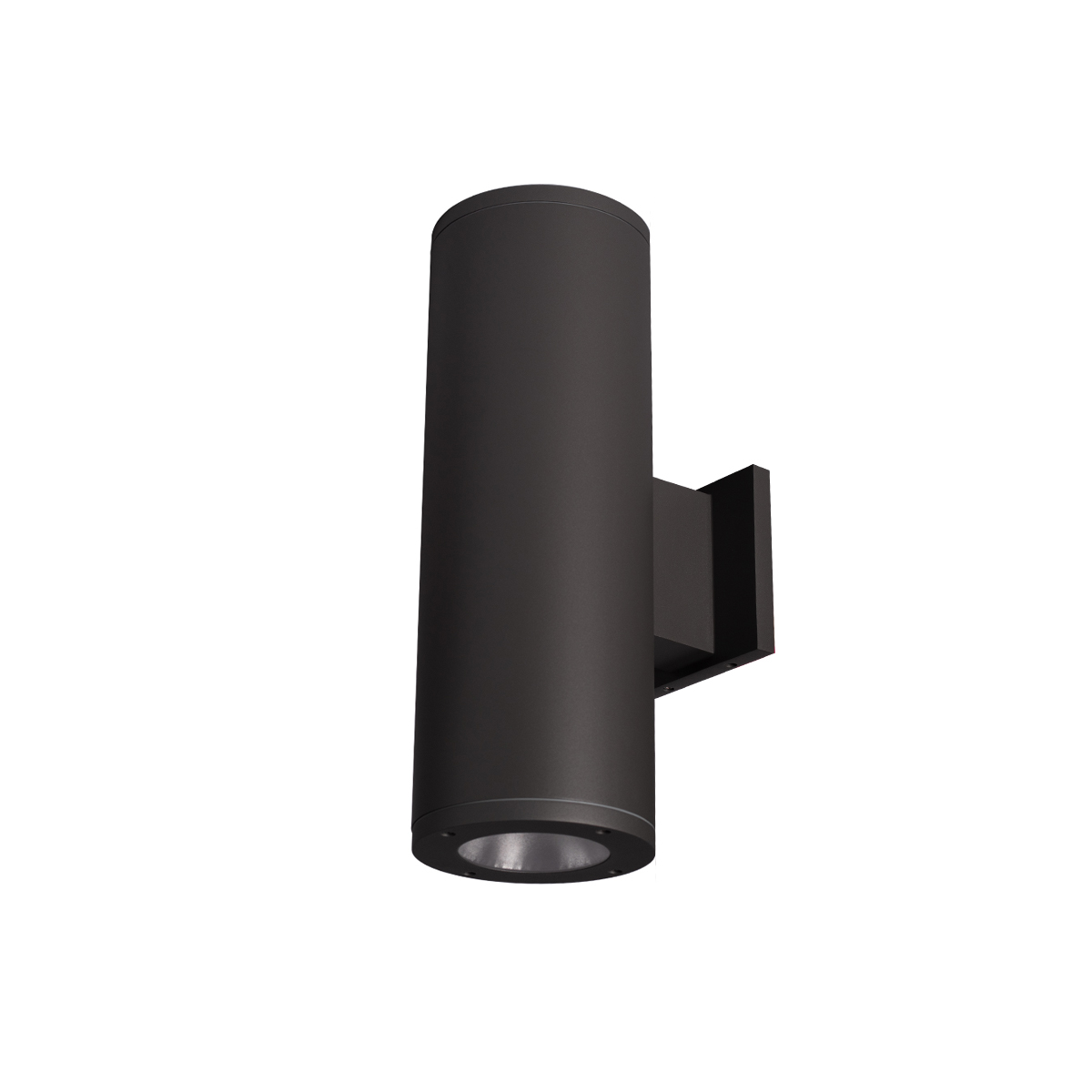

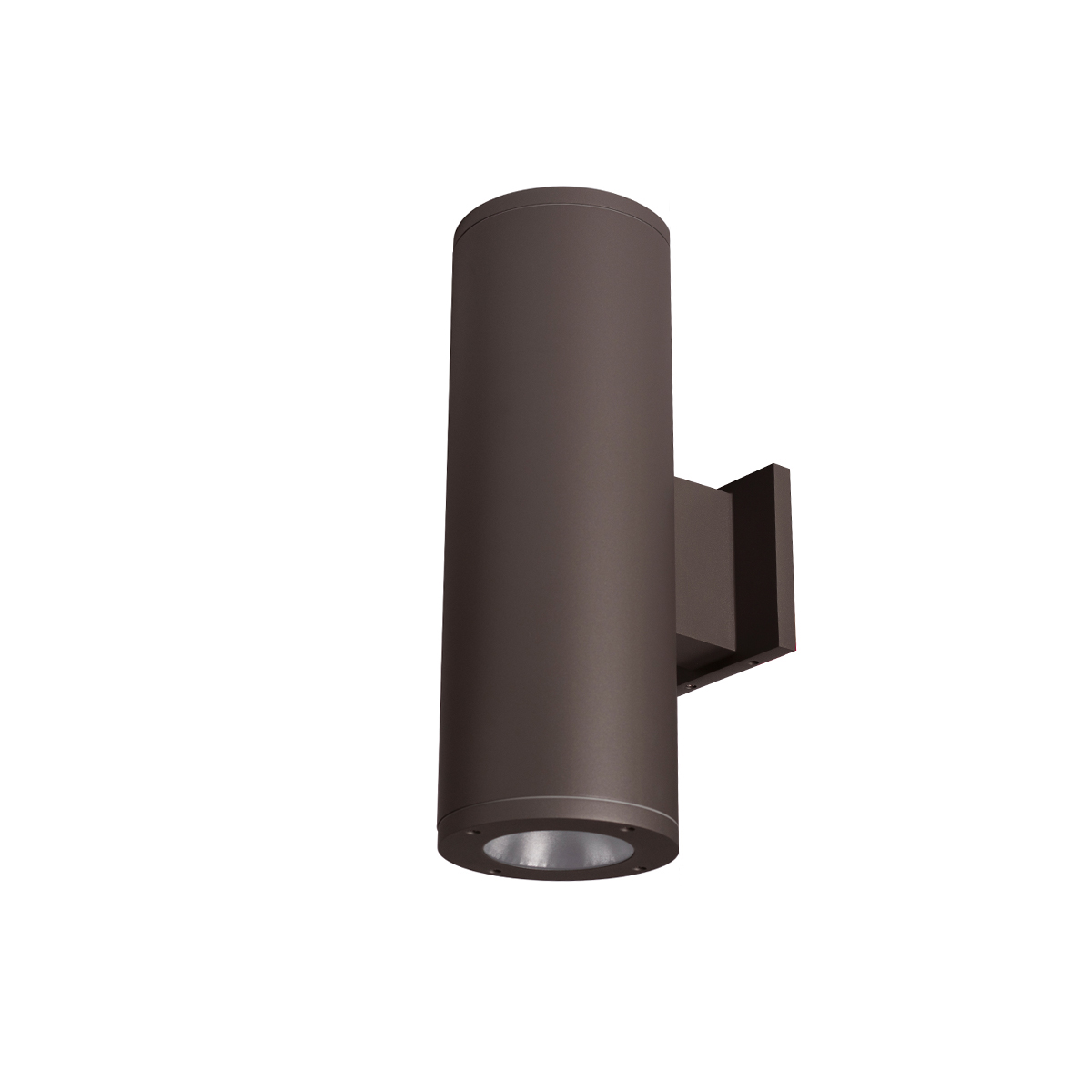

Tube Architectural 5" Double Wall Mount

1 / 5

Tube Architectural

Tube Architectural 5" Double Wall Mount

DS-WD05

The latest energy efficient LED technology in an appealing cylindrical profile delivers accent and wall wash lighting. Comes in various light distribution and beam angle options.

Specifications

ORDERING NUMBER

Model	Size	Power	Beam	Angle	Color	Temp	CRI	Lumens	CBCP	Efficacy	Finish
DS-WD05 DS-WD0534	5"	25W x2 17W x2	S Straight up and down	16°	927S	2700K	90	1825 x2	10050 x2	73 x2	BK Black WT White BZ Bronze GH Graphite
					827S	2700K	85	2190 x2	12057 x2	88 x2
					930S	3000K	90	1895 x2	10427 x2	76 x2
					30S	3000K	85	2300 x2	12644 x2	92 x2
					35S	3500K	85	2350 x2	12937 x2	94 x2
					40S	4000K	85	2375 x2	13062 x2	95 x2
			N Straight up and down	25°	927S	2700K	90	1810 x2	5280 x2	72 x2
					827S	2700K	85	2170 x2	6335 x2	87 x2
					930S	3000K	90	1880 x2	5478 x2	75 x2
					30S	3000K	85	2275 x2	6643 x2	91 x2
					35S	3500K	85	2330 x2	6797 x2	93 x2
					40S	4000K	85	2350 x2	6863 x2	94 x2
			F Straight up and down	33°	927S	2700K	90	1900 x2	4515 x2	76 x2
					827S	2700K	85	2280 x2	5417 x2	91 x2
					930S	3000K	90	1970 x2	4685 x2	79 x2
					30S	3000K	85	2390 x2	5681 x2	96 x2
					35S	3500K	85	2445 x2	5812 x2	98 x2
					40S	4000K	85	2470 x2	5870 x2	99 x2
			F Away from wall	N/A	927A	2700K	90	2000 x2	N/A	80 x2
					827A	2700K	85	2400 x2	N/A	96 x2
					930A	3000K	90	2075 x2	N/A	83 x2
					30A	3000K	85	2520 x2	N/A	101 x2
					35A	3500K	85	2575 x2	N/A	103 x2
					40A	4000K	85	2600 x2	N/A	104 x2
			F Towards wall	N/A	927B	2700K	90	2000 x2	N/A	80 x2
					827B	2700K	85	2400 x2	N/A	96 x2
					930B	3000K	90	2075 x2	N/A	83 x2
					30B	3000K	85	2520 x2	N/A	101 x2
					35B	3500K	85	2575 x2	N/A	103 x2
					40B	4000K	85	2600 x2	N/A	104 x2
			F One side each	N/A	927C	2700K	90	2000 x2	N/A	80 x2
					827C	2700K	85	2400 x2	N/A	96 x2
					930C	3000K	90	2075 x2	N/A	83 x2
					30C	3000K	85	2520 x2	N/A	101 x2
					35C	3500K	85	2575 x2	N/A	103 x2
					40C	4000K	85	2600 x2	N/A	104 x2

DS-WD05-__-__

Example: DS-WD05-F930A-WT

¹ Reference output shows 25W output. Multiply by 0.7 to determine output for 17W combinations.
