Tube Architectural 8" Double Wall Mount

1 / 5

Tube Architectural

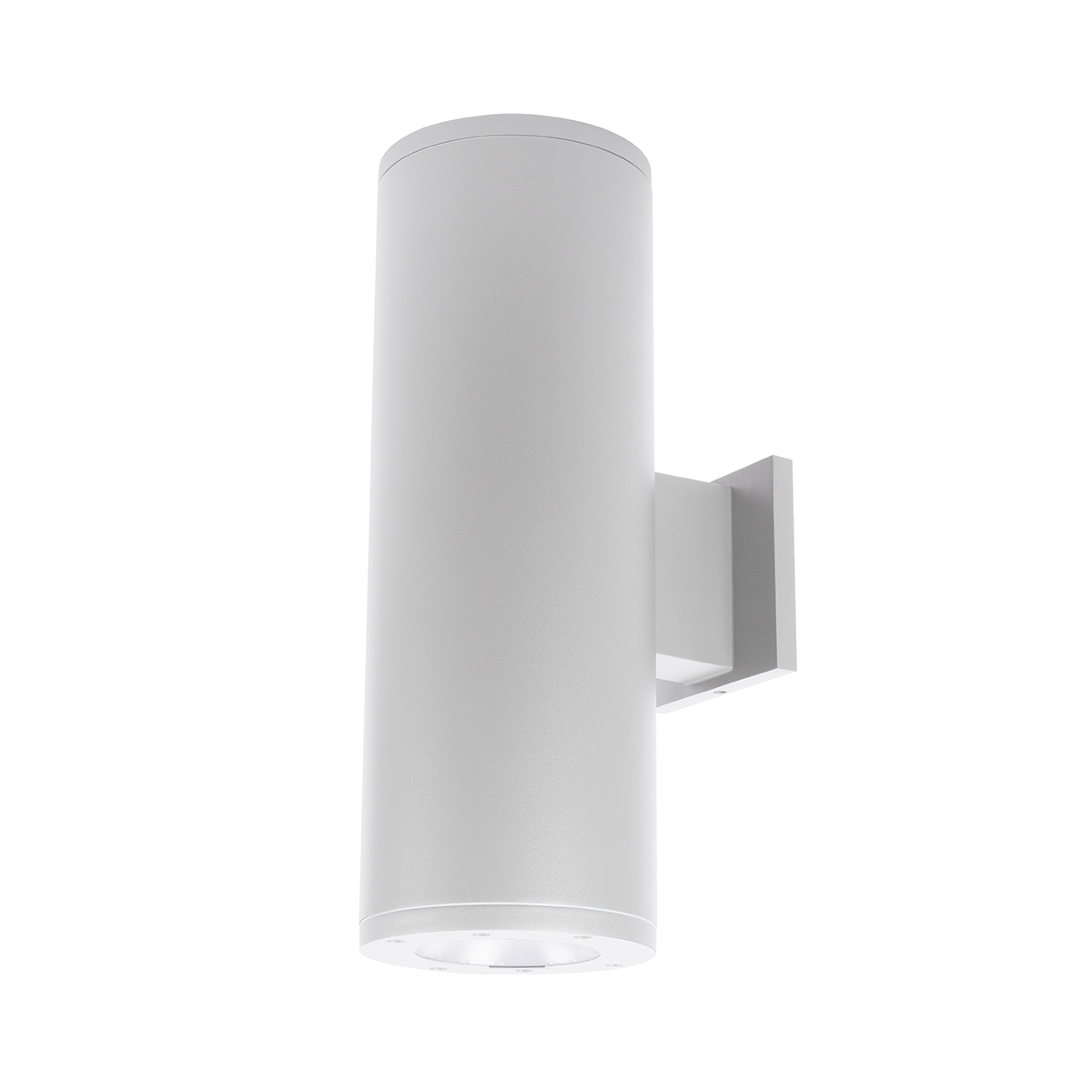

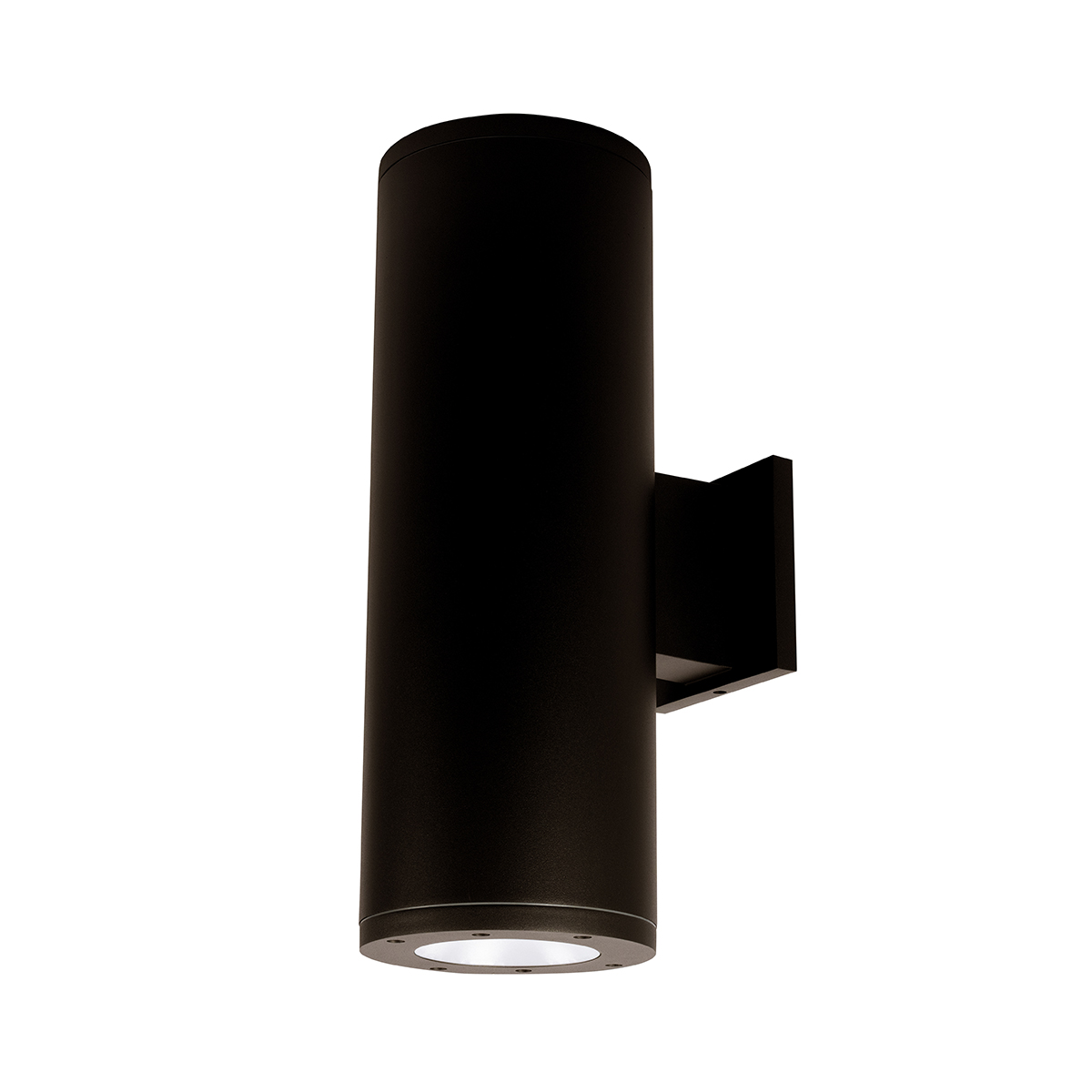

Tube Architectural 8" Double Wall Mount

DS-WD08

The latest energy efficient LED technology in an appealing cylindrical profile delivers accent and wall wash lighting. Comes in various light distribution and beam angle options.

Specifications

ORDERING NUMBER

Model	Size	Power	Beam	Angle	Color	Temp	CRI	Lumens	CBCP	Efficacy	Finish
DS-WD08 DS-WD0869	8"	46W x2 34W x2	S Straight up and down	18°	927S	2700K	90	3080 x2	15187	67 x2	BK Black WT White BZ Bronze GH Graphite
					27S	2700K	85	3865 x2	19064	84 x2
					930S	3000K	90	3275 x2	16156	71 x2
					30S	3000K	85	3935 x2	19387	86 x2
					35S	3500K	85	4030 x2	19872	88 x2
					40S	4000K	85	4095 x2	20195	89 x2
			N Straight up and down	25°	927S	2700K	90	3185 x2	10536	68 x2
					27S	2700K	85	4000 x2	13226	87 x2
					930S	3000K	90	3390 x2	11208	74 x2
					30S	3000K	85	4070 x2	13450	88 x2
					35S	3500K	85	4170 x2	13786	91 x2
					40S	4000K	85	4240 x2	14010	92 x2
			F Straight up and down	35°	927S	2700K	90	3015 x2	5475	66 x2
					27S	2700K	85	3785 x2	7211	82 x2
					930S	3000K	90	3210 x2	6111	70 x2
					30S	3000K	85	3850 x2	7334	84 x2
					35S	3500K	85	3945 x2	7517	86 x2
					40S	4000K	85	4010 x2	7639	87 x2
			F Away from wall	N/A	927A	2700K	90	3020 x2	N/A	66 x2
					27A	2700K	85	3790 x2	N/A	82 x2
					930A	3000K	90	3210 x2	N/A	70 x2
					30A	3000K	85	3855 x2	N/A	84 x2
					35A	3500K	85	3950 x2	N/A	86 x2
					40A	4000K	85	4015 x2	N/A	87 x2
			F Towards wall	N/A	927B	2700K	90	3020 x2	N/A	66 x2
					27B	2700K	85	3790 x2	N/A	82 x2
					930B	3000K	90	3210 x2	N/A	70 x2
					30B	3000K	85	3855 x2	N/A	84 x2
					35B	3500K	85	3950 x2	N/A	86 x2
					40B	4000K	85	4015 x2	N/A	87 x2
			F One side each	N/A	927C	2700K	90	3020 x2	N/A	66 x2
					27C	2700K	85	3790 x2	N/A	82 x2
					930C	3000K	90	3210 x2	N/A	70 x2
					30C	3000K	85	3855 x2	N/A	84 x2
					35C	3500K	85	3950 x2	N/A	86 x2
					40C	4000K	85	4015 x2	N/A	87 x2

DS-WD08-__-__

Example: DS-WD08-F930A-WT

¹ Reference output shows 46W output. Multiply by 0.8 to determine output for 34W combinations.
