Tube Architectural

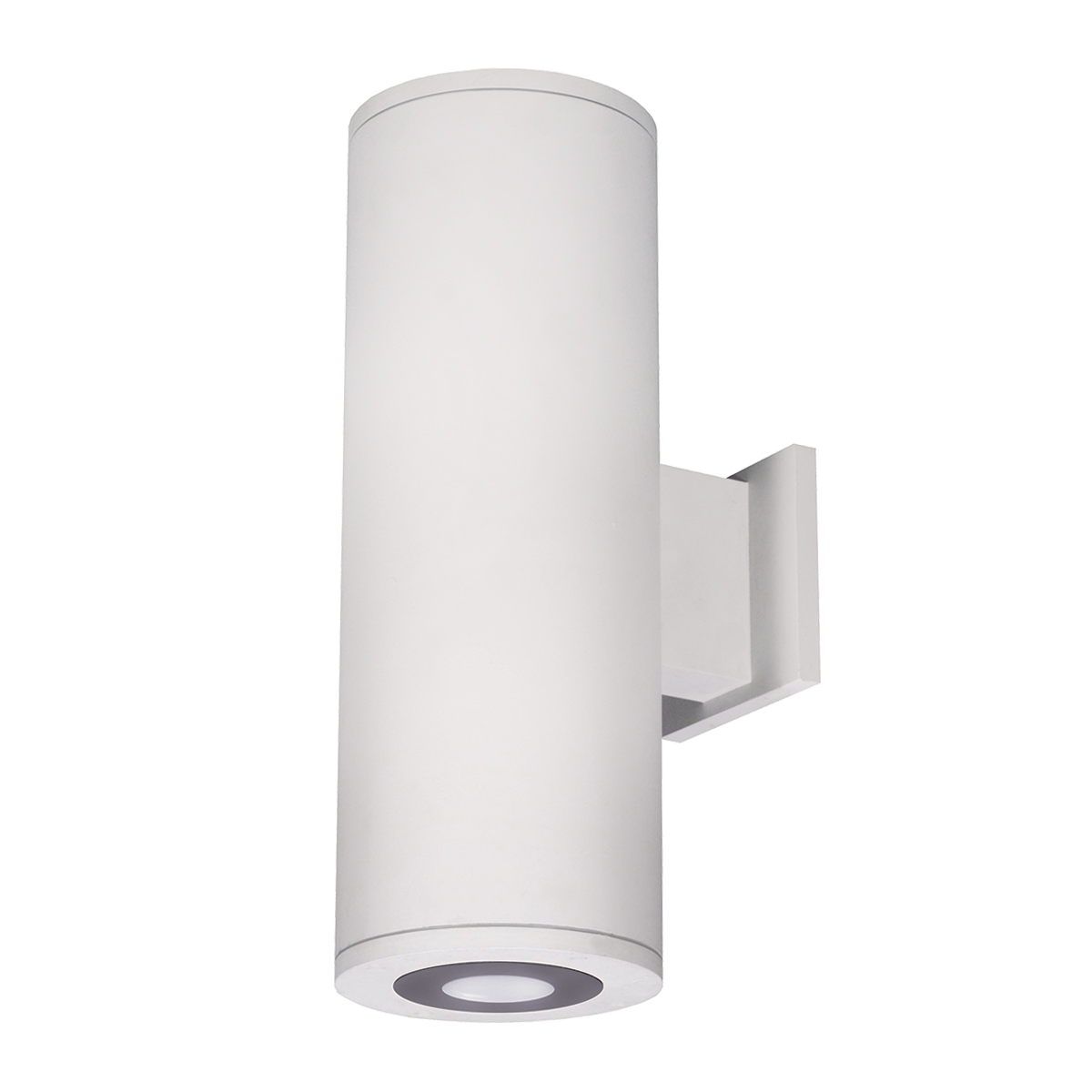

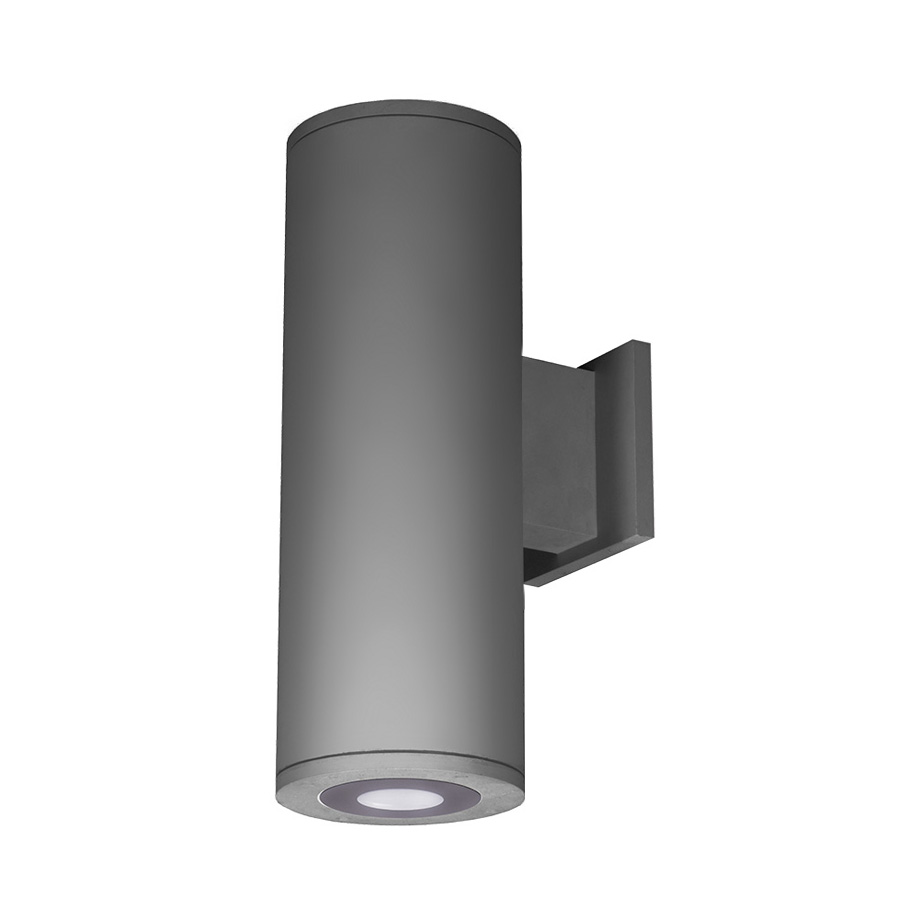

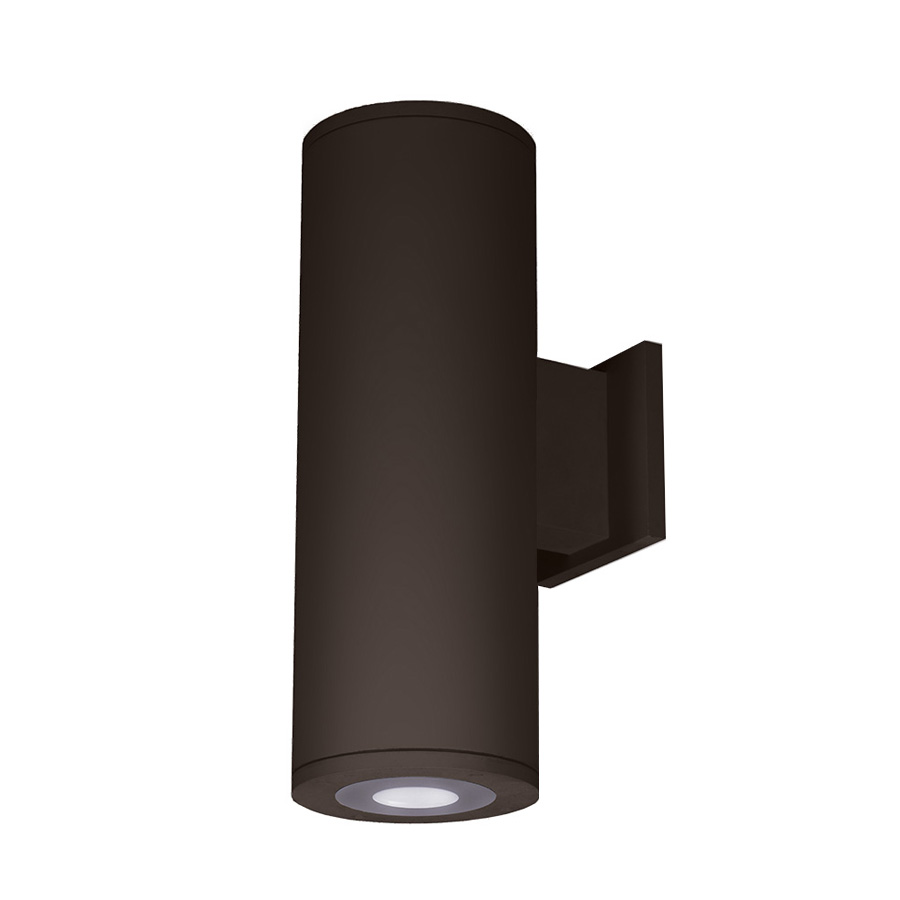

Tube Architectural 5" Ultra Narrow Double Wall Mount
DS-WD05-U
Precise engineering using the latest energy efficient LED technology with a built-in ultra narrow beam precision optics. An appealing cylindrical profile perfect for accent lighting.
Specifications
ORDERING NUMBER
| Distribution | Model | Size | Power | Beam | Angle | Color | Temp | CRI | Lumens | CBCP | Light Direction | Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Double | DS-WD05 | 5" | 22W | U | 6° | 27 | 2700K | 85 | 125 x2 | 1182 x2 | B Towards the wall | BK Black WT White BZ Bronze GH Graphite |
| 30 | 3000K | 85 | 145 x2 | 1363 x2 | ||||||||
| 35 | 3500K | 85 | 150 x2 | 1411 x2 | ||||||||
| 40 | 4000K | 85 | 155 x2 | 1462 x2 |
DS-WD05-U___B-___
Example: DS-WD05-U30B-WT
