Tube Architectural

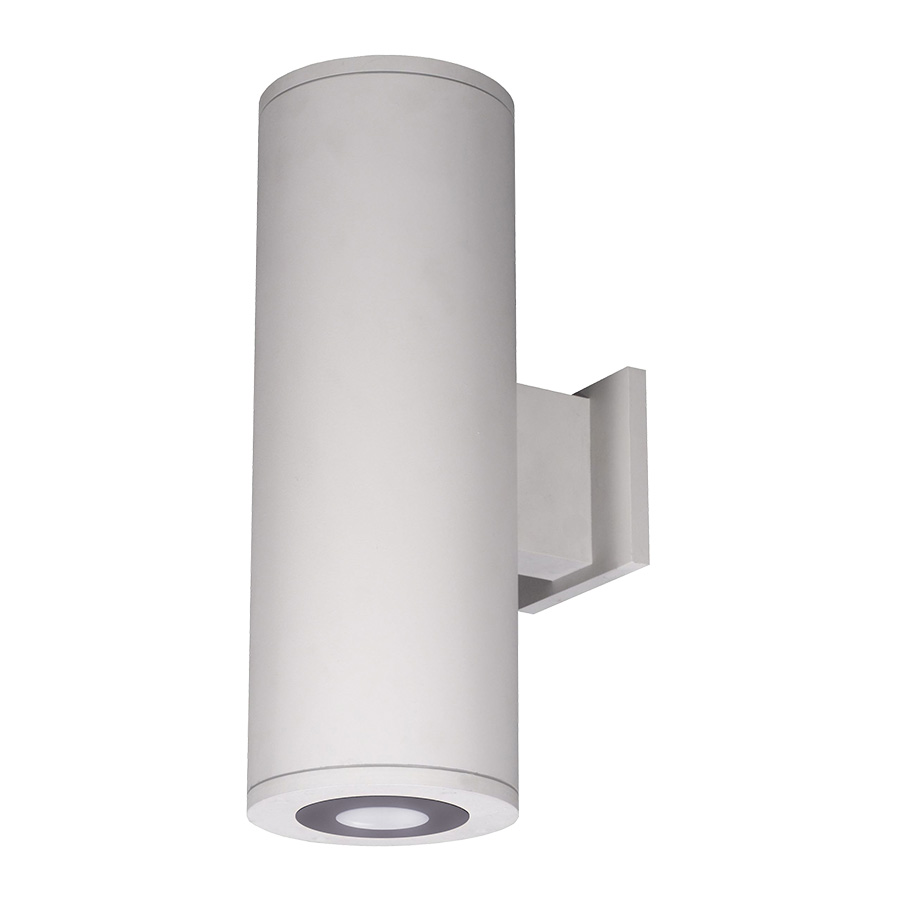

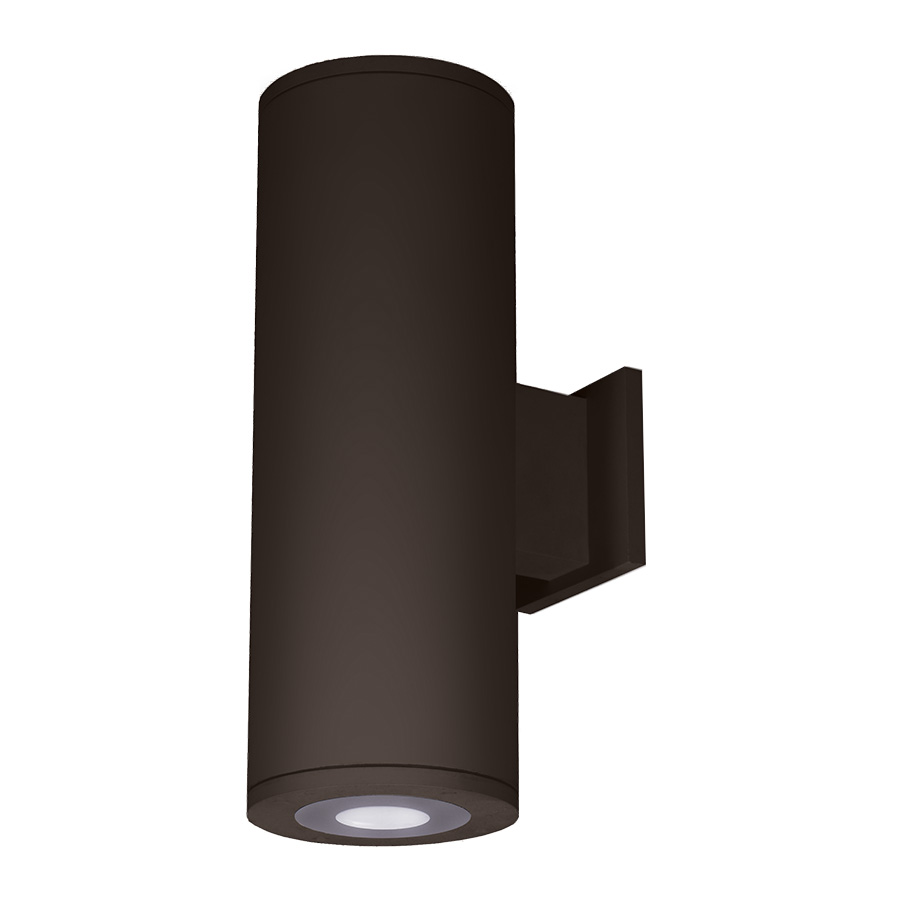

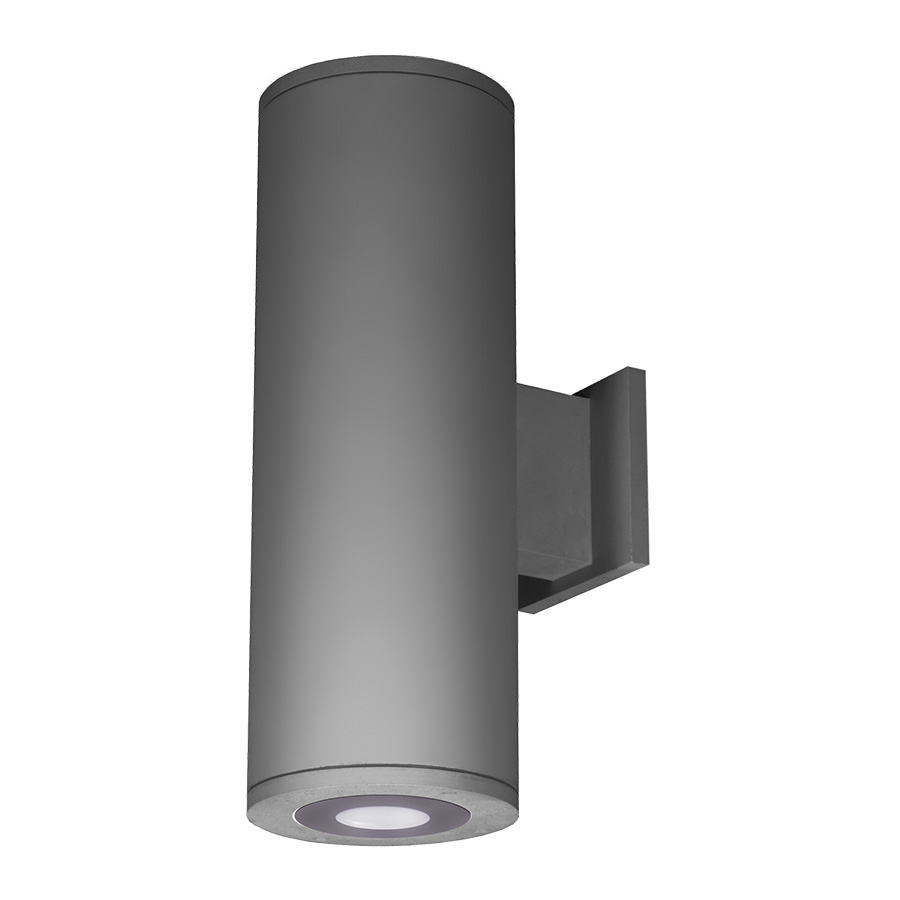

Tube Architectural 6" Ultra Narrow Double Wall Mount
DS-WD06-U
Precise engineering using the latest energy efficient LED technology with a built-in ultra narrow beam precision optics. An appealing cylindrical profile perfect for accent lighting.
Specifications
ORDERING NUMBER
| Distribution | Model | Size | Power | Beam | Angle | Color | Temp | CRI | Lumens | CBCP | Light Direction | Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Double | DS-WD06 | 6" | 22W | U | 6° | 27 | 2700K | 85 | 110 x2 | 1239 x2 | B Towards the wall | BK Black WT White BZ Bronze GH Graphite |
| 30 | 3000K | 85 | 130 x2 | 1428 x2 | ||||||||
| 35 | 3500K | 85 | 130 x2 | 1478 x2 | ||||||||
| 40 | 4000K | 85 | 135 x2 | 1532 x2 |
DS-WD06-U___B-___
Example: DS-WD06-U30B-WT
