Volta Tunable White

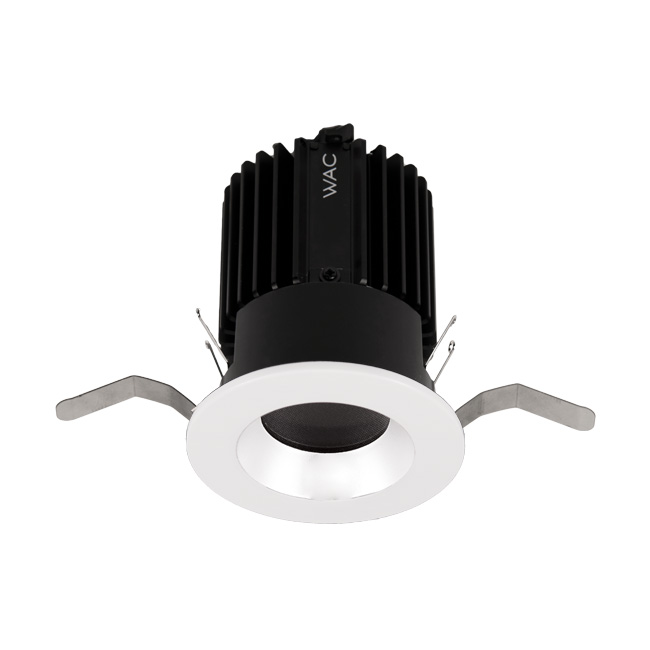

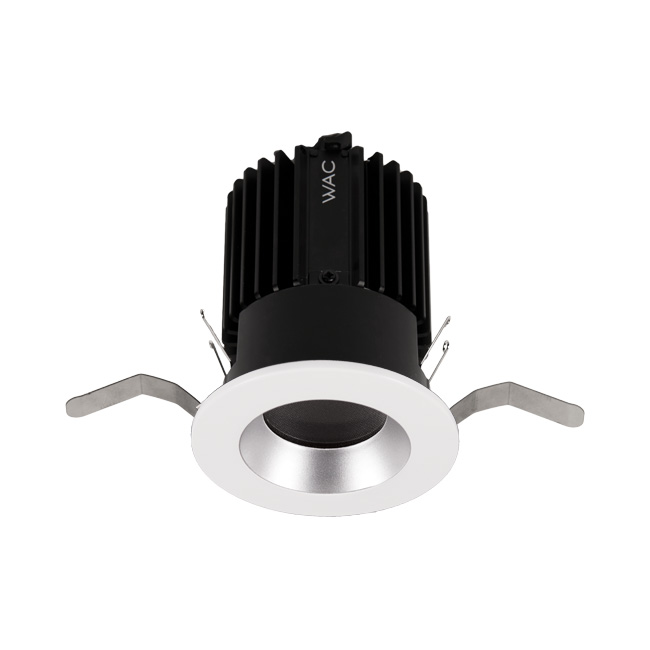

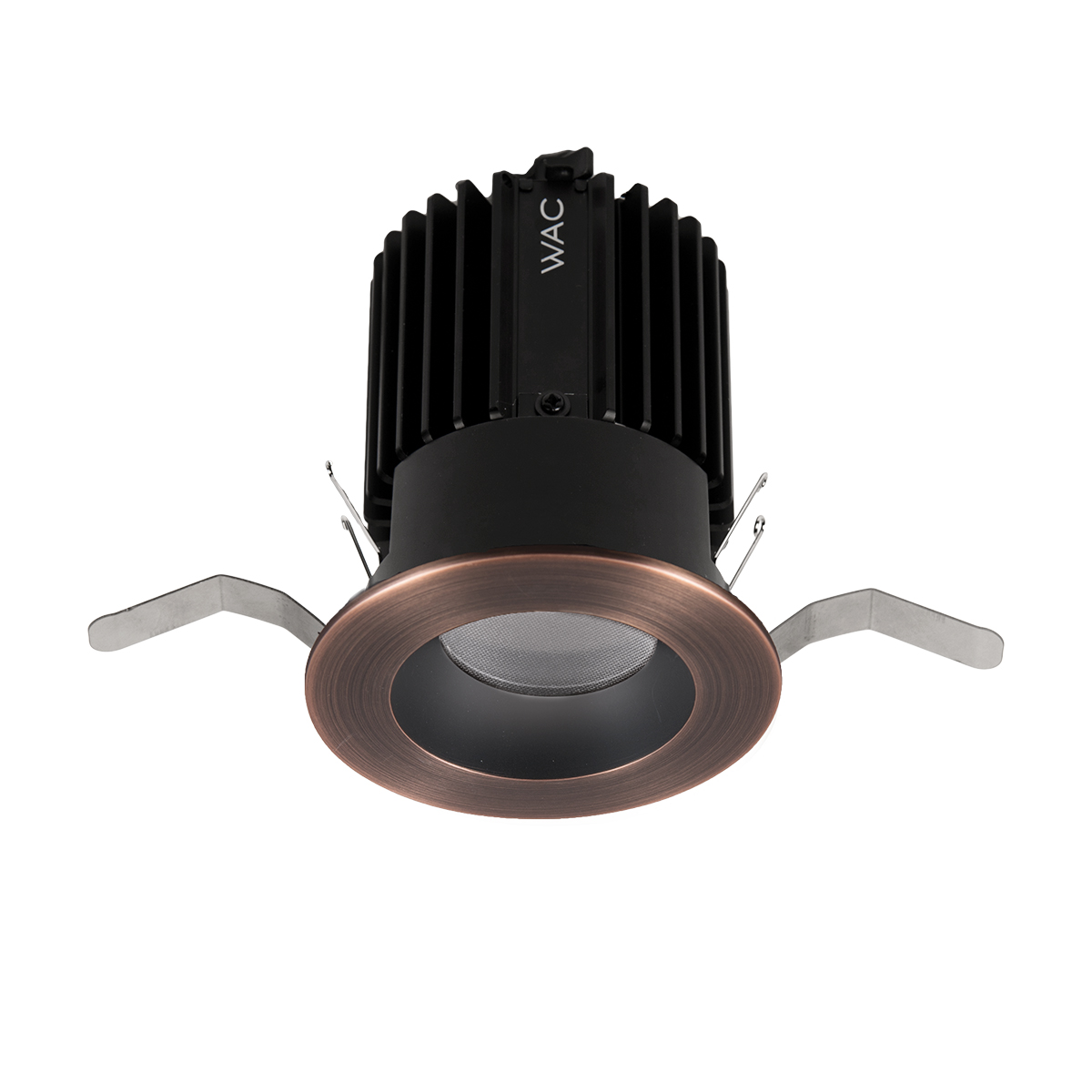

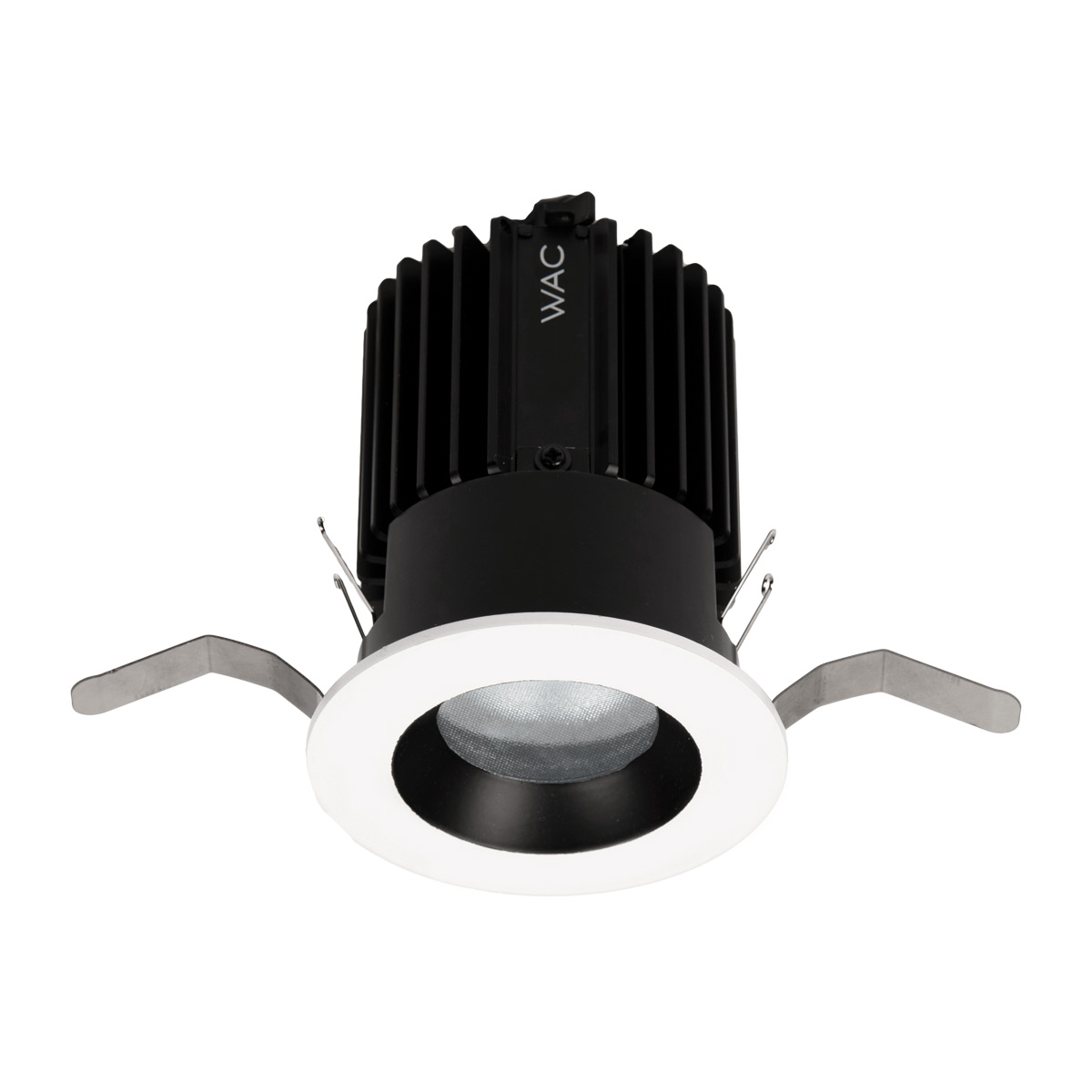

Volta 2″ Tunable White Shallow Regressed Round Trim / Invisible Trim
R2RD1T-TW
Volta 2” Tunable White recessed series represents an innovation in design and technology for architectural lighting. This high lumen and adaptable family of fixtures with a comprehensive set of round and square fittings, affords a sustainable solution for commercial, corporate, and upscale residential applications.
Specifications
ORDERING NUMBER
| Model | Beam | Angle | Shape | Lumens | CBCP (Ref Output) | Color Temp | CRI | Finishes |
|---|---|---|---|---|---|---|---|---|
| R2RD1T – Round Trim R2SD1T – Square Trim | N | 25° | Round | 815 | 2345 | TWA 1800K–4000K | 98 | BK – Black BKWT – Black/White CB – Copper Bronze HZ – Haze HZWT – Haze/White WT – White |
| N | 25° | Square | 950 | 2730 | ||||
| F | 35° | Round | 800 | 1740 | ||||
| F | 35° | Square | 1085 | 2365 | ||||
| W | 45° | Round | 630 | 1050 | ||||
| W | 45° | Square | 745 | 1240 | ||||
| N | 25° | Round | 755 | 3115 | TWB 2700K–6500K | 98 | ||
| N | 25° | Square | 880 | 3630 | ||||
| F | 35° | Round | 845 | 2280 | ||||
| F | 35° | Square | 1150 | 3105 | ||||
| W | 45° | Round | 680 | 1270 | ||||
| W | 45° | Square | 805 | 1500 | ||||
| Example: R2SD1T-NTWA-WT | ||||||||
