Multi Stealth

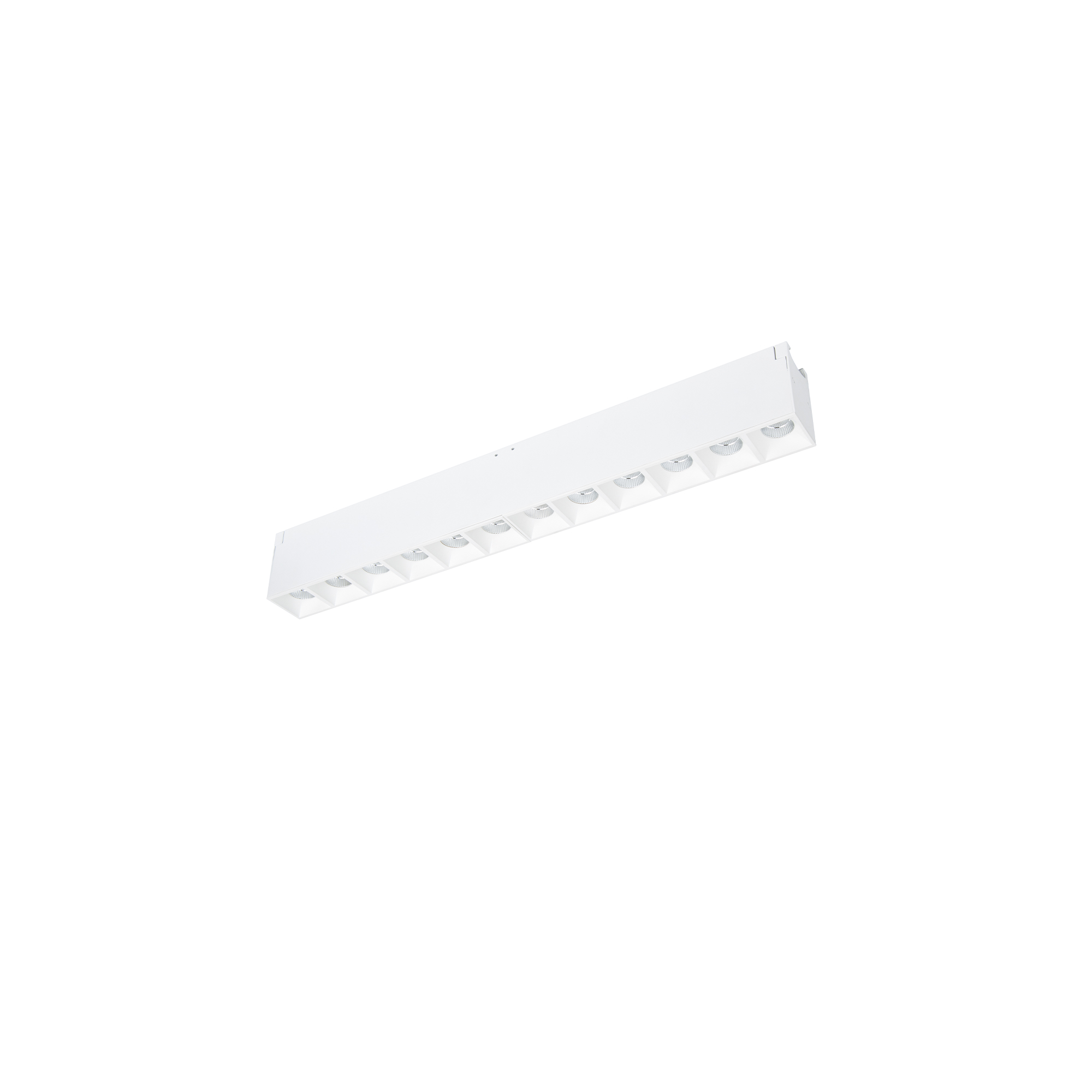

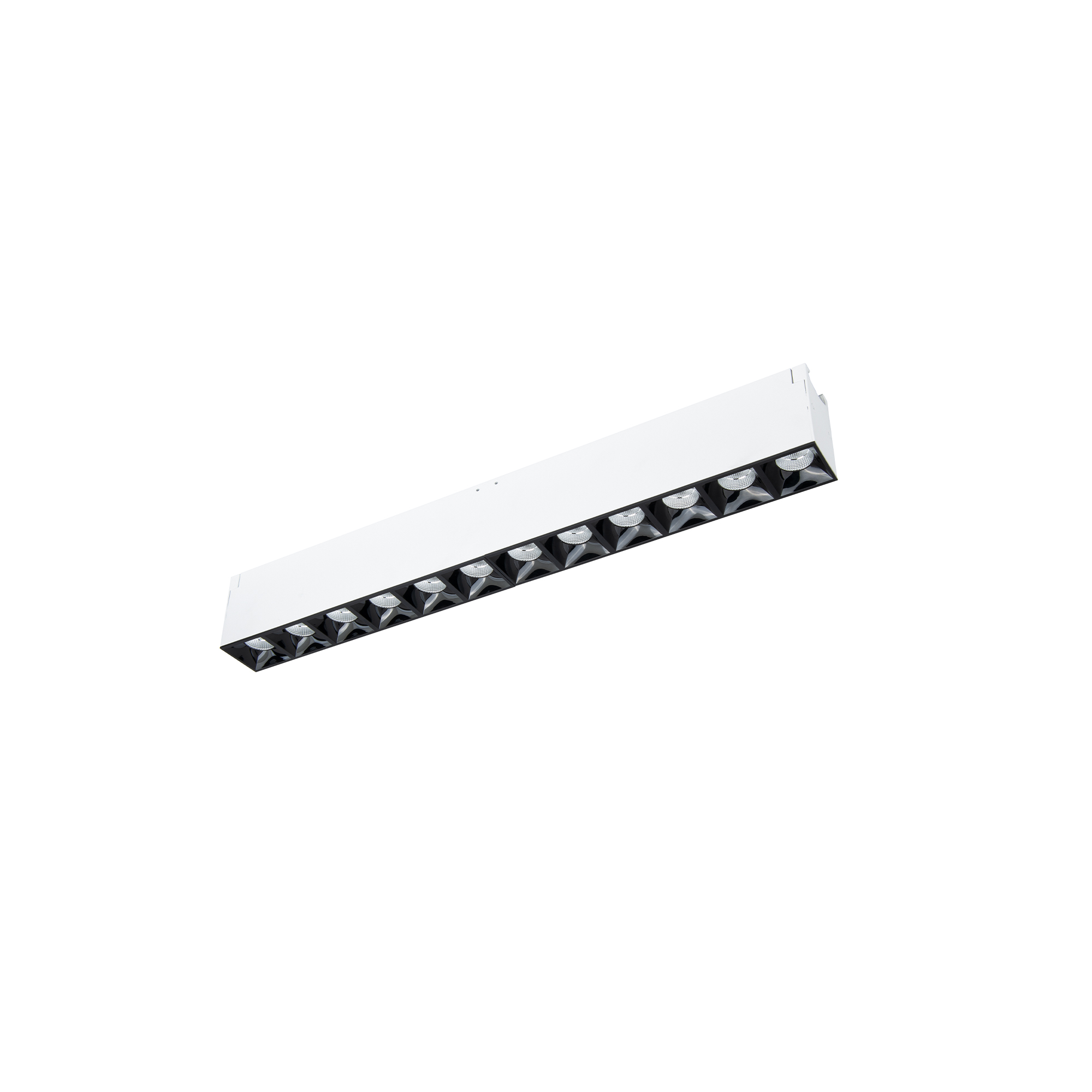

Multi Stealth Downlight Trimless
R1GDL
Multi Stealth recessed features a quiet aperture for a nearly glare free environment. Its linear multi cell form factor features a 1.5” aperture, with availability in up to 5 lengths. This series offers a downlight with 40° visual cutoff, an adjustable with 35° bi-directional tilt, and wall washer with specialized optics for even wall illumination. Trimmed and trimless options allow flexibility when integrating to building architecture.
Specifications
| Model & Size | Watt | Beam | Color Temp & CRI | Delivered Lumens | CBCP | Finish |
|---|---|---|---|---|---|---|

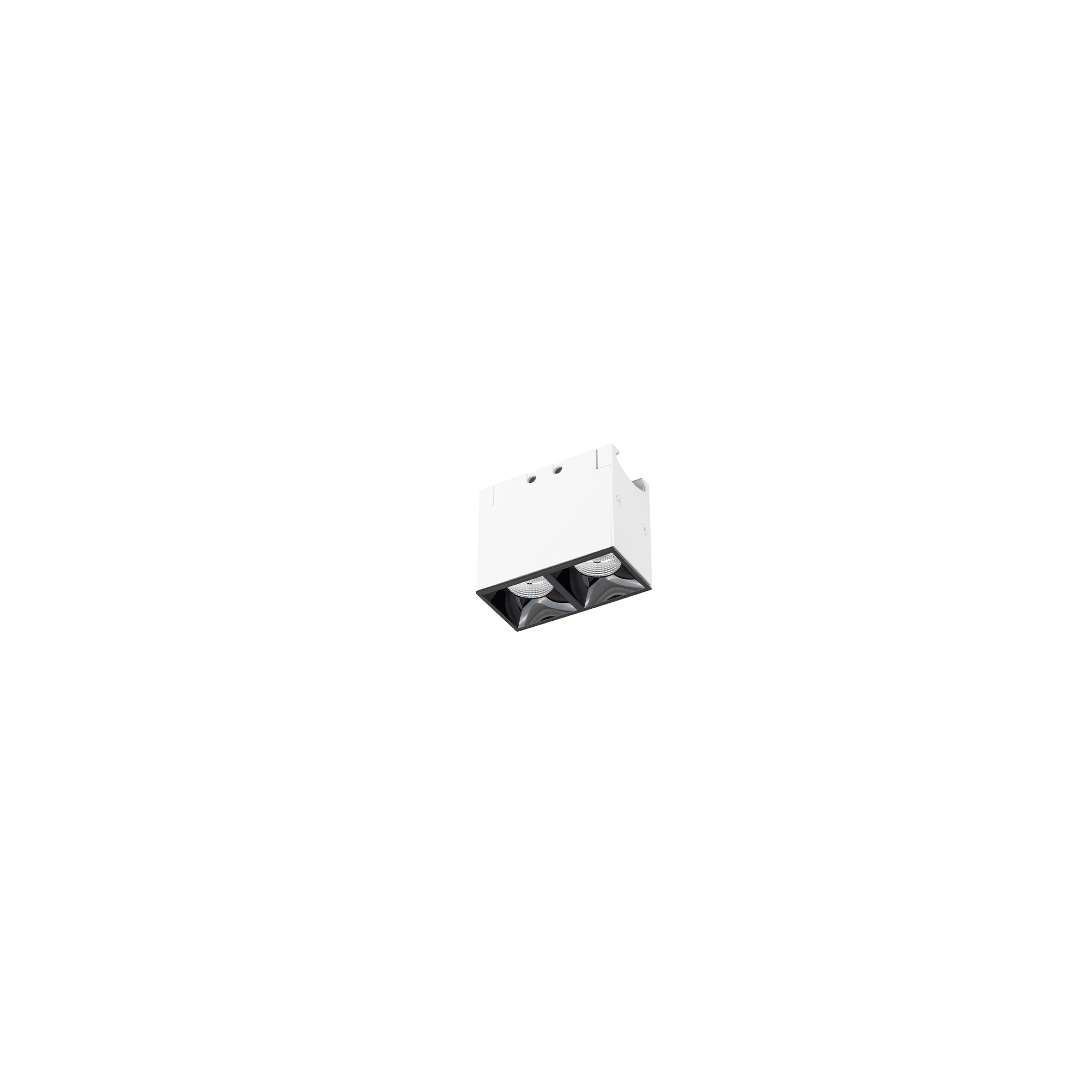

| R1GDL02 - 2 CELL | 8W | S - 16° N - 32° F - 45° | 927 - 2700K - 90 930 - 3000K - 90 935 - 3500K - 90 940 - 4000K - 90 | 500 | 2170 | BK - Black |

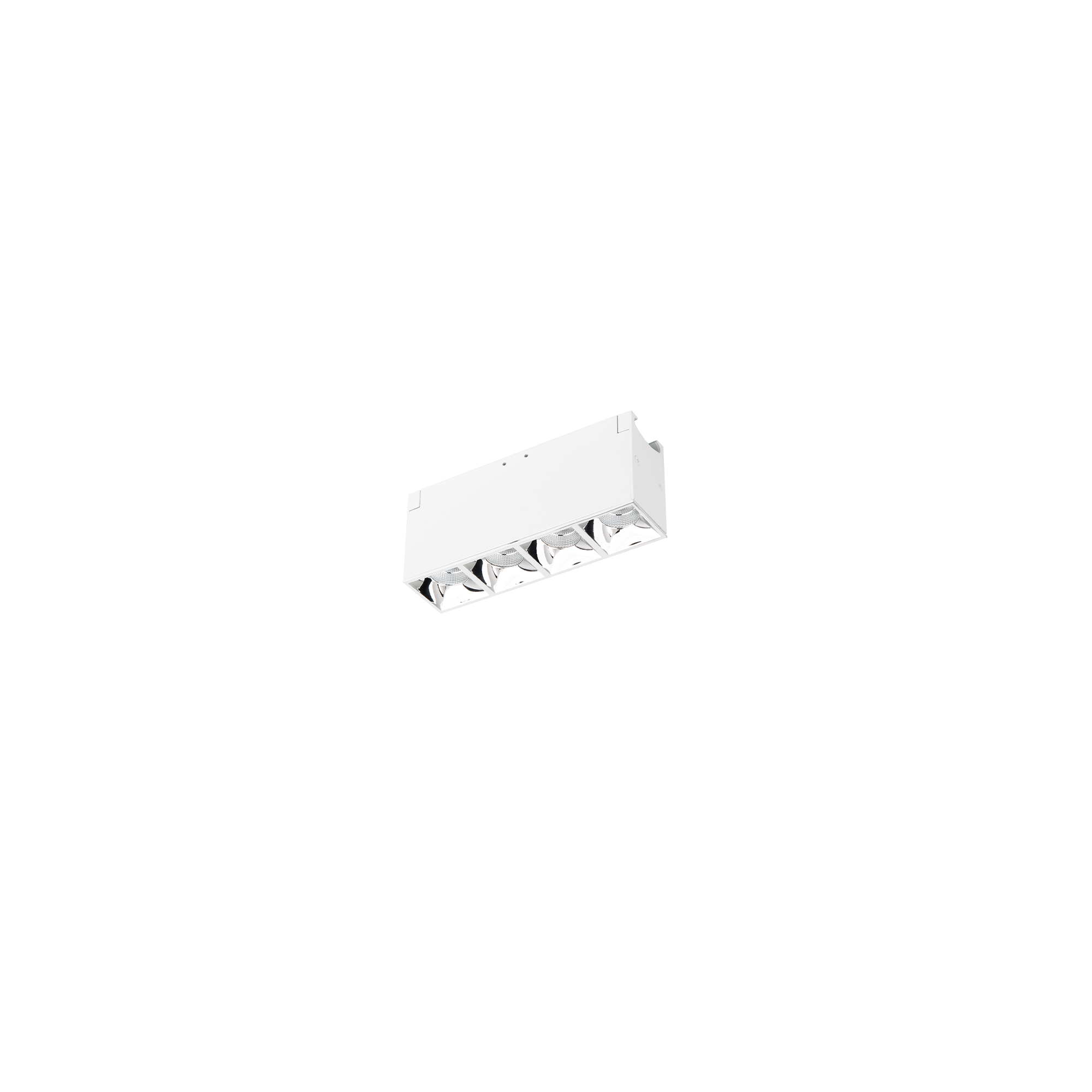

| R1GDL04 - 4 CELL | CH - Chrome | |||||

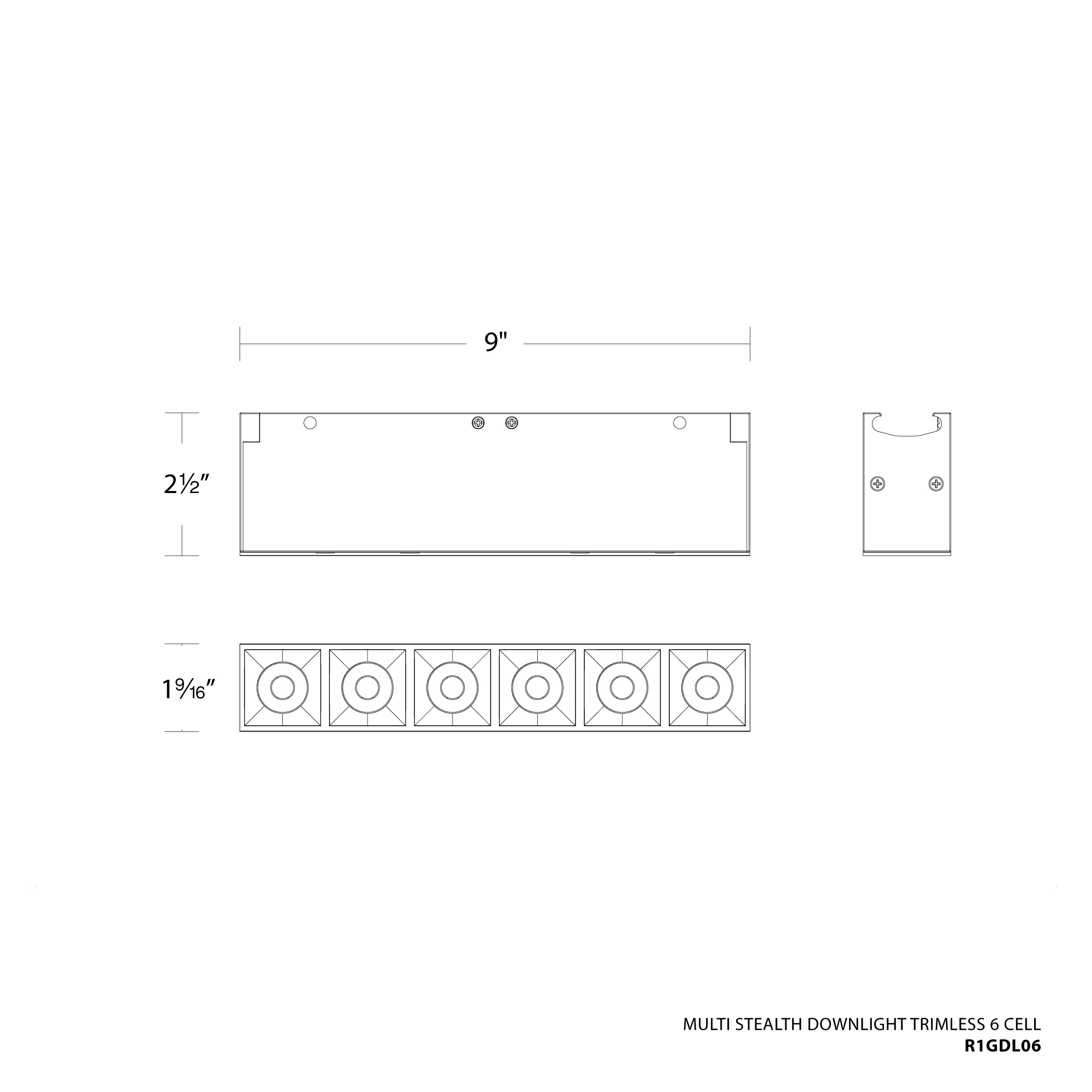

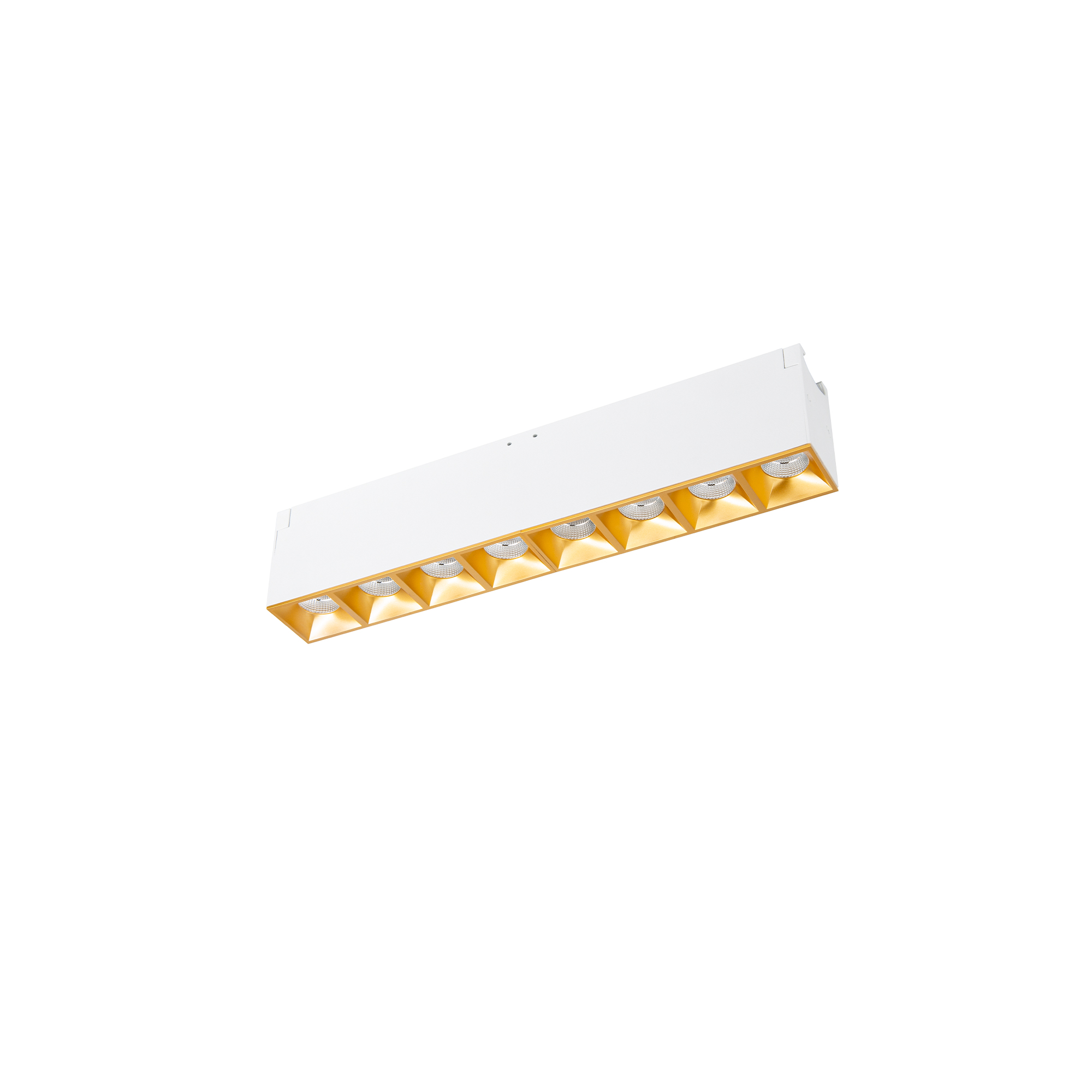

| R1GDL06 - 6 CELL | GL - Gold | |||||

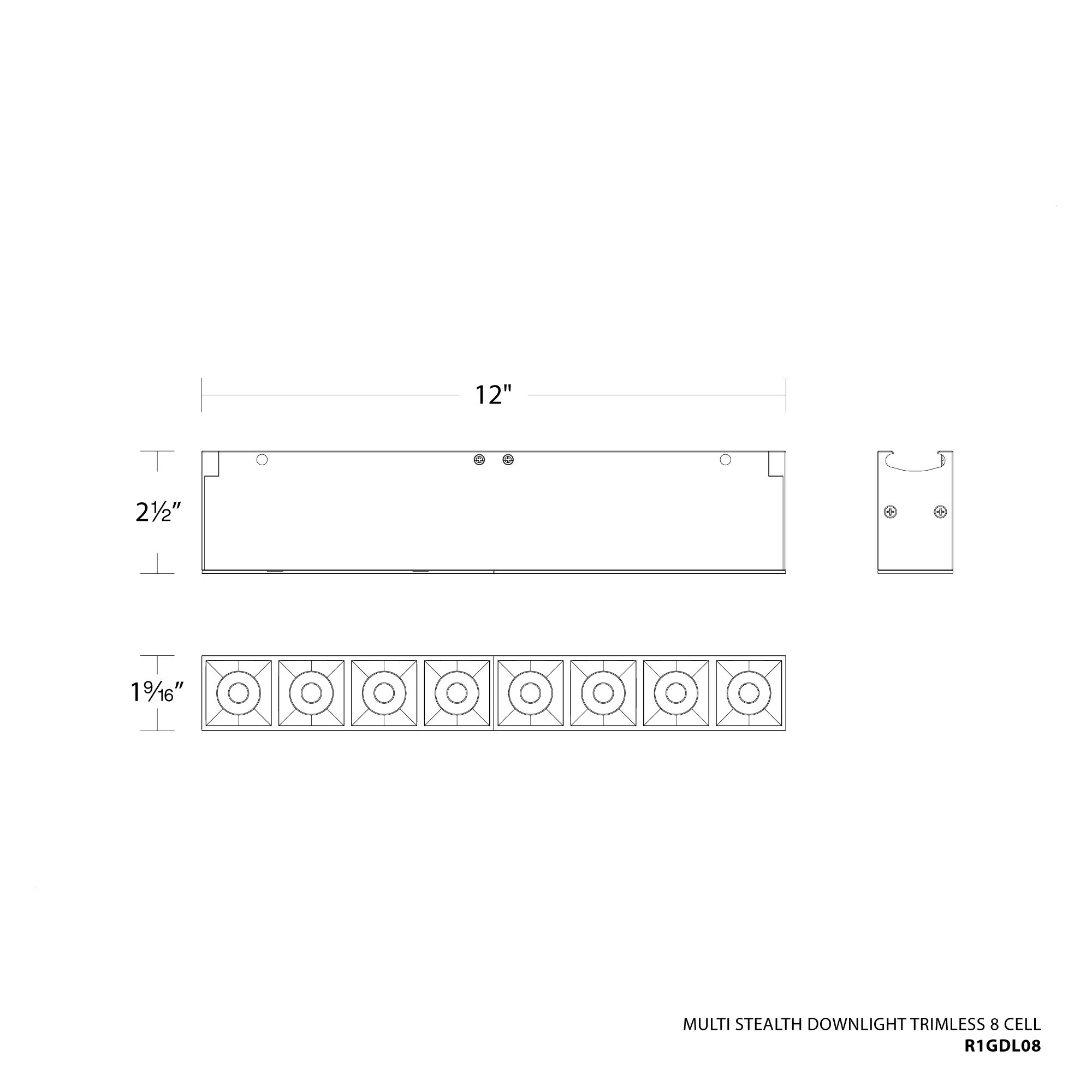

| R1GDL08 - 8 CELL | HZ - Haze | |||||

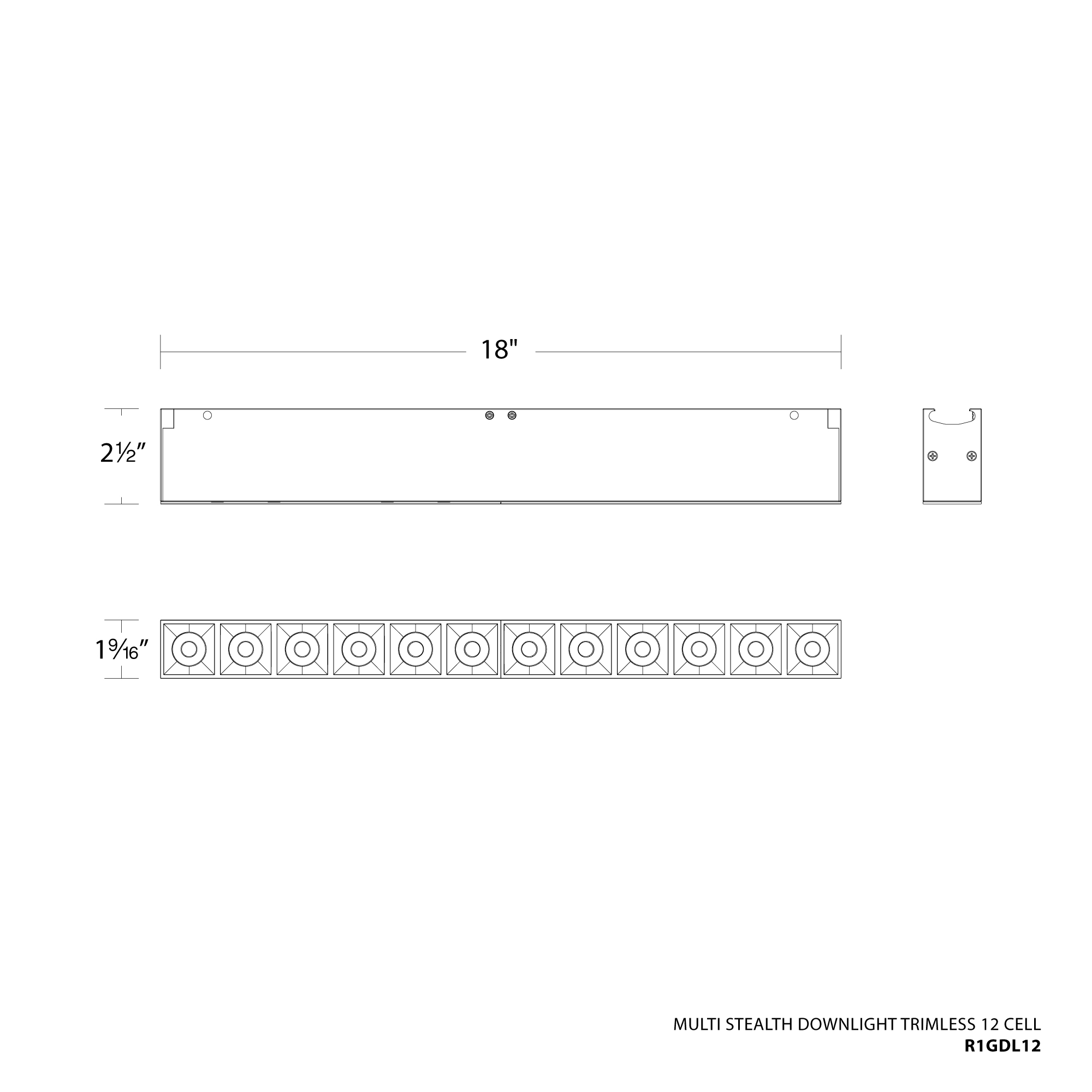

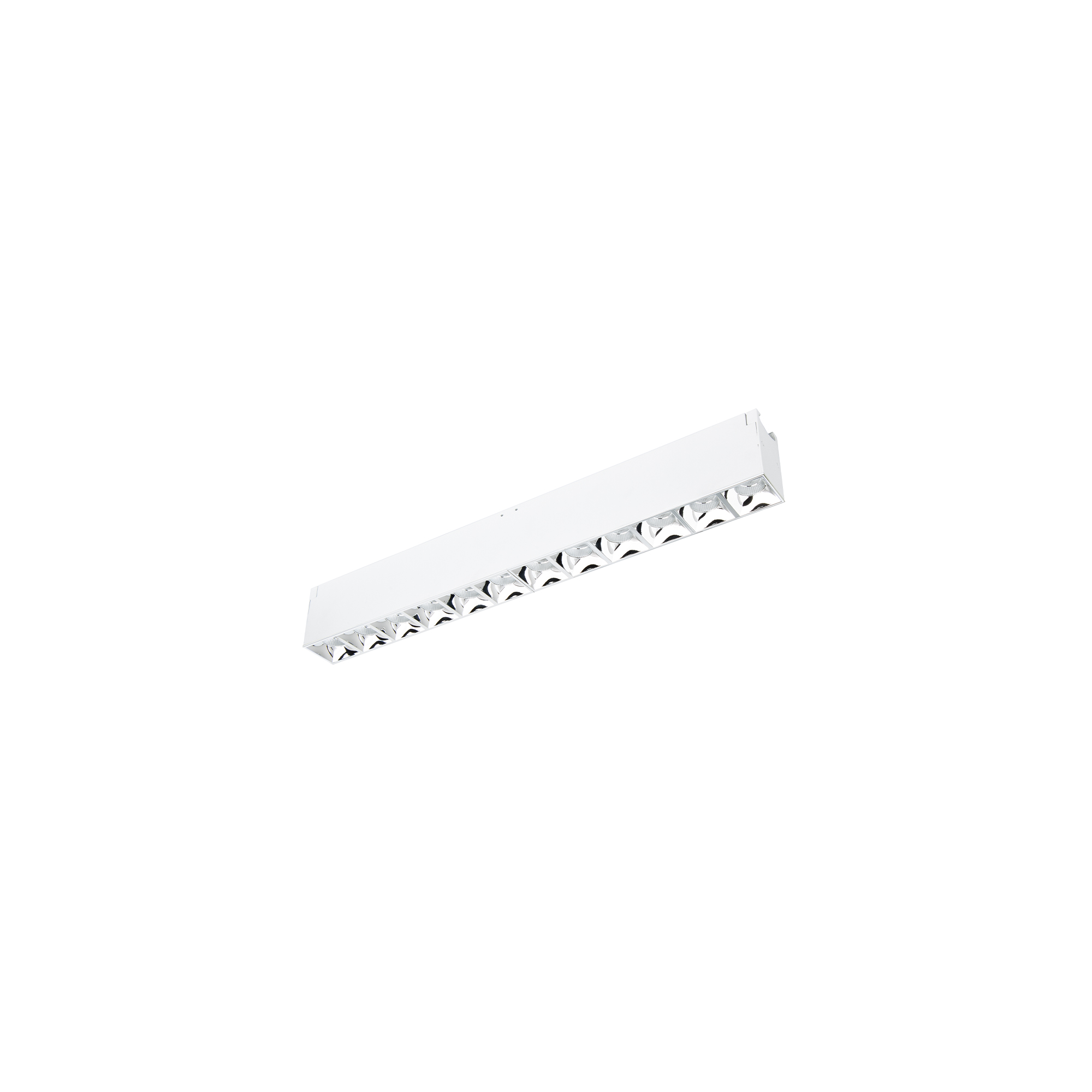

| R1GDL12 - 12 CELL | WT - White |
Example: R1GDL08-F940-HZ
