FQ

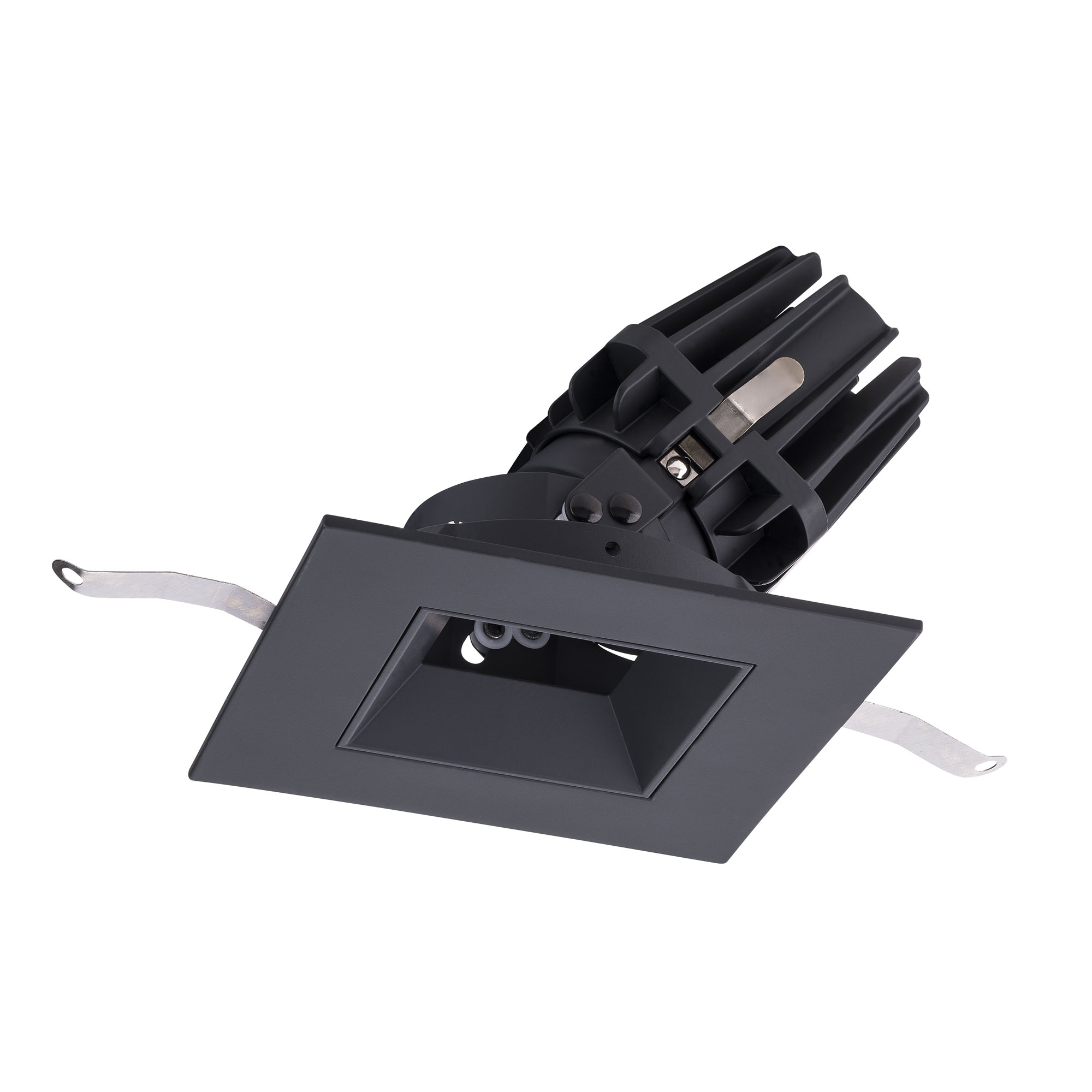

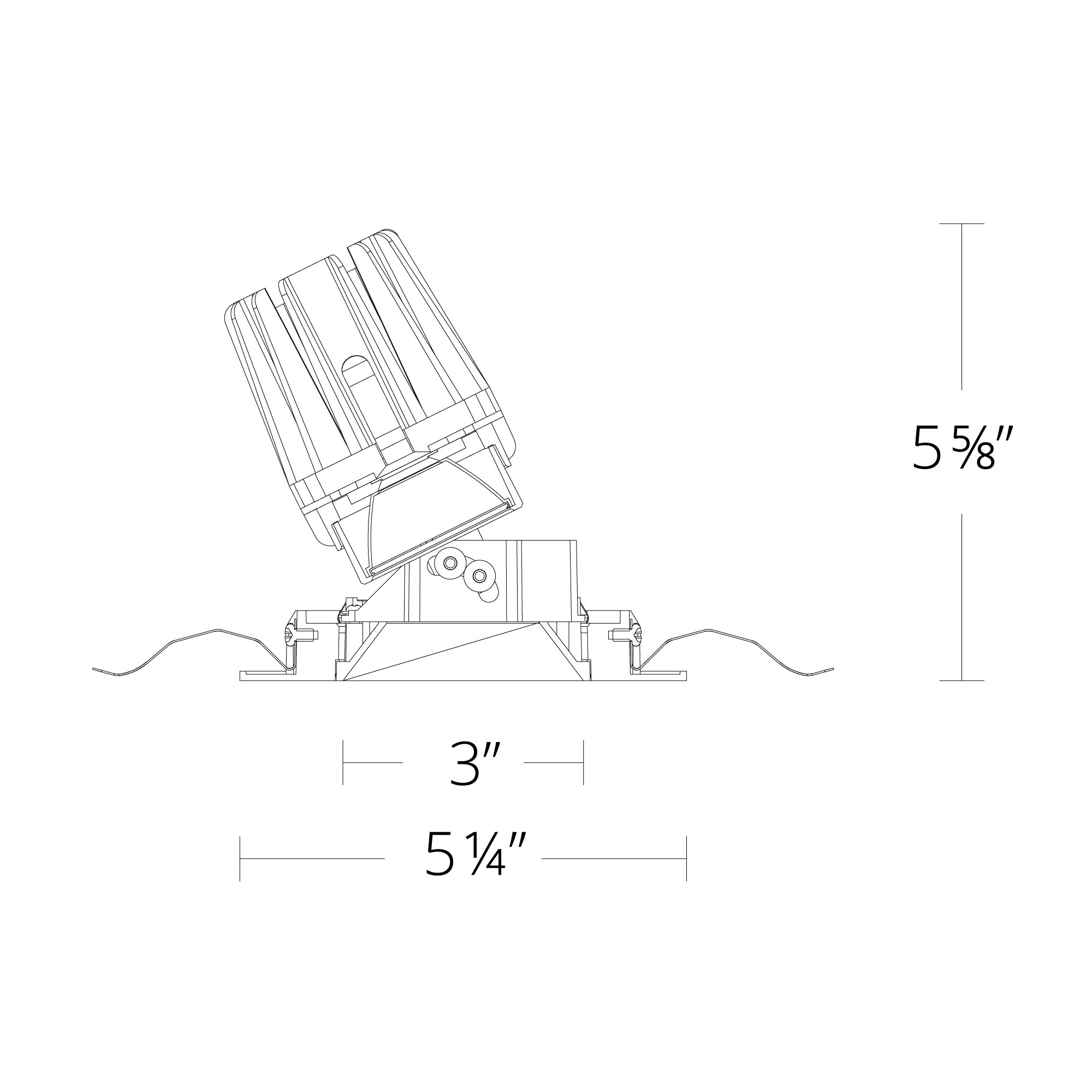

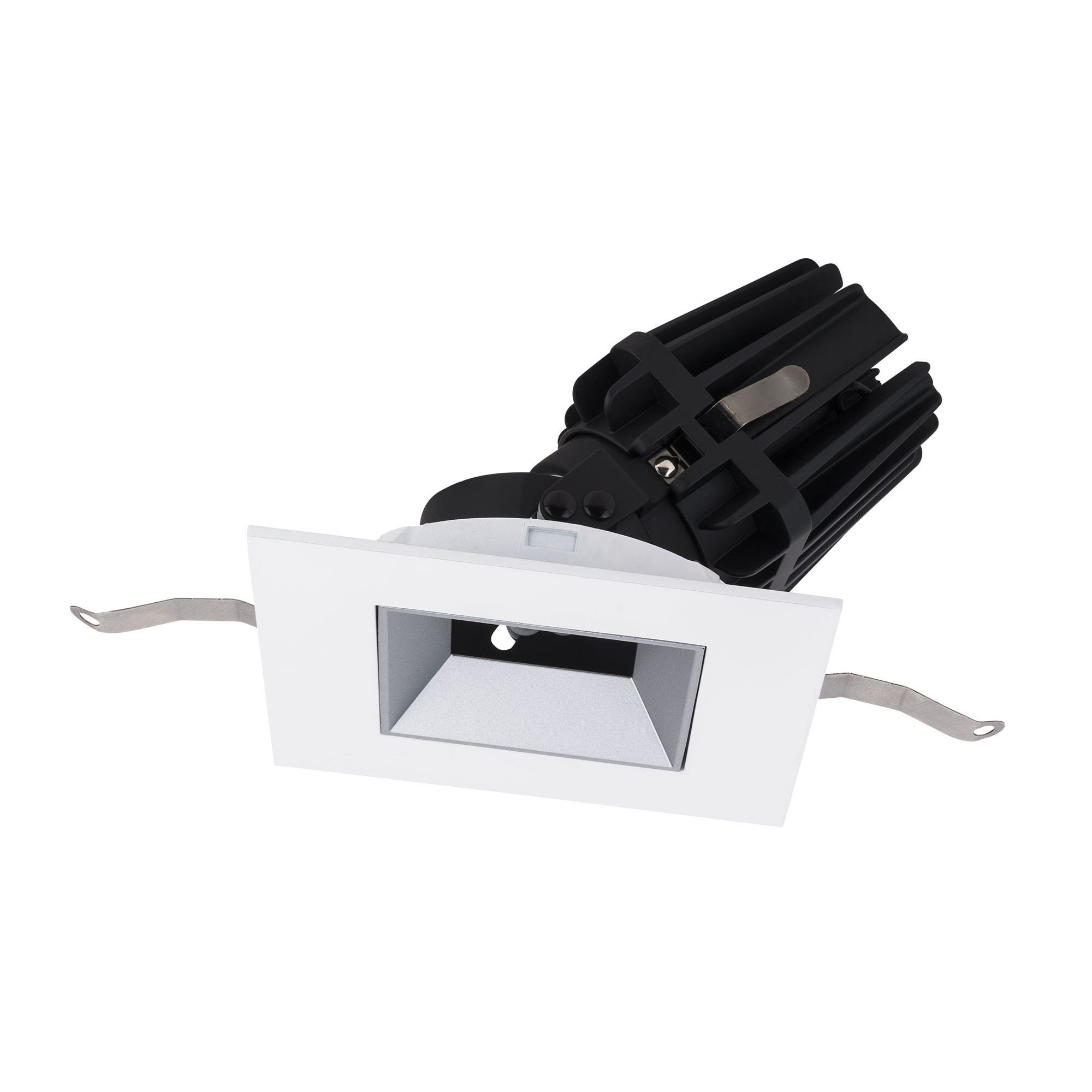

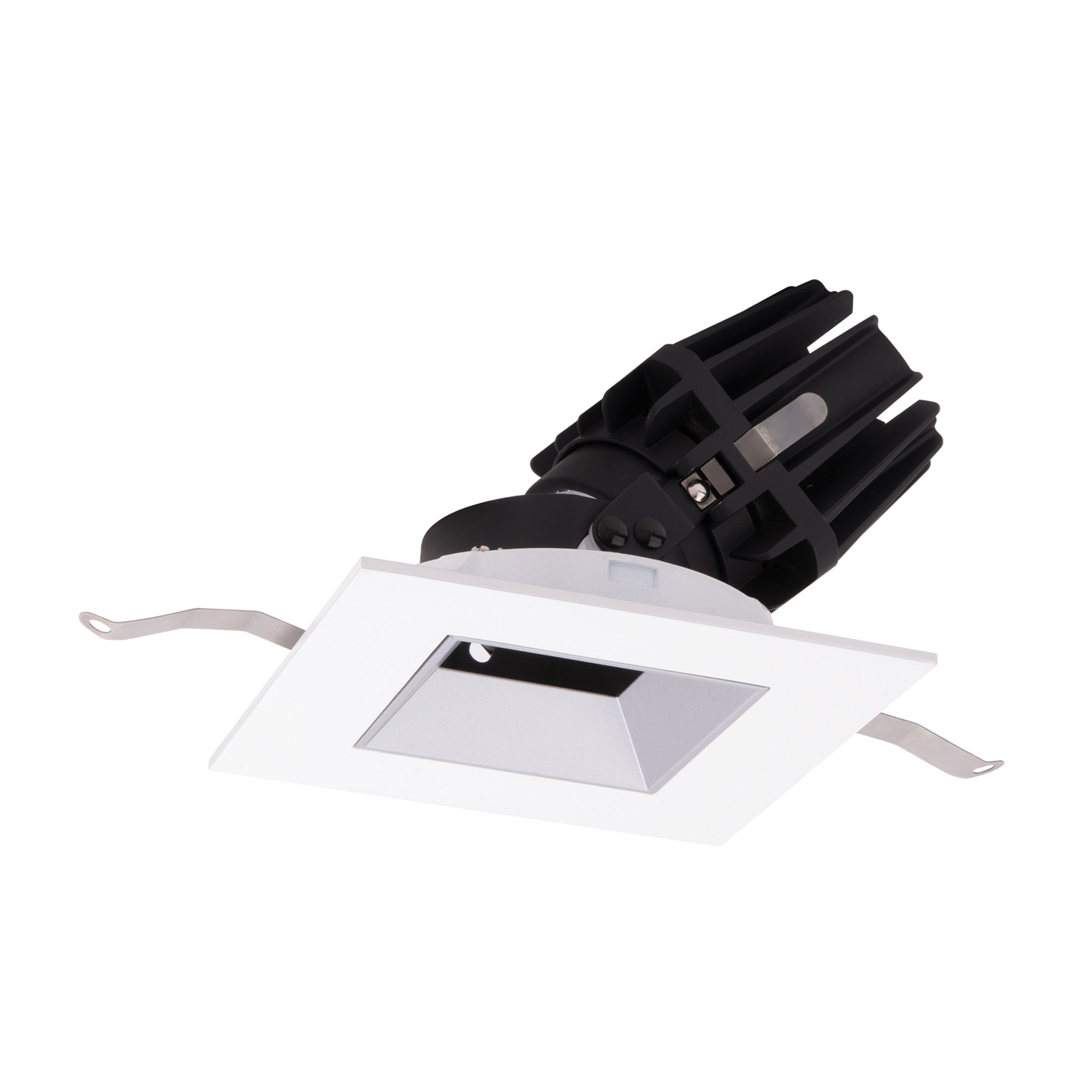

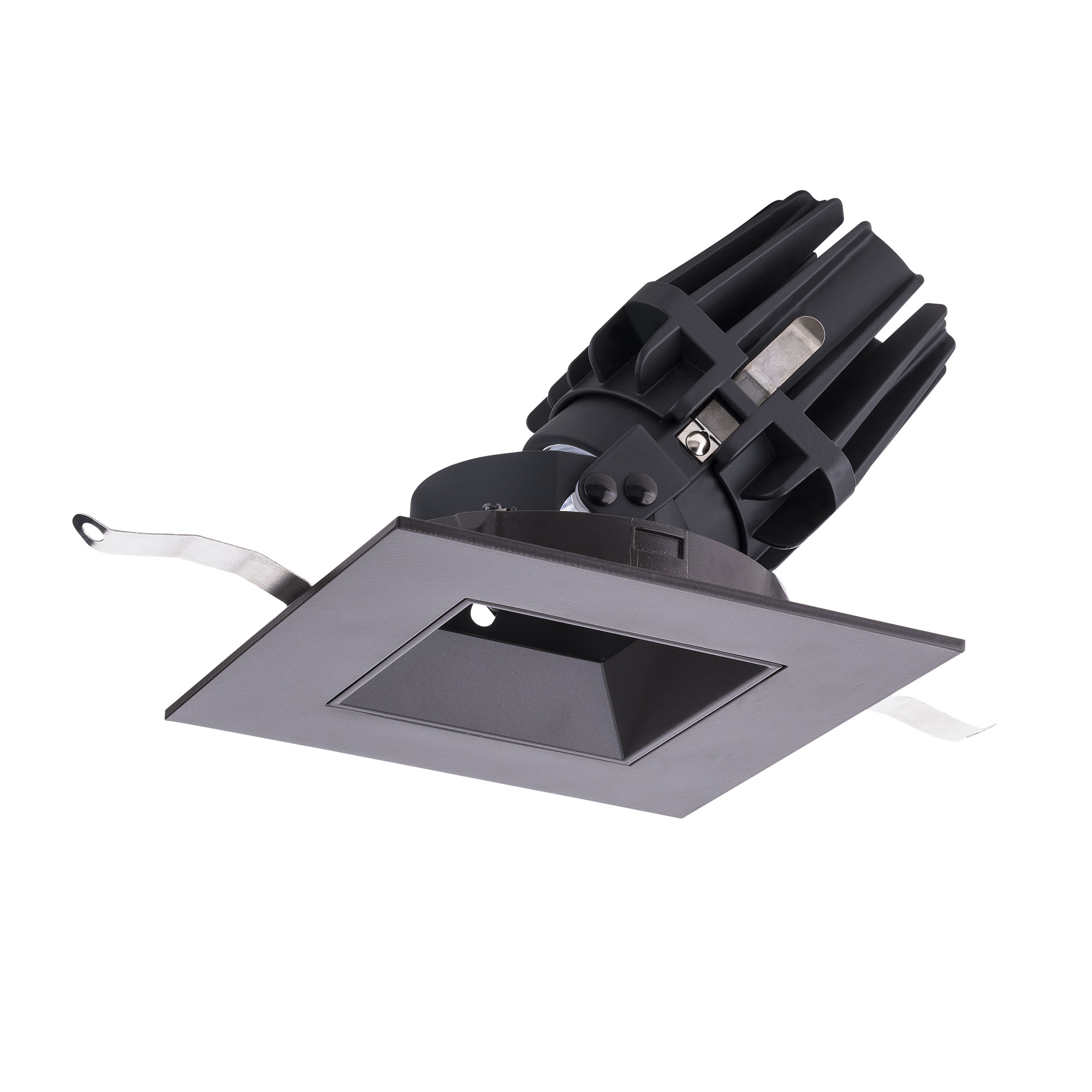

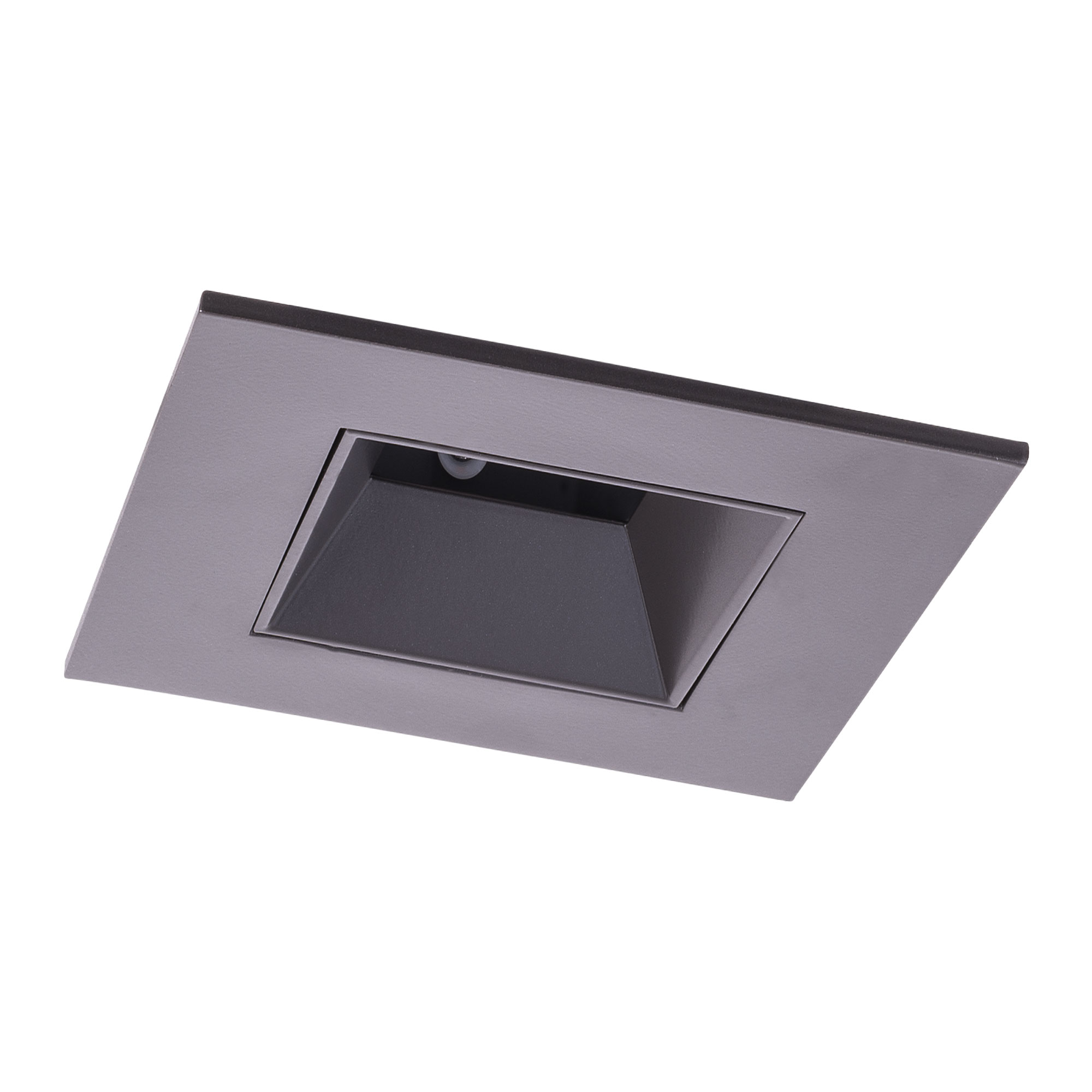

FQ 4″ Adjustable Trimmed Square
R4FSAT
The FQ Recessed series offers a complete line of high performance LED luminaires that provide outstanding functionality and quality. The series features superlative glare control with 30° shielding, 35° vertical tilting and uniform floor-to-ceiling wall washing. Multiple power level options and a full line of round and square, trimmed and trimless luminaires offer versatile solutions for various lighting applications. Easy to order, install, and service.
Specifications
| Model | Color Temp & CRI | Max Lumens | Max CBCP | Power | Finish |
|---|---|---|---|---|---|
| R4FSAT | 927 – 2700K – 90 | 1595 | 5110 | 13W, 19W, 25W, 28W | BK – Black DB – Dark Bronze HZWT – Haze/White WT – White |
| 930 – 3000K – 90 | |||||
| 935 – 3500K – 90 | |||||
| 940 – 4000K – 90 | |||||
| WD – 3000K–1800K – 90 |
Example: R4FSAT-935-WT
