HLSE

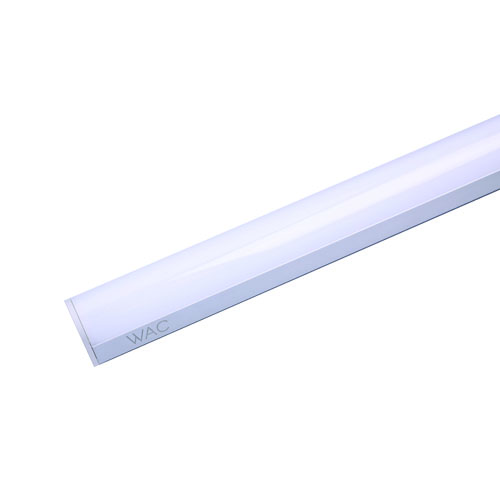

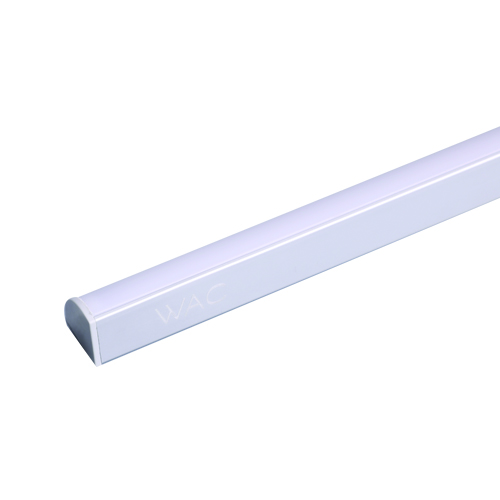

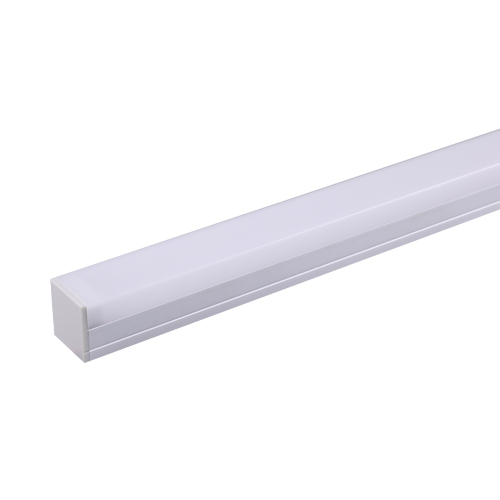

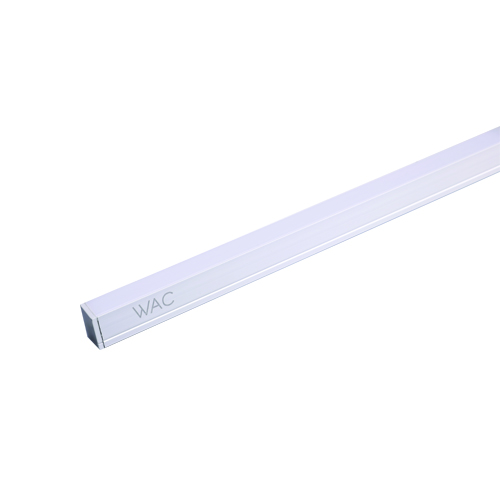

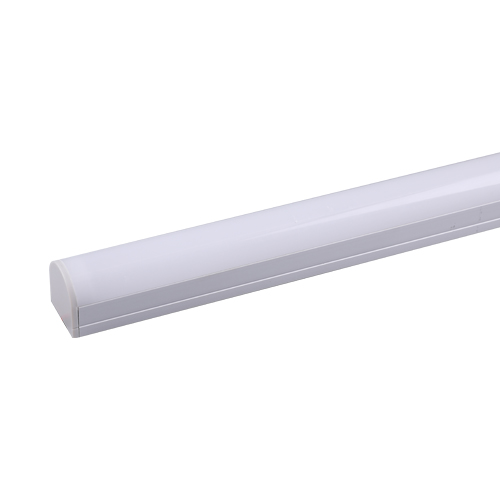

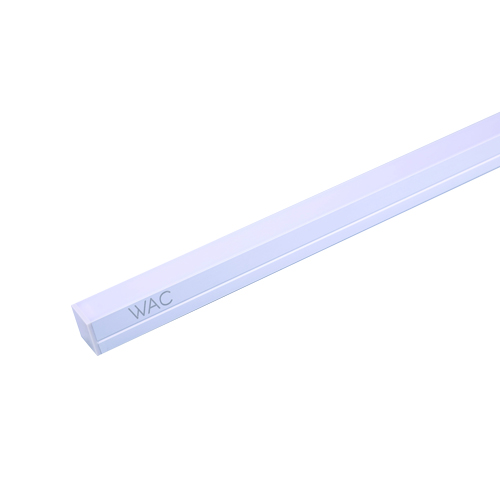

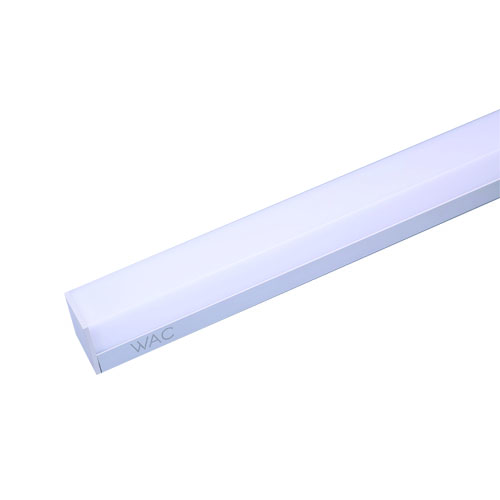

HLSE A

HLSE
Clean linear illumination defines HLSE A. Engineered for uniform output without visible dotting, it delivers Ra>90 color reproduction within a compact architectural profile. Quick-connect terminals and accessory compatibility support seamless integration into coves, canopies, and concealed interior detailing.

Features

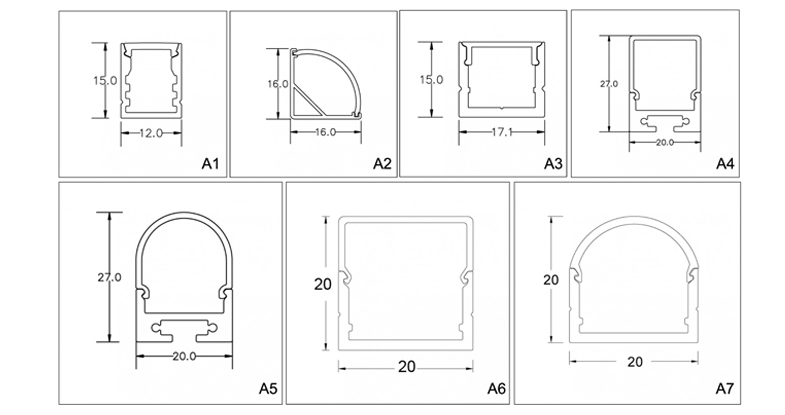

AHLSE A Series Line Drawing

AHLSE A Series Line Drawing

Projects

BOCOM 31 Performing Arts Center

Commercial & Corporate Lighting

BOCOM 31 Performing Arts Center

Specifications

Model

LED

Length

CRI

CCT

Series

Finish

AHLSE

Hard Light Bar

06 6W/M

10 10W/M

10 1010mm

9  90

27  2700K

30  3000K

40  4000K


A1  width 12mm height15mm

SG









Model

LED

Length

CRI

CCT

Series

Finish

AHLSE

Hard Light Bar

06  6W/M

10  10W/M

13  13W/M


10 1010mm

9  90

27  2700K

30  3000K

40  4000K


A2  width 16mm sector

SG

Model

LED

Length

CRI

CCT

Series

Finish

AHLSE

Hard Light Bar

06  6W/M

10  10W/M

13  13W/M


10 1010mm

9  90

27  2700K

30  3000K

40  4000K


A3  width 17mm height15mm

SG

Model

LED

Length

CRI

CCT

Series

Finish

AHLSE

Hard Light Bar

06  6W/M

10  10W/M

13  13W/M

17  17W/M

10 1010mm

9  90

27  2700K

30  3000K

40  4000K


A4  width 20mm height 27mm three-sided


SG

Model

LED

Length

CRI

CCT

Series

Finish

AHLSE

Hard Light Bar

06  6W/M

10  10W/M

13  13W/M

17  17W/M

10 1010mm

9  90

27  2700K

30  3000K

40  4000K


A5  width 20mm height 27mm arcute

SG

Model

LED

Length

CRI

CCT

Series

Finish

AHLSE

Hard Light Bar

06  6W/M

10  10W/M

13  13W/M

10 1010mm

9  90

27  2700K

30  3000K

40  4000K


A6  width 20mm height 20mm three-sidedSG

Model

LED

Length

CRI

CCT

Series

Finish

AHLSE

Hard Light Bar

06  6W/M

10  10W/M

13  13W/M

10 1010mm

9  90

27  2700K

30  3000K

40  4000K


A7  width 20mm height 20mm arcute & three-sidedSG

Example: AHLSE-0610927A1SG,  1) Support white light specification only, bottom connector outlet. 2)Consult WAC for other wattages, color temperatures and lengths.
