SWALLOW III
SWALLOW III HP
ATL41HLD/ATL42HLD/ATL43HLD

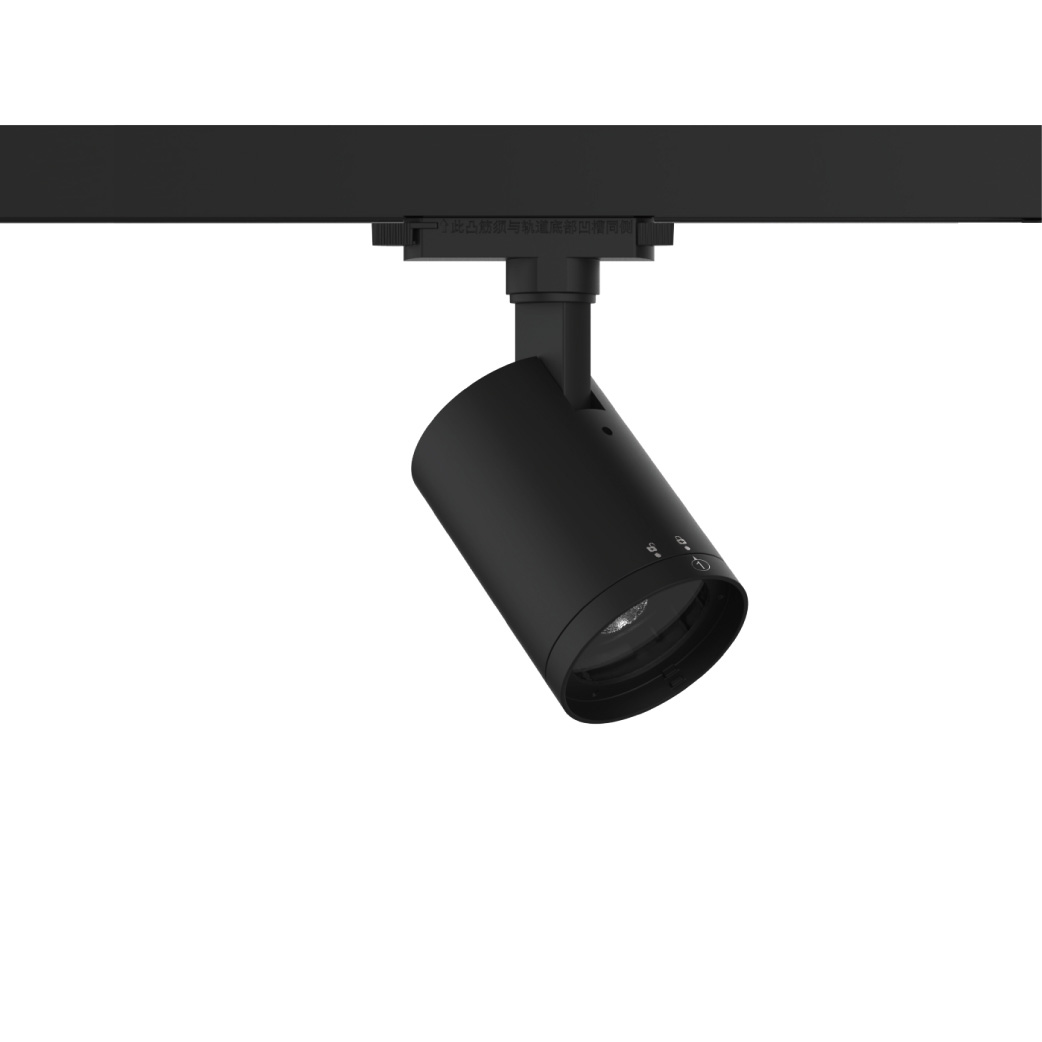

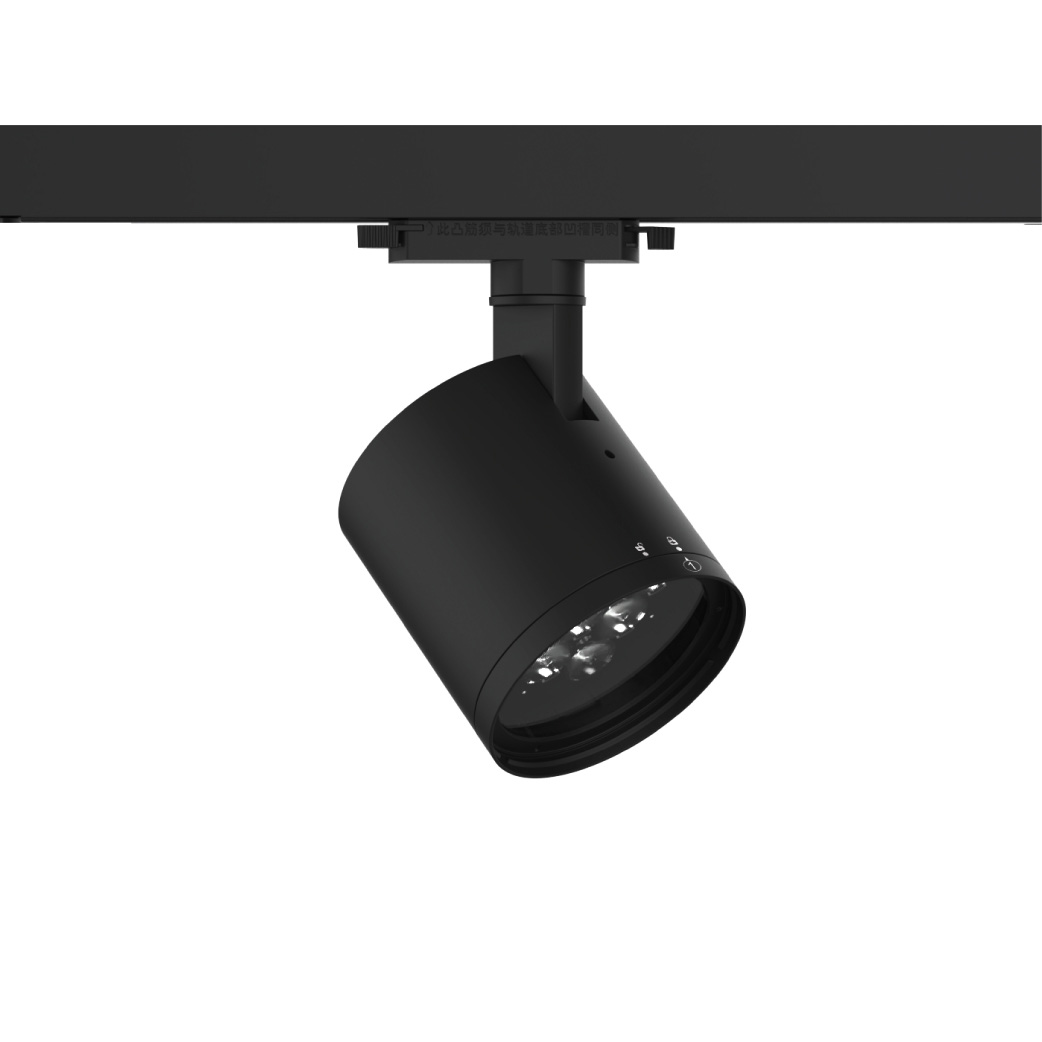

High-output performance defines SWALLOW III Multi-Chip HP. Designed for W three-circuit tracks, it features a concealed die-cast aluminum housing and multi-chip light engine delivering multiple CCT options and interchangeable beam accessories.
Features
Dual Control Modes, Individual Adjustment × Cluster Scheduling
The SWALLOW III series inherits WAC’s renowned museum lighting expertise, delivering exceptional performance in both artifact preservation and visual comfort. UV Protection: UV < 2 μW/lm Flicker-Free Illumination: Dual-engine design with PstLM ≤ 0.5 & SVM < 0.1 achieves zero-flicker lighting beyond human perception. Exceeding Standards: Key performance indicators surpass national requirements by threefold, ensuring that artifacts are preserved within an absolutely secure light environment.

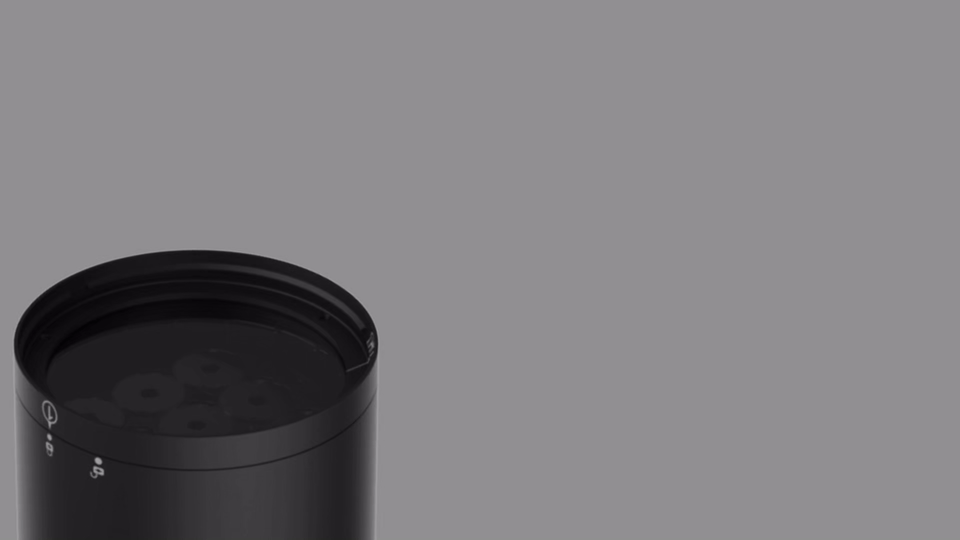

Modular Accessories, Tool-Free 3-Second Replacement
A wide range of accessories can be configured and freely stacked. Ingeniously designed alignment markers ensure effortless positioning, making installation quick and highly efficient.

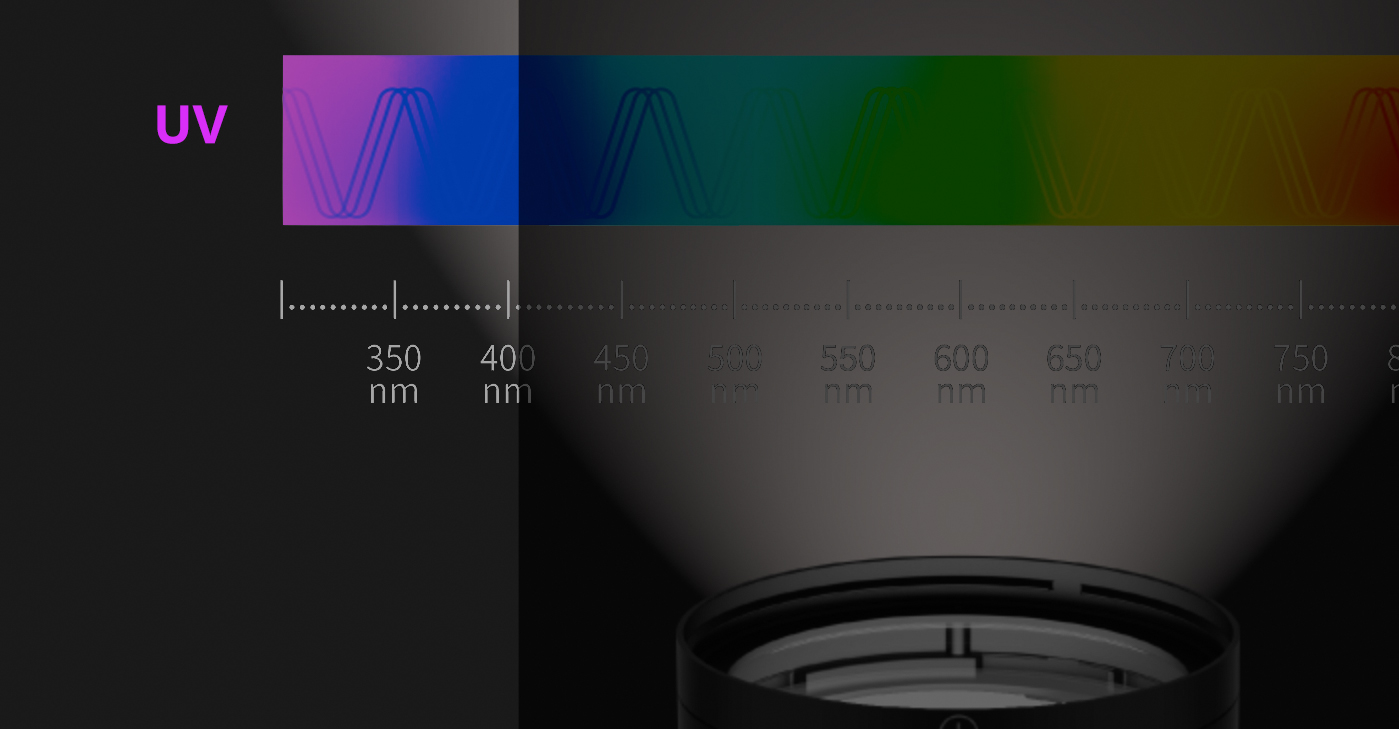

Photobiological Safety Shield, SWALLOW III Museum-Grade Protection
The SWALLOW III series inherits WAC’s renowned museum lighting expertise, delivering exceptional performance in both artifact preservation and visual comfort. UV Protection: UV < 2 μW/lm Flicker-Free Illumination: Dual-engine design with PstLM ≤ 0.5 & SVM < 0.1 achieves zero-flicker lighting beyond human perception. Exceeding Standards: Key performance indicators surpass national requirements by threefold, ensuring that artifacts are preserved within an absolutely secure light environment.
Projects
Specifications
Model | LED | Dimming | Beam | CRI | CCT | Finish |
ATL41H SWALLOW III | LD08 LD12 | O On-board D 0-10V+On-board A DALI | S 6° 1 15° 2 24° 3 36° 5 50° E 15*55° G 25*55° W Wall Washer | 9 90 A 97 | 30 3000K 35 3500K 40 4000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |
ATL42H SWALLOW III | LD12 LD18 LD24 | O On-board D 0-10V+On-board A DALI | S 6° 1 15° 2 24° 3 36° 5 50° E 15*55° G 25*55° W Wall Washer | 9 90 A 97 | 30 3000K 35 3500K 40 4000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish | |
ATL43H SWALLOW III | LD24 LD32 | O On-board D 0-10V+On-board A DALI | S 6° 1 15° 2 24° 3 36° 5 50° E 15*55° G 25*55° W Wall Washer | 9 90 A 97 | 30 3000K 35 3500K 40 4000K | WT White BK Black | |
Example: ATL43HLM32-O2930WT
