FUEGO COMPACT

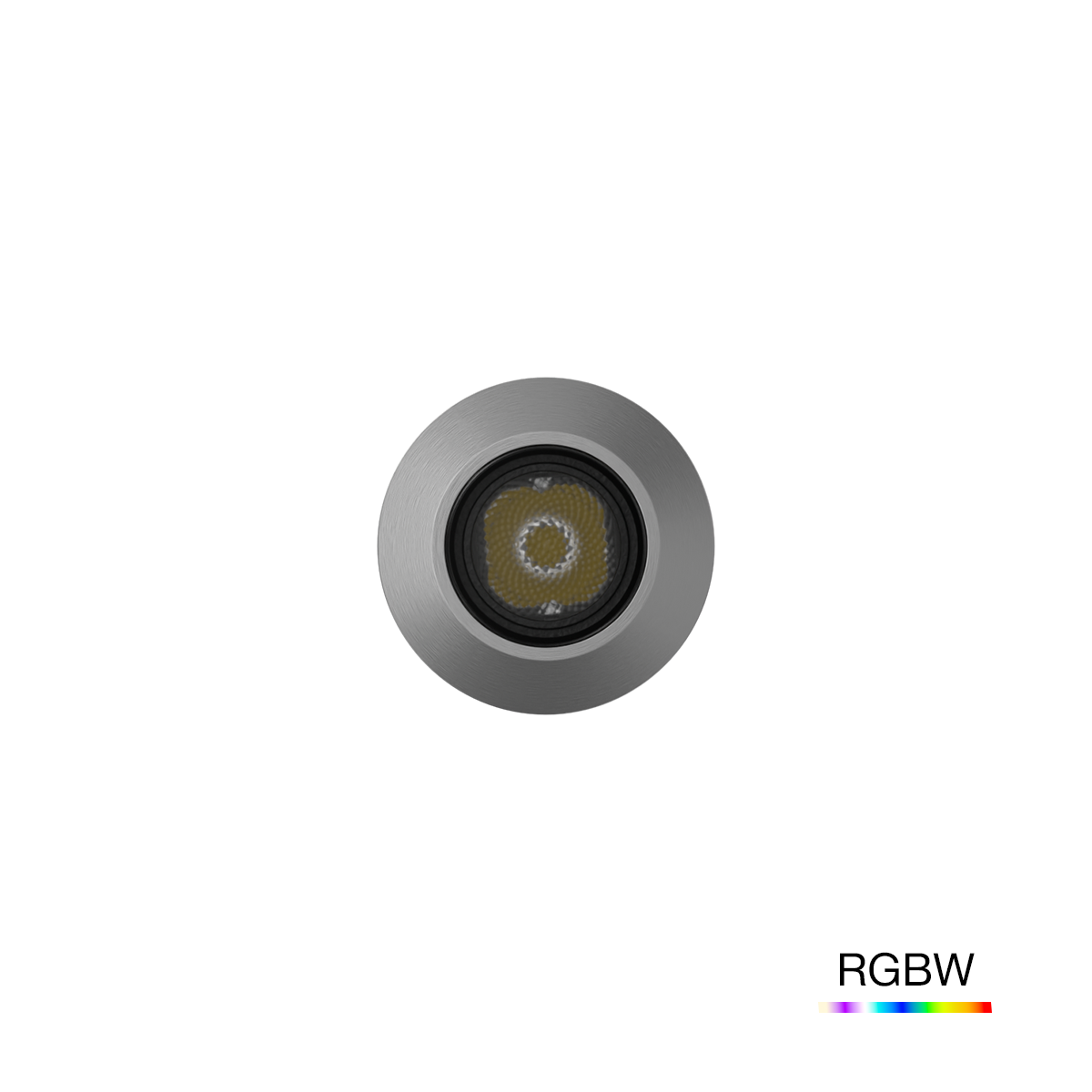

FUEGO COMPACT 1" RGBW
FCH01-RGBW

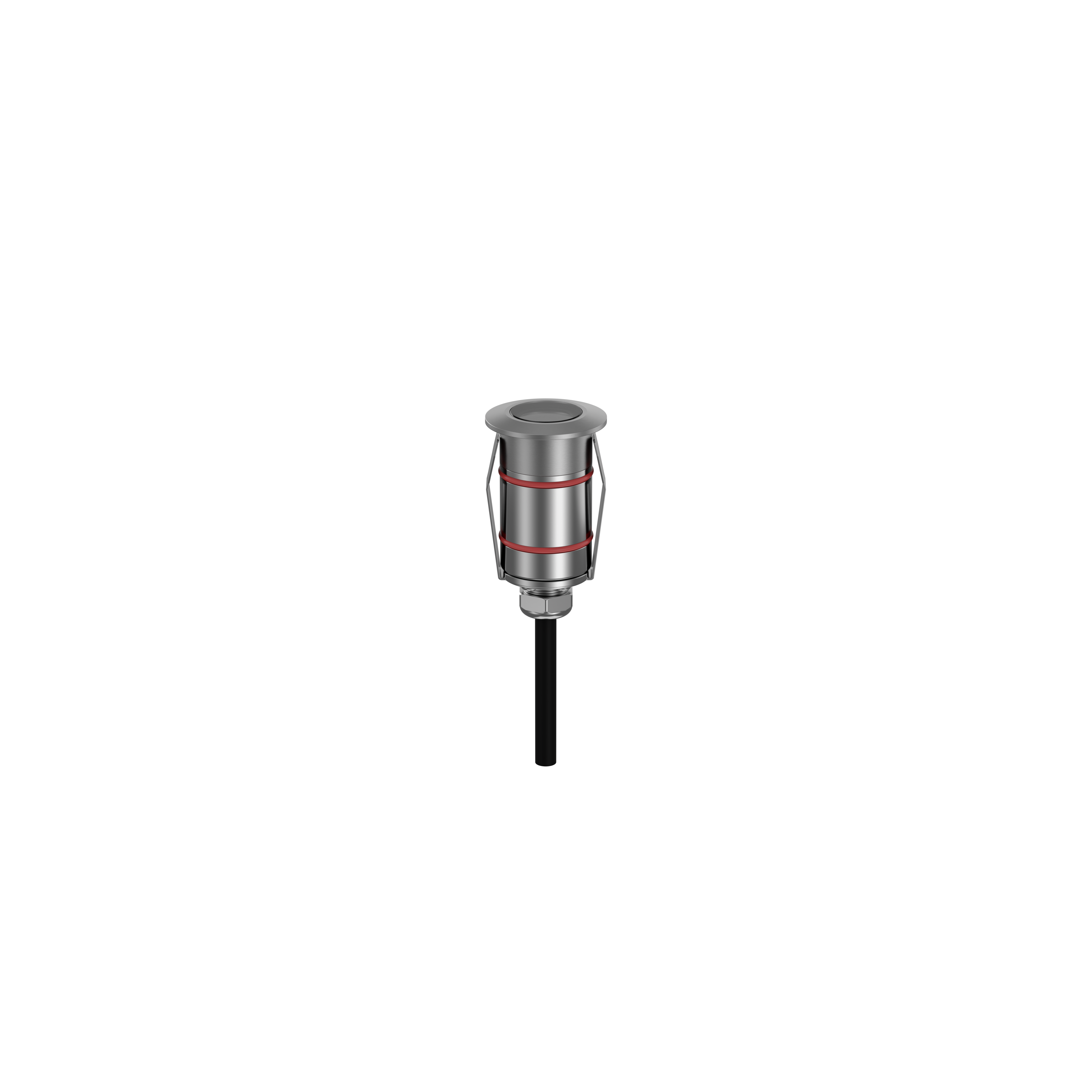

The FUEGO Compact features a high-quality 316 stainless steel face frame, an aluminum die-cast housing, and a high-temperature powder-coated finish. It is designed for outdoor environments, with an IP68 protection rating, IK08 impact resistance rating, and a load-bearing capacity of up to 1500 kg. The fixture is equipped with a high-transmittance lens and a patented anti-glare system. The pre-buried sleeve design allows for easy installation and maintenance. It is ideal for use in residential areas, including parks, plazas, shopping centers, and for facade lighting applications.
Specifications
| Model | Color Temperature & CRI | Control Options | Beam | Finish |
|---|---|---|---|---|
| FCH01 | RGB830 – 3000K – 80 CRI RGB840 – 4000K – 80 CRI RGB857 – 5700K – 80 CRI | D – DMX512-A | N – Narrow Flood – 40° | SS – Stainless Steel |
Example: FCH01-RGB840D-N-SS
