1 / 3
FUEGO COMPACT
FUEGO COMPACT 2" RGBW
FCH02-RGBW
The FUEGO Compact features a high-quality 316 stainless steel face frame, an aluminum
die-cast housing, and a high-temperature powder-coated finish. It is designed for outdoor
environments, with an IP68 protection rating, IK08 impact resistance rating, and a
load-bearing capacity of up to 1500 kg. The fixture is equipped with a high-transmittance lens

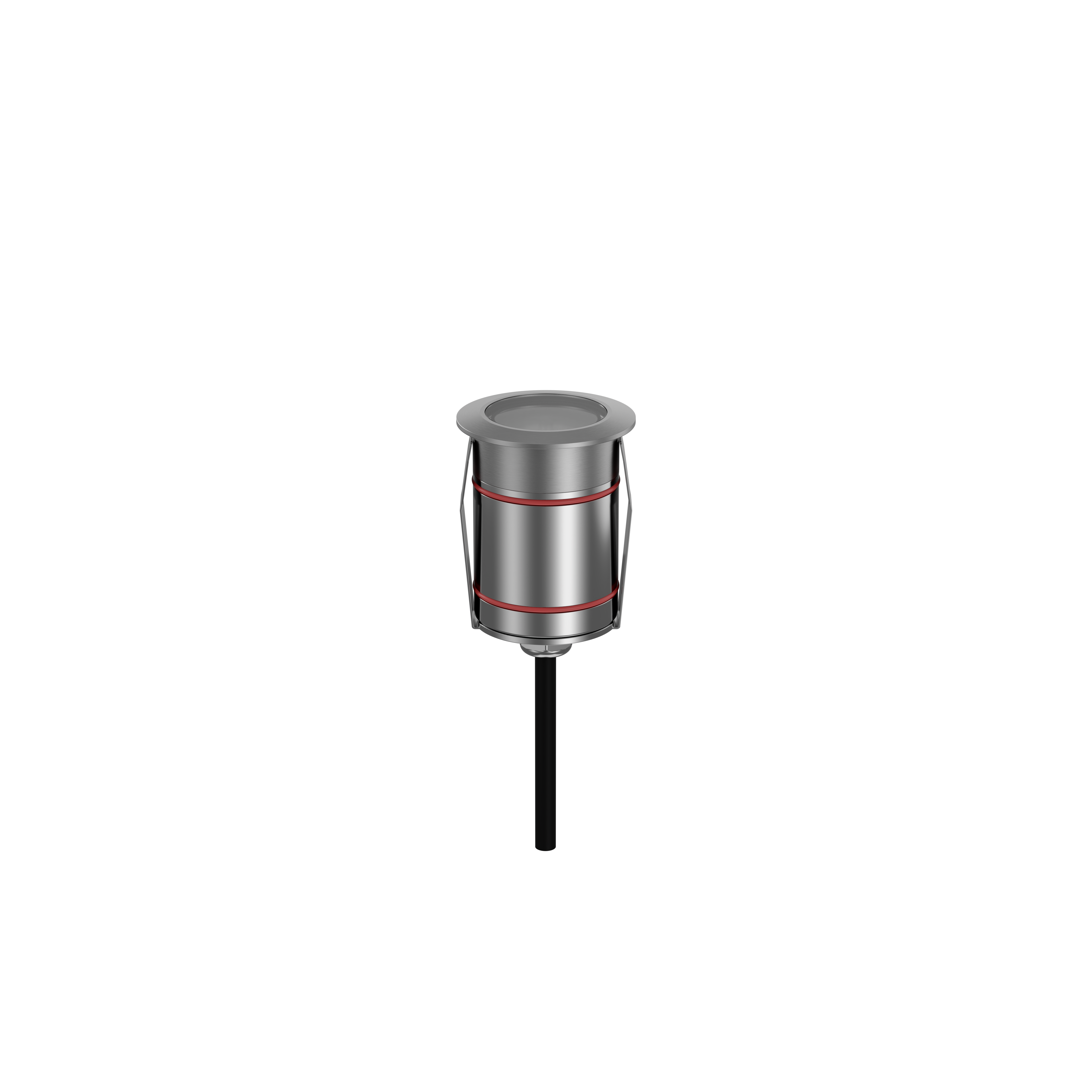

and a patented anti-glare system. The pre-buried sleeve design allows for easy installation
and maintenance. It is ideal for use in residential areas, including parks, plazas, shopping
centers, and for facade lighting applications.
Specifications
| Model | Color Temperature & CRI | Control Options | Beam | Finish |
|---|---|---|---|---|
| FCH02 | RGB830 – 3000K – 80 CRI RGB840 – 4000K – 80 CRI RGB857 – 5700K – 80 CRI | D – DMX512-A | N – Narrow Flood – 20° M – Medium Flood – 30° F – Flood – 40° W – Wide Flood – 50° E – Elongating – 35° × 50° | SS – Black-painted Stainless Steel |
Example: FCH02-RGB840D-F-SS
