FQ Color-Changing RGBW

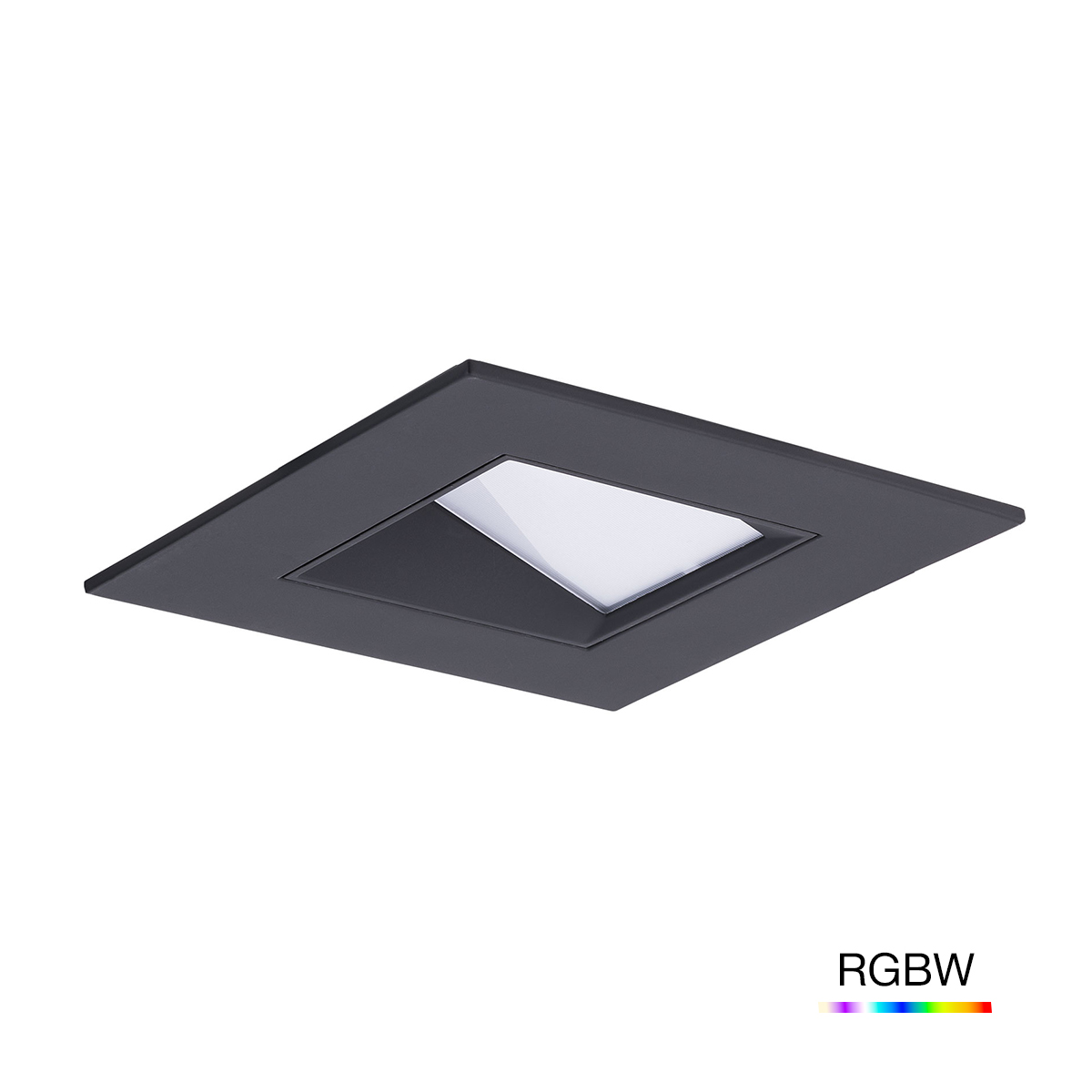

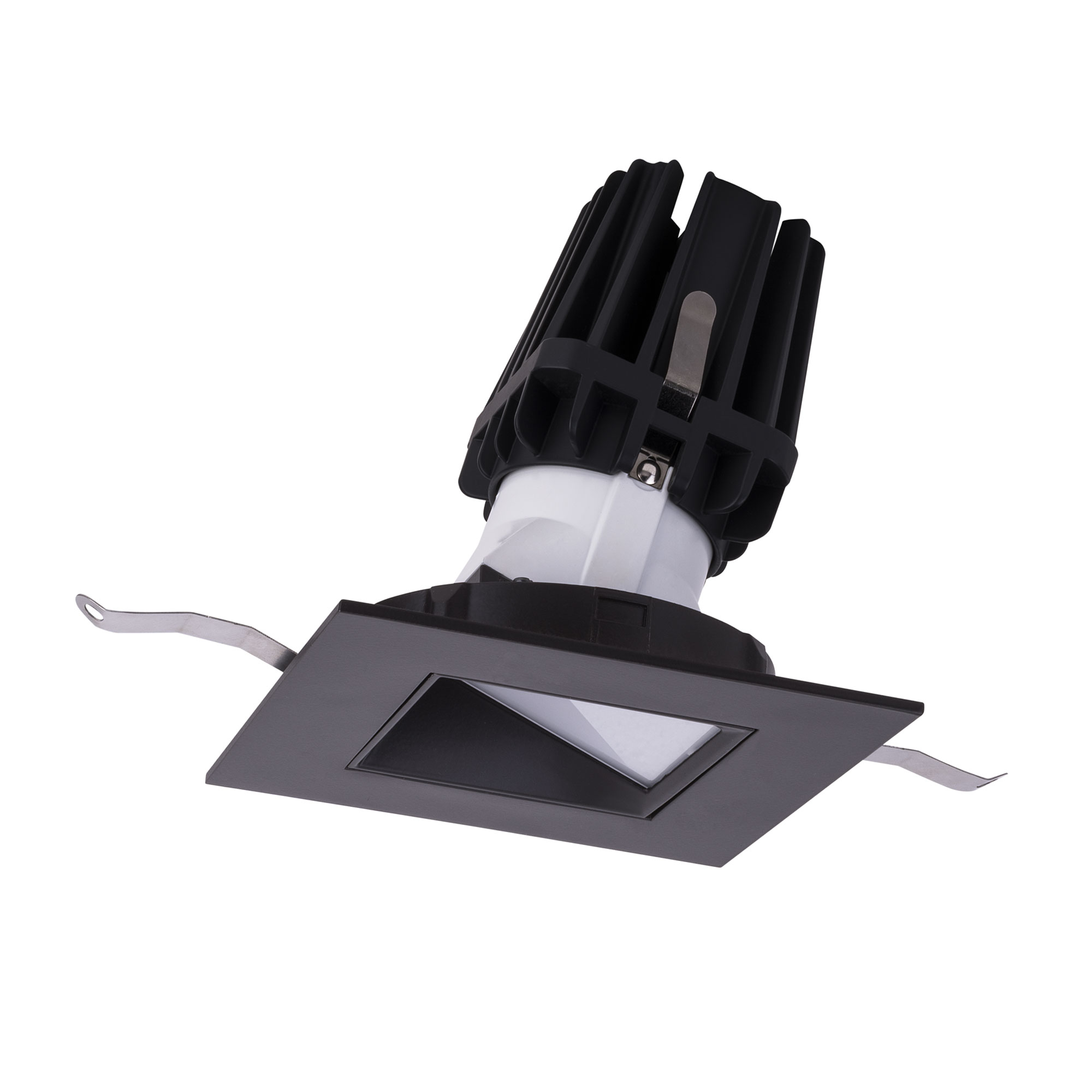

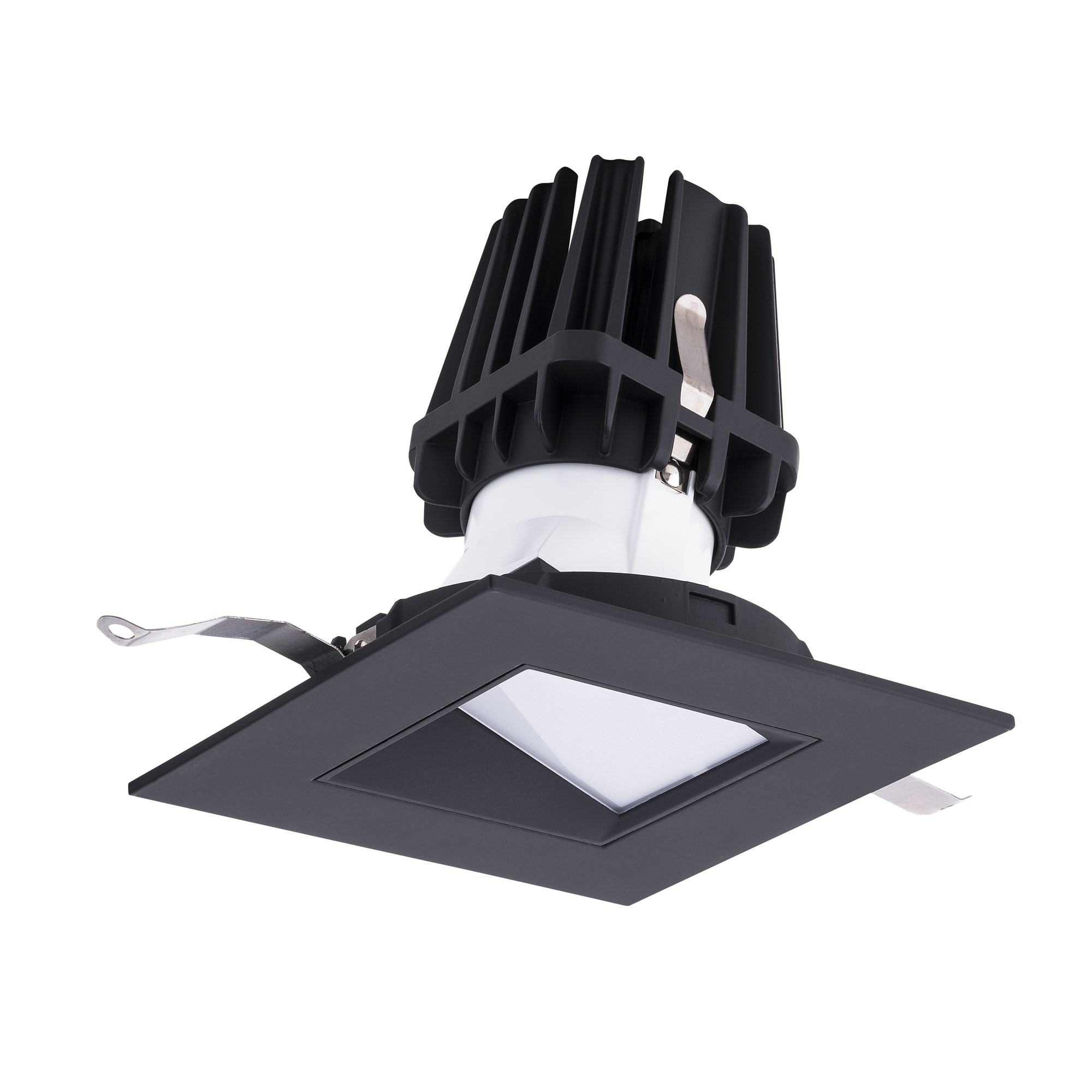

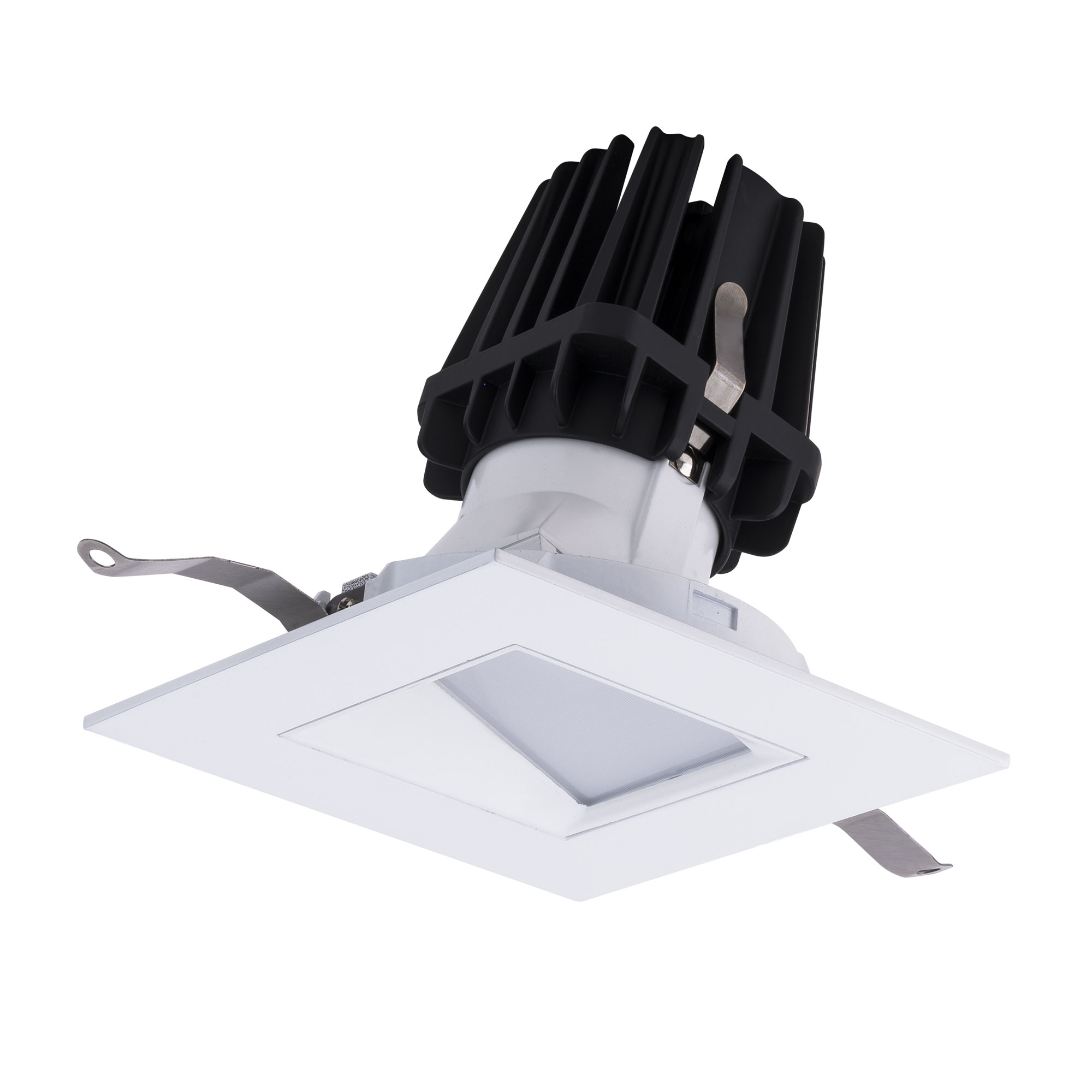

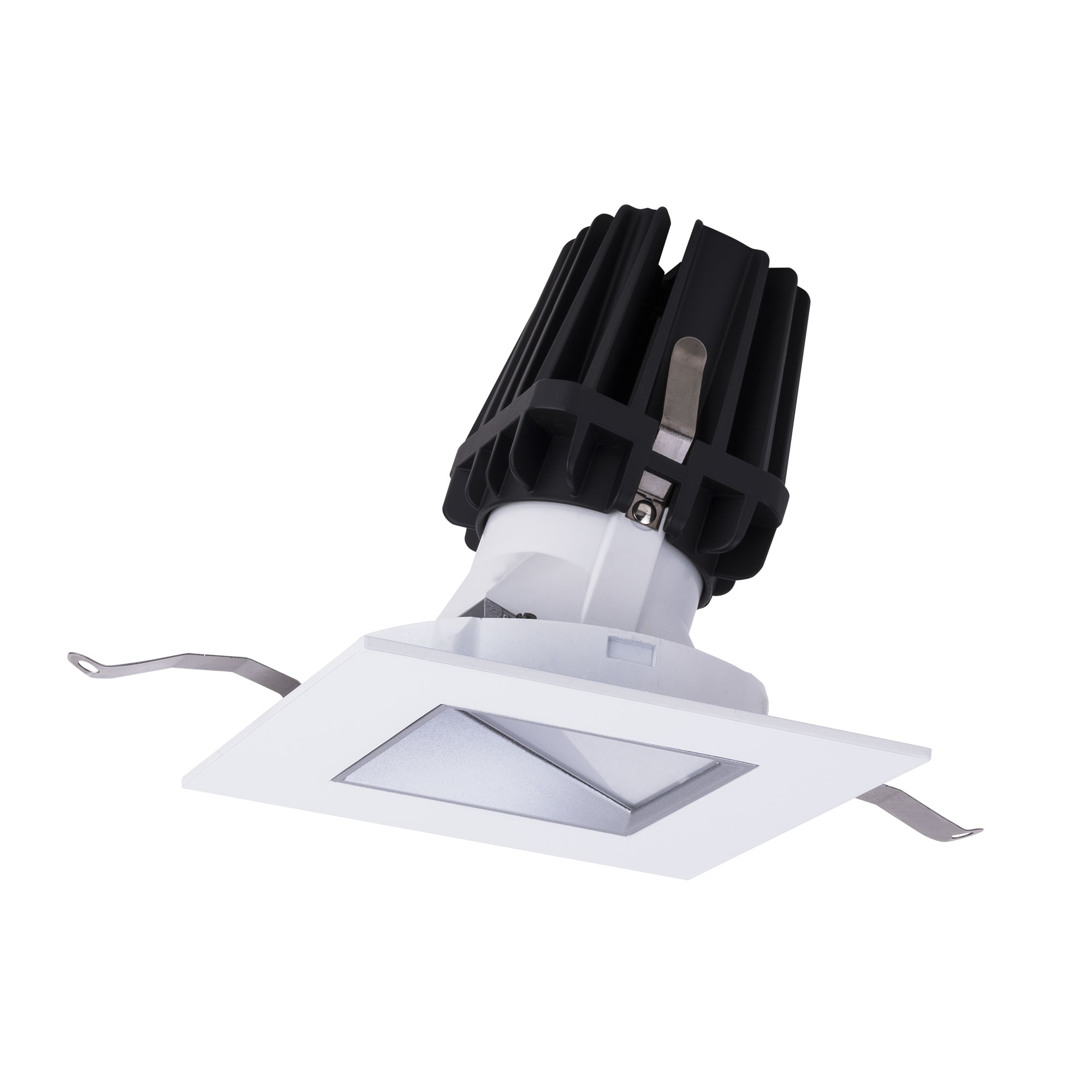

FQ 4″ RGBW Wall Wash Trimmed Square
R4FSWT-CCX
Full Visible Spectrum color-tuning LEDs feature improved efficacy and lumens, as well as refined optical technology that offers human-centric recessed downlighting, catering to the needs of the modern technologist and integrator. Choose any color you can imagine, including the crispest white light or the softest pastel, with the ability to control gradients of saturated colors and a Tunable White CCT range from 1800-6500K.
Specifications
| Model | Beam | *Lumens | *CBCP | Color Temp | CRI | Finishes | Reflector/Trim |
|---|---|---|---|---|---|---|---|
| R4FSWT Square Trim | A Asym | 810 | N/A | CCX Color Changing | 90+ | BK DB HZWT WT | Black Dark Bronze Haze/White White |
R4FSWT-CCX-____
Example: R4FSWT-CCX-WT
*Lumens shown in the table are reference values for 3000K trim.
Use multiplier table below to determine the output for other combinations.
