PANTHER

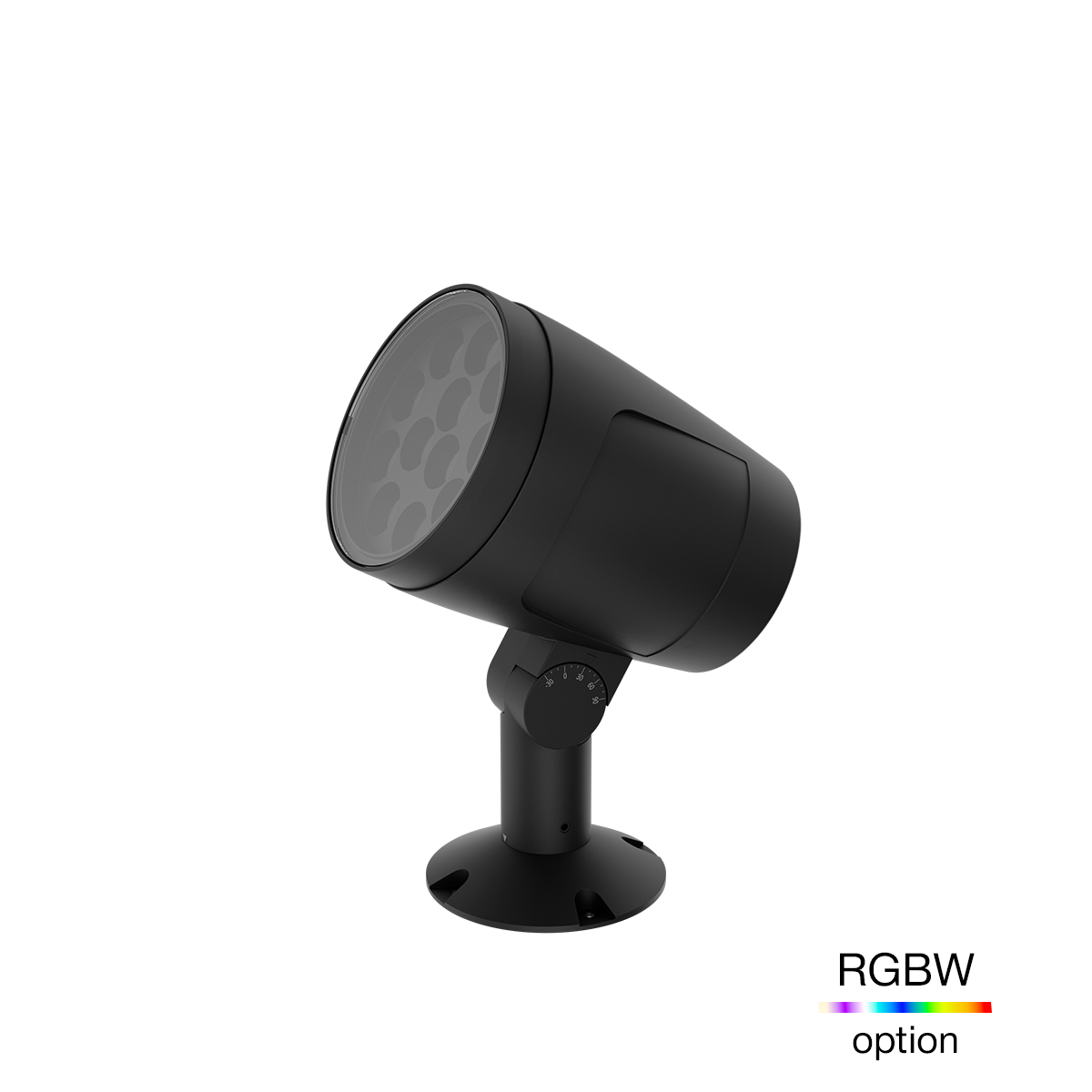

PANTHER 29W
PAL5-29
Utilizing the latest LED technology, the PANTHER series of luminaire features a low-profile design and high optical performance, available in a variety of sizes. The series supports vertical or horizontal mounting with precise adjustments in the direction of rotation. Recommended for architectural façade lighting or landscape spotlighting.
Specifications
| Model & Power | Dimming | Beam Angle | Color Temperature & CRI | Housing Finish |
|---|---|---|---|---|
| PAL5-29 | L - 0-10V D - DMX512-A | U - Ultra Narrow 6° S - Spot 13° N - Narrow Flood 22° M - Medium Flood 34° W - Wide Flood 50° | 927 - 2700K - 90 930 - 3000K - 90 940 - 4000K - 90 | BK - BLACK |
Example: PAL5-29D-M930-BK
| Model & Power | Color Temperature & CRI | Dimming | Beam Angle | Housing Finish |
|---|---|---|---|---|
| PAL5 | RGBW30 - 3000K - 80 CRI RGBW40 - 4000K - 80 CRI RGBW60 - 6000K - 80 CRI | D - DMX512-A | S - Spot 16° N - Narrow Flood 25° M - Medium Flood 35° | BK - BLACK |
Example: PAL5-RGBW40D-N-BK
